3-Way Stainless Steel 304/316 Ball Valve with Mounting Pad
Material:SS304,SS316,1.4308,1.4408,CF8,CF8M,WCB
Model:3-Way(L or R Port)
Connection:Threaded
Medium:Water,oil and Gas
Features | |
1000PSI/PN63 | Reduce Port |
Investment Casting | Blow-out Proof Stem |
PED/97/23EC(CE0036) Approved | Casting Approved: AD2000-W0 |
PTFE Seats & Seals | Inspection Testing: API598, EN12266 |
Anti-Static Device (option) | Length Conform to DIN3202/4-M3 |
Thread: ASME B1.20.1, BS21, DIN2999/259, ISO228-1 |
Material List | ||
Item | Description | Material |
1 | BODY | CF8/CF8M |
2 | CAP (1) | CF8/CF8M |
3 | CAP (2) | CF8/CF8M |
4 | BALL | CF8/CF8M |
5 | BALL SEAT | RPTFE |
6 | STEM | 304/316 |
7 | THRUST WASHER | PTFE |
8 | STEM PACKING | PTFE |
9 | GLAND NUT | 304 |
10 | SPRING WASHER | 304 |
11 | NUT | 304 |
12 | HANDLE COVER | PVC |
13 | HANDLE | 304/316 |
14 | WASHER | 304 |
15 | THRUST WASHER | 304 |
16 | O-RING | VITON |
17 | JOIN GASKET | PTFE |

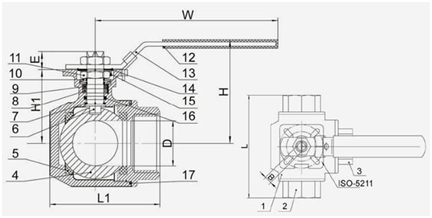

Dimensions (mm) | ||||||||
Size | ΦD | W | L±2 | L1±2 | H | E±1 | ISO5211 | H1 |
1/4” | 9 | 139 | 79 | 64 | 73 | 9 | F04/03 | 42 |
3/8” | 11 | 139 | 79 | 64 | 73 | 9 | F04/03 | 42 |
1/2” | 12.5 | 139 | 79 | 64 | 73 | 9 | F04/03 | 42 |
3/4” | 16 | 139 | 83 | 68 | 80 | 9 | F04/03 | 49 |
1” | 20 | 160 | 104 | 82 | 95 | 11 | F05/04 | 59.5 |
1-1/4” | 25 | 160 | 111 | 90 | 98 | 11 | F05/04 | 63 |
1-1/2” | 32 | 185 | 126 | 106 | 110 | 14 | F07/05 | 73.5 |
2” | 38 | 185 | 147 | 123 | 119 | 14 | F07/05 | 82.5 |
3-Way Stainless Steel 304/316 Ball Valve with Mounting Pad
Material:SS304,SS316,1.4308,1.4408,CF8,CF8M,WCB
Model:3-Way(L or R Port)
Connection:Threaded
Medium:Water,oil and Gas
Features | |
1000PSI/PN63 | Reduce Port |
Investment Casting | Blow-out Proof Stem |
PED/97/23EC(CE0036) Approved | Casting Approved: AD2000-W0 |
PTFE Seats & Seals | Inspection Testing: API598, EN12266 |
Anti-Static Device (option) | Length Conform to DIN3202/4-M3 |
Thread: ASME B1.20.1, BS21, DIN2999/259, ISO228-1 |
Material List | ||
Item | Description | Material |
1 | BODY | CF8/CF8M |
2 | CAP (1) | CF8/CF8M |
3 | CAP (2) | CF8/CF8M |
4 | BALL | CF8/CF8M |
5 | BALL SEAT | RPTFE |
6 | STEM | 304/316 |
7 | THRUST WASHER | PTFE |
8 | STEM PACKING | PTFE |
9 | GLAND NUT | 304 |
10 | SPRING WASHER | 304 |
11 | NUT | 304 |
12 | HANDLE COVER | PVC |
13 | HANDLE | 304/316 |
14 | WASHER | 304 |
15 | THRUST WASHER | 304 |
16 | O-RING | VITON |
17 | JOIN GASKET | PTFE |
Dimensions (mm) | ||||||||
Size | ΦD | W | L±2 | L1±2 | H | E±1 | ISO5211 | H1 |
1/4” | 9 | 139 | 79 | 64 | 73 | 9 | F04/03 | 42 |
3/8” | 11 | 139 | 79 | 64 | 73 | 9 | F04/03 | 42 |
1/2” | 12.5 | 139 | 79 | 64 | 73 | 9 | F04/03 | 42 |
3/4” | 16 | 139 | 83 | 68 | 80 | 9 | F04/03 | 49 |
1” | 20 | 160 | 104 | 82 | 95 | 11 | F05/04 | 59.5 |
1-1/4” | 25 | 160 | 111 | 90 | 98 | 11 | F05/04 | 63 |
1-1/2” | 32 | 185 | 126 | 106 | 110 | 14 | F07/05 | 73.5 |
2” | 38 | 185 | 147 | 123 | 119 | 14 | F07/05 | 82.5 |
