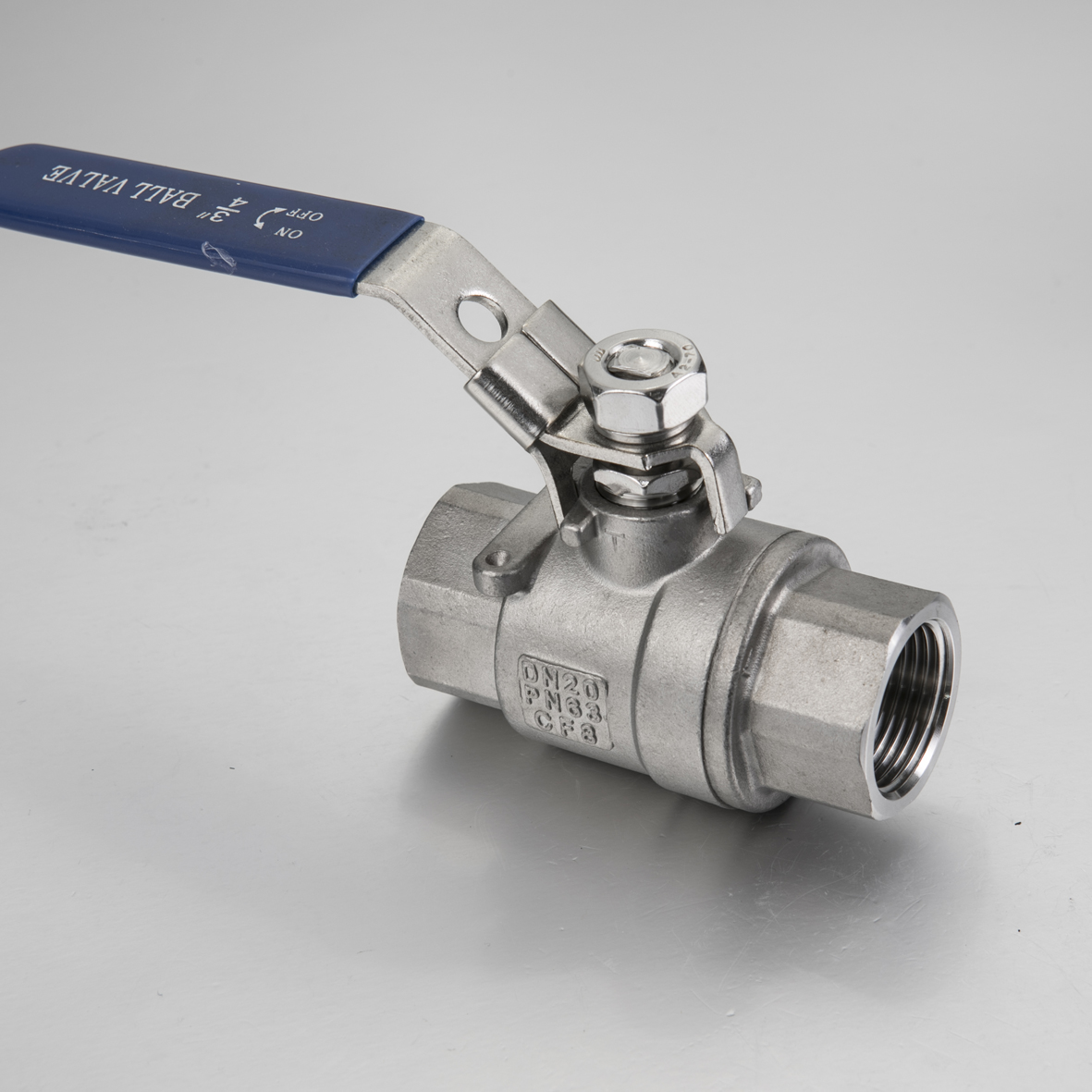

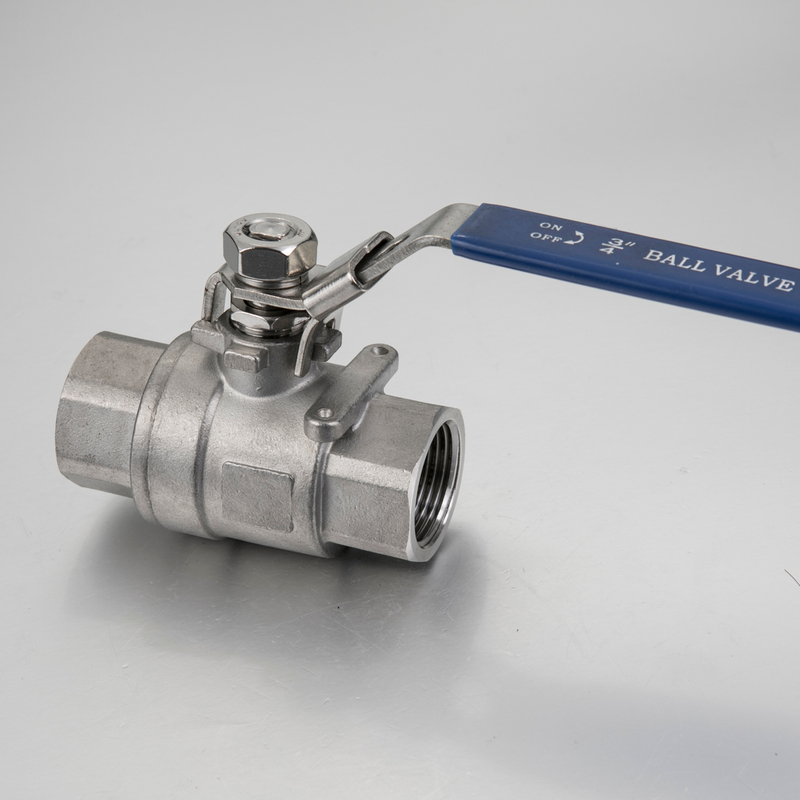

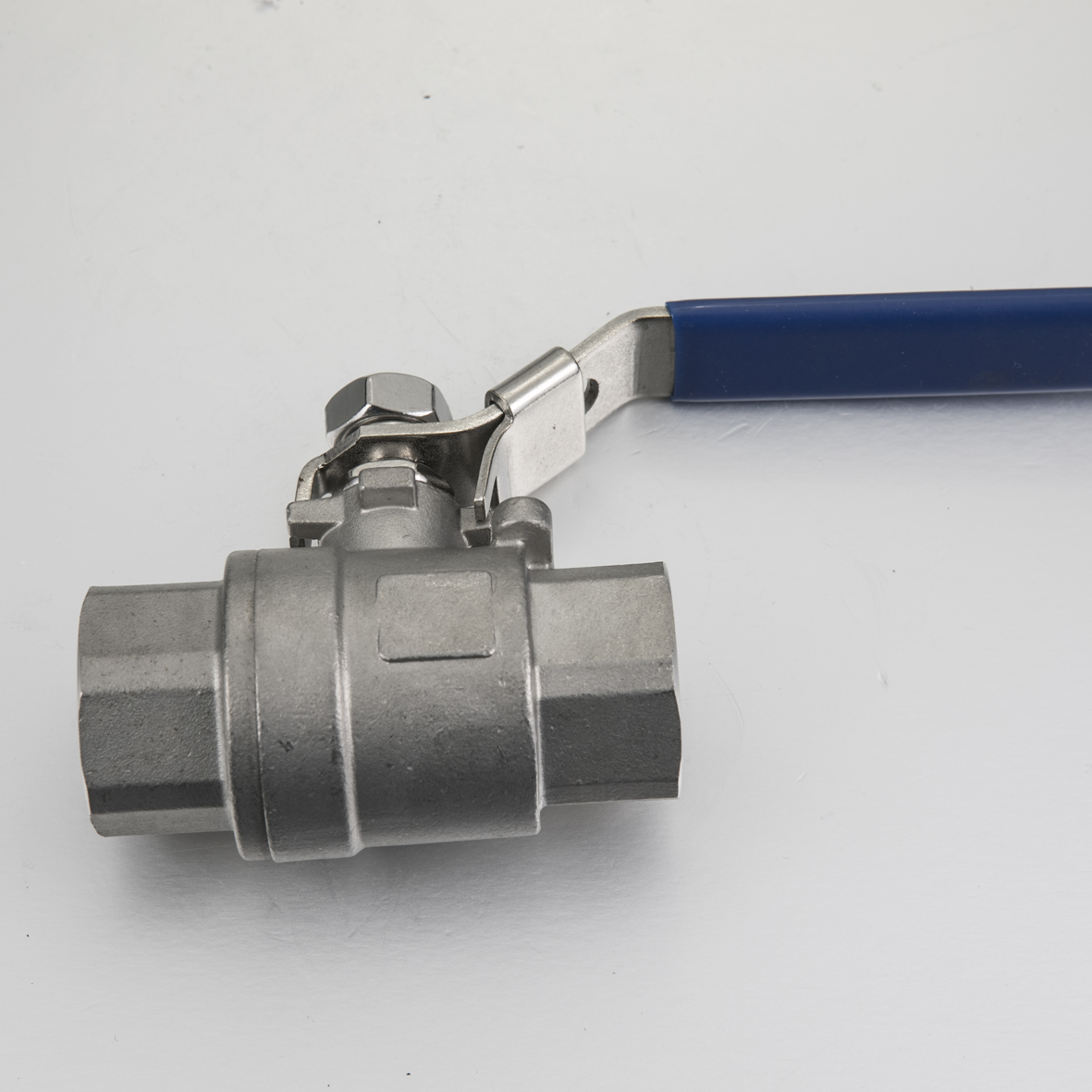

2PC Stainless Steel 304/316 Ball Valve DIN3202-M6

  • JAZZY

Size(INCH):
Availability:


2PC Stainless Steel 304/316 Ball Valve DIN3202-M6


Material:SS304,SS316,1.4308,1.4408,CF8,CF8M,WCB

Model:2PC

Connection:Threaded

Medium:Water,oil and Gas

2PC Stainless Steel 304/316 Ball Valve DIN3202-M6 Sizes & Dimensions



Features

1000PSI/PN63

Full Port

Investment   Casting

Blow-out   Proof Stem

PED/97/23EC(CE0036)   Approved

Casting   Approved: AD2000-W0

PTFE   Seats & Seals

Inspection   Testing: API598, EN12266

Thread:   ASME B1.20.1, BS21, DIN2999/259, ISO228-1

Length   Conform to DIN3202/4-M3

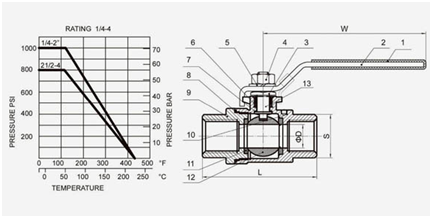

2PC Ball valve DIN3202-M6


Material List

Item

Description

Material

1

HANDLE   SLEEVE

PVC

2

HANDLE

304

3

LOCKING

304

4

GLAND NUT

304

5

STEM NUT

304

6

SPRING   WASHER

304

7

STEM   PACKING

PEFT

8

THRUST   WASHER

PTFE

9

CAP

CF8/CF8M

10

BODY

CF8/CF8M

11

BALL SEAT

RPTFE

12

BALL

CF8/CF8M

13

STEM

304/316


Dimensions (mm)

Size

1/4”

3/8”

1/2”

3/4”

1”

1-1/4”

1-1/2”

2”

2-1/2”

3”

4”

D

11.6

12.5

15

20

25

32

38

50

64

76

94

L

55

60

75

80

90

110

120

140

185

205

240

H

48

48

52

61

65

79

83

97

135

144

166

W

103

103

103

123

123

153

153

185

243

243

295

S

22

22

26

32

39

48.5

55

68

84

99

128





Advantages


High-End Mechanical Equiment

Jazzy has many factories and production lines, and has led promotional equipment to support the production of the latest promotional products. All employees must receive training before going on duty. Jazzy would organize monthly training on production skills.


222










Standardized Stainless Steel Ball Valve Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.


5


Standardized Thread and Pressure Inspection

Jazzy will take the initiative to send the products to inspection and spot check. Each time our test results exceed the international standards. Jazzy is also beyond some standards of the same industry with standardized production process that is in an inspection process. All larger samples will be sent for inspection, meeting the national inspection and testing standards.


333 222

Professional Warehouse Mangagement System

Stock of Finished Goods

666
