Jazzy's pipe material is recognized as a healthy material, widely used in food processing and transportation pipeline, including the pharmaceutical industry, beverages, brewing and so on.
Jazzy's pipe material performance is superior, effectively reduce the cost of transportation, in the long process of transport will not scale, smooth inner wall, while transporting low energy consumption, is the lowest cost of water pipes so far. In addition, there are medical use, such as a variety of human steel stent, the human body nails, artificial bones, artificial teeth, etc., stainless steel tube material is almost the only human body can be implanted health materials.

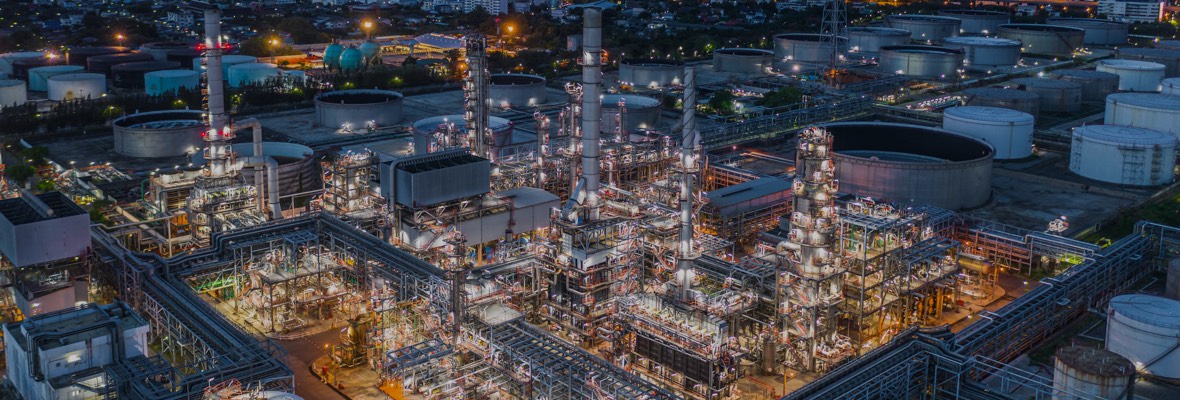

CHEMICAL PROCESSING

APPLICATION IN THE CHEMICAL PROCESSING INDUSTRY

Jazzy recognizes the high temperature, high pressure, non cleaning and strong corrosion features of the working conditions in petrochemical and chemical industries. Jazzy designs and manufactures almost all types of valves and pipe fittings for chemical processing applications including materials covering carbon steel, stainless steel, nickel base alloy and titanium alloy, sizes ranging from 1 / 2 inch to 60 inch, with a pressure rating of up to 2500 × 3. By combining innovative products with excellent technology research and development capabilities, global procurement information network, intelligent production quality control, Jazzy can deliver a complete set of petrochemical system solutions.

Project: Oil Refining and Chemical Integration Project
Operating Conditions
Medium: Oil, water and gas
Application: Boiler area connection pipe
Size: 1 / 2"- 36"
Temperature: 600℃-1200℃
Pipeline Pressure: 0.95Mpa-13.79Mpa

Recommend all kinds of stainless steel ball valves from jazzy with the following advantages.
Solutions and Benefits:
1. Small flow resistance. Its resistance coefficient equal to that of the same length of pipe section.
2. Simple structure, small volume and light weight.
3. Tight and reliable sealing. The sealing surface material of ball valve is widely used in plastic, with good sealing performance which has also been widely used in vacuum system.
4. Convenient operation, fast opening and closing, from full opening to full closing with only 90 ° rotation which is convenient for remote control.
5. Convenient maintenance as the ball valve structure is simple. The sealing ring is generally movable, so the disassembly and replacement are relatively convenient.
6. Anti-Corrosion. When the valve is fully open or closed, the sealing surface of the ball and the valve seat is isolated from the medium so that the valve sealing surface will not be eroded when the medium passes through.
7. A wide range of applications. Stainless steel ball valve can be used in a wide range of applications, from small diameter to a few millimeters, from high vacuum to high pressure.

1PC Ball Valve

2PC Flange Ball Valve Class150

3PC Ball Valve Socket Weld End

Y Strainer

3 Way Ball Valve with Mounting Pad

SS Gate Valve

Swing Check Valve

Mini Ball Valve FXF

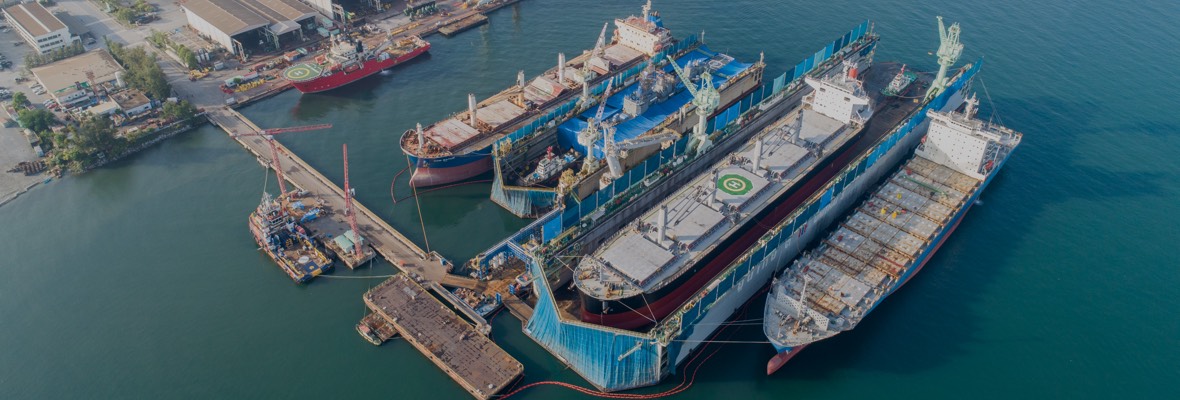

SHIPBUILDING

APPLICATION IN THE SHIPBUILIDNG INDUSTRY

Jazzy offers a series of very professional ship valve solutions for your choice. Jazzy recommends ball valves and butterfly valves with the advantages of light weight, small size, good sealing performance, quick and convenient on and off which can replace stop valves and gate valves. Jazzy also self develops and designs special valves, such as large displacement drain valve, special pressure reducing valve, high-pressure air solenoid valve for ship use.

Jazzy also provides a variety of on-site technical services to support our shipbuilding industry partners with a large network of trained inspectors, product managers and distributors ready to provide on-site support for your needs.

Project: Shipyard Pipeline Integration Project
Medium: Fuel oil, steam, water, etc.
Temperature: The temperature may change from extremely cold to extremely hot when the engine is running as it is set in the engine room
Size: 1 " to 36"

Solutions and Benefits:
As marine valves are generally used in boiler, diesel engine room and other unmanned areas, especially when running (the medium is generally flammable and explosive such as fuel oil and oil), the safety comes first. However, the failure of valve body and bonnet of marine valve is nothing more than damage, sand hole and corrosion aging.
After the customer tried several competitors' products, he finally chose the valve of Jazzy as stainless steel ball valve, butterfly valve and drain valve provided by jazzy are safer and more stable which is exactly the basis to ensure the operation safety of ship equipment.

2PC Ball Valve

45 Degree Elbow

90 Degree Elbow

Cap

Equal Tee

Float Steam Trap

Reducer

Short Stud End

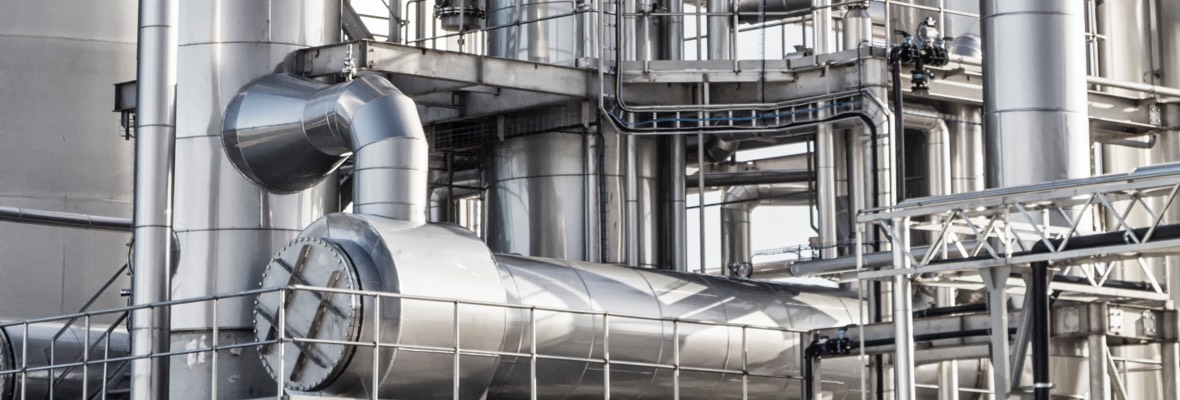

GAS AND OIL

APPLICATION IN THE OIL AND GAS INDUSTRY

Oil and gas has different forms in different states. For example, liquid natural gas can be liquefied at low temperature (as low as - 160 ℃). Petroleum gas can be pressurized into LPG at room temperature.
Due to consideration of polar climate or exposure to gas rapid depressurization environment. Jazzy design needs to consider whether it can operate normally under freezing conditions. Ultra-low temperature pipe valve is usually used for liquefied gas conditions.
Jazzy manufactures ultra-low temperature stop valve, ball valve and stainless steel pipe fittings with a strong pressure measurement ability of low and ultra-low temperature pipe valves. The lowest pressure measurement temperature is - 196 ℃.

Project: Oil Pipeline Integration Project in Russia
Operating Conditions
Medium: Oil and gas
Size: According to the specific situation
Temperature: - 40℃ to - 80℃
Applying: Pipeline connections

Solutions and Benefits:
As the medium in such operation conditions is not only in the low temperature, but also toxic, flammable and explosive, and highly permeable, our clients had special requirements for the material and design of the pipe valve are determined.
Jazzy increases the packing part of the valve and adopts the extended stem to reduce the heat in the external input device and ensure that the temperature of the stuffing box is above 0 ℃, so that the stuffing can work normally which c an prevent frosting or freezing of the stem and parts on the bonnet due to the over cooling of the packing part.
Jazzy selects ferritic stainless steel with working temperature above 100 ℃, austenitic stainless steel below -100 ℃, and copper alloy or aluminum alloy for low pressure and small caliber valves.

2 Valve Manifold

Bellows Seal Globe Valve

90 Degree Elbow

Equal Tee A105

Ball Valve OD End 1500PSI

Hexagon Needle Valve 10000PSI

Long Hexagon Nipple

Union Cross

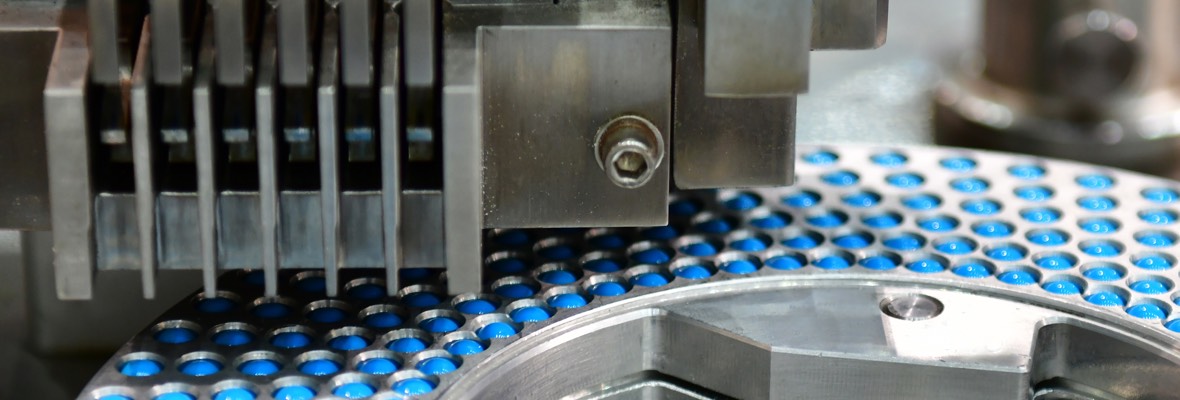

PHARMACEUTUCAL INDUSTRY

APPLICATION IN PHARMACEUTUCAL INDUSTRY

Cleanliness, traceability and FDA / USP compliance are essential to avoid contamination in pharmaceutical processing. Jazzy recognizes potential hazards and critical need for personal safety in pharmaceutical processing industry while taking into account of the selection of reliable sanitary valves and pipe fittings. Jazzy designs and manufactures different types and materials of sanitary butterfly valve, check valve and various sizes of pipe fittings.

Project: Pharmaceutical Granulator with Valves and Fittings Integration Project
Operating Conditions
Equipment: Pharmaceutical granulator
Volume: 300L-500L
Temperature: Below 100℃ near the shaft seal
Pressure: Normal Pressure
Speed: 1000r / min
Medium: Powder and granular materials

Solutions and Benefits
Sanitary Ball Valve: Smooth inner wall with no remnant and bacteria being able to hide in the body.
Sanitary Pipe Fittings: Corrosion resistant. Long service life. Light weight and recyclable green material.
Jazzy's sanitary valve adopts DIN, SMS, 3A, ISO, RTJ and other international technical standards. The materials are all made of SUS304 and SUS316L with polished inner mirror surface whose finish RA is less than or equal to 0.28um and surface treatment adopting mechanical polishing, grinding and other forms.

Clamp Set

Hose Nipple Clamp End

90 Degree Elbow

Sanitary Butterfly Valve Clamp End

Coupling

Sanitary Butterfly Valve Weld End

Equal Tee

Union

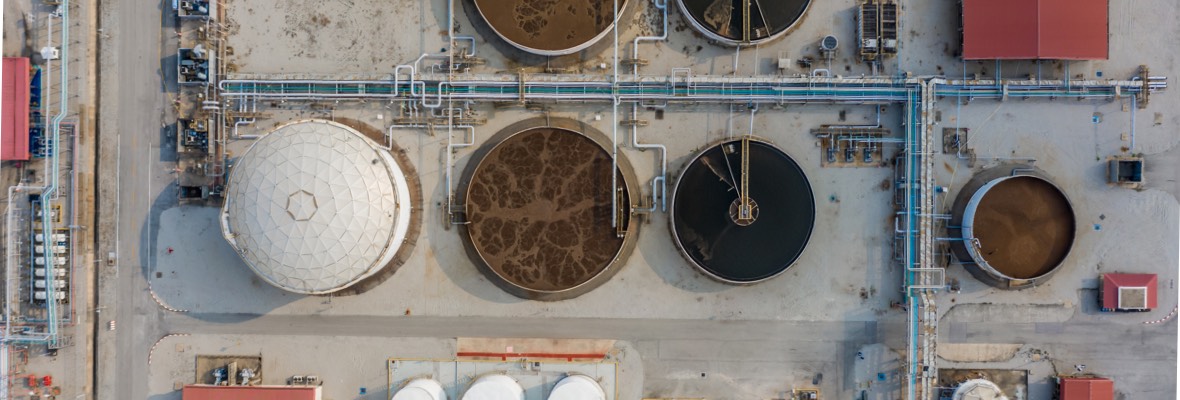

WATER TREATMENT

APPLICATION IN THE WATER TREATMENT

As a comprehensive enterprise integrating scientific research, development, production and sales, Jazzy offers professional research and production of valve accessories to meet the relevant planning standards of municipal water construction. The butterfly valve and stainless steel pipe fittings produced by jazzy can bear the discharge standards of sewage, dirty water and industrial waste water produced in daily life.
Jazzy has made outstanding achievements in water engineering construction, water system environmental treatment and other aspects, providing customers with a more green, scientific and effective water supply and drainage engineering supporting scheme.

Project Name: Integrated Municipal Sewage Treatment Project
Operating Conditions
Medium: Water
Temperature: Below 200℃
Pressure: Below 4MPa
Size: 1-1 / 2 "to 16"

Solutions and Benefits:
The urban sewage discharge work lags behind as the design of the sewage discharge pipeline and butterfly valve is unreasonable and the buried depth is not deep enough. In view of the sewage pipeline, sewage needs to be discharged quickly to avoid the impact on production, life and ecological environment. Jazzy designs and manufactures all kinds of butterfly valves and stainless steel pipe fittings according to the buried depth of the sewage pipeline to avoid the impact on production, life and ecological environment with the following advantages:
1. Simple structure, small volume, light weight and low consumption.
2. Quick on and off, small flow resistance.
3. It can be used for medium with suspended solid particles, and also for powder and granular medium according to the strength of sealing surface.

90 Degree Elbow

Hexagon Cap

Barrel Nipple

Hexagon Plug

Butterfly Valve

Reducing Socket Banded

Cross

Union MXF

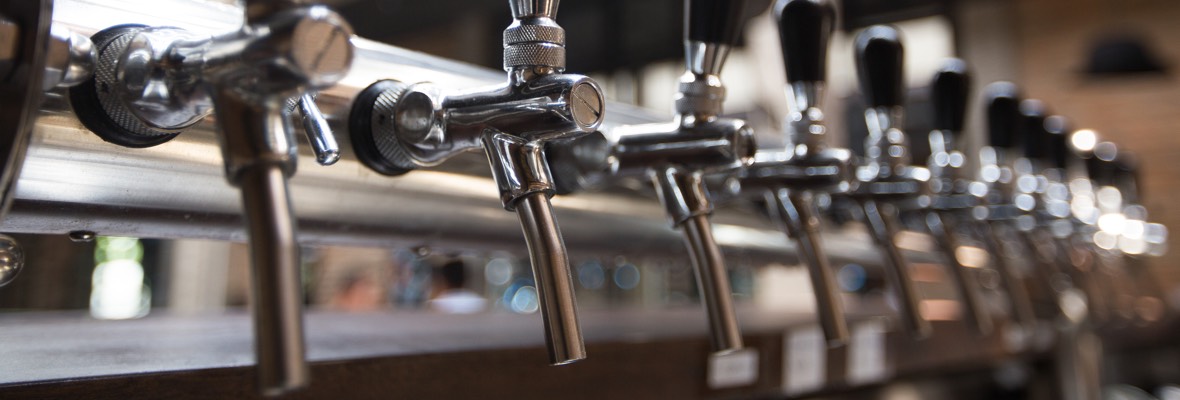

FOOD AND BEVERAGE

APPLICATION IN THE FOOD AND BEVERAGE

Jazzy is a high-tech enterprise integrating the R & D, manufacturing and sales services of sanitary valve fittings. Jazzy has experienced technical research and development, quality control and service team, which firmly guarantees the product quality and warm and thoughtful after-sales service. Jazzy provides design, customization, testing and other project solutions and continuous services for many food and beer brewing enterprises.

Project: Beer Manufacturer Project
The main part of beer brewing equipment is saccharification system, fermentation system, ice water tank and other double-layer insulation tank parts, valve body and pipe fittings, etc., all of which are made of high-quality sanitary stainless steel.
Operating Conditions
Medium: beer, wine, fermented wine, etc
Medium (sterilization): steam (82 ℃ / 180 ℃)
Size (pipe / hose): 1 / 2 "to 3" of each type
Size (box): 8 "ring
Temperature: 100 ℃
Pressure: 0.4MPa

Solutions and Benefits:
Jazzy establishes long-term business cooperation with clients in order to understand a series of problems in the practical process and provide accurate after-sales service. Jazzy always recommends clients to throw the internal and external roughness of sanitary valves and fittings to below 0.3 μm which ensures the pure taste and hygienic index of beer and also greatly prolongs the effective service life of the equipment.

45 Degree Elbow

90 Degree Elbow

Clamp Set

Cleaning Ball

Equal Tee

Sanitary Ball Valve Clamp End

Sanitary Butterfly Valve Weld End

Union
