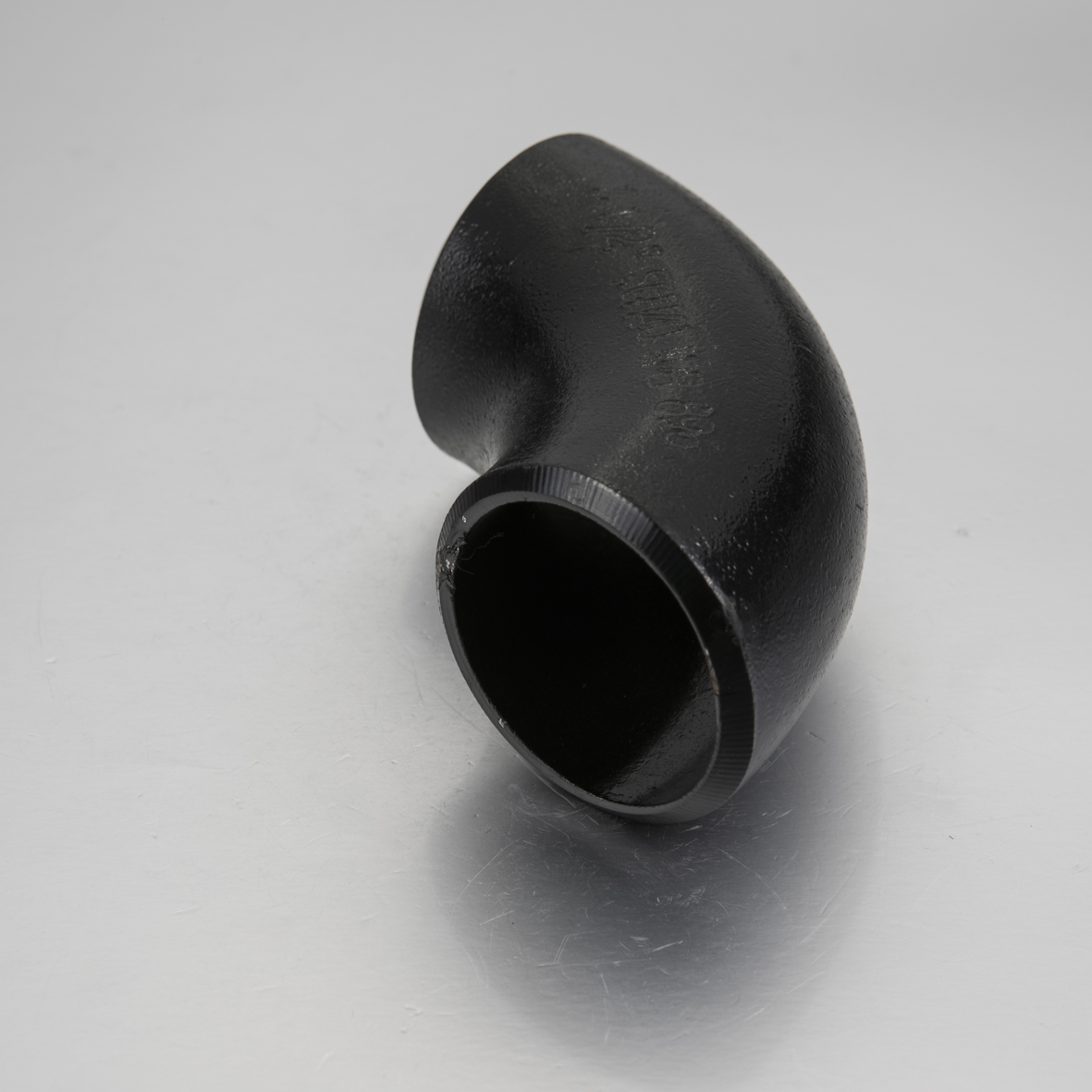

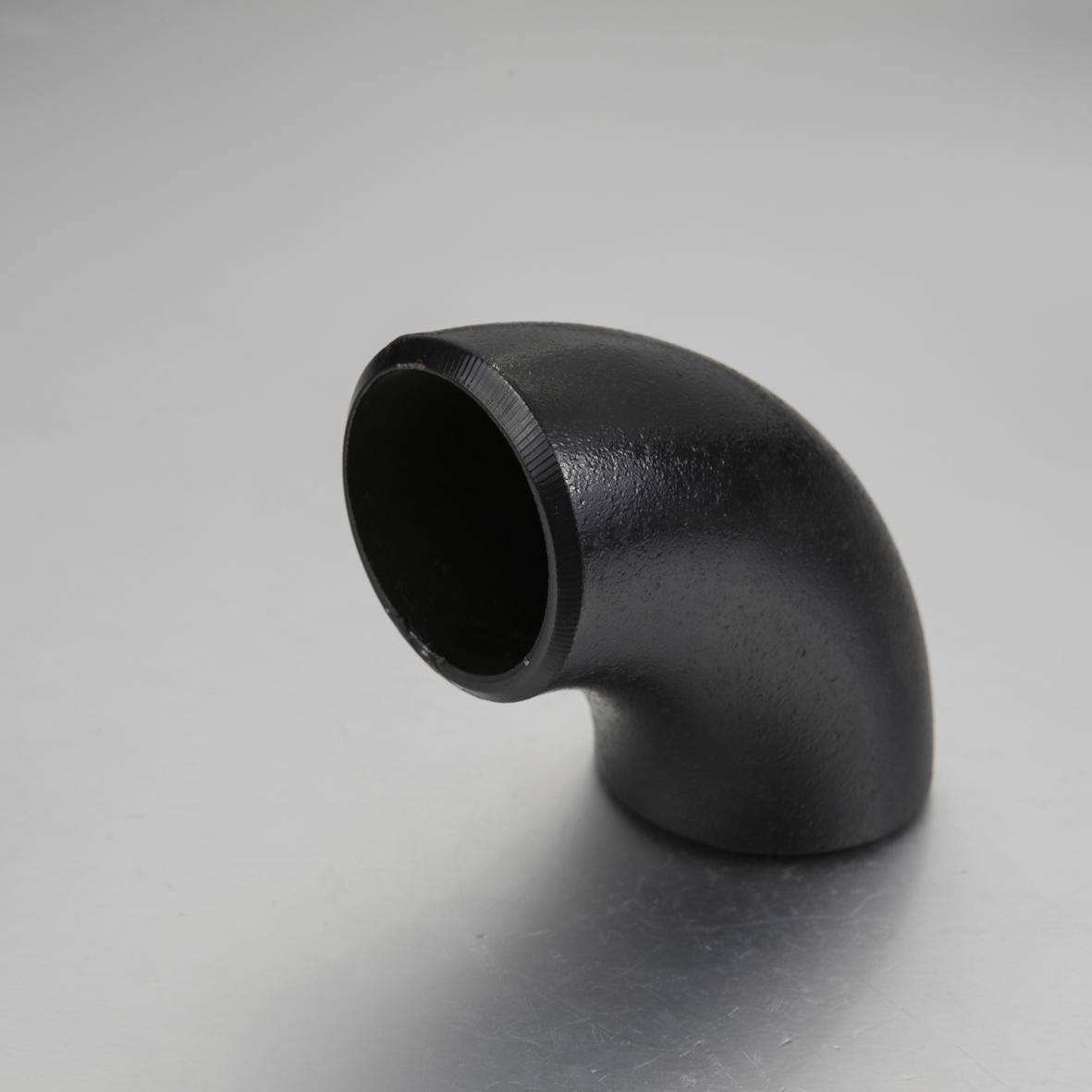

Carbon Steel Butt Weld 90 Degree Elbow

  • JAZZY

Size(INCH):
Please select
Availability:


Carbon Steel Butt Weld 90 Degree Elbow


Material:ASTM A234 WPB

Standard:ASME B16.9

Type:   Elbow

Schedule: SCH5S,SCH10S,SCH40S,SCH80S

Size:1/2" to 30"

Carbon Steel Butt Weld 90 Degree Elbow Sizes & Dimensions


Elbow(Long,Short)

90 Degree Elbow (Long,Short) SCH5S,SCH10S,SCH40S,SCH80S

Nominal

Pipe Size

Outside Diameter O.D.

Center to End

5S

Long

Short

T

I.D.

A

B

A

1/2

0.840

1.50

0.62

-

0.065

0.710

3/4

1.050

1.05

0.75

-

0.065

0.920

1

1.315

1.50

0.88

1.00

0.065

1.185

1-1/4

1.660

1.88

1.00

1.25

0.065

1.530

1-1/2

1.900

2.25

1.12

1.50

0.065

1.770

2

2.375

3.00

1.38

2.00

0.065

2.245

2-1/2

2.875

3.75

1.75

2.50

0.083

2.709

3

3.500

4.25

2.00

3.00

0.083

3.334

3-1/2

4.000

5.25

2.25

3.50

0.083

3.834

4

4.500

6.00

2.50

4.00

0.083

4.334

5

5.563

7.50

3.12

5.00

0.109

5.345

6

6.625

9.00

3.75

6.00

0.109

6.407

8

8.625

12.00

5.00

8.00

0.109

8.407

10

10.750

15.00

6.25

10.00

0.134

10.482

12

12.750

18.00

7.50

12.00

0.156

12.438

14

14.000

21.00

8.75

14.00

0.156

13.688

16

16.000

24.00

10.00

16.00

0.165

15.670

18

18.000

27.00

11.25

18.00

0.165

17.670

20

20.000

30.00

12.50

20.00

0.188

19.624

22

22.000

33.00

13.50

22.00

0.188

21.624

24

24.000

36.00

15.00

24.00

0.218

23.564

30

30.000

45.00

18.50

-

0.250

29.500

Nominal

Pipe Size

10S

40S

80S

T

I.D.

T

I.D.

T

I.D.

1/2

0.083

0.674

0.109

0.622

0.147

0.546

3/4

0.083

0.884

0.113

0.824

0.154

0.742

1

0.109

1.097

0.133

1.049

0.179

0.957

1-1/4

0.109

1.442

0.140

1.380

0.191

1.278

1-1/2

0.109

1.682

0.145

1.610

0.200

1.500

2

0.109

2.157

0.154

2.067

0.218

1.939

2-1/2

1.120

2.635

0.203

2.469

0.276

2.323

3

1.120

3.260

0.216

3.068

0.300

2.900

3-1/2

1.120

3.760

0.226

3.548

0.318

3.364

4

1.120

4.260

0.237

4.026

0.337

3.826

5

0.134

5.295

0.258

5.047

0.375

4.813

6

0.134

6.357

0.280

6.065

0.432

5.761

8

0.148

8.329

0.322

7.981

0.500

7.625

10

0.165

10.420

0.365

10.020

0.500

9.750

12

0.180

12.390

0.375

12.000

0.500

11.750

14

0.188

13.624

0.375

13.250

0.500

13.000

16

0.188

15.624

0.375

15.250

0.500

15.000

18

0.188

17.624

0.375

17.250

0.500

17.000

20

0.218

19.564

0.375

19.250

0.500

19.000

22

0.218

21.564

-

-

-

-

24

0.250

23.500

0.375

23.250

0.500

23.000

30

0.312

29.376

-

-

-

-




Advantages


High-End Mechanical Equiment

Jazzy has many factories and production lines, and has leading promotional equipment to support the production of the latest promotional products. All employees must be trained before going on duty. Jazzy would organize monthly training on production skills.


111


Standardized Stainless Steel Butt Weld Fitting Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.


butt welded fitting1 Stainless Steel Butt Weld Fitting

Standardized Grit Meterial Certification

Jazzy will take the initiative to send the products for inspection and spot check. Each time our test results exceed the international standards. Jazzy is also beyond some standards of the same industry with standardized production process that has an inspection process. All large samples will be sent for inspection, meeting the national inspection and testing standards.


Stainless Steel Butt Weld Fitting

Professional Warehouse Mangagement System

Stock of Finished Goods


butt welded fitting7 butt welded fitting8
