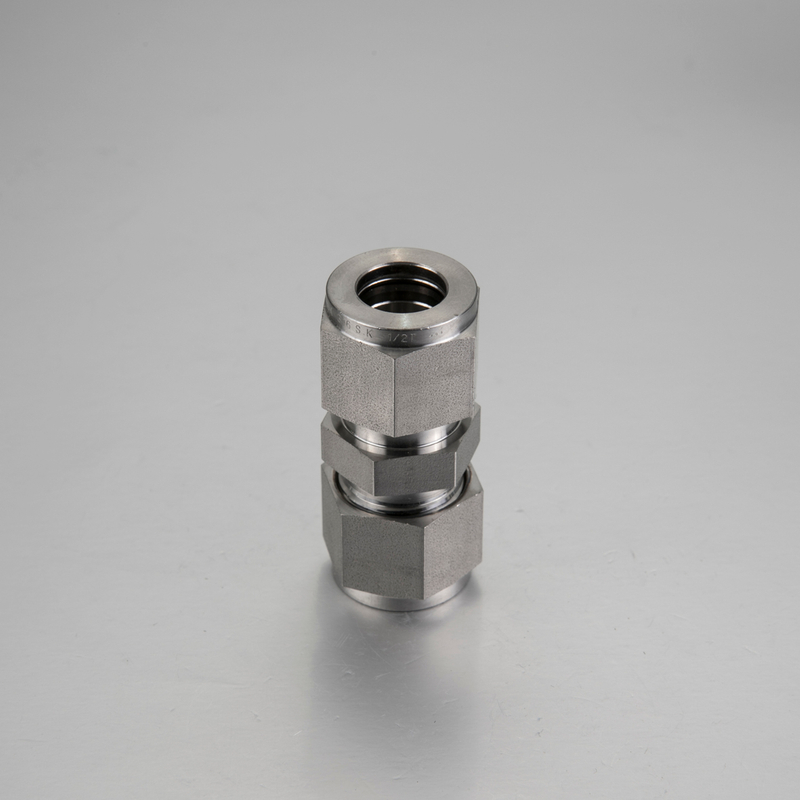

Instrument Equal Union Tube Fitting

  • DE-LOK

Size(INCH):
Availability:


Instrument Equal Union Tube Fitting


Material:ASTM A 182 F316

Connection:Tube OD

Type:Union

Surface Treatment:Silver Coating for Nut,Hardening For Bakc Ferrule

Working Pressure:6000PSI

Size:1/8" to 1"

Standard:Equal to Swagelok Standard

Certificate:Lloyd's,CE,DNV


Instrument Equal Union Tube Fitting Sizes & Dimensions


Equal Union

Equal Union

 (Metric)

Tube O.D.

 Part No.

A

D

E

F

G

H

2

DU2M

35.6

12.9

1

10

10

22.4

3

DU3M

35.3

12.9

2

10

10

22.1

4

DU4M

37.3

13.7

3

12

12

24.1

6

DU6M

41.0

15.3

4

12

14

26.2

8

DU8M

43.2

16.2

6

14

17

28.2

10

DU10M

46.2

17.2

8

19

19

31.0

12

DU12M

51.2

22.8

10

22

22

31.0

14

DU14M

52.0

24.4

10

24

27

31.8

15

DU15M

52.0

24.4

11

24

27

31.8

16

DU16M

52.0

24.4

12

24

27

31.8

18

DU18M

53.5

24.4

14

27

30

33.3

20

DU20M

55.0

26.0

16

30

32

34.8

22

DU22M

55.0

26.0

18

30

32

34.8

25

DU25M

65.0

31.3

21

35

38

40.4

 (Fractional)

1/16

DU1

25.1

8.6

1

10

10

17.5

1/8

DU2

35.6

12.7

2

10

10

22.4

3/16

DU3

37.3

13.7

3

12

12

24.1

1/4

DU4

40.9

15.2

4

12

14

26.2

3/8

DU6

45.0

16.8

7

17

17

30.2

1/2

DU8

51.3

22.9

10

22

22

31.0

5/8

DU10

52.1

24.4

12

24

27

31.8

3/4

DU12

53.6

24.4

15

27

30

33.3

1

DU16

64.8

31.2

21

35

38

40.4
