Stainless Steel Sanitary Clamp Set

  • JAZZY

Size(INCH):
Availability:


Stainless Steel Sanitary Clamp Set


Material: ASTM A270 SS304,SS316, SS304L,SS316

Type:  Clamp

Connection:Clamp

Surface Treatment: 180grit Polish 240grit Polish  320grit Polish 400grit Polish

Size:1/2" to 6"

Standard:SMS,3A,DIN,ISO,RTJ,etc

Stainless Steel Sanitary Clamp Set Sizes & Dimensions


Heavy Duty Clamp

Heavy Duty Clamp  DIN 1030023

Size

B





DN10

37





DN15

37





DN20

37





DN25

53





DN32

53





DN40

53





DN50

67





DN65

94





DN80

109





DN100

122






Double Pin Clamp

Double Pin Clamp (13MHHM-DP) 1030020

Size

A





1”

53.6





1-1/2”

53.6





2”

67.0





2-1/2”

80.6





3”

94.0





4”

122.0





6”

170.0





8”

220.8

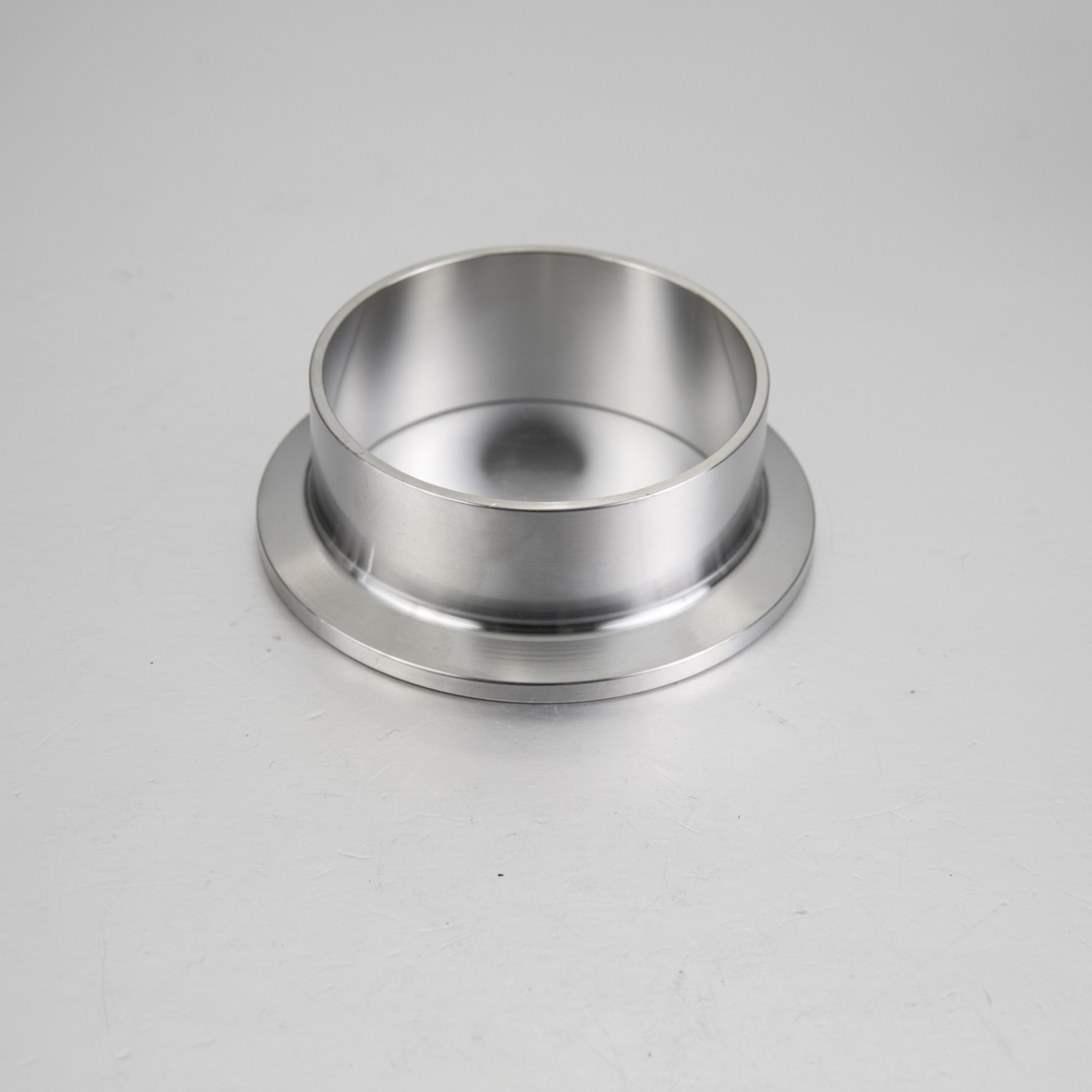

ferrule

Ferrule DIN 1031005

Size

A

B

D



DN10

18.0

34.0

12.0



DN15

18.0

34.0

18.0



DN20

18.0

34.0

22.0



DN25

21.5

50.5

28.0



DN32

21.5

50.5

34.0



DN40

21.5

50.5

40.0



DN50

28.0

64.0

52.0



DN65

28.0

91.0

70.0



DN80

28.0

106.0

85.0



DN100

28.0

119.0

104.0



DN125

38.0

145.0

129.0



DN150

38.0

167.0

154.0




END CAP

End Cap DIN 1032006

Size

A

B




DN15

6.3

34.0




DN20

6.3

34.0




DN25

6.3

50.5




DN32

6.3

50.5




DN40

6.3

50.5




DN50

6.3

64.0




DN65

6.3

91.0




DN80

6.3

106.0




DN100

6.3

119.0




DN125

11.1

145.0




DN150

11.1

167.0






Advantages


High-End Mechanical Equiment

Jazzy has many factories and production lines, and has leading promotional equipment to support the production of the latest promotional products. All employees must be trained before going on duty. Jazzy would organize monthly training on production skills.


sanitary valve25


Standardized Sanitary Fitting Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.

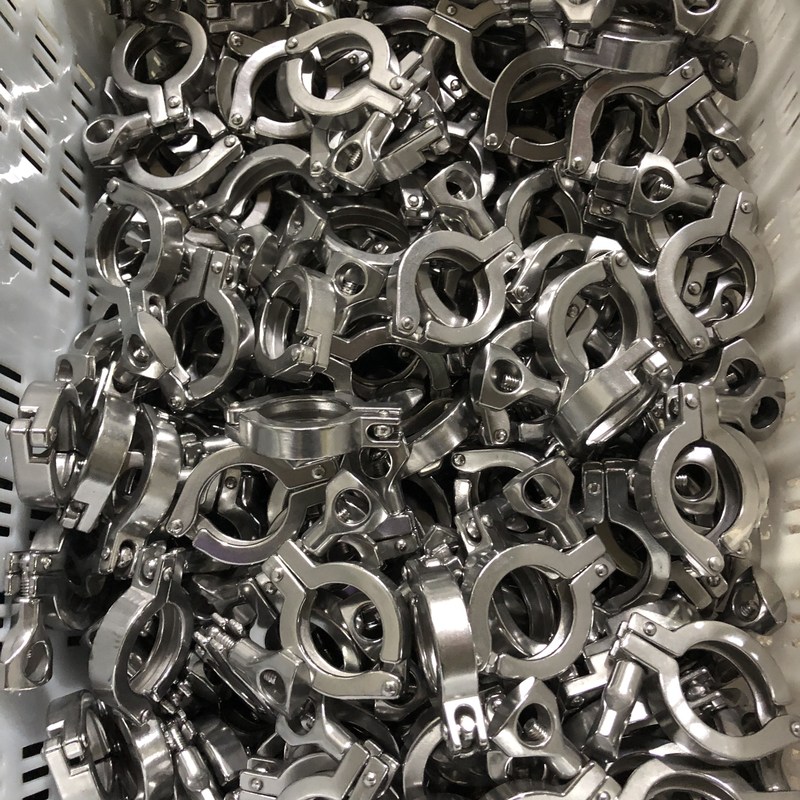

sanitary valve12 Sanitary Fiitng


Standardized Grit Polish Inspection

Jazzy will take the initiative to send the products for inspection and spot check. Each time our test results exceed the international standards. Jazzy is also beyond some standards of the same industry with standardized production process that has an inspection process. All large samples will be sent for inspection, meeting the national inspection and testing standards.

sanitary valve22

Professional Warehouse Mangagement System

Stock of Finished Goods


sanitary valve26



FAQ


Q1. Does Jazzy support OEM?

Yes, here are the process B of Jazzy's OEM service:

  • Customers send samples or provides drawings to JAZZY,We design for the samples.

  • After the customers confirm the samples, JAZZY begins to start making the mold or customing.

  • Send the initial sample to the customer for confirmation.

  • After the customer confirming, JAZZY arranges mass production.

Please visit Jazzy's OEM service for more.


Q2. How can I place the order in Jazzy?

Plan - Purchase - Manufacturing - Delivery

Please visit Jazzy's Supply Chain Mangagement for more.
