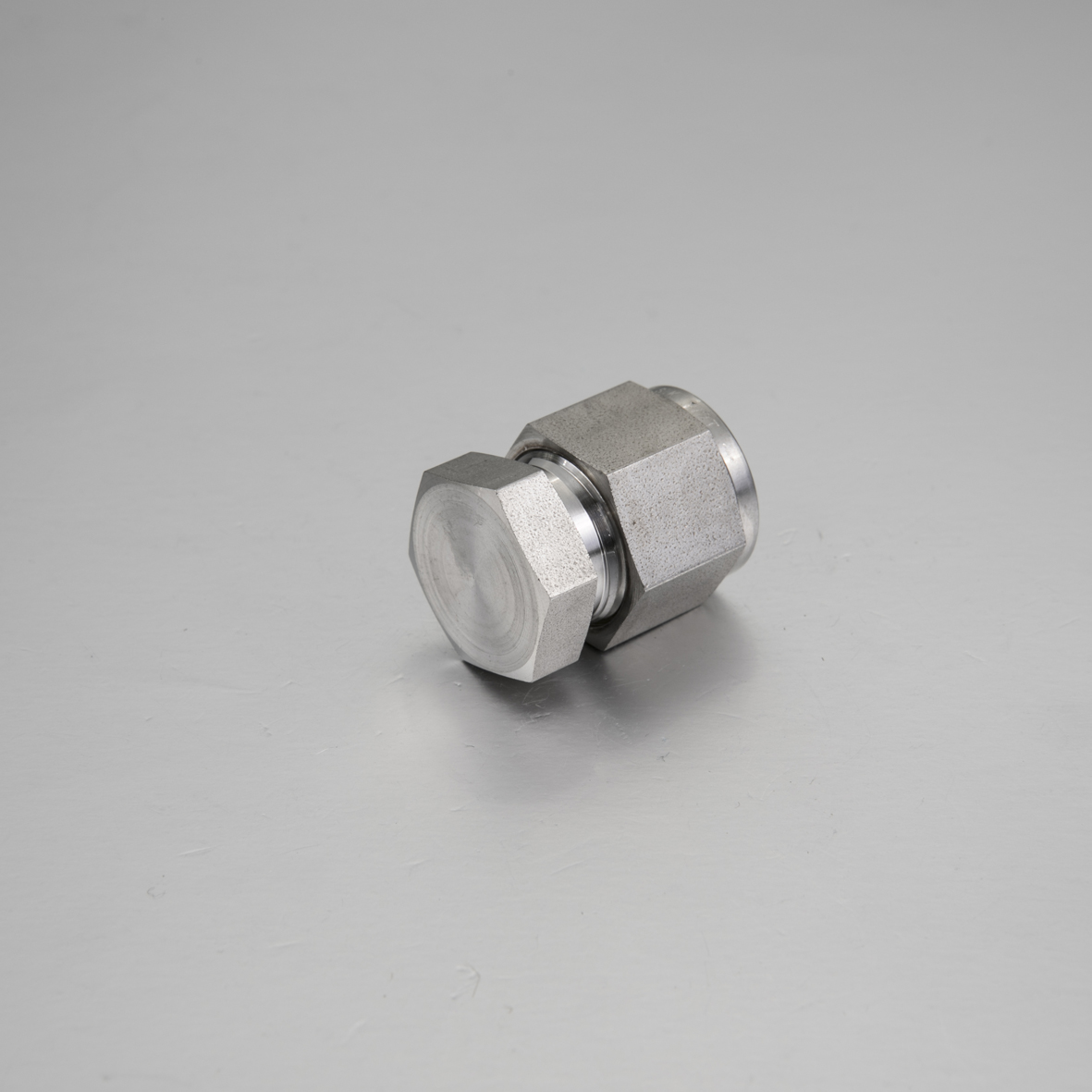

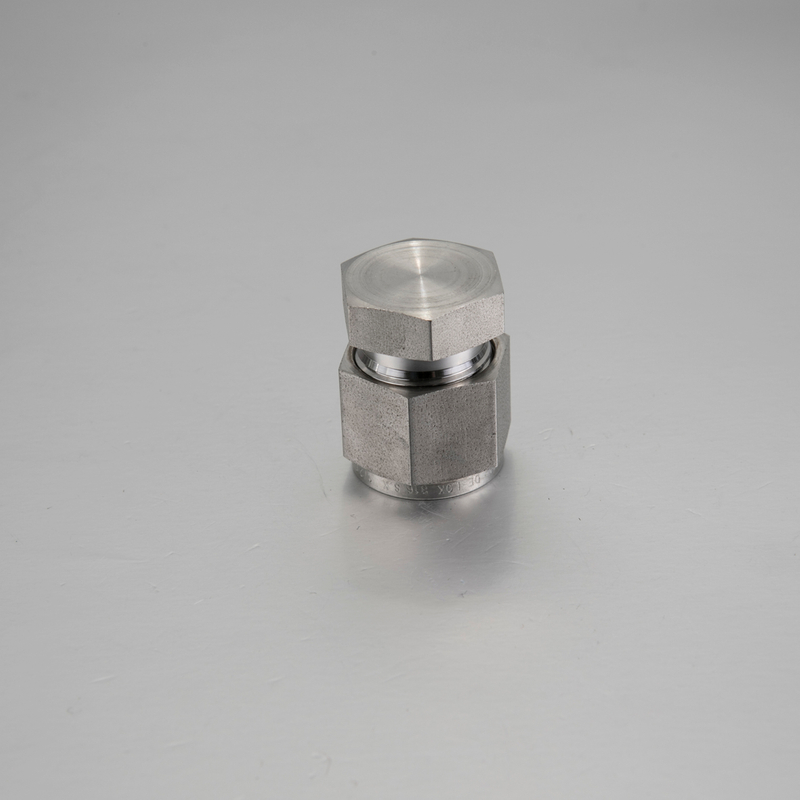

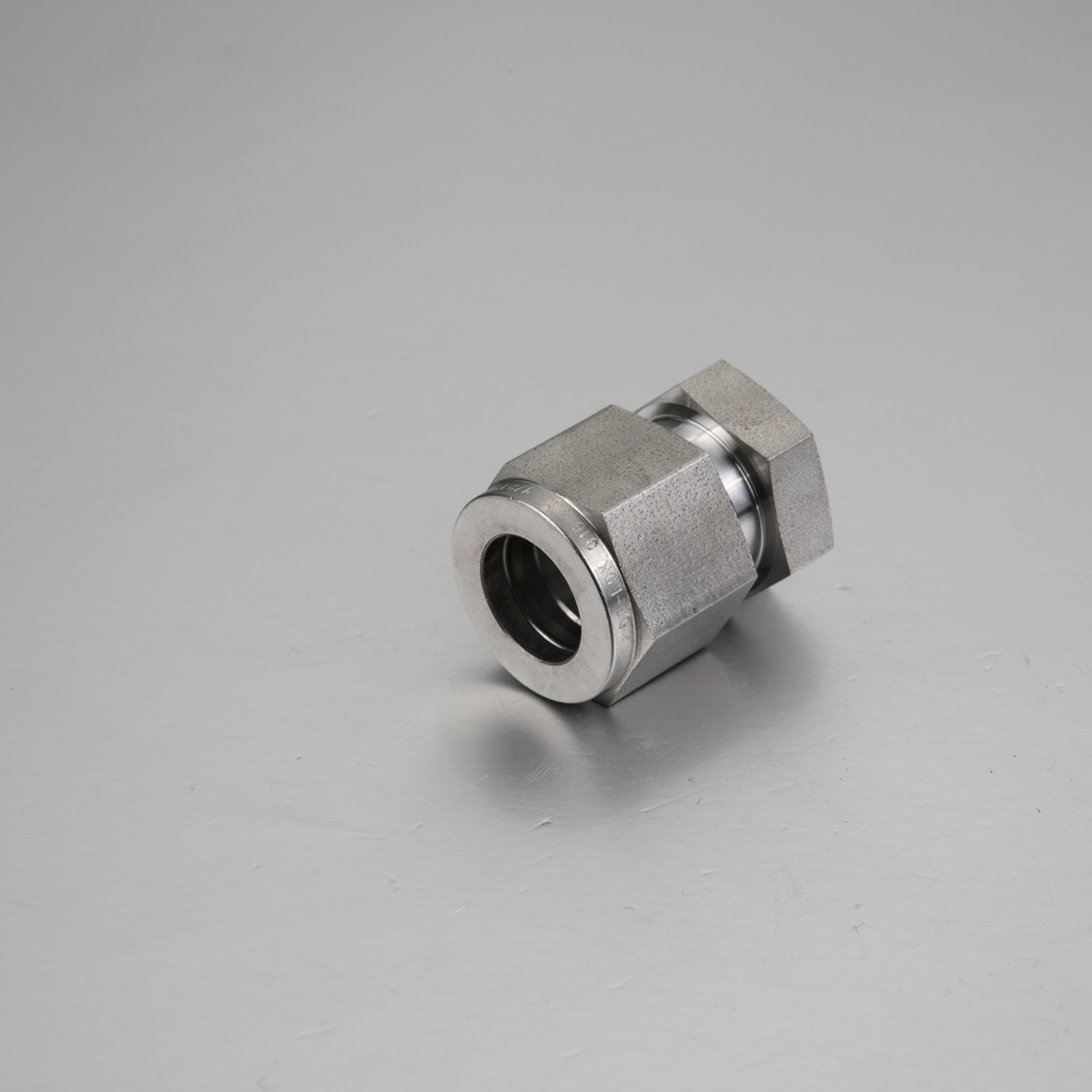

Instrument Tube Cap Fitting

  • DE-LOK

Size(INCH):
Availability:


Instrument Tube Cap Fitting


Material:ASTM A 182 F316

Connection:Tube OD

Type:Cap

Surface Treatment:Silver Coating for Nut,Hardening For Bakc Ferrule

Working Pressure:6000PSI

Size:1/8" to 1"

Standard:Equal to Swagelok Standard

Certificate:Lloyd's,CE,DNV

Instrument Tube Cap Fitting Sizes & Dimensions



cap


Tube O.D.

Part No.

A

D

F

G

H

2

DTC-2M

20.1

12.9

12

12

13.5

3

DTC-3M

20.1

12.9

12

12

13.5

4

DTC-4M

21.3

13.7

12

12

14.7

6

DTC-6M

23.1

15.3

14

14

15.7

8

DTC-8M

24.5

16.2

14

17

17.0

10

DTC-10M

26.6

17.2

19

19

19.0

12

DTC-12M

29.1

22.8

22

22

19.0

14

DTC-14M

29.9

24.4

24

27

19.8

15

DTC-15M

29.9

24.4

24

27

19.8

16

DTC-16M

29.9

24.4

24

27

19.8

18

DTC-18M

31.4

24.4

27

30

21.3

20

DTC-20M

34.0

26.0

30

32

23.9

22

DTC-22M

34.0

26.0

30

32

23.9

25

DTC-25M

38.5

31.3

35

41

26.2

 (Fractional)

1/16

DTC-1

15.0

8.6

10

10

11.2

1/8

DTC-2

20.1

12.7

12

12

13.5

3/16

DTC-3

21.3

13.7

12

12

14.7

1/4

DTC-4

23.4

15.2

14

14

17.0

3/8

DTC-6

25.7

16.3

17

17

18.3

1/2

DTC-8

29.2

22.8

22

22

19.1

3/4

DTC-12

31.5

24.4

27

30

21.3

1

DTC-16

38.4

31.2

35

38

26.2




Advantages


High-End Mechanical Equiment

Jazzy has many factories and production lines, and has leading promotional equipment to support the production of the latest promotional products. All employees must be trained before going on duty. Jazzy would organize monthly training on production skills.

111


Standardized Instrumentation Tube Fitting Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.

111


Standardized Nitrogen Gas Inspection

Jazzy will take the initiative to send the products for inspection and spot check. Each time our test results exceed the international standards. Jazzy is also beyond some standards of the same industry with standardized production process that has an inspection process. All large samples will be sent for inspection, meeting the national inspection and testing standards.

222

Professional Warehouse Mangagement System

Stock of Finished Goods

111





FAQ


Q1. Does Jazzy support OEM?

Yes, here are the process B of Jazzy's OEM service:

  • Customers send samples or provides drawings to JAZZY,We design for the samples.

  • After the customers confirm the samples, JAZZY begins to start making the mold or customing.

  • Send the initial sample to the customer for confirmation.

  • After the customer confirming, JAZZY arranges mass production.

Please visit Jazzy's OEM service for more.


Q2. How can I place the order in Jazzy?

Plan - Purchase - Manufacturing - Delivery

Please visit Jazzy's Supply Chain Mangagement for more.
