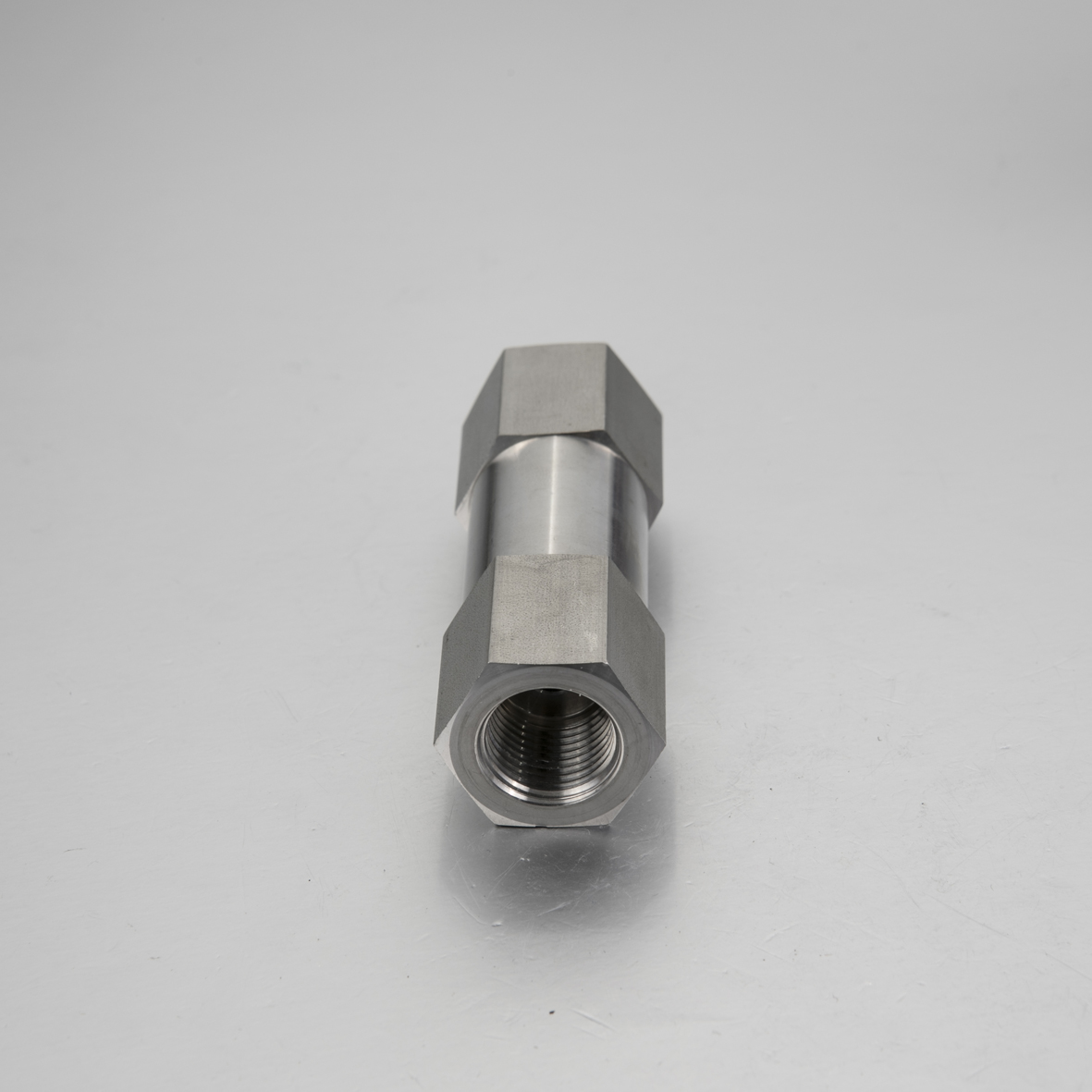

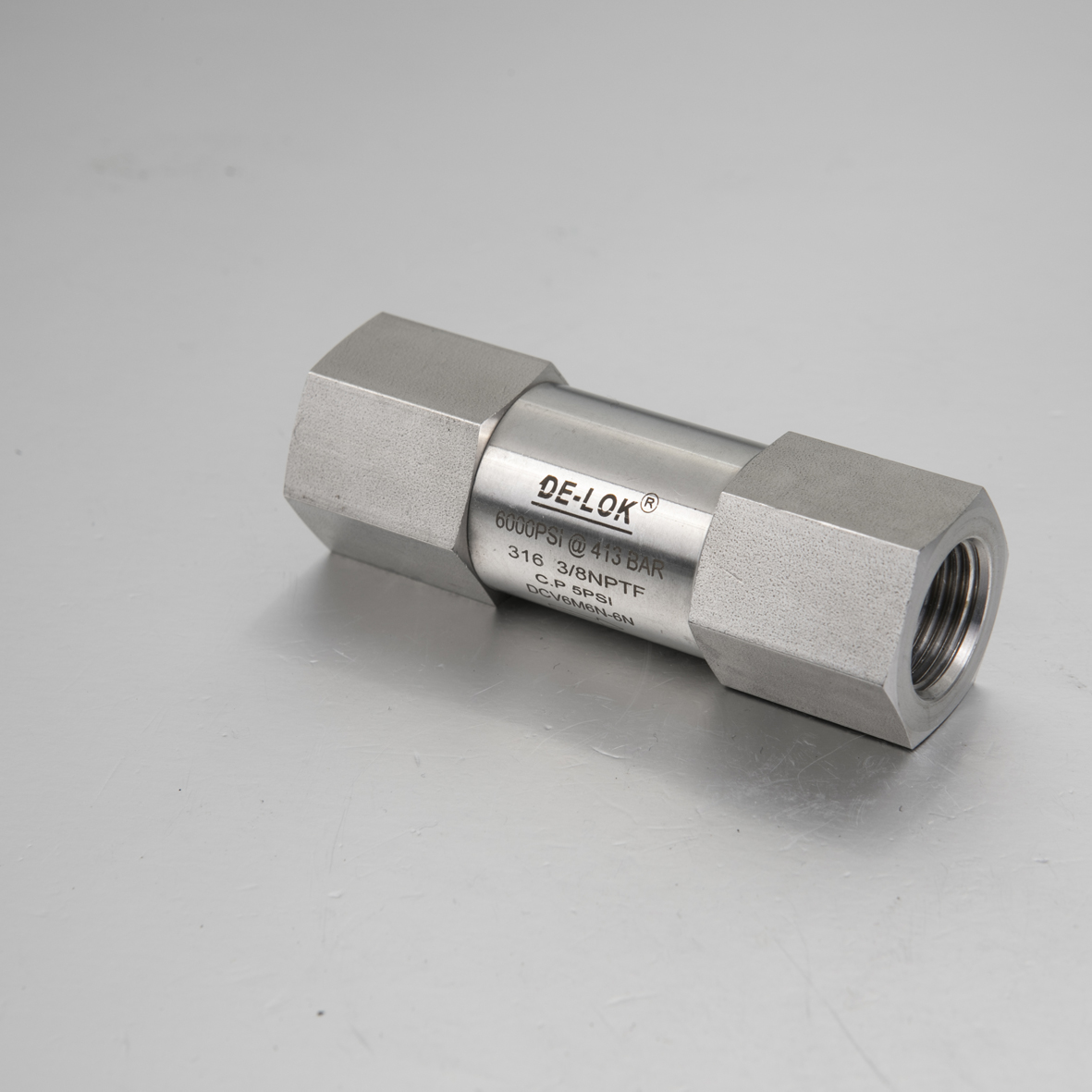

Instrument Check Valve Female End
Brand:DE-LOK
Material:ASTM A 182 F316
Connection:NPT/BSP
Type:Check Valve
Standard:Equal to Swagelok Standard
Features
Fixed cracking pressure
Pressure rating up to 3000psig @70℉(21℃)
Temperature rating up to 375℉(191℃) with viton o-ring
Variety of end connections.
Each and every valves are tested at the factory.
Table of Dimensions
Order Number | End Connection | Dimensions | |||||
Series | Part No. | A | B | C | h | H | |
DCV3M | 2-2 | 1/8” DE-LOK | 57.15 | 26.6 | 31.2 | 15.88 | 11.11 |
2N-2N | 1/8” Female NPT | 50.00 | - | - | 15.88 | - | |
4-4 | 1/4” DE-LOK | 62.16 | 26.6 | 31.4 | 15.88 | 14.28 | |
4N-4N | 1/4” Female NPT | 57.10 | - | - | 19.02 | - | |
6-6 | 3/8” DE-LOK | 76.20 | 37.6 | 42.4 | 22.22 | 17.46 | |
6N-6N | 3/8” Female NPT | 73.90 | - | - | 22.22 | - | |
8-8 | 1/2” DE-LOK | 86.58 | 42.9 | 40.8 | 25.40 | 22.22 | |
8N-8N | 1/2” Female NPT | 90.60 | - | - | 27.00 | - | |
10-10 | 5/8” DE-LOK | 91.68 | 48.0 | 42.8 | 28.50 | 25.4 | |
12-12 | 3/4” DE-LOK | 99.78 | 56.1 | 51.1 | 31.80 | 28.57 | |
12N-12N | 3/4” Female NPT | 99.78 | - | - | 31.80 | - | |
16-16 | 1” DE-LOK | 111.22 | 58.4 | 48.9 | 38.10 | 38.1 | |
16N-16N | 1” Female NPT | 114.30 | - | - | 41.27 | - |
Size | Maximum Flow Coefficient (CV) | Nominal Cracking Pressure psig (bar) | Downstream Pressure @ 70℉ (20℃) psig (bar) |
1/8” | 0.10 | 1/3, 1, 10, 25 (0.03, 0.07, 0.68, 1.8) | 1000 (68.9) |
1/4” | 0.47 | ||
3/8” | 1.47 | 200 (13.7) | |
1/2” | 1.68 | ||
3/4”,1” | 4.48 |
*For cracking pressure of 25psig (1.8bar), downstream pressure is 3000psig (206bar)
