Instrument Check Valve OD End

  • DE-LOK

Size(INCH):
Availability:


Instrument Check Valve OD End


Brand:DE-LOK

Material:ASTM A 182 F316

Connection:Tube OD

Type:Check Valve

Standard:Equal to Swagelok Standard

Instrument Check Valve OD End Sizes & Dimensions


check Valve

Features

  • Fixed cracking pressure

  • Pressure rating up to 3000psig @70(21)

  • Temperature rating up to 375(191) with viton o-ring

  • Variety of end connections.

  • Each and every valves are tested at the factory.


No.

Component

Material

1

Inlet Body

ASTM A182 SS316

2

O-Ring

Viton

3

Poppet

ASTM A182 SS316

4

Spring

304 Stainless Steel

5

5

Outlet Body

ASTM A182 SS316






O-ring Material

Temperature Rating 70(21)

Designator

Buna N

-10 to 250 (-23 to   121)

-N

Ethylene Propylene

-70 to 250 (-57 to   121)

-E

Viton (Fluorocarbon)

-10 to 375 (-23 to   191)

Standard

Kalrez

-15 to 500 (-26 to   260)

-K

Neoprene

5

-35 to 225 (-37 to   107)

-P


Back Pressure

Back pressure may be required to reseal the valves with nominal cracking pressure of 5psi or lower



Example

For a valve with a spring having a rated cracking pressure of 25psig (1.72bar), the actual cracking pressure

ranges between 22 and 28psig (1.52 to 1.93bar). The re-seal pressure range would be 16 to 22 psig (1.10

to 1.52bar). Check valves having springs with rated cracking pressure of 3psig (0.21bar) or less may require

up to 4psig (0.28bar) back pressure to re-seal bubble-tight.


Table of Dimensions

Order Number

End Connection

Dimensions

Series

Part No.

A

B

C

h

H

DCV3M

2-2

1/8” DE-LOK

57.15

26.6

31.2

15.88

11.11

2N-2N

1/8” Female NPT

50.00

-

-

15.88

-

4-4

1/4” DE-LOK

62.16

26.6

31.4

15.88

14.28

4N-4N

1/4” Female NPT

57.10

-

-

19.02

-

6-6

3/8” DE-LOK

76.20

37.6

42.4

22.22

17.46

6N-6N

3/8” Female NPT

73.90

-

-

22.22

-

8-8

1/2” DE-LOK

86.58

42.9

40.8

25.40

22.22

8N-8N

1/2” Female NPT

90.60

-

-

27.00

-

10-10

5/8” DE-LOK

91.68

48.0

42.8

28.50

25.4

12-12

3/4” DE-LOK

99.78

56.1

51.1

31.80

28.57

12N-12N

3/4” Female NPT

99.78

-

-

31.80

-

16-16

1” DE-LOK

111.22

58.4

48.9

38.10

38.1

16N-16N

1” Female NPT

114.30

-

-

41.27

-




Advantages

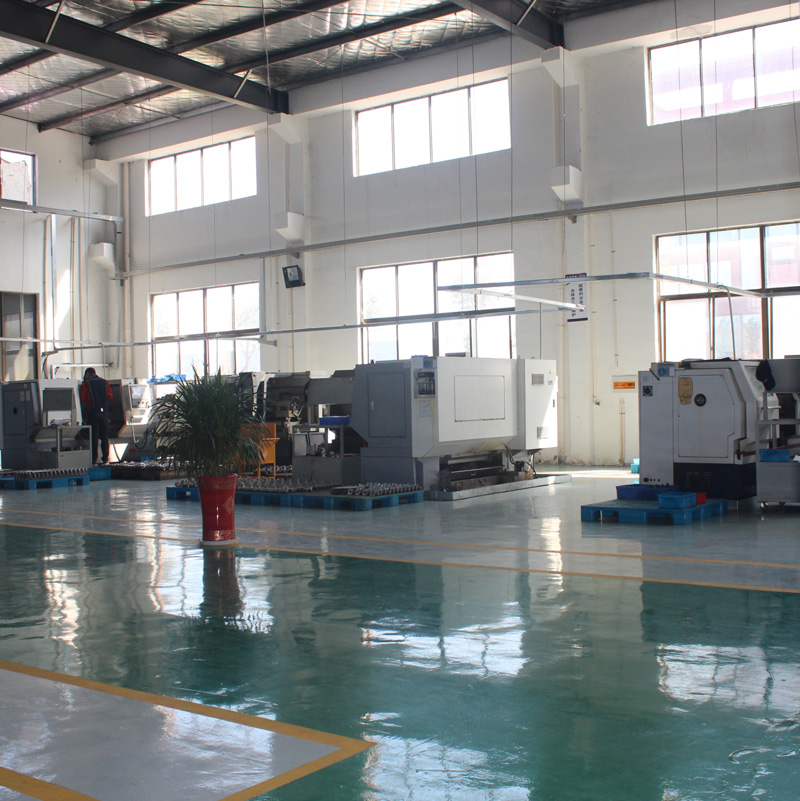

High-End Mechanical Equiment

Jazzy has many factories and production lines, and has leading promotional equipment to support the production of the latest promotional products. All employees must be trained before going on duty. Jazzy would organize monthly training on production skills.

111 333


Standardized Instrumentation Valve Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.


111


Standardized Nitrogen Gas Inspection

Jazzy will take the initiative to send the products for inspection and spot check. Each time our test results exceed the international standards. Jazzy is also beyond some standards of the same industry with standardized production process that has an inspection process. All large samples will be sent for inspection, meeting the national inspection and testing standards.

222

Professional Warehouse Mangagement System

Stock of Finished Goods


111 333 111
