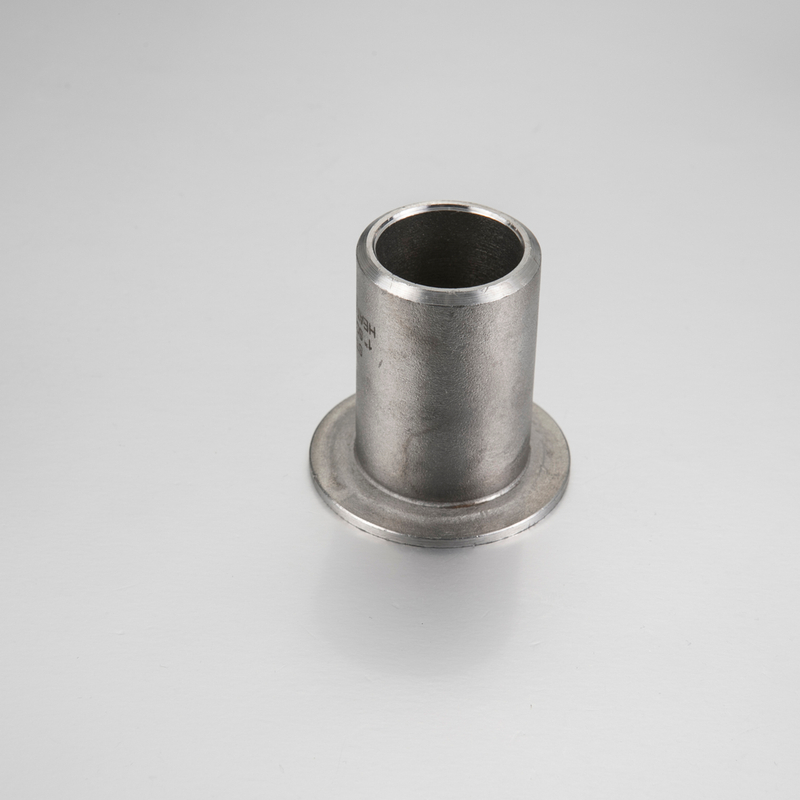

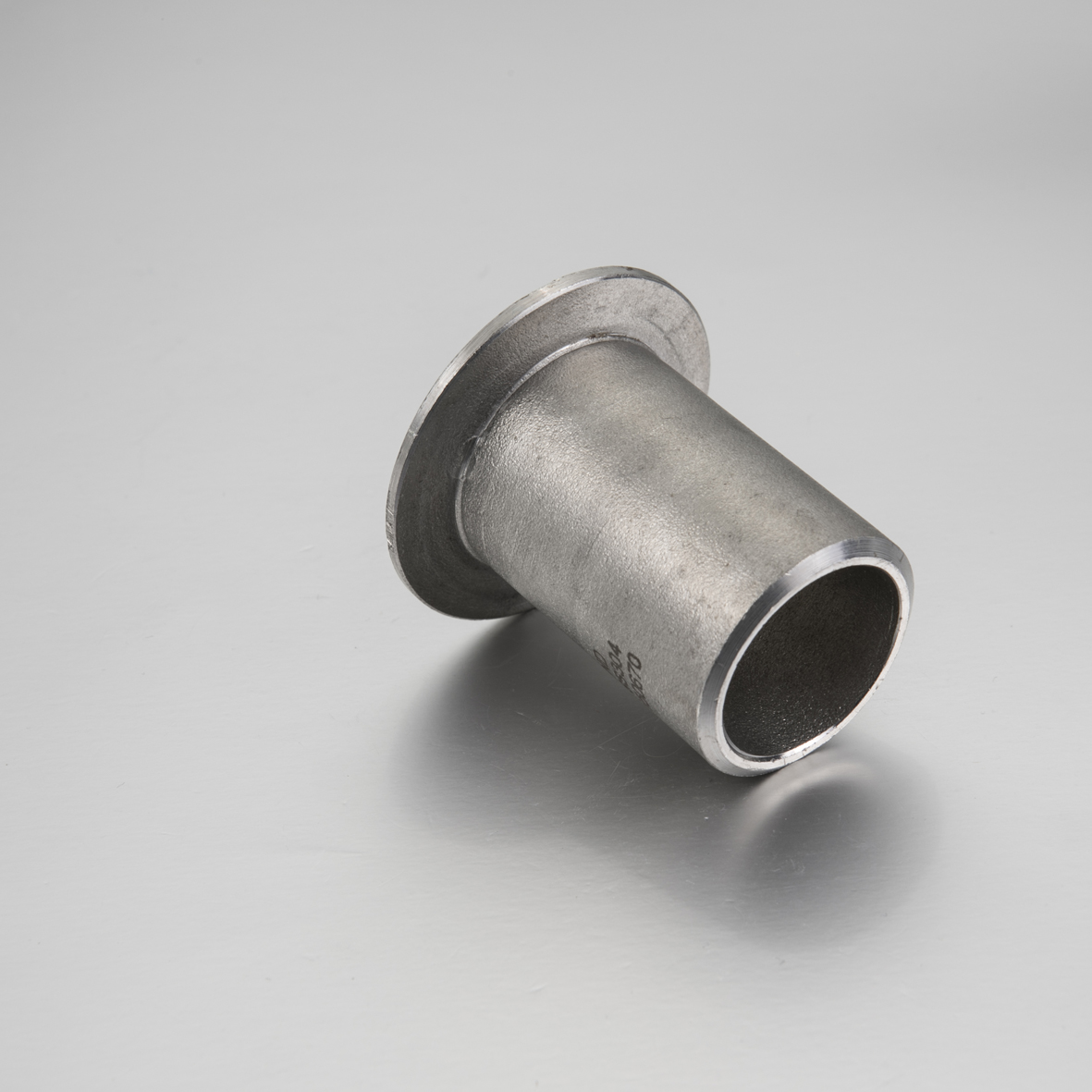

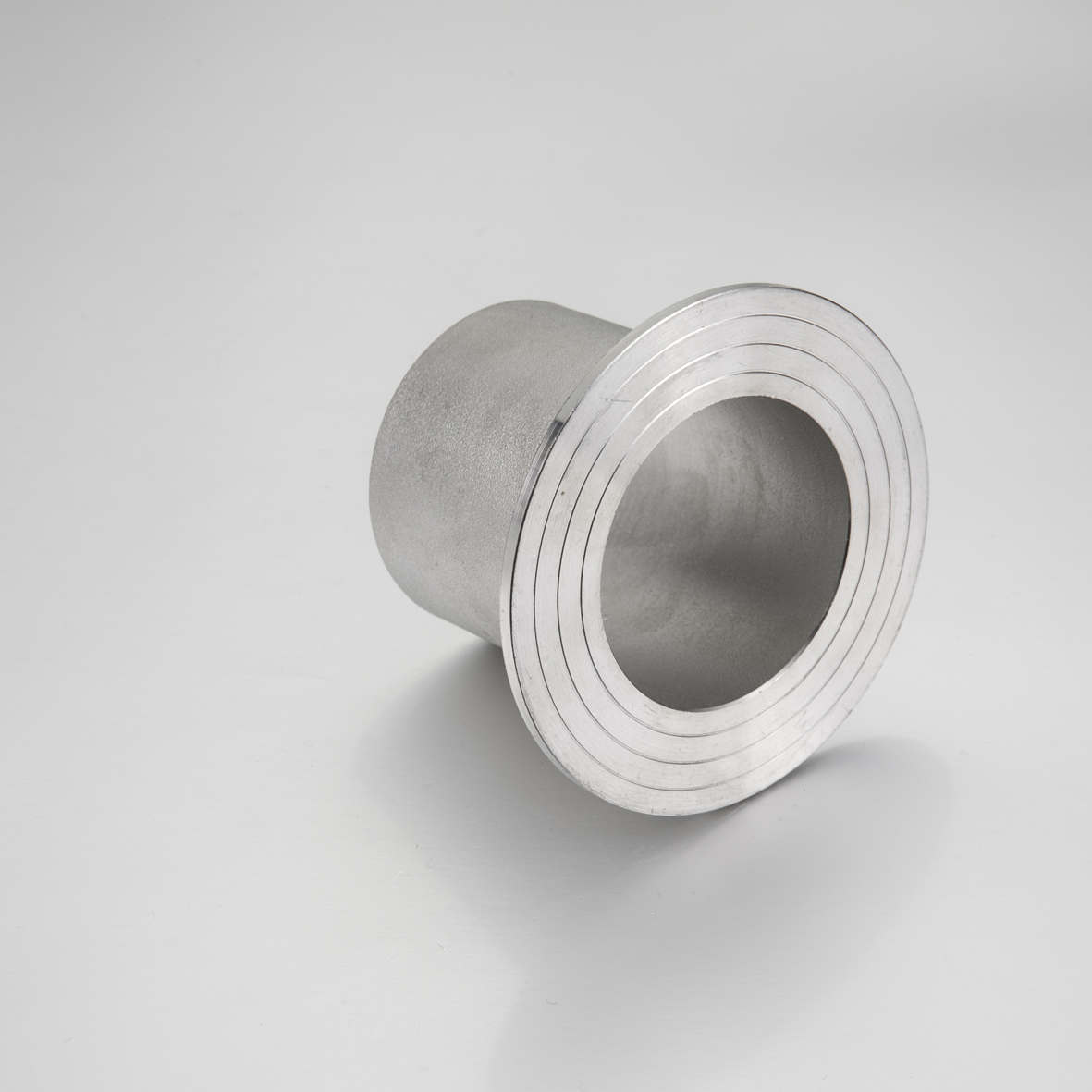

Stainless Steel Butt Weld Stud End

  • JAZZY

Size(INCH):
Please select
1/2 1 1-1/4 2 3 5
Availability:
Inquire


Stainless Steel Butt Weld Stud End

Material:SS304,SS316,SS304L,SS316L

Standard:ASME B16.9

Type:   Stud End

Surface Treatment: SCH5S,SCH10S,SCH40S

Size:1/2" to 24"

Stainless Steel Butt Weld Stud End Sizes & Dimensions

short stud end


Short Stud End SCH5S,SCH10S,SCH40S

Nominal Pipe Size

Outside Diameter O.D

Length

F

Dia. of Lap-G

Nominal & Maximum

Radius of Fillet

A Nominal Max.

B

Max.

1/2

0.84

2.00

1.38

0.12

0.03

3/4

1.05

2.00

1.69

0.12

0.03

1

1.32

2.00

2.00

0.12

0.03

1-1/4

1.66

2.00

2.50

0.19

0.03

1-1/2

1.90

2.00

2.88

0.25

0.03

2

2.38

2.50

3.62

0.31

0.03

2-1/2

2.88

2.50

4.12

0.31

0.03

3

3.50

2.50

5.00

0.38

0.03

3-1/2

4.00

3.00

5.50

0.38

0.03

4

4.50

3.00

5.50

0.38

0.03

5

5.56

3.00

7.31

0.44

0.06

6

6.62

3.50

8.50

0.50

0.06

8

8.62

4.00

10.62

0.50

0.06

10

10.75

5.00

12.75

0.50

0.06

12

12.75

6.00

15.00

0.50

0.06

14

14.00

6.00

16.25

0.50

0.06

16

16.00

6.00

18.50

0.50

0.06

18

18.00

6.00

21.00

0.50

0.06

20

20.00

6.00

23.00

0.50

0.06

24

24.00

6.00

27.25

0.50

0.06

Wall Thickness T

Approx. Weight (kg)

SCH 5S

SCH 10S

SCH 40S

SCH 5S

SCH 10S

SCH 40S

0.065

0.083

0.109

0.049

0.062

0.079

0.065

0.083

0.113

0.064

0.081

0.101

0.065

0.109

0.133

0.082

0.134

0.160

0.065

0.109

0.140

0.109

0.178

0.225

0.065

0.109

0.145

0.129

0.213

0.279

0.065

0.109

0.154

0.204

0.338

0.471

0.083

0.120

0.203

0.313

0.448

0.740

0.083

0.120

0.216

0.400

0.574

1.010

0.083

0.120

0.226

0.522

0.750

1.380

0.083

0.120

0.237

0.606

0.870

1.680

0.109

0.134

0.258

0.985

1.210

2.280

0.109

0.134

0.280

1.340

1.640

3.370

0.109

0.148

0.322

1.960

2.650

5.670

0.134

0.165

0.365

3.570

4.380

9.550

0.156

0.180

0.375

5.850

6.740

13.800

0.156

0.188

-

6.420

7.730

-

0.165

0.188

-

7.910

9.000

-

0.165

0.188

-

9.240

10.500

-

0.188

0.218

-

11.700

13.500

-

0.218

0.250

-

16.500

18.900

-



Advantages

High-End Mechanical Equiment

Jazzy has many factories and production lines, and has leading promotional equipment to support the production of the latest promotional products. All employees must be trained before going on duty. Jazzy would organize monthly training on production skills.


 111


Standardized Stainless Steel Butt Weld Fitting Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.


butt welded fitting1

Standardized Grit Meterial Certification

Jazzy will take the initiative to send the products for inspection and spot check. Each time our test results exceed the international standards. Jazzy is also beyond some standards of the same industry with standardized production process that has an inspection process. All large samples will be sent for inspection, meeting the national inspection and testing standards.


Stainless Steel Butt Weld Fitting

Professional Warehouse Mangagement System

Stock of Finished Goods


butt welded fitting9
