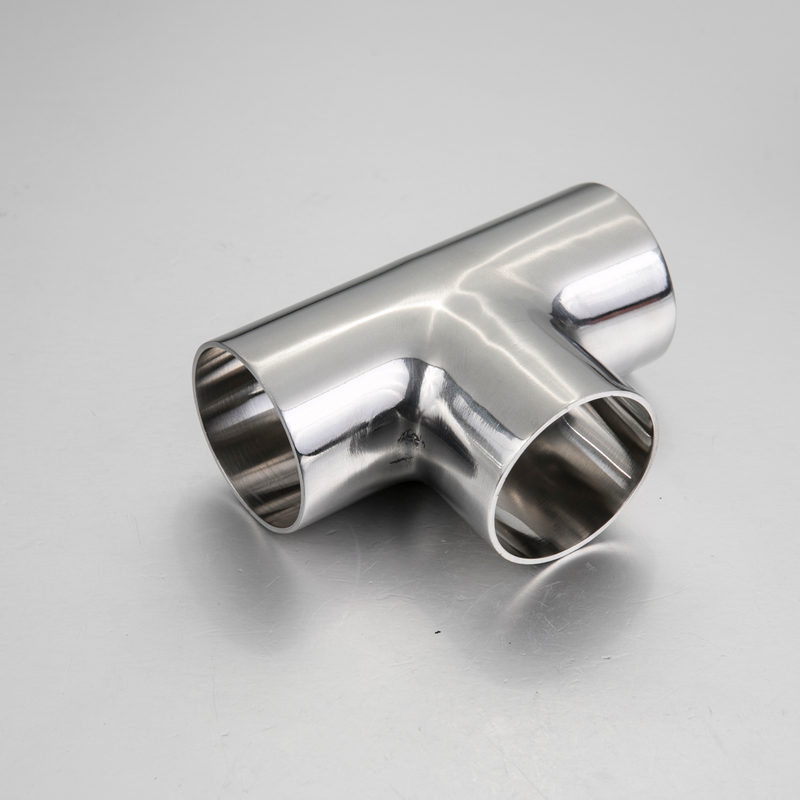

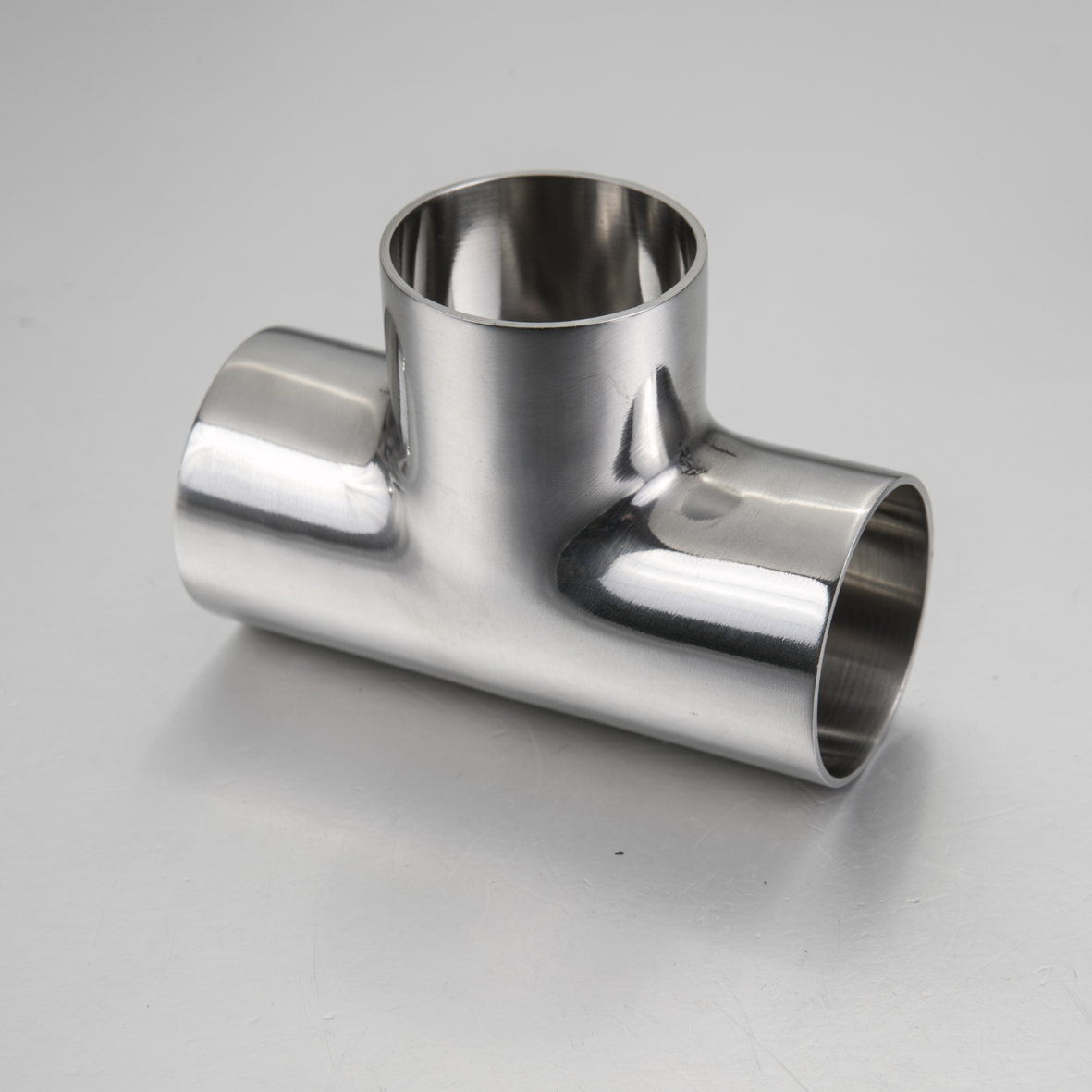

Stainless Steel Sanitary Welded Tee

  • JAZZY

Size(INCH):
Availability:


Stainless Steel Sanitary Welded Tee


Material:ASTM A270 SS304,SS316, SS304L,SS316L

Model:Tee

Connection:Tube OD

Surface Treatment: 180grit Polish 240grit Polish  320grit Polish 400grit Polish

Size:1/2" to 6"

Standard:SMS,3A,DIN,ISO,RTJ,etc

Stainless Steel Sanitary Welded Tee Sizes & Dimensions


Welded Tee


Short Welded Tee  DIN 1011008

Size

L1

L2

D



DN10

7.5

26.0

12.0



DN15

10.5

35.0

18.0



DN20

12.5

40.0

22.0



DN25

16.0

50.0

28.0



DN32

19.5

55.0

34.0



DN40

22.5

60.0

40.0



DN50

30.0

70.0

52.0



DN65

39.5

80.0

70.0



DN80

47.5

90.0

85.0



DN100

58.0

100.0

104.0



DN125

70.5

187.0

129.0



DN150

83.0

225.0

154.0



Long Welded Tee DIN 1011009

Size

L1

D




DN10

26.0

12.0




DN15

35.0

18.0




DN20

40.0

22.0




DN25

50.0

28.0




DN32

55.0

34.0




DN40

60.0

40.0




DN50

70.0

52.0




DN65

80.0

70.0




DN80

90.0

85.0




DN100

100.0

104.0




DN125

187.0

129.0




DN150

225.0

154.0




Short Welded Tee SMS 1011021

Size

L1

L2

D



1”

15.0

55.0

25.4



1-1/2”

21.5

70.0

38.1



2”

29.0

82.0

50.8



2-1/2”

36.0

105.0

63.5



3”

43.0

110.0

76.2



4”

57.0

150.0

101.6



Long Welded Tee SMS 1011022

Size

L1

D




1”

55.0

25.4




1-1/2”

70.0

38.1




2”

82.0

50.8




2-1/2”

105.0

63.5




3”

110.0

76.2




4”

150.0

101.6




Short Welded Tee 3A 1011035

Size

L1

D




1”

28.6

25.4




1-1/2”

42.0

38.1




2”

52.3

50.8




2-1/2”

59.5

63.5




3”

65.9

76.2




4”

87.3

101.6




Long Welded Tee 3A 1011036

Size

L1

D




1/2”

19.1

12.7




3/4”

28.6

19.1




1”

38.1

25.4




1-1/4”

47.7

31.8




1-1/2”

57.0

38.1




2”

76.2

50.8




2-1/2”

95.0

63.5




3”

114.2

76.2




4”

152.4

101.6






Advantages


High-End Mechanical Equiment

Jazzy has many factories and production lines, and has leading promotional equipment to support the production of the latest promotional products. All employees must be trained before going on duty. Jazzy would organize monthly training on production skills.


sanitary valve25


Standardized Sanitary Fitting Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.


sanitary valve21

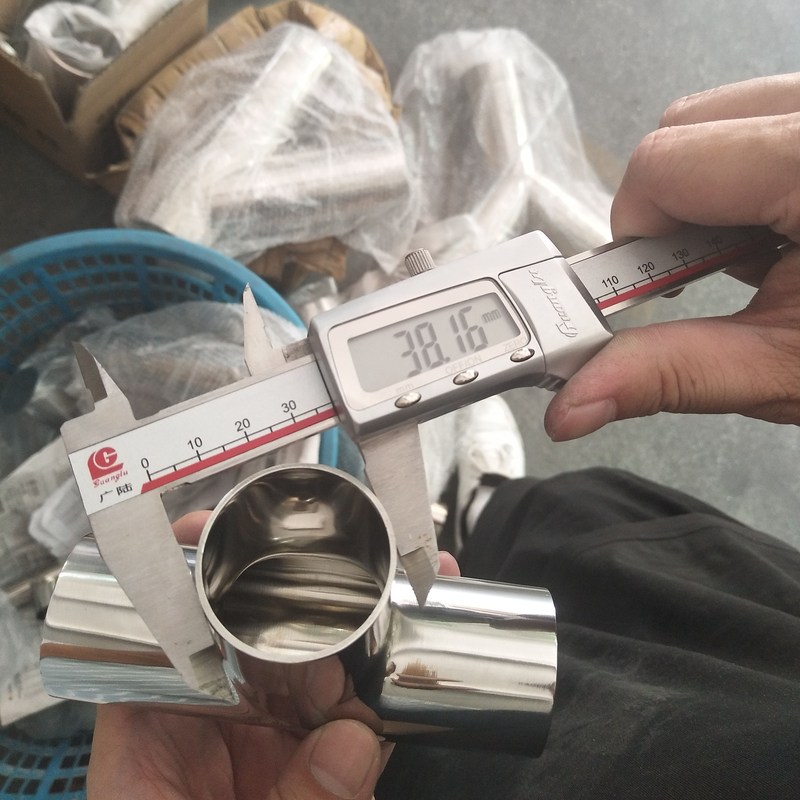

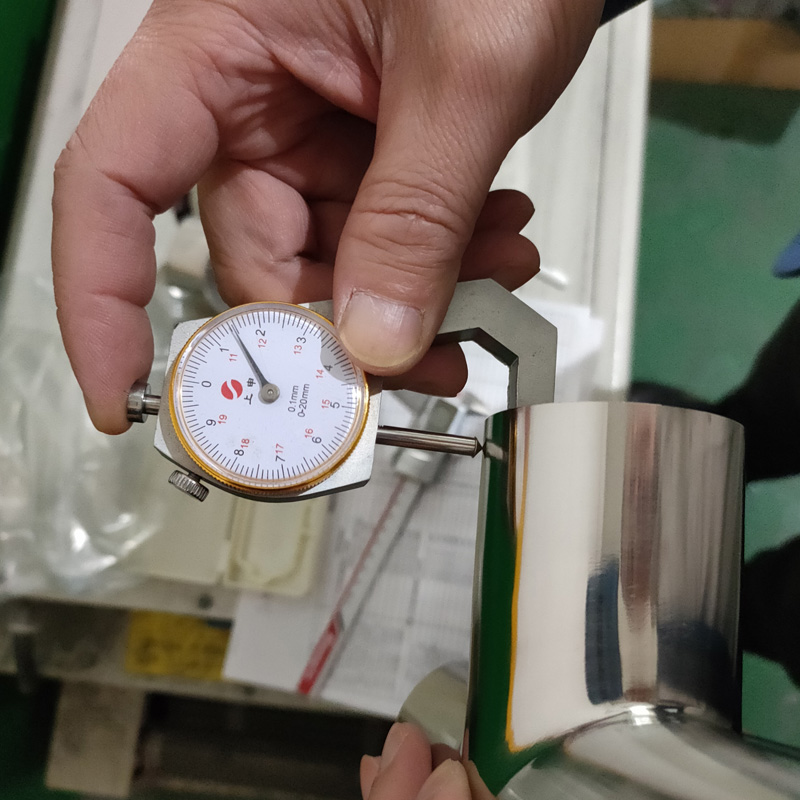

Standardized Grit Polish Inspection

Jazzy will take the initiative to send the products for inspection and spot check. Each time our test results exceed the international standards. Jazzy is also beyond some standards of the same industry with standardized production process that has an inspection process. All large samples will be sent for inspection, meeting the national inspection and testing standards.


sanitary valve22 sanitary valve24 Sanitary Fitting

Professional Warehouse Mangagement System

Stock of Finished Goods


sanitary valve26





FAQ


Q1. Does Jazzy support OEM?

Yes, here are the process B of Jazzy's OEM service:

  • Customers send samples or provides drawings to JAZZY,We design for the samples.

  • After the customers confirm the samples, JAZZY begins to start making the mold or customing.

  • Send the initial sample to the customer for confirmation.

  • After the customer confirming, JAZZY arranges mass production.

Please visit Jazzy's OEM service for more.


Q2. How can I place the order in Jazzy?

Plan - Purchase - Manufacturing - Delivery

Please visit Jazzy's Supply Chain Mangagement for more.
