Stainless Steel Sanitary 90 Degree Clamped Elbow

  • JAZZY

Size(INCH):
Availability:


Stainless Steel Sanitary 90 Degree Clamped Elbow


Material:ASTM A270 SS304,SS316, SS304L,SS316L

Tybe:Elbow

Connection:Clamp

Surface Treatment: 180grit Polish 240grit Polish  320grit Polish 400grit Polish

Size:1/2" to 6"

Standard:SMS,3A,DIN,ISO,RTJ,etc

Stainless Steel Sanitary 90 Degree Clamped Elbow Sizes & Dimensions


Clamp Elow

90 Degree Clamped Elbow  DIN 1012003

Size

L1

D

R



DN15

53.0

34.0

35.0



DN20

58.0

34.0

40.0



DN25

71.0

50.5

50.0



DN32

76.5

50.5

55.0



DN40

81.5

50.5

60.0



DN50

91.5

64.0

70.0



DN65

108.0

91.0

80.0



DN80

118.0

106.0

90.0



DN100

128.0

119.0

100.0




90 Degree Clamped Elbow 3A 1012030

Size

L1

B

R



1”

50.8

50.5

38.1



1-1/2”

69.9

50.5

57.2



2”

88.9

64.0

76.2



2-1/2”

108.0

77.5

95.3



3”

127.0

91.0

114.3



4”

168.2

119.0

152.4




90 Degree Clamped Elbow  ISO/IDF 1012048

Size

L1

B

R



Φ25

55.0

50.5

33.5



Φ32

59.5

50.5

38.0



Φ38

70.0

50.5

48.5



Φ51

82.0

64.0

60.5



Φ63

105.0

77.5

83.5



Φ76

110.0

91.0

88.5



Φ89

125.0

106.0

103.5



Φ102

148.5

119.0

127.0





Advantages


High-End Mechanical Equiment

Jazzy has many factories and production lines, and has leading promotional equipment to support the production of the latest promotional products. All employees must be trained before going on duty. Jazzy would organize monthly training on production skills.


sanitary valve25

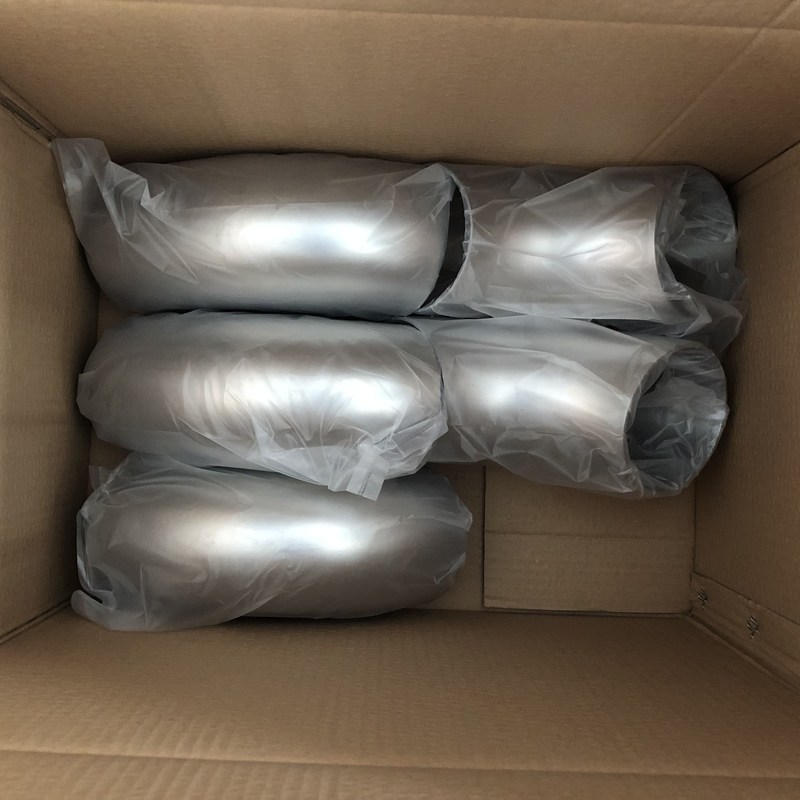

Standardized Sanitary Fitting Packaging
