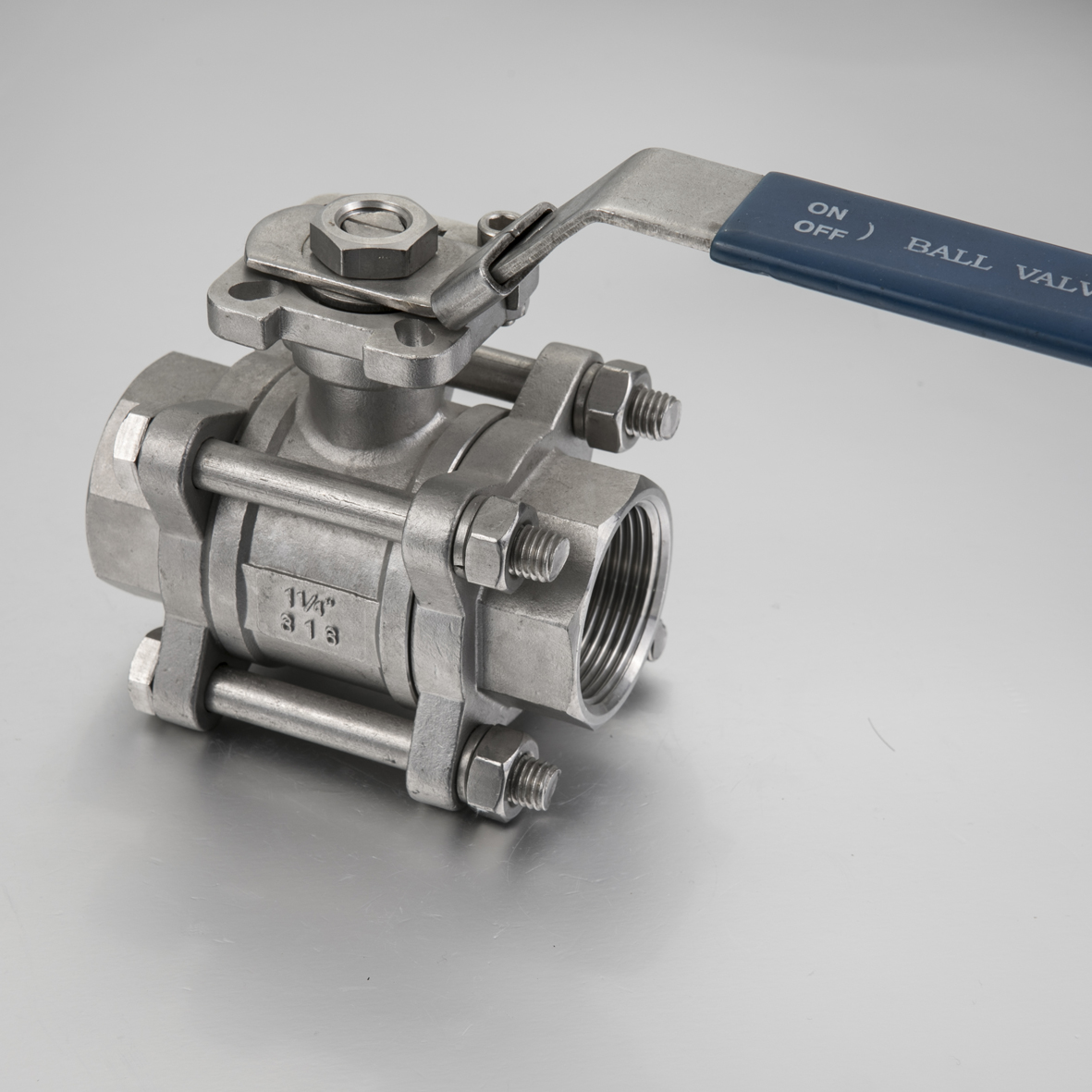

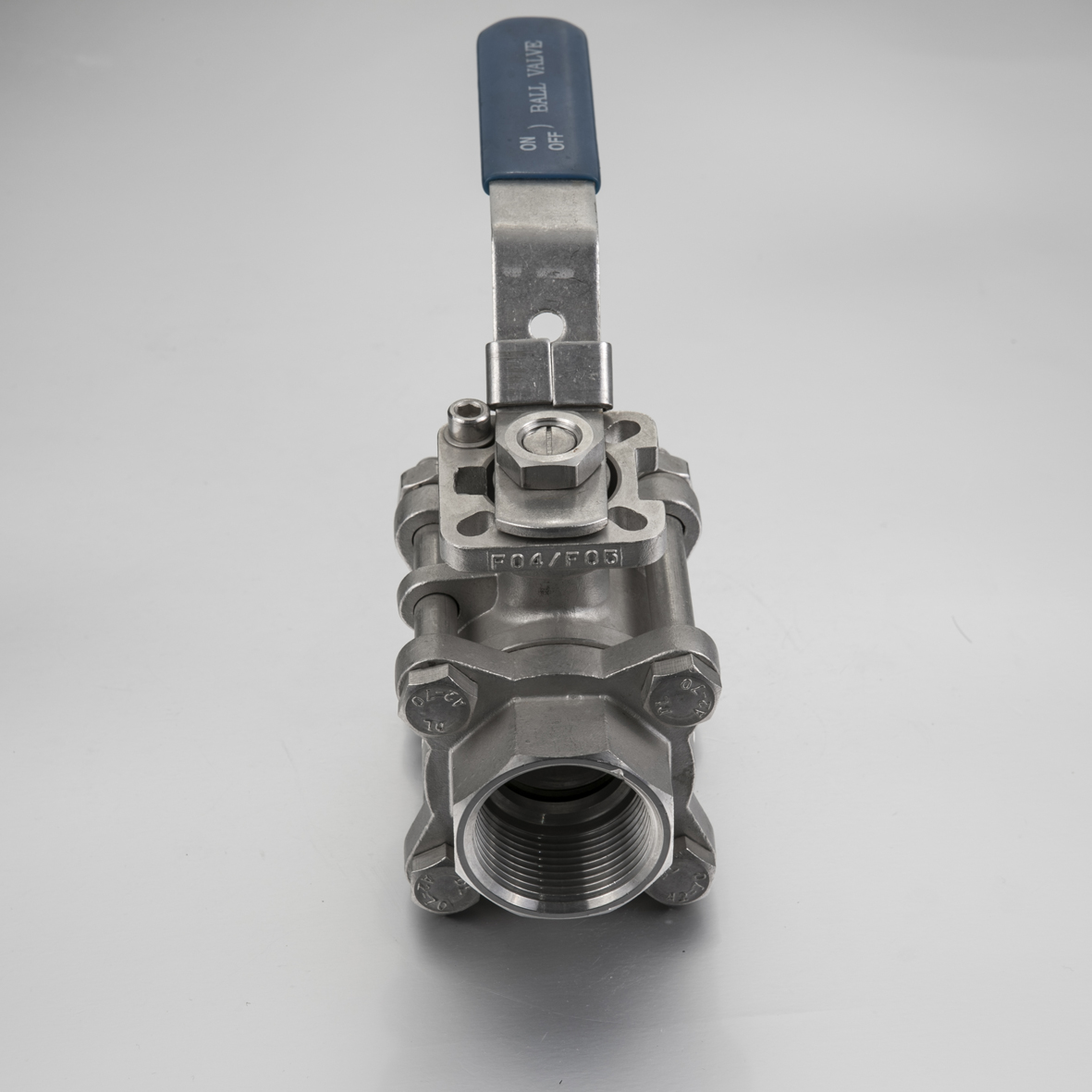

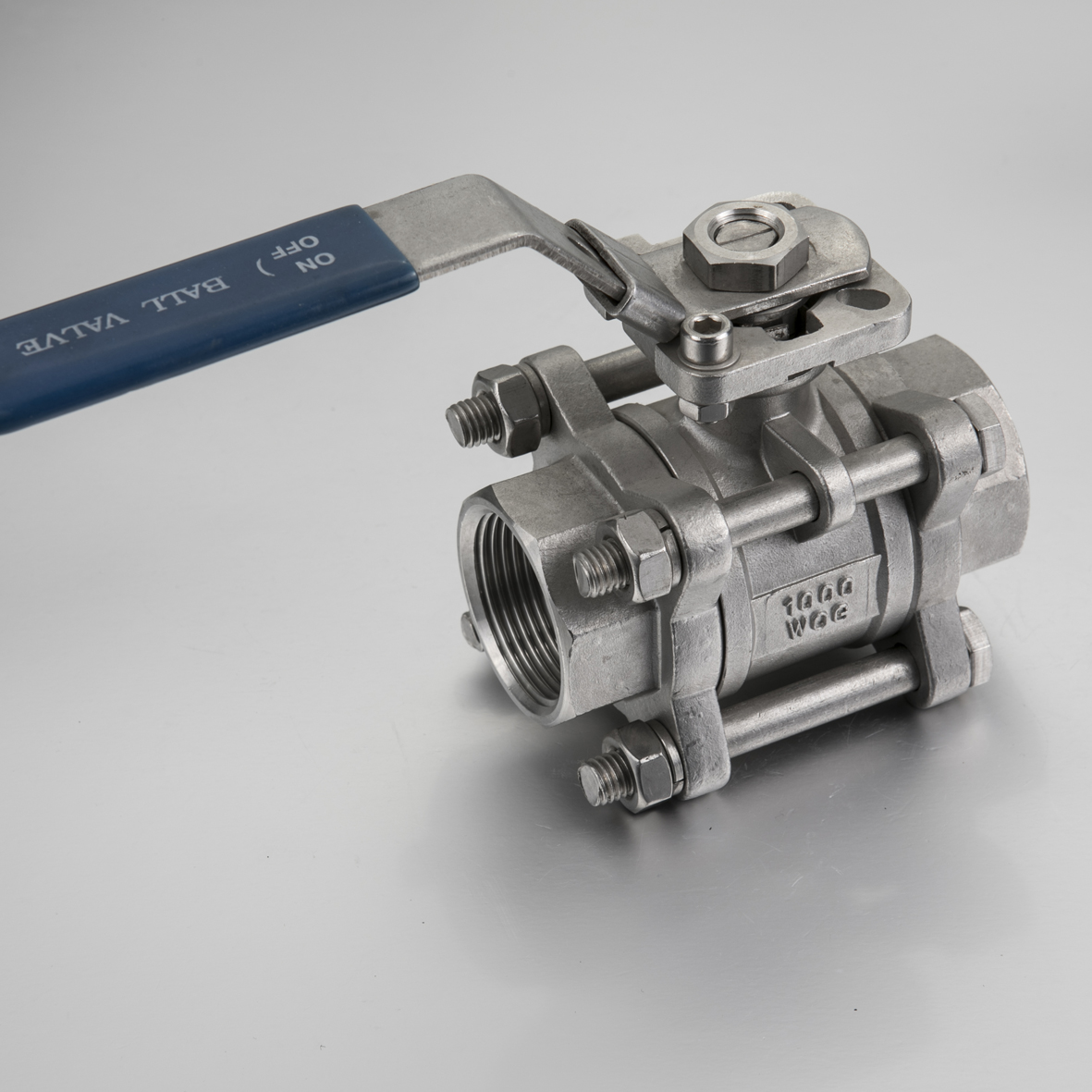

3PC Stainless Steel 304/316 Ball Valve With ISO5211 Mounting Pad

  • JAZZY

Size(INCH):
Availability:


3PC Stainless Steel 304/316 Ball Valve With ISO521 Mounting Pad


Material:SS304,SS316,1.4308,1.4408,CF8,CF8M,WCB

Model:3PC

Connection:Threaded

Medium:Water,oil and Gas

3PC Stainless Steel 304/316 Ball Valve With ISO5211 Mounting Pad Sizes & Dimensions



Features

1000PSI/PN63

Full Port

Investment   Casting

Blow-out   Proof Stem

PED/97/23EC(CE0036)   Approved

Casting   Approved: AD2000-W0

PTFE   Seats & Seals

Inspection   Testing: API598, EN12266

Anti-Static   Device (option)

Locking   Device Handle (option)

Connection:   ASME B1.20.1, BS21, DIN2999/259, ISO228-1, Butt Weld, Socket Weld


3PC ball valve with mounting pad


Material List

Item

Description

Material

1

BODY

CF8/CF8M

2

CAP

CF8/CF8M

3

BALL

CF8/CF8M

4

BALL SEAT

RPTFE

5

STEM

304/316

6

THRUST   WASHER

PTFE

7

SPRING   WASHER

304

8

BOLT NUT

301

9

STEM   PACKING

PTFE

10

PING

304

11

BELLEVILLE   WASHER

301

12

LOCK   WASHER

304

13

STOP PIN

304

14

HANDLE   NUT

304

15

HANDLE

304

16

HANDLE   SLEEVE

PVC

17

WASHER

CF8/CF8M

18

O-RING

VITON

19

BOLT

304


Dimensions (mm)

Size

1/4”

3/8”

1/2”

3/4”

1”

1-1/4”

1-1/2”

2”

2-1/2”

3”

4”

Φd±0.5

11.6

12.5

15

20

25

32

38

50

64

76

94

Φd1±0.5

14.2

17.7

21.8

27.2

34

42.7

48.8

61.2

74

90

115.6

L±2

55

60

75

80

90

110

120

140

185

205

240

L1±2

70

70

70

85

95

110

120

142

185

205

240

H±1

38

38

38

47

60

62.7

79

88

109

116

142

E±1

9

9

9

9

11

11

14

14

17

17

22

0-0.3

12

12

12

12

14

14

18

18

22

22

28

ISO5211

F04/03

F04/03

F04/03

F04/03

F05/04

F05/04

F07/05

F074/05

F10/07

F10/07

F12/07

W1

143

143

143

143

160

160

187

187

350

350

350

H1

65

65

65

76

95

95

115

124

140

150

175






Advantages


High-End Mechanical Equiment

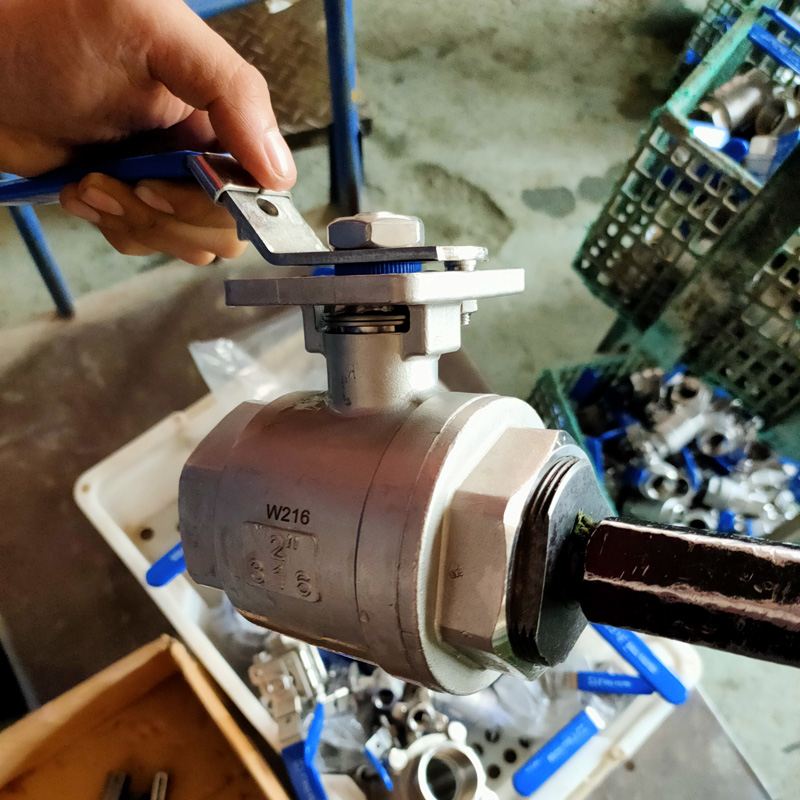

Jazzy has many factories and production lines, and has led promotional equipment to support the production of the latest promotional products. All employees must receive training before going on duty. Jazzy would organize monthly training on production skills.


222










Standardized Stainless Steel Ball Valve Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.


5

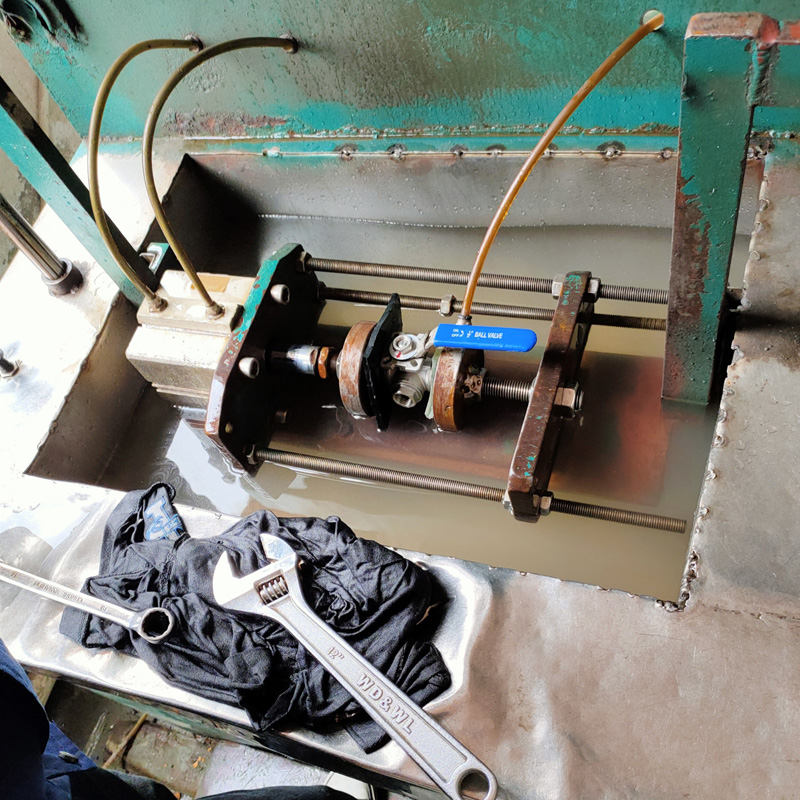

Standardized Thread and Pressure Inspection
