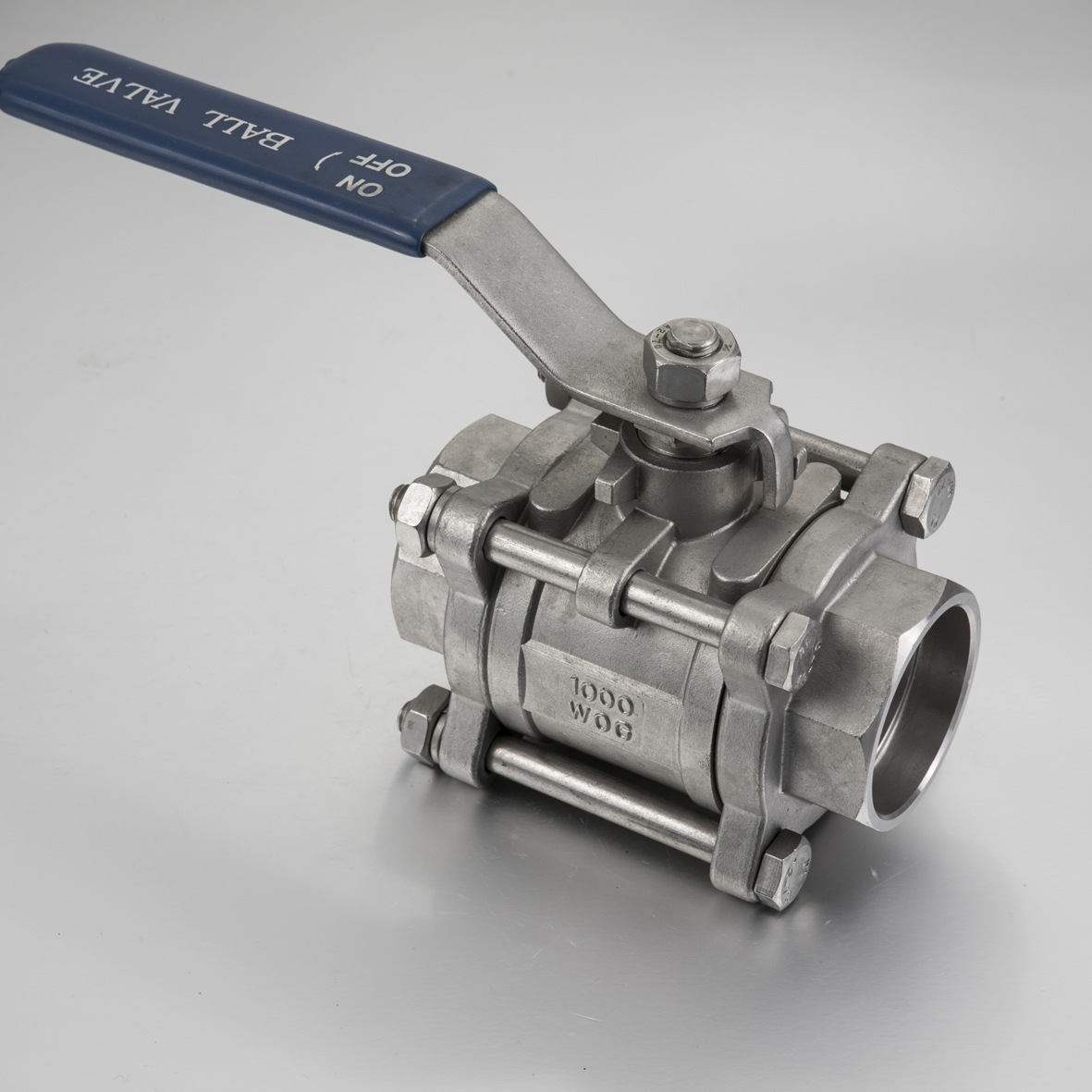

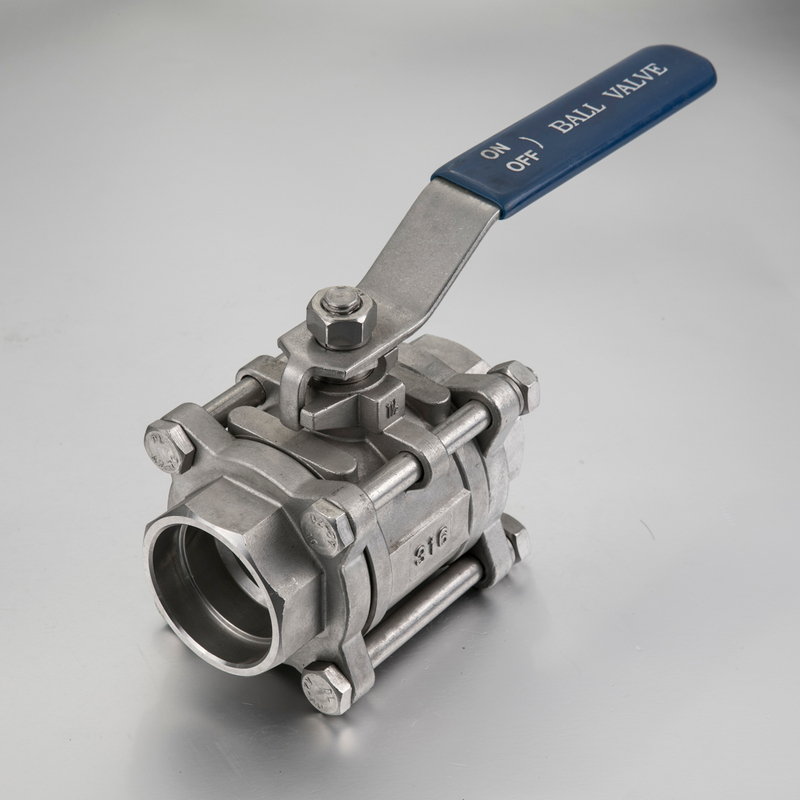

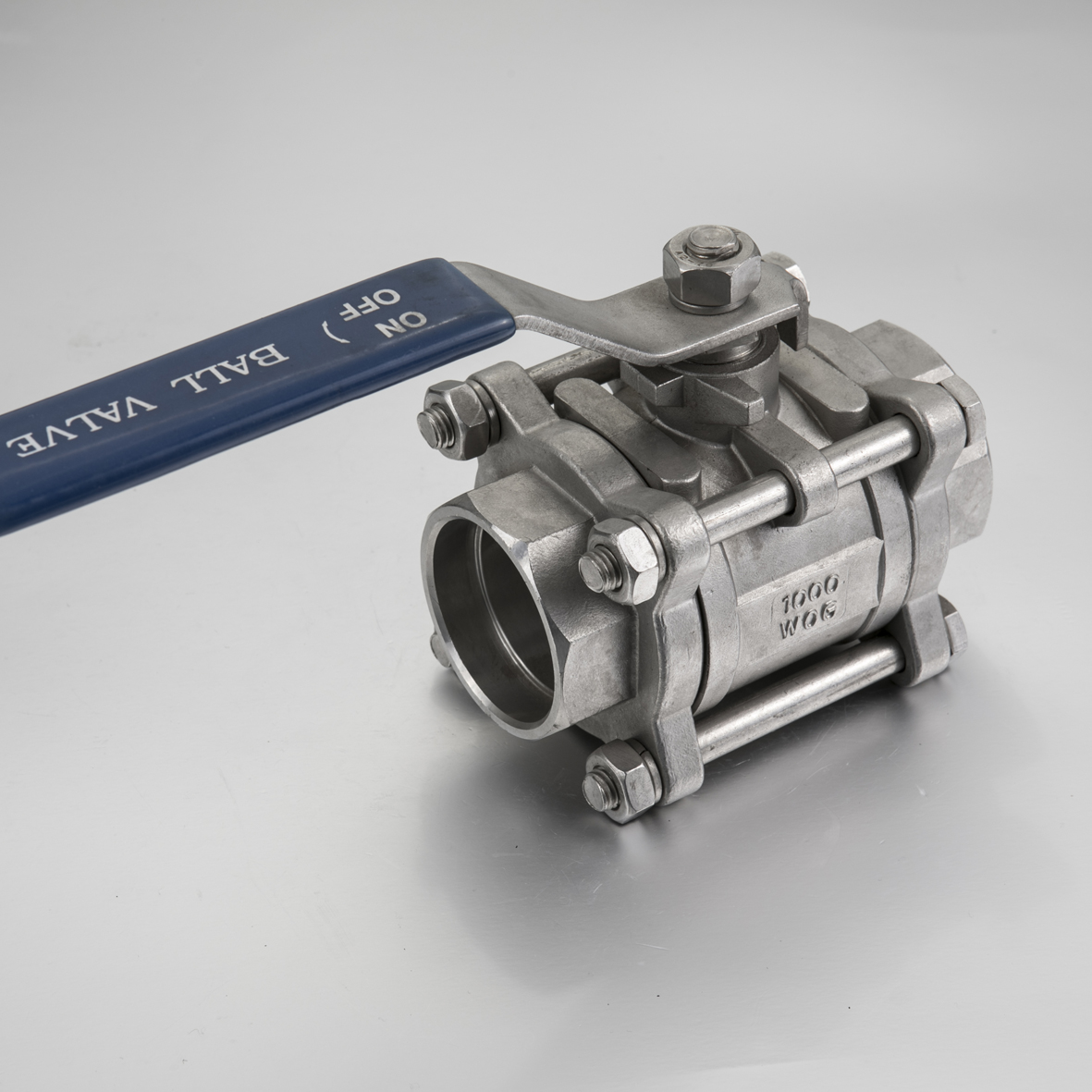

3PC Stainless Steel 304/316 Ball Valve

  • JAZZY

Size(INCH):
Availability:


3PC Stainless Steel 304/316 Ball Valve


Material:SS304,SS316,1.4308,1.4408,CF8,CF8M,WCB

Model:3PC

Connection:Socket Weld End

Medium:Water,oil and Gas

3PC Stainless Steel 304/316 Ball Valve Sizes & Dimensions



Features

1000PSI/PN63

Full Port

Investment   Casting

Blow-out   Proof Stem

PED/97/23EC(CE0036)   Approved

Casting   Approved: AD2000-W0

PTFE   Seats & Seals

Inspection   Testing: API598, EN12266

Anti-Static   Device (option)

Locking   Device Handle (option)

Connection:   ASME B1.20.1, BS21, DIN2999/259, ISO228-1, Butt Weld, Socket Weld


3PC Ball Valve

Material List

Item

Description

Material

1

HANDLE   SLEEVE

PVC

2

HANDLE

304

3

GLAND NUT

304/316

4

STEM NUT

304

5

STEM   WASHER

304

6

STEM   PACKING

PTFE

7

THRUST   WASHER

PTFE

8

END CAP

CF8/CF8M

9

BOLT

304

10

NUT

304

11

SPRING   WASHER

304

12

BODY

CF8/CF8M

13

BALL SEAT

RPTFE

14

BALL

CF8/CF8M

15

STEM

304/316

16

LOCKING   DEVICE

304

Dimensions (mm)

Size

1/4”

3/8”

1/2”

3/4”

1”

1-1/4”

1-1/2”

2”

2-1/2”

3”

4”

D

11

12

15

20

25

32

38

50

64

76

94

L

55

60

75

80

90

110

120

140

185

205

240

H

64

64

64

73

89

95

120

128

140

147

172

W

103

103

103

103

135

135

182

182

260

260

400









Advantages


High-End Mechanical Equiment

Jazzy has many factories and production lines, and has led promotional equipment to support the production of the latest promotional products. All employees must receive training before going on duty. Jazzy would organize monthly training on production skills.


222










Standardized Stainless Steel Ball Valve Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.


5


Standardized Pressure Inspection

Jazzy will take the initiative to send the products to inspection and spot check. Each time our test results exceed the international standards. Jazzy is also beyond some standards of the same industry with standardized production process that is in an inspection process. All larger samples will be sent for inspection, meeting the national inspection and testing standards.


222

Professional Warehouse Mangagement System

Stock of Finished Goods

666





FAQ


Q1. Does Jazzy support OEM?

Yes, here are the process B of Jazzy's OEM service:

  • Customers send samples or provides drawings to JAZZY,We design for the samples.

  • After the customers confirm the samples, JAZZY begins to start making the mold or customizing.

  • Send the initial sample to the customer for confirmation.

  • After the customer confirming, JAZZY arranges mass production.

Please visit Jazzy's OEM service for more.


Q2. How can I place the order for Jazzy?

Plan - Purchase - Manufacturing - Delivery

Please visit Jazzy's Supply Chain Mangagement for more.
