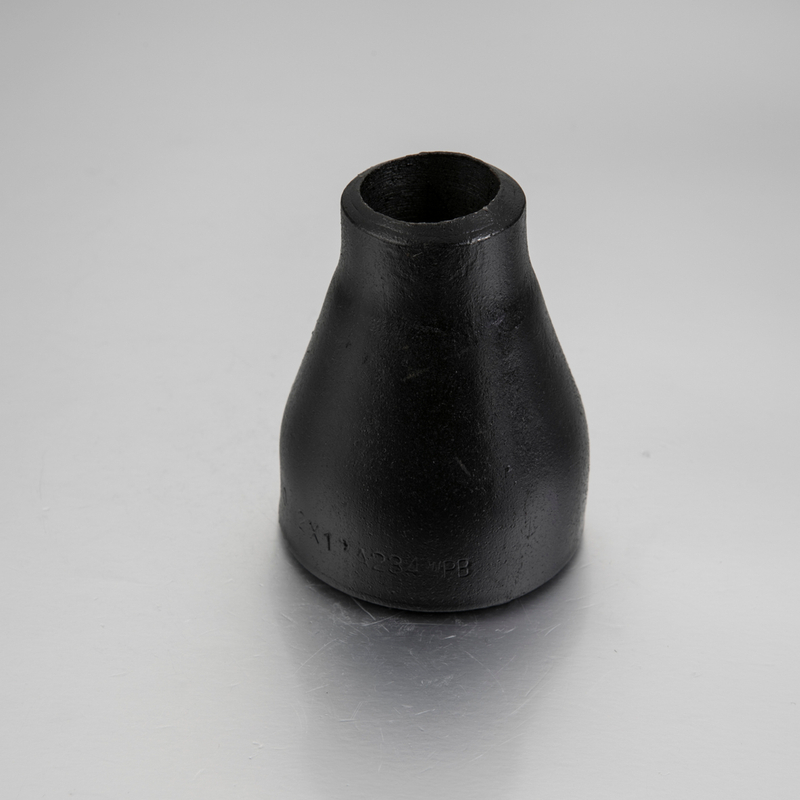

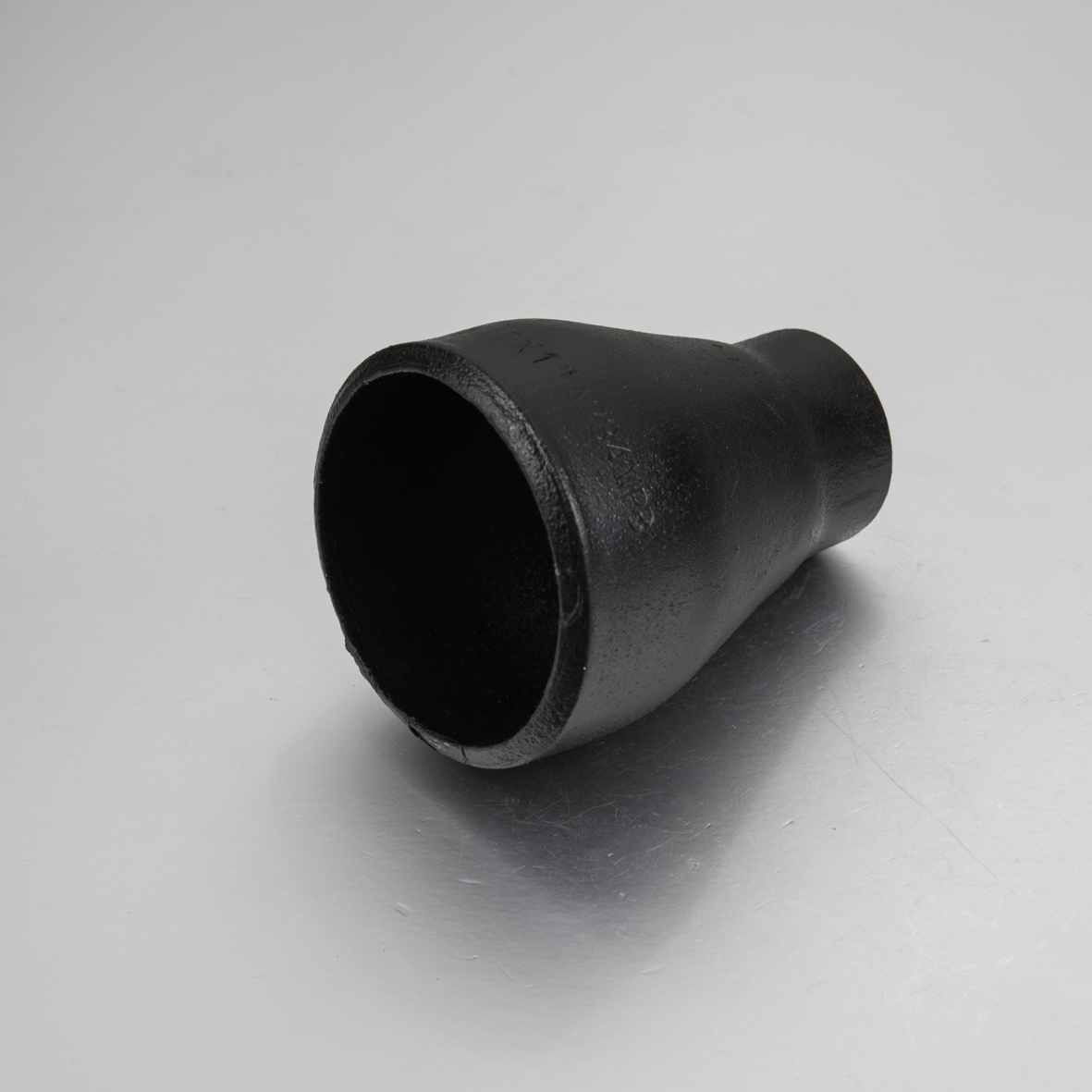

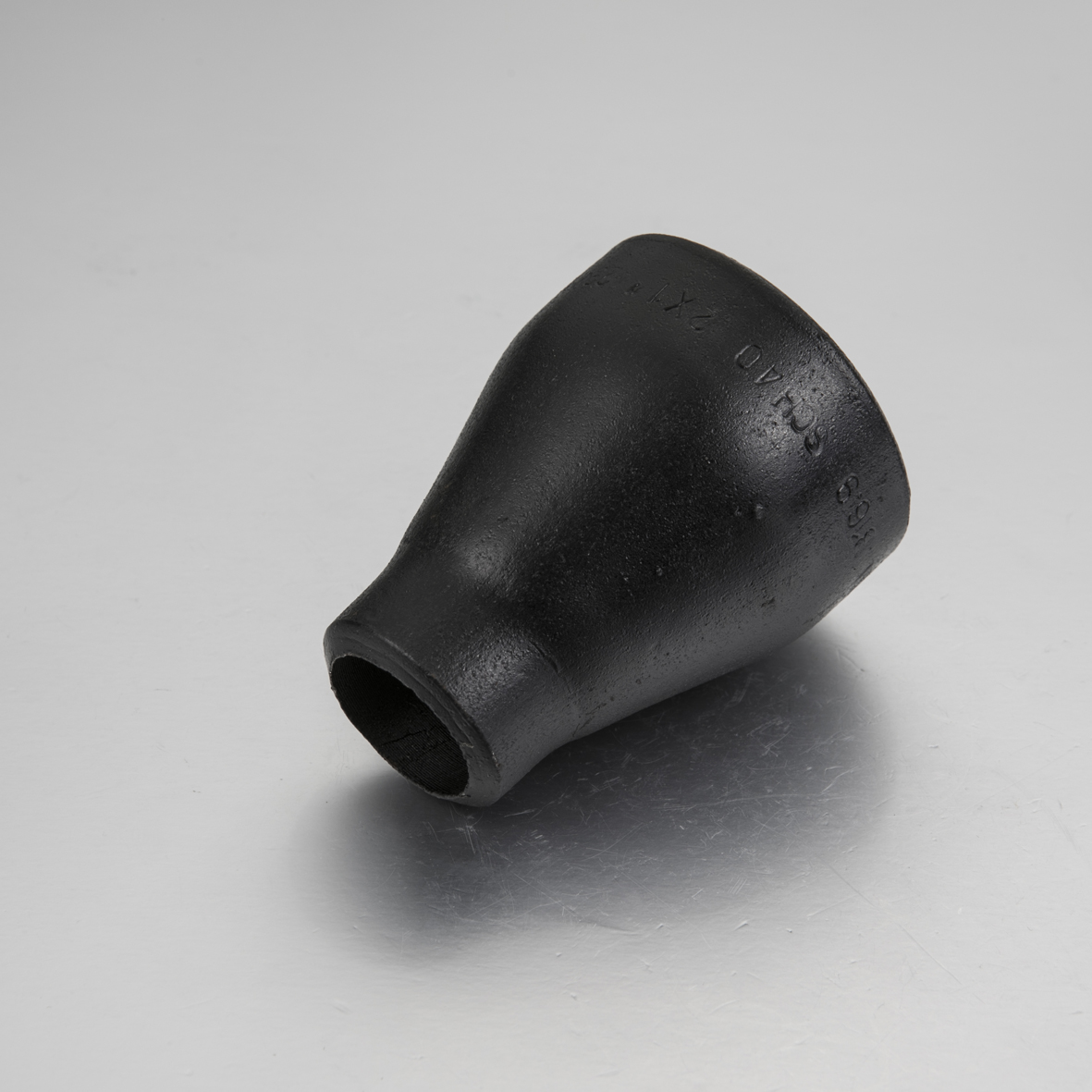

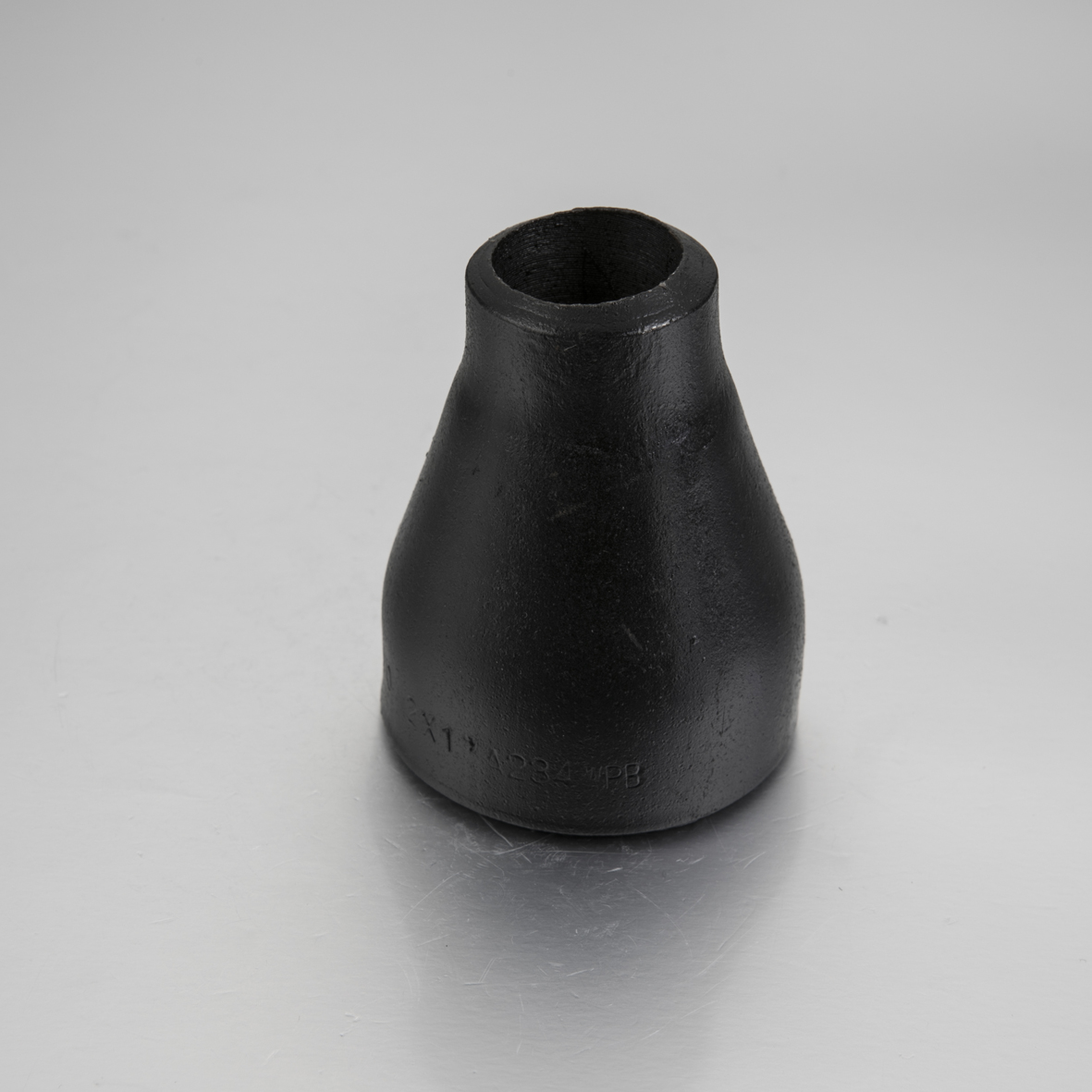

Carbon Steel Butt Weld Reducer

  • JAZZY

Size(INCH):
Please select
1/2 1 1-1/4 2 3 5
Availability:
Inquire


Carbon Steel Butt Weld Reducer

Material: ASTM A234 WPB

Standard:ASME B16.9

Type:Reducer

Schedule:SCH5S,SCH10S,SCH40S,SCH80S

Size:1/2" to 30"

Carbon Steel Butt Weld Reducer Sizes & Dimensions

Reducer


Reducer SCH5S,SCH10S,SCH40S,SCH80S

Nominal

Pipe Size

Outside Diameter

Center to End

5S

OD1

OD2

H

T1

T2

3/4X1/2

   1.050        0.840

1.50

0.065

0.065

1X3/4

   1.315        1.050

2.00

0.065

0.065

1X1/2

   1.315        0.840

2.00

0.065

0.065

1-1/4X1

   1.660        1.315

2.00

0.065

0.065

1-1/4X3/4

   1.660        1.050

2.00

0.065

0.065

1-1/4X1/2

   1.660        0.840

2.00

0.065

0.065

1-1/2X1-1/4

   1.900        1.660

2.50

0.065

0.065

1-1/2X1

   1.900        1.315

2.50

0.065

0.065

1-1/2X3/4

   1.900        1.050

2.50

0.065

0.065

1-1/2X1/2

   1.900        0.840

2.50

0.065

0.065

2X1-1/2

   2.375        1.900

3.00

0.065

0.065

2X1-1/4

   2.375        1.660

3.00

0.065

0.065

2X1

   2.375        1.315

3.00

0.065

0.065

2X3/4

   2.375        1.050

3.00

0.065

0.065

2-1/2X2

   2.875        2.375

3.50

0.083

0.065

2-1/2X1-1/2

   2.875        1.900

3.50

0.083

0.065

2-1/2X1-1/4

   2.875        1.660

3.50

0.083

0.065

3X2-1/2

   3.500        2.875

3.50

0.083

0.083

3X2

   3.500        2.375

3.50

0.083

0.065

3X1-1/2

   3.500        1.900

3.50

0.083

0.065

3X1-1/4

   3.500        1.660

3.50

0.083

0.065

3-1/2X3

   4.000        3.500

4.00

0.083

0.083

3-1/2X2-1/2

   4.000        2.875

4.00

0.083

0.083

3-1/2X2

   4.000        2.375

4.00

0.083

0.065

4X3-1/2

   4.500        4.000

4.00

0.083

0.083

4X3

   4.500        3.500

4.00

0.083

0.083

Nominal

Pipe Size

10S

40S

80S

T1

T2

T1

T2

T1

T2

3/4X1/2

0.083

0.083

0.113

0.109

0.154

0.147

1X3/4

0.109

0.083

0.133

0.113

0.179

0.154

1X1/2

0.109

0.083

0.133

0.109

0.179

0.147

1-1/4X1

0.109

0.109

0.140

0.133

0.191

0.179

1-1/4X3/4

0.109

0.083

0.140

0.113

0.191

0.154

1-1/4X1/2

0.109

0.083

0.140

0.109

0.191

0.147

1-1/2X1-1/4

0.109

0.109

0.145

0.140

0.200

0.191

1-1/2X1

0.109

0.109

0.145

0.133

0.200

0.179

1-1/2X3/4

0.109

0.083

0.145

0.113

0.200

0.154

1-1/2X1/2

0.109

0.083

0.145

0.109

0.200

0.147

2X1-1/2

0.109

0.109

0.154

0.145

0.218

0.200

2X1-1/4

0.109

0.109

0.154

0.140

0.218

0.191

2X1

0.109

0.109

0.154

0.133

0.218

0.179

2X3/4

0.109

0.083

0.154

0.113

0.218

0.154

2-1/2X2

0.120

0.109

0.203

0.154

0.276

0.218

2-1/2X1-1/2

0.120

0.109

0.203

0.145

0.276

0.200

2-1/2X1-1/4

0.120

0.109

0.203

0.140

0.276

0.191

3X2-1/2

0.120

0.120

0.216

0.203

0.300

0.276

3X2

0.120

0.109

0.216

0.154

0.300

0.218

3X1-1/2

0.120

0.109

0.216

0.145

0.300

0.200

3X1-1/4

0.120

0.109

0.216

0.140

0.300

0.191

3-1/2X3

0.120

0.120

0.226

0.216

0.318

0.300

3-1/2X2-1/2

0.120

0.120

0.226

0.203

0.318

0.276

3-1/2X2

0.120

0.109

0.226

0.154

0.318

0.218

4X3-1/2

0.120

0.120

0.237

0.226

0.337

0.318

4X3

0.120

0.120

0.237

0.216

0.337

0.300

Nominal

Pipe Size

Outside Diameter

Center to End

5S

OD1

OD2

H

T1

T2

4X2-1/2

4.500

2.875

4.00

0.083

0.083

4X2

4.500

2.375

4.00

0.083

0.065

5X4

5.563

4.500

5.00

0.109

0.083

5X3-1/2

5.563

4.000

5.00

0.109

0.083

5X3

5.563

3.500

5.00

0.109

0.083

5X2-1/2

5.563

2.875

5.00

0.109

0.083

6X5

6.625

5.563

5.50

0.109

0.109

6X4

6.625

4.500

5.50

0.109

0.083

6X3-1/2

6.625

4.000

5.50

0.109

0.083

6X3

6.625

3.500

5.50

0.109

0.083

8X6

8.625

6.625

6.00

0.109

0.109

8X5

8.625

5.563

6.00

0.109

0.109

8X4

8.625

4.500

6.00

0.109

0.083

10X8

10.750

8.625

7.00

0.134

0.109

10X6

10.750

6.625

7.00

0.134

0.109

10X5

10.750

5.563

7.00

0.134

0.109

12X10

12.750

10.750

8.00

0.156

0.134

12X8

12.750

8.625

8.00

0.156

0.109

12X6

12.750

6.625

8.00

0.156

0.109

14X12

14.000

12.750

13.00

0.156

0.156

14X10

14.000

10.750

13.00

0.156

0.134

14X8

14.000

8.625

13.00

0.156

0.109

16X14

16.000

14.000

14.00

0.165

0.156

16X12

16.000

12.750

14.00

0.165

0.156

16X10

16.000

10.750

14.00

0.165

0.134

18X16

18.000

16.000

15.00

0.165

0.165

4X2-1/2

0.120

0.120

0.237

0.203

0.337

0.276

4X2

0.120

0.109

0.237

0.154

0.337

0.218

5X4

0.134

0.120

0.258

0.237

0.375

0.337

5X3-1/2

0.134

0.120

0.258

0.226

0.375

0.318

5X3

0.134

0.120

0.258

0.216

0.375

0.300

5X2-1/2

0.134

0.120

0.258

0.203

0.375

0.276

6X5

0.134

0.134

0.280

0.258

0.432

0.375

6X4

0.134

0.120

0.280

0.237

0.432

0.337

6X3-1/2

0.134

0.120

0.280

0.226

0.432

0.318

6X3

0.134

0.120

0.280

0.216

0.432

0.300

8X6

0.148

0.134

0.322

0.280

0.500

0.432

8X5

0.148

0.134

0.322

0.258

0.500

0.375

8X4

0.148

0.120

0.322

0.237

0.500

0.337

10X8

0.165

0.148

0.365

0.322

0.500

0.500

10X6

0.165

0.134

0.365

0.280

0.500

0.432

10X5

0.165

0.134

0.365

0.258

0.500

0.375

12X10

1.180

0.165

0.375

0.365

0.500

0.500

12X8

1.180

0.148

0.375

0.322

0.500

0.500

12X6

1.180

0.134

0.375

0.280

0.500

0.432

14X12

0.188

0.180

-

-

-

-

14X10

0.188

0.165

-

-

-

-

14X8

0.188

0.148

-

-

-

-

16X14

0.188

0.188

-

-

-

-

16X12

0.188

0.180

-

-

-

-

16X10

0.188

0.165

-

-

-

-

18X16

0.188

0.188

-

-

-

-

Nominal

Pipe Size

Outside Diameter

Center to End

5S

OD1

OD2

H

T1

T2

18X14

18.000

14.000

15.00

0.165

0.156

18X12

18.000

12.750

15.00

0.165

0.156

20X18

20.000

18.000

20.00

0.188

0.165

20X16

20.000

16.000

20.00

0.188

0.165

20X14

20.000

14.000

20.00

0.188

0.156

22X20

22.000

20.000

20.00

0.188

0.188

22X18

22.000

18.000

20.00

0.188

0.165

22X16

22.000

16.000

20.00

0.188

0.165

24X22

24.000

22.000

20.00

0.218

0.188

24X20

24.000

20.000

20.00

0.218

0.188

24X18

24.000

18.000

20.00

0.218

0.165

30X24

30.000

26.000

24.00

0.250

0.218

30X22

30.000

22.000

24.00

0.250

0.188

30X20

30.000

20.000

24.00

0.250

0.188


Advantages

High-End Mechanical Equiment

Jazzy has many factories and production lines, and has leading promotional equipment to support the production of the latest promotional products. All employees must be trained before going on duty. Jazzy would organize monthly training on production skills.


 111


Standardized Stainless Steel Butt Weld Fitting Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.


butt welded fitting1


Standardized Grit Meterial Certification

Jazzy will take the initiative to send the products for inspection and spot check. Each time our test results exceed the international standards. Jazzy is also beyond some standards of the same industry with standardized production process that has an inspection process. All large samples will be sent for inspection, meeting the national inspection and testing standards.


Stainless Steel Butt Weld Fitting

Professional Warehouse Mangagement System

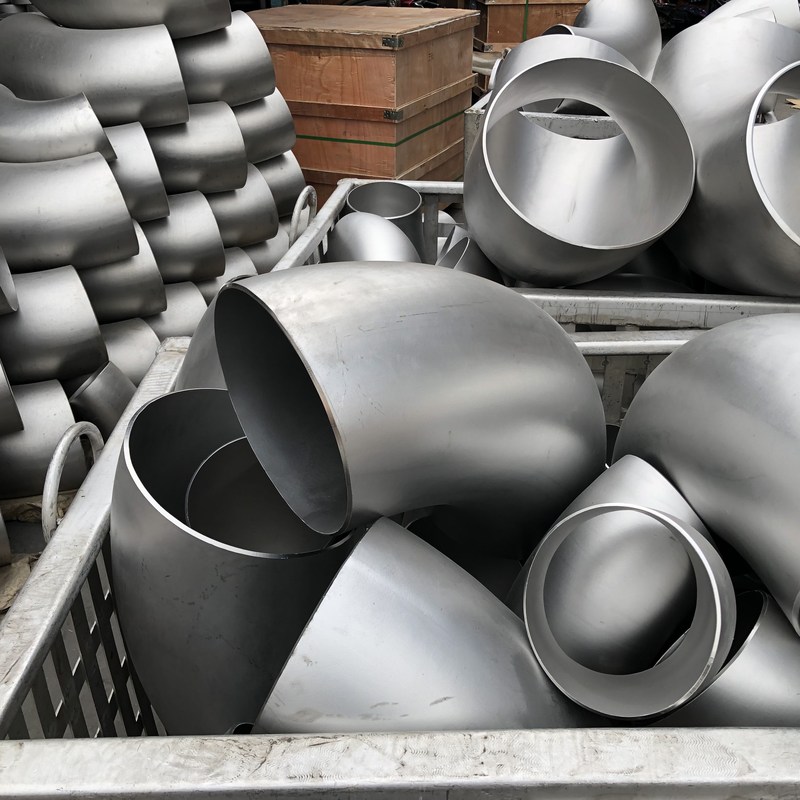

Stock of Finished Goods


butt welded fitting7




FAQ

Q1. Does Jazzy support OEM?

Yes, here are the process B of Jazzy's OEM service:

  • Customers send samples or provides drawings to JAZZY,We design for the samples.

  • After the customers confirm the samples, JAZZY begins to start making the mold or customing.

  • Send the initial sample to the customer for confirmation.

  • After the customer confirming, JAZZY arranges mass production.

Please visit Jazzy's OEM service for more.


Q2. How can I place the order in Jazzy？

Plan - Purchase - Manufacturing - Delivery

Please visit Jazzy's Supply Chain Mangagement for more.





Contact us

Jazzy




If you aren't sure what to use, consult an engineer or contact us for help.

Email: johnny@jazzyindustrial.com
TEL: +8613957800923

Jazzy YouTube:https://www.youtube.com/watch?v=z48pJdslTAU
