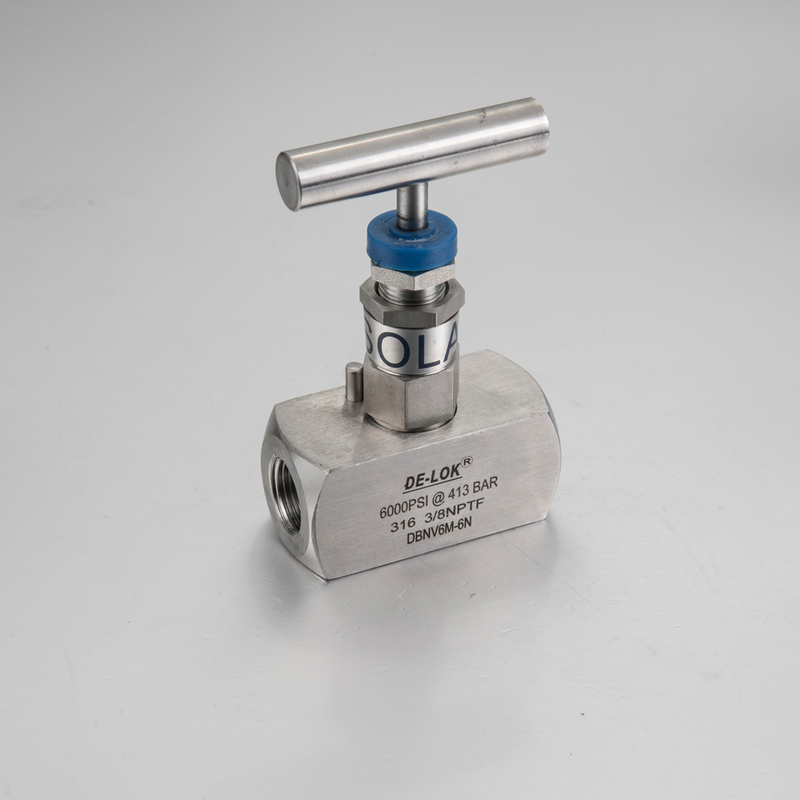

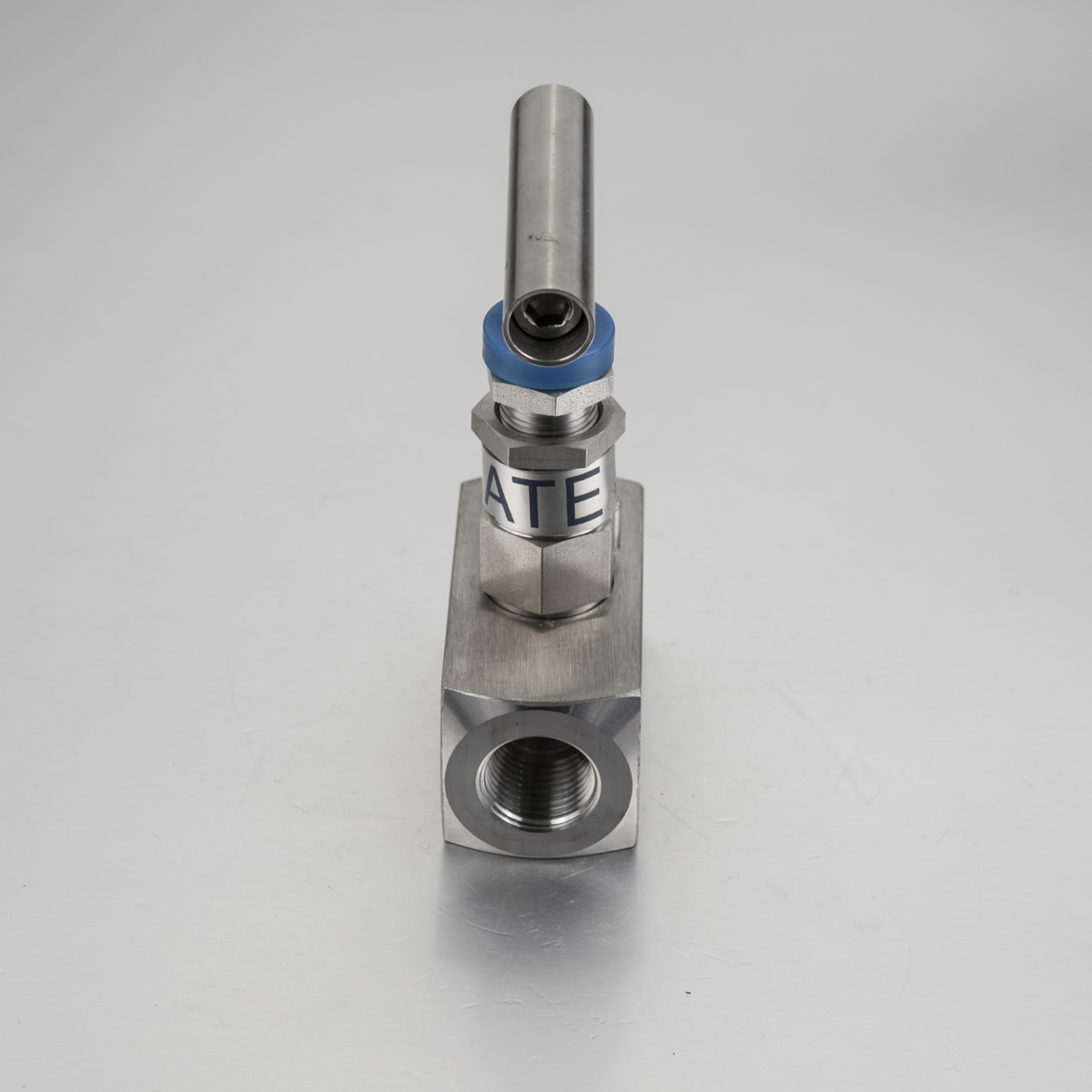

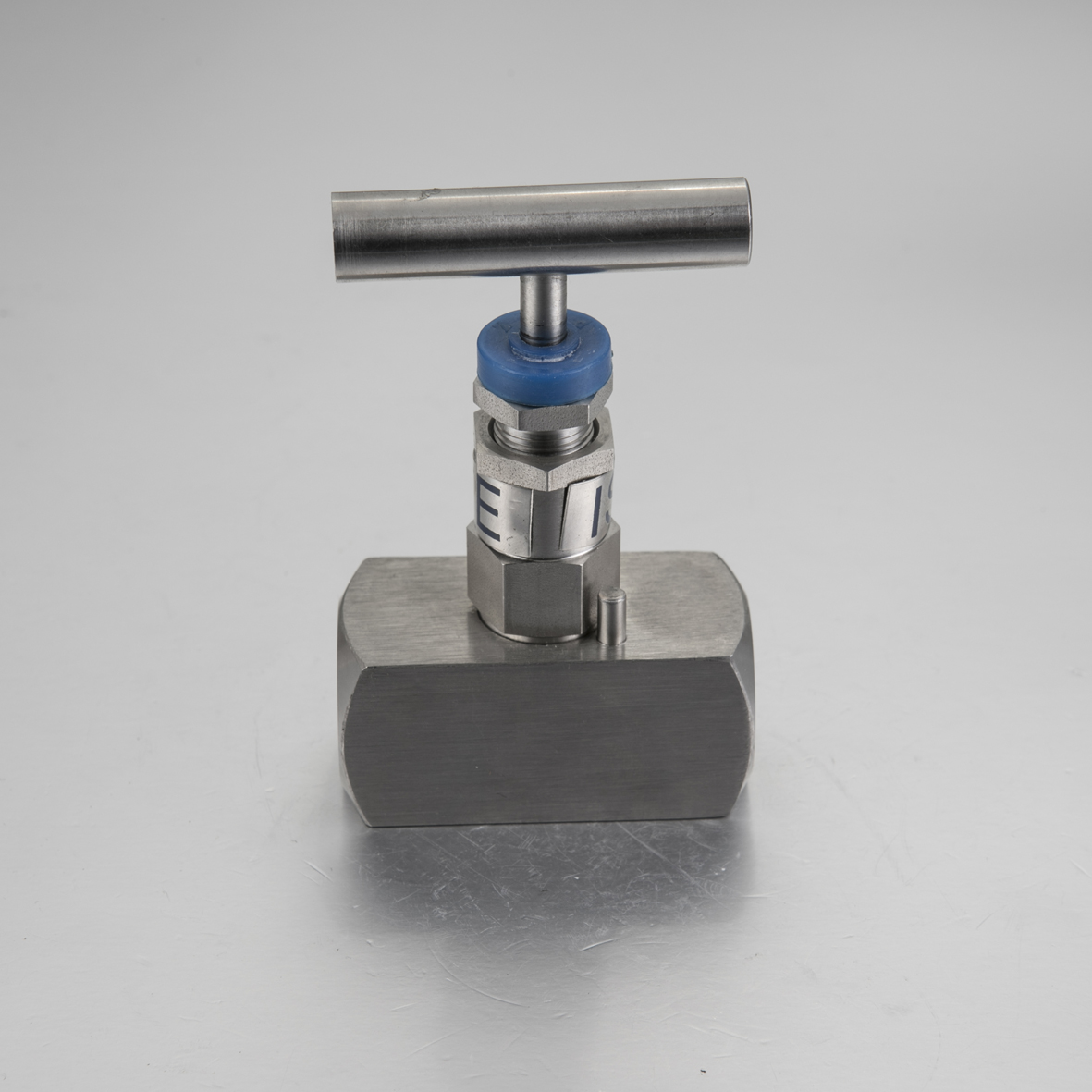

Instrument Bar Stock Body Needle Valve
Brand:DE-LOK
Material:ASTM A 182 F316
Connection:NPT
Type:Needle Valve
Standard:Equal to Swagelok Standard
Features
Non-rotating stem tip
Straight-through orifice for maximum flow
Stem dust seal protects threads from external contamination
Replaceable seals, seta and stem tip
Panel mounting option
Gauge port option
Specifications
Pressure Rating | 6000psig(413bar) @ 100℉(37℃) |
Temperature Rating | -20 to 400℉(-28 to 204℃) |
Body Material | 316 Stainless Steel |
Orifice | 4.8mm, 6.4mm |
Technical Data
Pressure – Temperature Ratings
Body Material | 316 Stainless Steel | |
Seat Material | Acetal | PEEK |
Temperature Rating ℉(℃) | Working Pressure psig (bar) | |
-20 to 100 (-28 to 37) | 6000 (413) | 6000 (413) |
200 (93) | 2650 (182) | 3000 (206) |
250 (121) | 1000 (68.9) | 1600 (110) |
300 (148) | 1300 (89.5) | |
350 (176) | 1200 (82.6) | |
400 (204) | 1000 (68.9) |
NO | Component | Stainless Steel |
1 | Body | SS316/A182 |
2 | Stem | S17400/A564 |
3 | Stem Tip | SS316/A182 |
4 | Bonnet | SS316/A182 |
5 | Lock Nut | SS316/A182 |
6 | Handle | SS316/A182 |
7 | Seat | Acetal |
8 | Stem Seal | Viton |
9 | Back-up Ring | PTFE |
10 | Dust Seal | Viton |
Table of Dimensions
Order Number | Orifice | Cv | End Connections | Dimensions (mm) | |||||||
Series | Part No. | Port 1 | Port 2 | A | B | B1 | C | D | E | ||
DBNV 01 | 4N-4N | 4.8 | 0.63 | 1/4” Female NPT | 62.0 | 31.0 | 31.0 | 12.7 | 96.3 | 60.0 | |
4N-4MN | 1/4” Male NPT | 1/4” Female NPT | 76.2 | 45.2 | |||||||
4N-8MN | 1/2” Male NPT | 1/4” Female NPT | 81.1 | 50.1 | |||||||
DBNVG 01 | 4N-4N | 1/4 Female NPT | 78.0 | 31.0 | 47.0 | ||||||
4N-4MN | 1/2” Male NPT | 1/4” Female NPT | 97.1 | 50.1 | |||||||
DBNV 02 | 8N-8N | 6.4 | 1.80 | 1/2” Female NPT | 84.0 | 42.0 | 42.0 | 16.0 | 96.9 | ||
8N-8MN | 1/2” Male NPT | 1/2” Female NPT | 103.1 | 61.1 | |||||||
8N-12MN | 3/4” Male NPT | 1/2” Female NPT | 103.1 | 61.1 | |||||||
DBNVG 02 | 8N-8N | 1/2” Female NPT | 107.4 | 42.0 | 65.4 | ||||||
8N-8MN | 1/2” Male NPT | 1/2: Female NPT | 126.5 | 61.1 | |||||||
8N-12MN | 3/4” Male NPT | 1/2” Female NPT | 126.5 | 61.1 |
