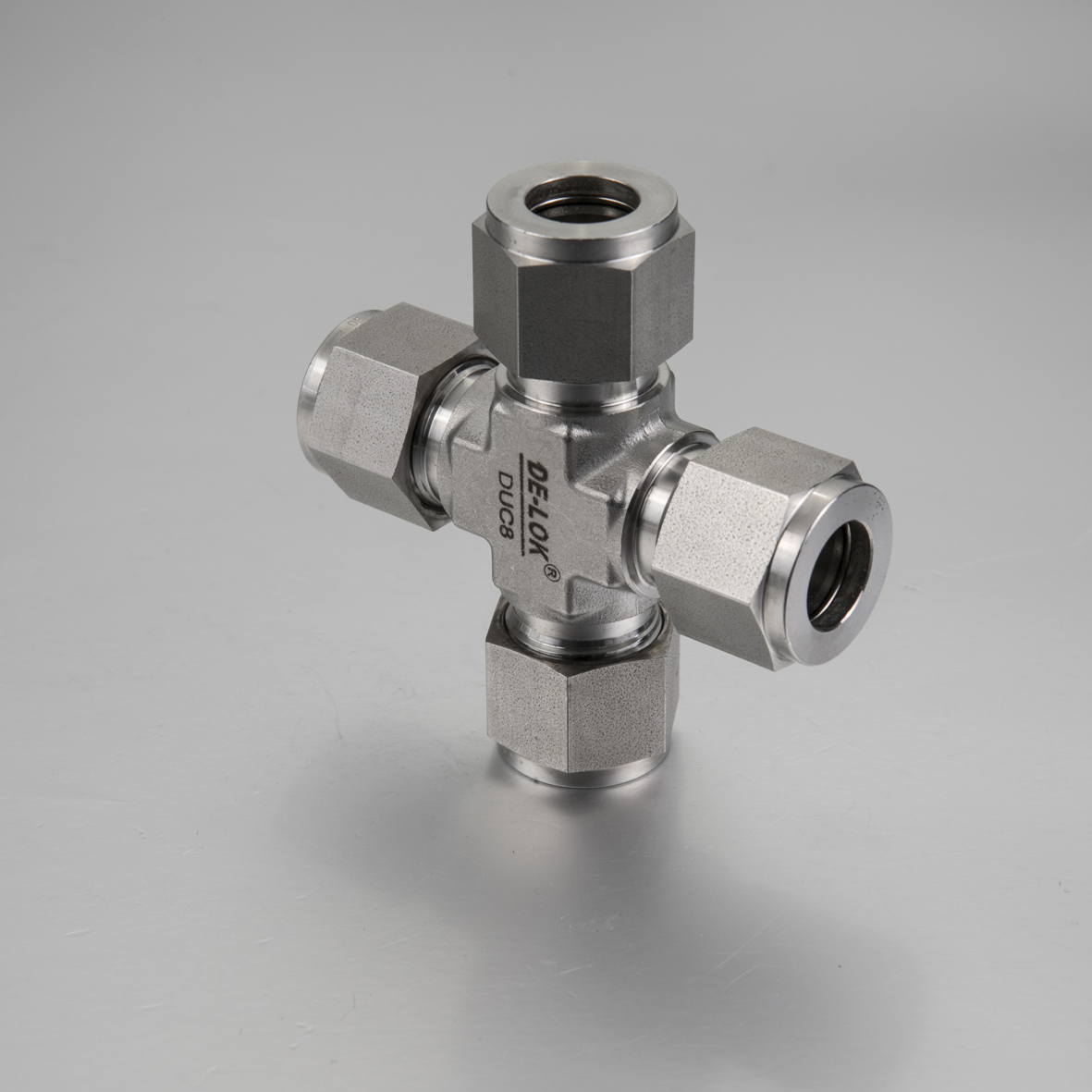

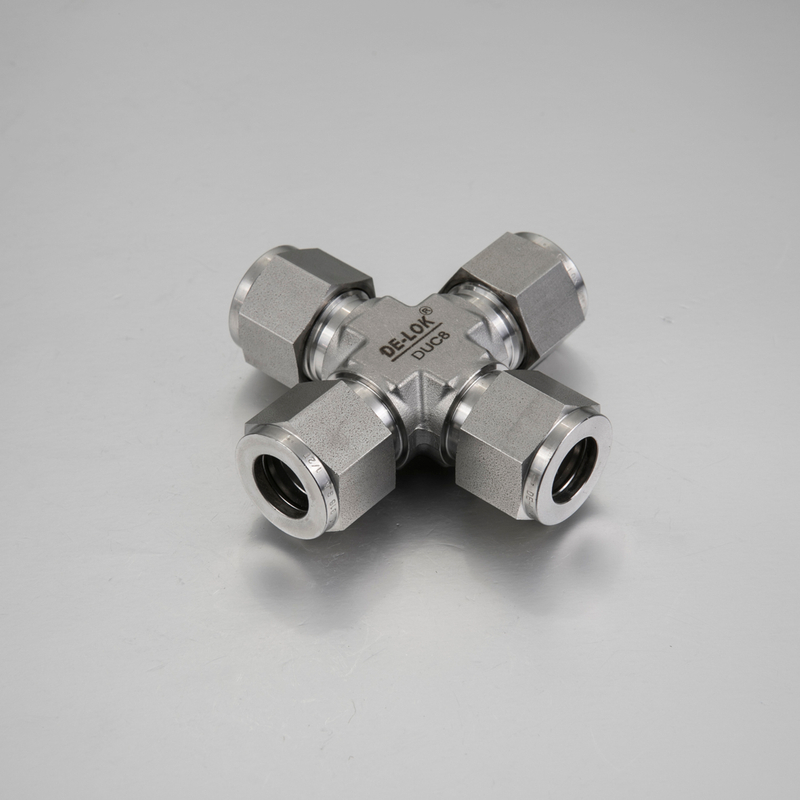

Instrument Union Cross Tube Fitting

  • DE-LOK

Size(INCH):
Availability:


Instrument Union Cross Tube Fitting


Material:ASTM A 182 F316

Connection:Tube OD

Type:Union Cross

Surface Treatment:Silver Coating for Nut,Hardening For Bakc Ferrule

Working Pressure:6000PSI

Size:1/8" to 1"

Standard:Equal to Swagelok Standard

Certificate:Lloyd's,CE,DNV

Instrument Union Cross Tube Fitting Sizes & Dimensions





cross



Union Cross

 (Metric)

Tube O.D.

 Part No.

A

D

E

F

G

H

J

K

3

DUC3M

25.5

14.0

2.4

12

10

18.5

37.0

51.0

6

DUC6M

30.2

15.2

5

14

14

23.0

46.0

64.0

8

DUC8M

30.5

16.5

6

14

17

23.0

46.0

61.0

10

DUC10M

31.5

19.5

8

17

19

24.0

48.0

63.0

12

DUC12M

37.0

23.6

10

20

22

26.0

52.0

74.0

16

DUC16M

38.8

24.4

12

24

27

28.7

57.4

77.6

18

DUC18M

39.8

24.4

14

27

31

29.7

59.4

79.6

20

DUC20M

44.6

26.0

16

30

32

34.5

69.0

89.3

25

DUC25M

49.1

31.3

21

35

38

36.8

73.6

98.2

 (Fractional)

1/8

DUC2

25.5

14.0

2

12

10

18.5

37.0

51.0

3/16

DUC3

25.5

14.0

3.5

12

10

18.5

37.0

51.0

1/4

DUC4

30.2

15.2

5

14

14

23.0

46.0

60.4

5/16

DUC5

29.9

16.2

6

14

17

22.4

44.7

59.7

3/8

DUC6

31.5

18.8

8

17

19

24.0

48.0

63.0

1/2

DUC8

37.0

23.6

10

22

22

26.0

52.0

74.0

5/8

DUC10

38.8

24.4

12

24

27

28.7

57.4

77.6

3/4

DUC12

39.9

26.0

15

27

30

29.7

59.4

79.8

7/8

DUC14

44.7

26.0

18

30

32

34.5

69.0

89.4

1

DUC16

49.0

31.2

21

35

38

36.8

73.6

98.0




Advantages


High-End Mechanical Equiment

Jazzy has many factories and production lines, and has leading promotional equipment to support the production of the latest promotional products. All employees must be trained before going on duty. Jazzy would organize monthly training on production skills.

111


Standardized Instrumentation Fitting Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.

111

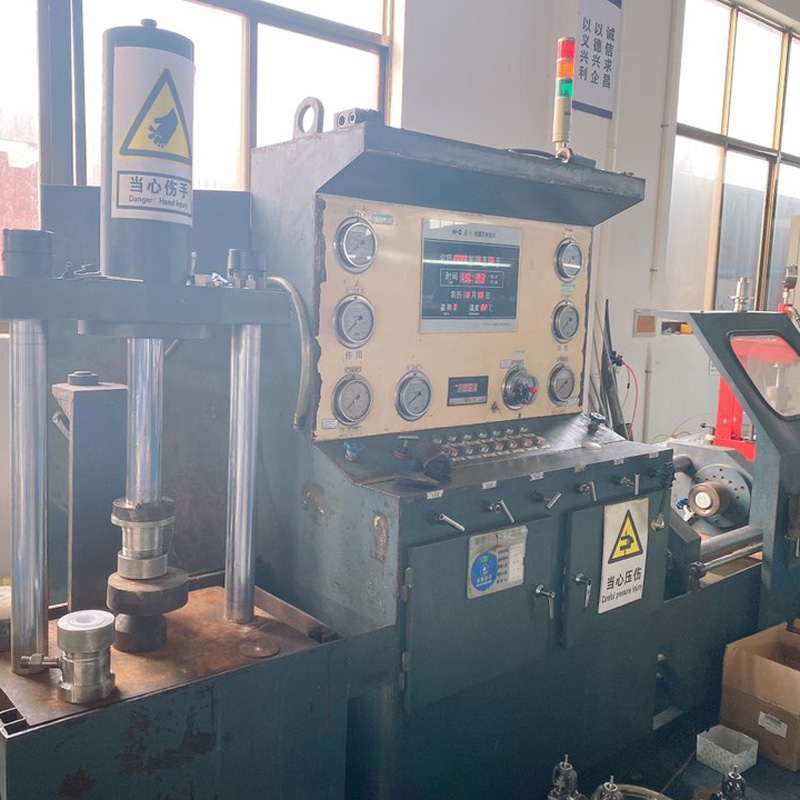

Standardized Nitrogen Gas Inspection

Jazzy will take the initiative to send the products for inspection and spot check. Each time our test results exceed the international standards. Jazzy is also beyond some standards of the same industry with standardized production process that has an inspection process. All large samples will be sent for inspection, meeting the national inspection and testing standards.
