Stainless Steel Sanitary Union

  • JAZZY

Size(INCH):
Availability:

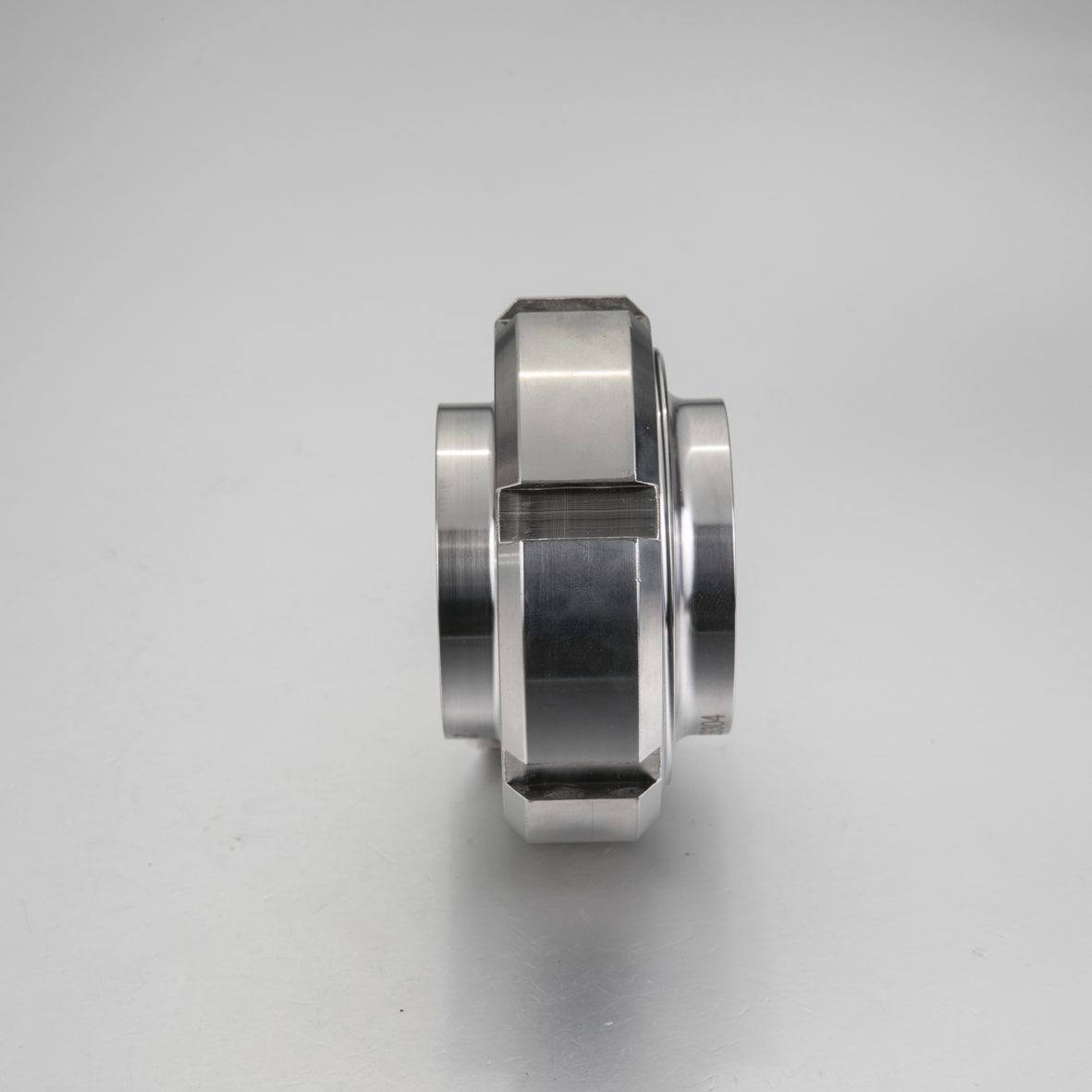

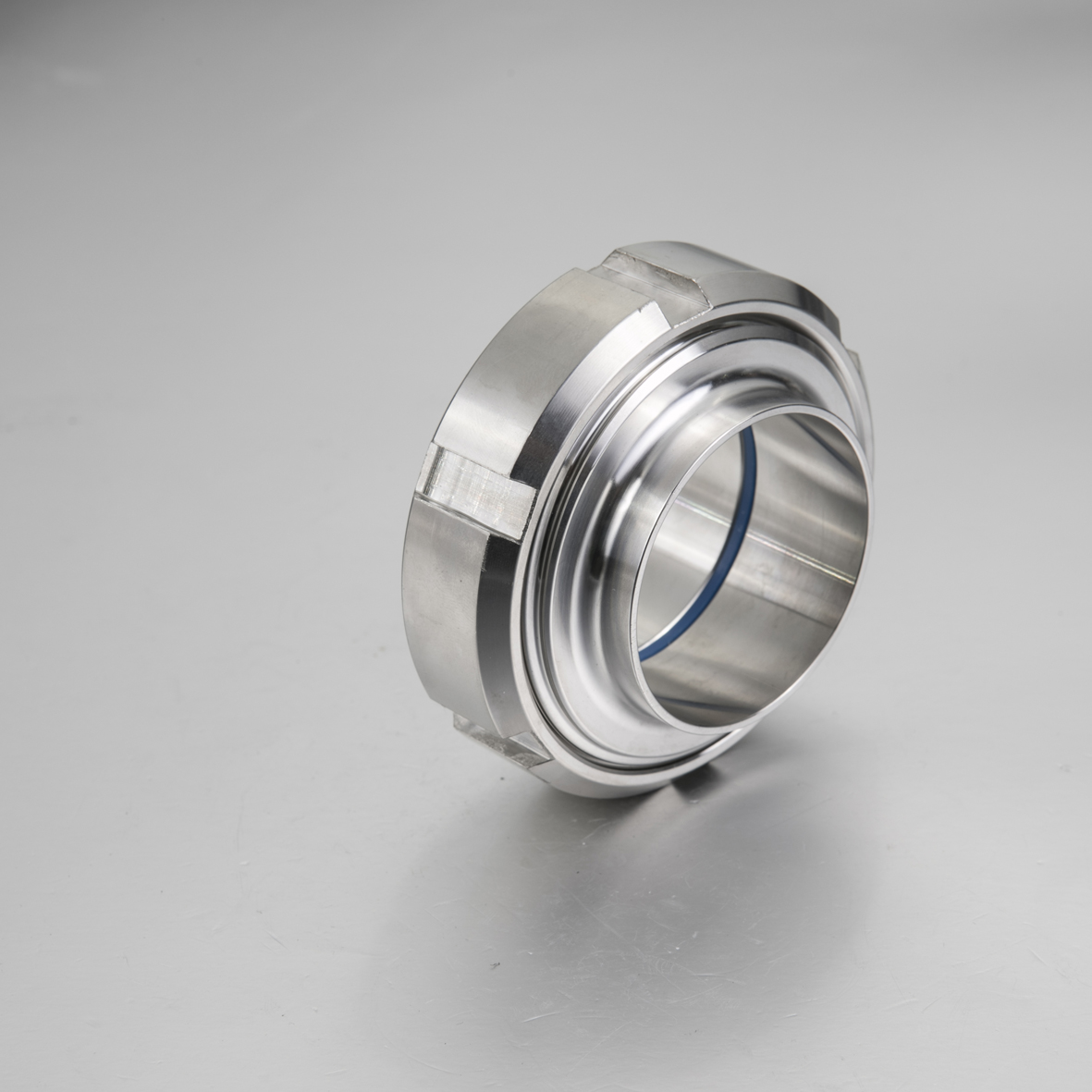

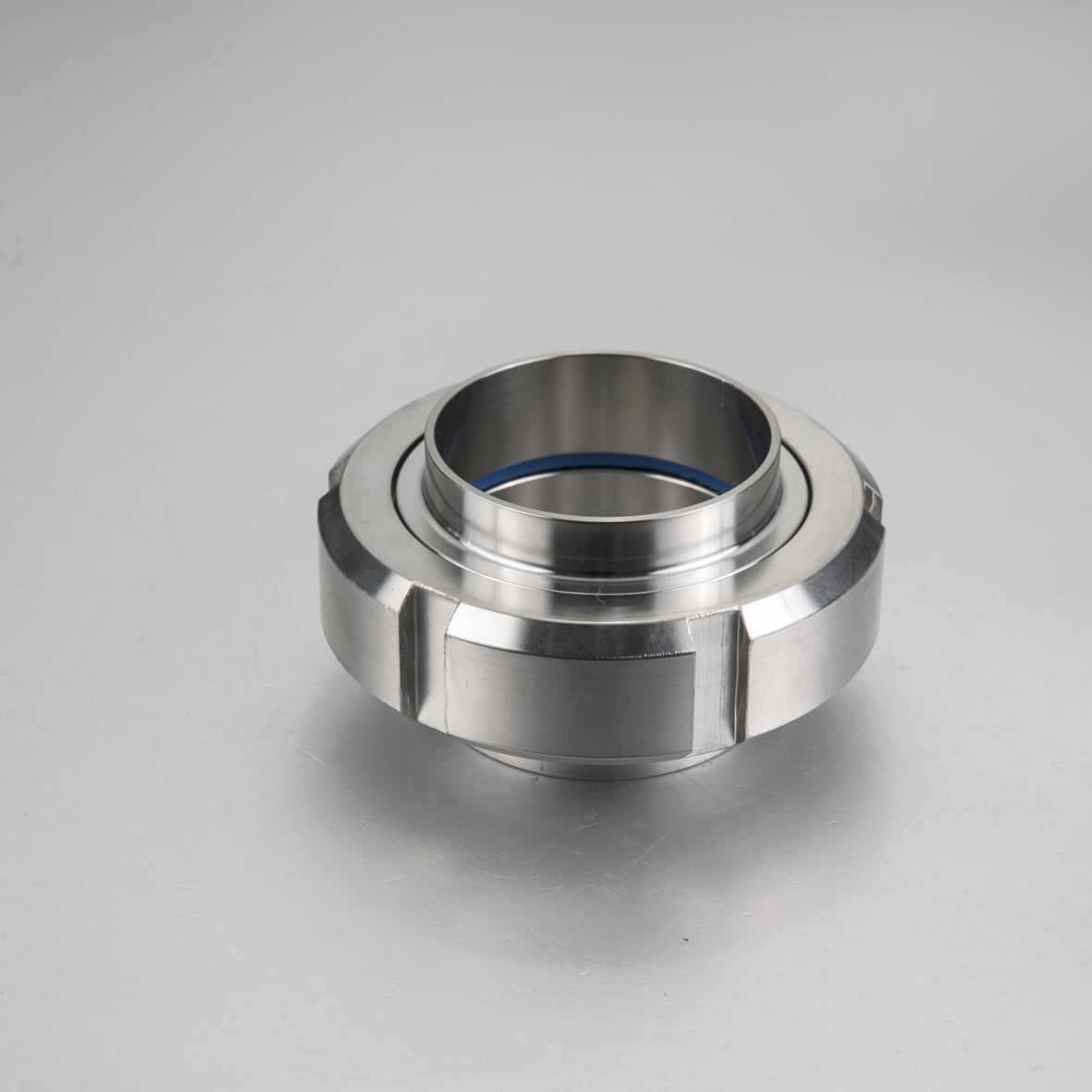

Stainless Steel Sanitary Union


Material:ASTM A270 SS304,SS316, SS304L,SS316L

Type:Union

Connection:Thread

Surface Treatment: 180grit Polish 240grit Polish  320grit Polish 400grit Polish

Size:1/2" to 6"

Standard:SMS,3A,DIN,ISO,RTJ,etc

Stainless Steel Sanitary Union Sizes & Dimensions


Gasket for Union

Gasket for Union DIN 1020001

Size

A

F1




DN15

5.0

26.0




DN20

5.0

33.0




DN25

5.0

40.0




DN32

5.0

46.0




DN40

5.0

52.0




DN50

5.0

64.0




DN65

5.0

81.0




DN80

6.0

95.0




DN100

6.0

114.0




DN125

7.0

142.0




DN150

7.0

167.0





Round Nut


Round Nut DIN 1023005

Size

A

G

D5

C


DN15

18.0

RD34X1/8

44.0

25.0


DN20

19.0

RD44X1/6

54.0

31.0


DN25

21.0

RD52X1/6

62.0

36.0


DN32

21.0

RD58X1/6

68.0

42.0


DN40

21.0

RD65X1/6

78.0

49.0


DN50

22.0

RD78X1/6

92.0

62.0


DN65

24.0

RD95X1/6

110.0

80.0


DN80

28.0

RD110X1/4

126.0

94.0


DN100

30.0

RD130X1/4

146.0

114.0


DN125

32.0

RD160X1/4

178.0

138.0


DN150

34.0

RD190X1/4

208.0

164.0



Welding Male

Welding Male DIN 1023006

Size

Inch Size

A

G

D


DN15

1/2”

21

RD34X1/8

12.7


DN20

3/4”

21

RD44X1/6

19.05


DN25

1”

29

RD52X1/6

25.4


DN32

1-1/4”

32

RD58X1/6

31.75


DN40

1-1/2”

33

RD65X1/6

38.1


DN50

2”

35

RD78X1/6

50.8


DN65

2-1/2”

40

RD95X1/6

63.5


DN80

3”

45

RD110X1/4

76.2


DN100

4”

54

RD130X1/4

101.6


DN125

5”

46

RD160X1/4

127.0


DN150

6”

50

RD190X1/4

152.4


Expanding Liner

Expanding Liner DIN 1024011

Size

A

D

D1



DN15

21.0

24.0

28.0



DN20

24.0

30.0

36.0



DN25

29.0

35.0

43.0



DN32

32.0

41.0

49.0



DN40

33.0

48.0

55.0



DN50

35.0

61.0

68.0



DN65

40.0

79.0

85.0



DN80

45.0

93.0

100.0



DN100

54.0

114.0

120.0



DN125

46.0

137.0

149.0



DN150

50.0

163.0

176.0





Advantages


High-End Mechnial Equiment

Jazzy has many factories and production lines, and has leading promotional equipment to support the production of the latest promotional products. All employees must be trained before going on duty. Jazzy would organize monthly training on production skills.


sanitary valve25


Standardized Sanitary Fitting Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.


sanitary valve27


Standardized Grit Polish Inspection

Jazzy will take the initiative to send the products for inspection and spot check. Each time our test results exceed the international standards. Jazzy is also beyond some standards of the same industry with standardized production process that has an inspection process. All large samples will be sent for inspection, meeting the national inspection and testing standards.


Sanitary Fitting

Professional Warehouse Mangagement System

Stock of Finished Goods


sanitary valve15 sanitary valve17
