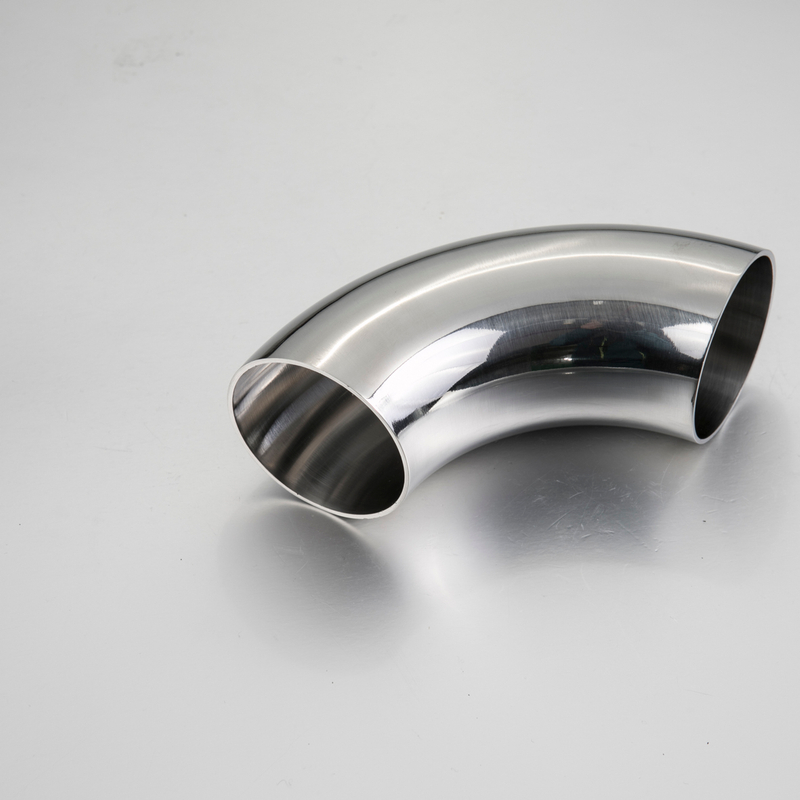

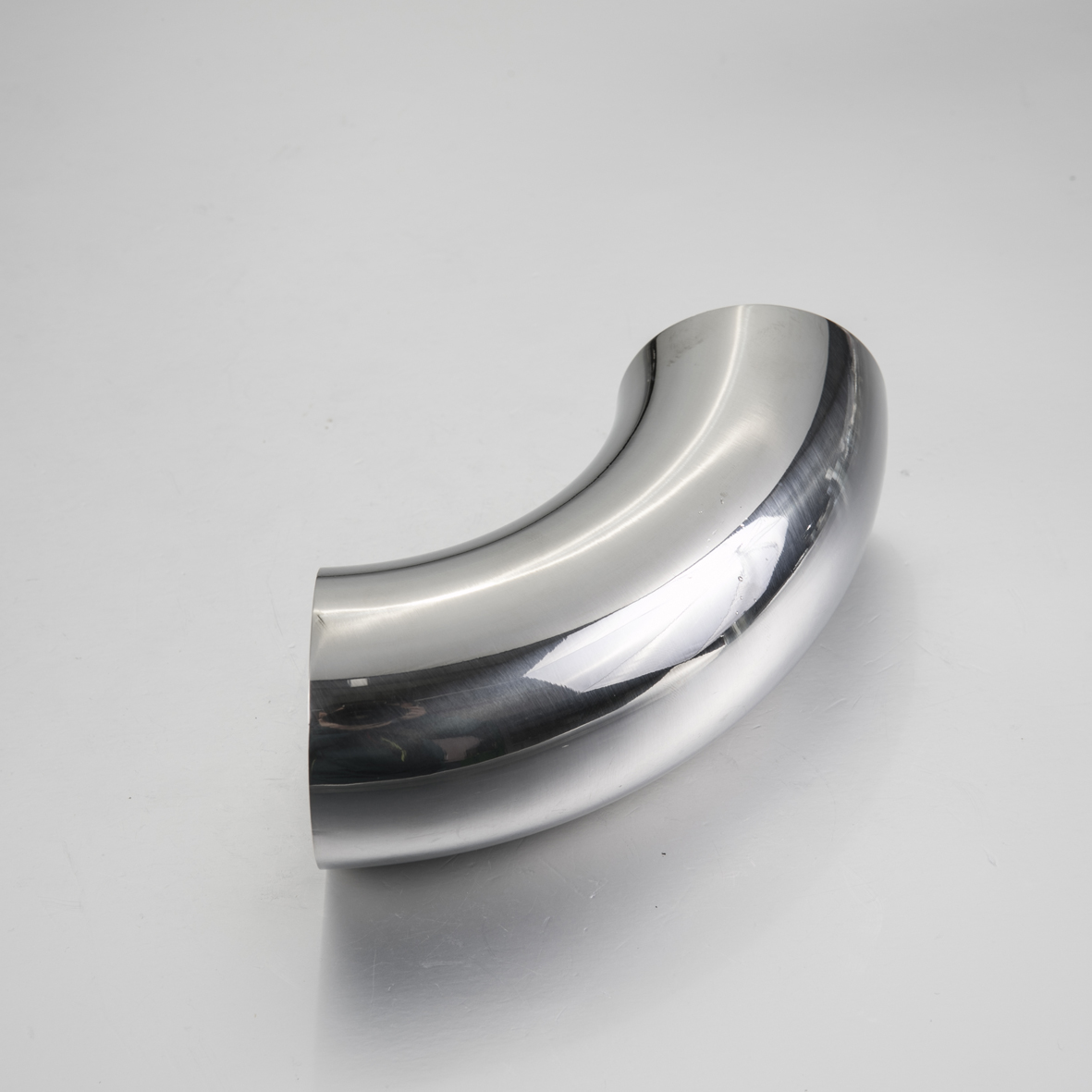

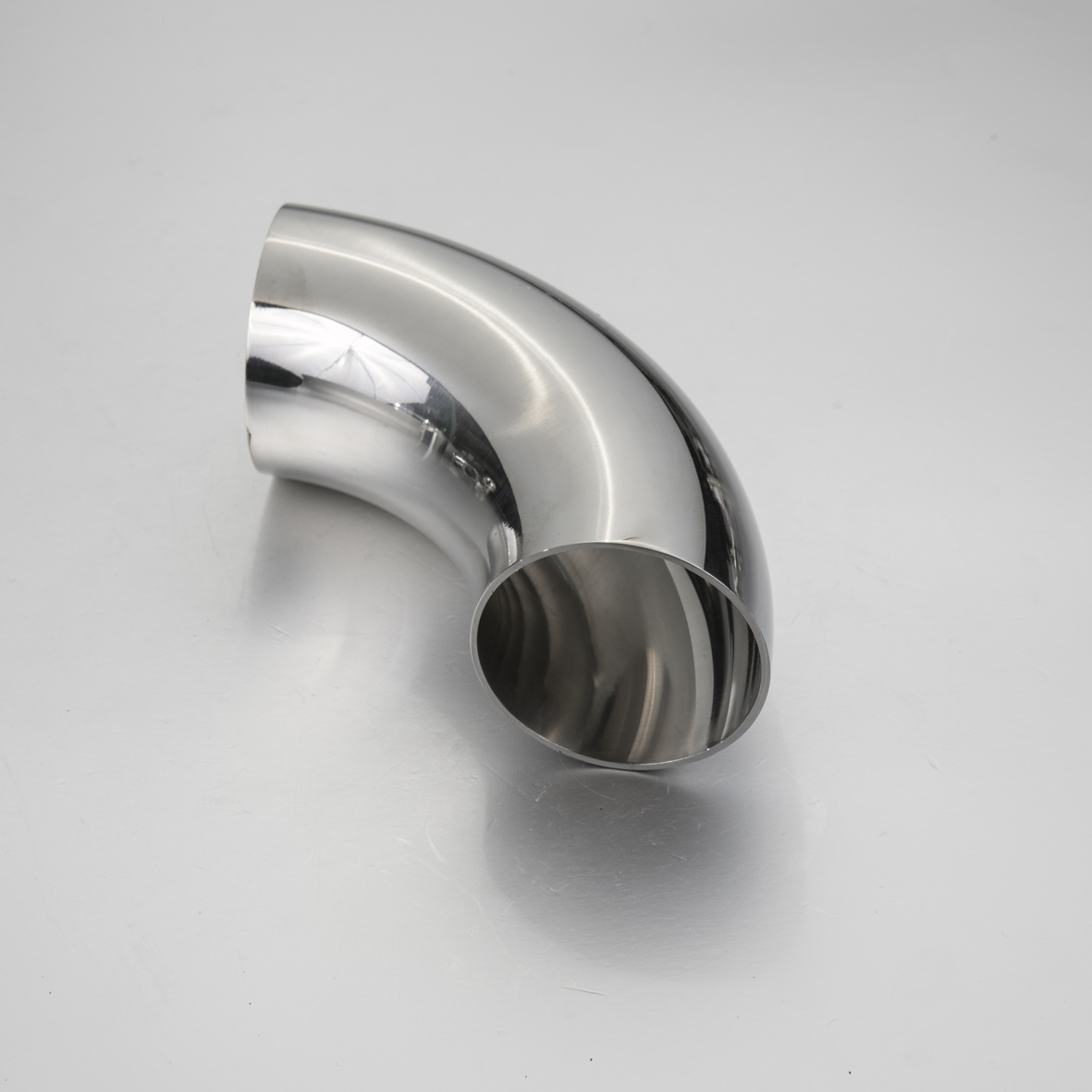

Stainless Steel Sanitary 90 Degree Welded Elbow

  • JAZZY

Size(INCH):
Availability:


Stainless Steel Sanitary 90 Degree Welded Elbow


Material:ASTM A270 SS304,SS316, SS304L,SS316L

Tybe:Elbow

Connection:Tube OD

Surface Treatment: 180grit Polish 240grit Polish  320grit Polish 400grit Polish

Size:1/2" to 6"

Standard:SMS,3A,DIN,ISO,RTJ,etc

Stainless Steel Sanitary 90 Degree Welded Elbow Sizes & Dimensions


90 Degree Elbow

90 Degree Welded Elbow  DIN 1011001

Size

L1

D

R



DN10

26.0

12.0

26.0



DN15

35.0

18.0

35.0



DN20

40.0

22.0

40.0



DN25

50.0

28.0

50.0



DN32

55.0

34.0

55.0



DN40

60.0

40.0

60.0



DN50

70.0

52.0

70.0



DN65

80.0

70.0

80.0



DN80

90.0

85.0

90.0



DN100

100.0

104.0

100.0



DN125

187.0

129.0

187.0



DN150

225.0

154.0

225.0



90 Degree Welded Elbow with Straight DIN 1011002

Size

L1

D

R



DN10

38.0

12.0

26.0



DN15

47.0

18.0

35.0



DN20

52.0

22.0

40.0



DN25

70.0

28.0

50.0



DN32

78.0

34.0

55.0



DN40

85.0

40.0

60.0



DN50

97.0

52.0

70.0



DN65

110.0

70.0

80.0



DN80

118.0

85.0

90.0



DN100

140.0

104.0

100.0



90 Degree Welded Elbow  SMS 1011017

Size

L1

D

R



1”

38.1

25.4

38.1



1-1/4”

47.7

31.8

47.7



1-1/2”

57.1

38.1

57.1



2”

76.2

50.8

76.2



2-1/2”

95.2

63.5

95.2



3”

114.3

76.2

114.3



4”

152.4

101.6

152.4



90 Degree Welded Elbow with Straight Ends SMS  1011018

Size

L1

D

R



1”

55.0

25.4

32.0



1-1/2”

70.0

38.1

45.0



2”

82.0

50.8

58.0



2-1/2”

105.0

63.5

70.0



3”

110.0

76.2

76.0



4”

150.0

101.6

110.0



90 Degree Welded Elbow  3A 1011028

Size

L1

D

R



1/2”

19.1

12.7

19.1



3/4”

28.6

19.1

28.6



1”

38.1

25.4

38.1



1-1/2”

57.2

38.1

57.2



2”

76.2

50.8

76.2



2-1/2”

95.3

63.5

95.3



3”

114.3

76.2

114.3



4”

152.4

101.6

152.4



5”

190.5

127.0

190.5



6”

228.6

152.4

228.6



90 Degree Welded Elbow with Straight Ends 3A 1011029

Size

L1

D

R



1/2”

25.4

12.7

19.1



3/4”

38.1

19.1

28.6



1”

52.4

25.4

38.1



1-1/2”

74.6

38.1

57.2



2”

103.2

50.8

76.2



2-1/2”

131.8

63.5

95.3



3”

160.3

76.2

114.3



4”

211.1

101.6

152.4
