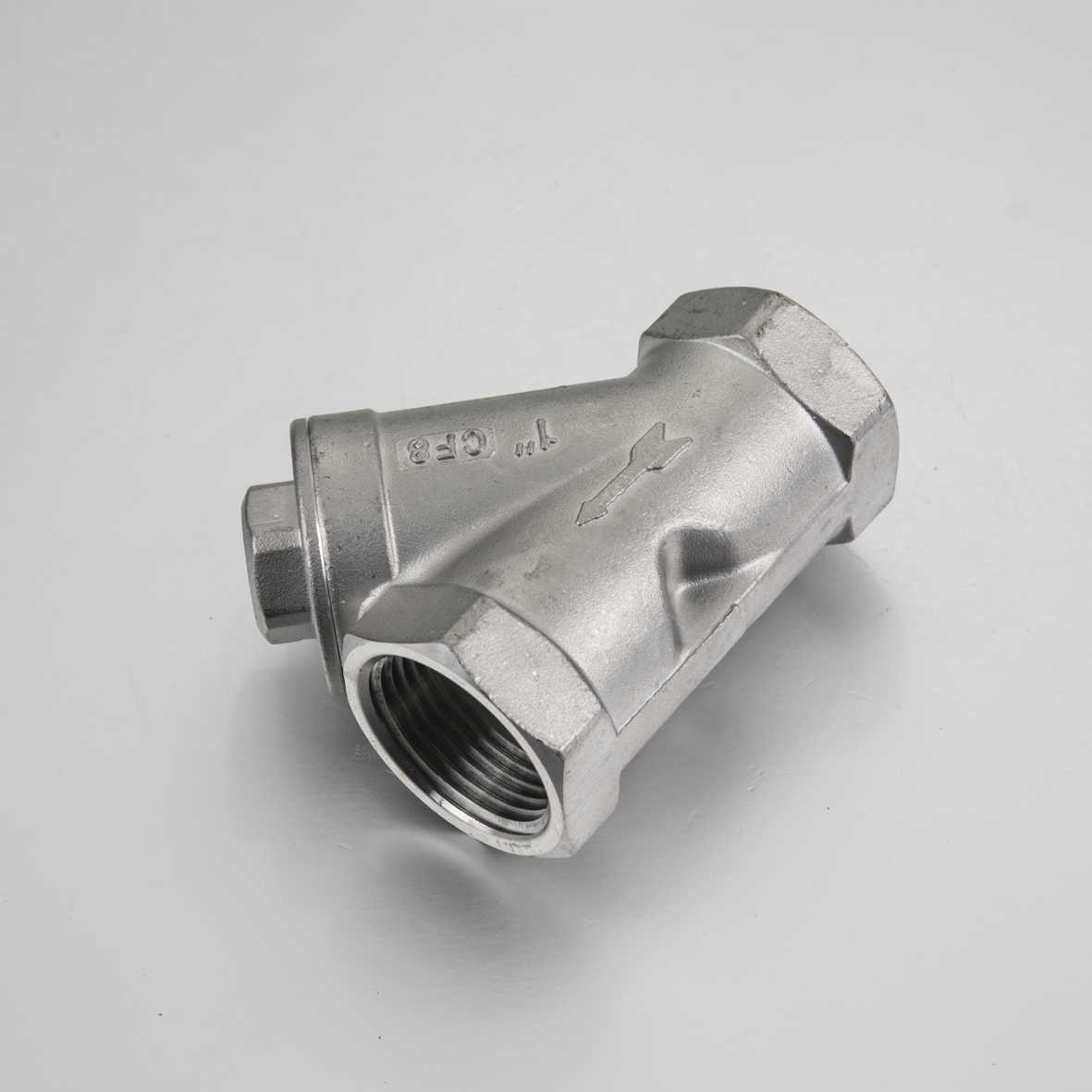

Stainless Steel 304/316 Y-Strainer

  • JAZZY

Size(INCH):
Availability:


Stainless Steel 304/316 Y-Strainer


Material:SS304,SS316,1.4308,1.4408,CF8,CF8M,WCB

Model:Y-Strainer

Connection:Threaded

Medium:Water,oil and Gas

Stainless Steel 304/316 Y-Strainer Sizes & Dimensions



Features

800PSI/PN40

Investment   Casting

PED/97/23EC(CE0036)   Approved

Casting   Approved: AD2000-W0

Inspection   Testing: API598, EN12266

Thread:   ASME B1.20.1, BS21, DIN2999/259, ISO228-1

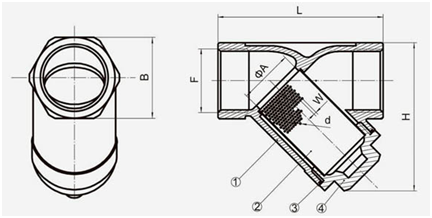

Y-strainer


Material List

Item

Description

Material

1

BODY

CF8/CF8M

2

GASKET

304/316

3

SCREEN

304/316

4

CAP

CF8/CF8M

Dimensions (mm)

Size

1/4”

3/8”

1/2”

3/4”

1”

1-1/4”

1-1/2”

2”

A

15

15

15

20

25

32

40

50

B

26

26

26

33

41

49

56

69

H

58

58

58

68

88

100

108

130

L

65

65

65

78.5

89

105

120

140

W

2

2

2

2

2

2

2

2

d

1

1

1

1

1

1

1

1








Advantages


High-End Mechanical Equiment

Jazzy has many factories and production lines, and has led promotional equipment to support the production of the latest promotional products. All employees must receive training before going on duty. Jazzy would organize monthly training on production skills.


222










Standardized Stainless Steel Y-Strainer Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.


333


Standardized Thread and Pressure Inspection

Jazzy will take the initiative to send the products to inspection and spot check. Each time our test results exceed the international standards. Jazzy is also beyond some standards of the same industry with standardized production process that is in an inspection process. All larger samples will be sent for inspection, meeting the national inspection and testing standards.


222

Professional Warehouse Mangagement System

Stock of Finished Goods

666



FAQ


Q1. Does Jazzy support OEM?

Yes, here are the process B of Jazzy's OEM service:

  • Customers send samples or provides drawings to JAZZY,We design for the samples.

  • After the customers confirm the samples, JAZZY begins to start making the mold or customizing.

  • Send the initial sample to the customer for confirmation.

  • After the customer confirming, JAZZY arranges mass production.

Please visit Jazzy's OEM service for more.


Q2. How can I place the order for Jazzy?

Plan - Purchase - Manufacturing - Delivery

Please visit Jazzy's Supply Chain Mangagement for more.
