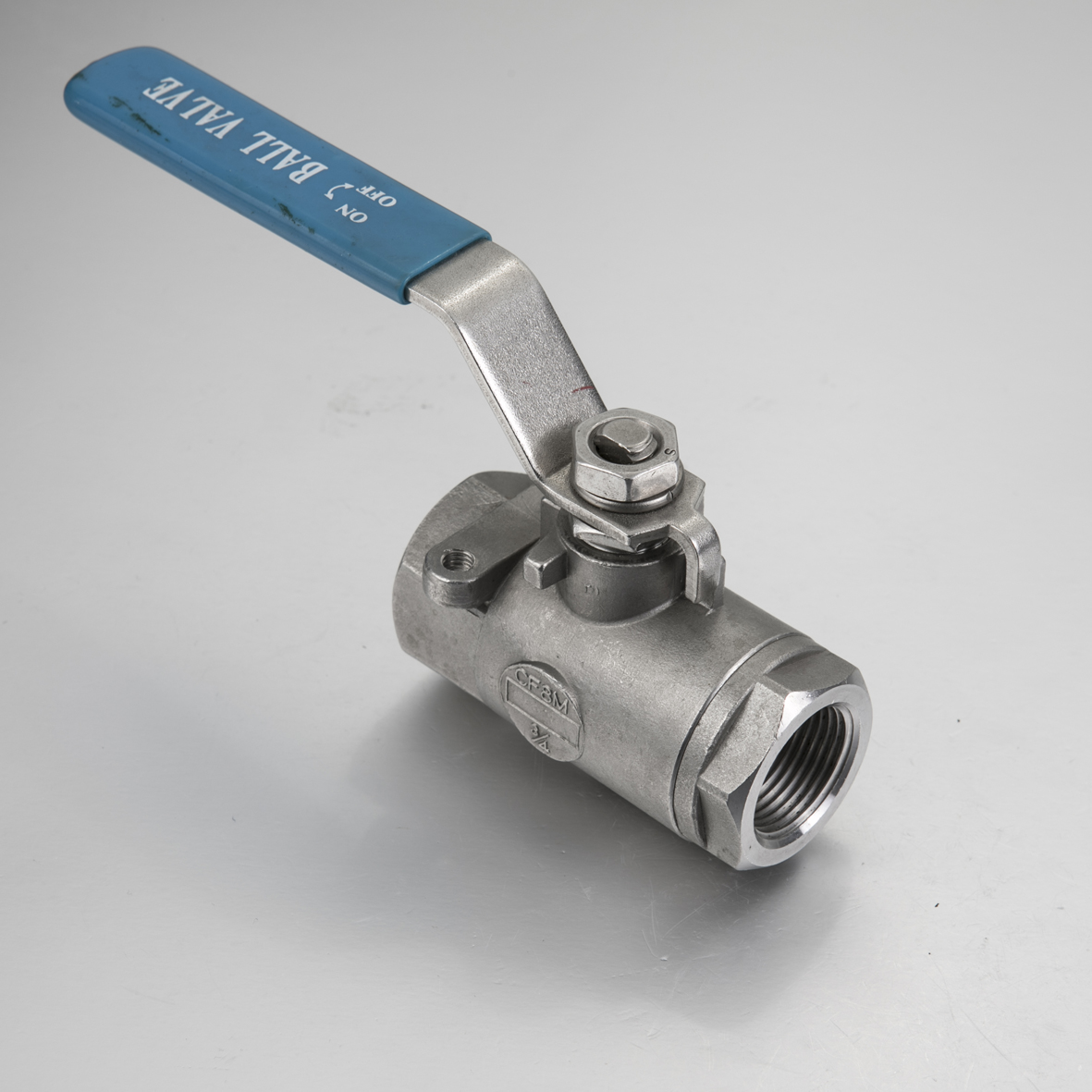

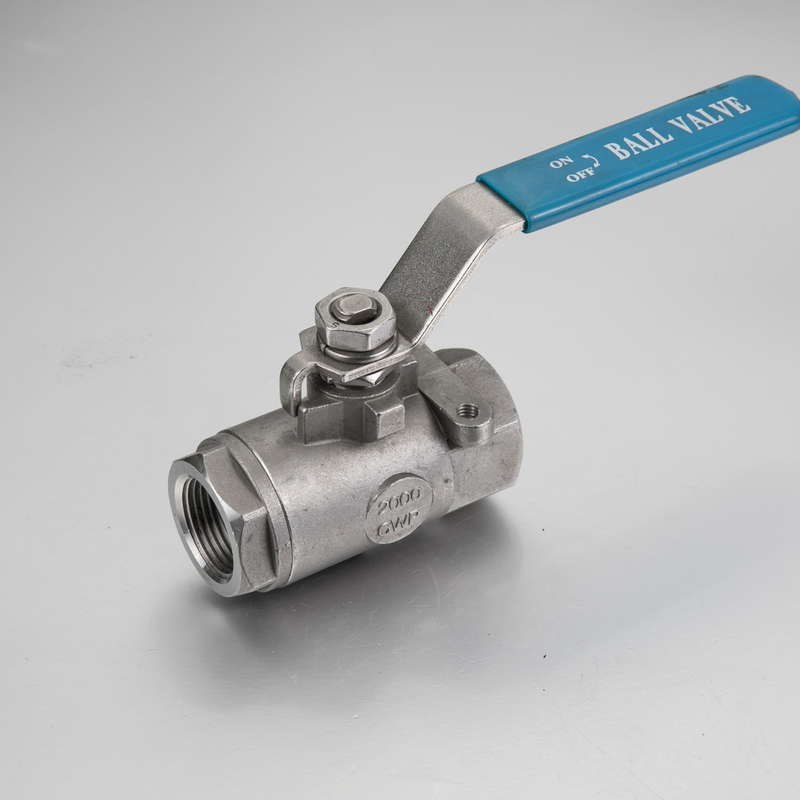

2PC Stainless Steel 304/316 Ball Valve 2000PSI

  • JAZZY

Size(INCH):
Availability:


2PC Stainless Steel 304/316 Ball Valve 2000PSI


Material:SS304,SS316,1.4308,1.4408,CF8,CF8M,WCB

Model:2PC

Connection:Threaded

Medium:Water,oil and Gas

2PC Stainless Steel 304/316 Ball Valve 2000PSI Sizes & Dimensions



Features

2000PSI/PN150

Reduce   Port

Investment   Casting

Blow-out   Proof Stem

PED/97/23EC(CE0036)   Approved

Casting   Approved: AD2000-W0

PTFE   Seats & Seals

Inspection   Testing: API598, EN12266

Connection:   ASME B1.20.1, BS21, DIN2999/259, ISO228-1, Butt Weld, Socket Weld

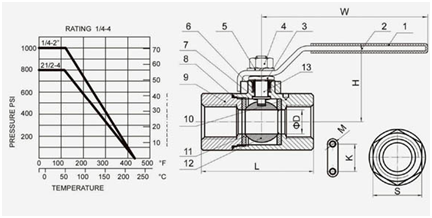

2PC Ball valve 2000PSI


Material List

Item

Description

Material

1

HANDLE   SLEEVE

PVC

2

HANDLE

304

3

GLAND NUT

304/316

4

STEM NUT

304

5

SPRING   WASHER

304

6

STEM   PACKING

PTFE

7

THRUST   WASHER

PTFE

8

JOINT   GASKET

PTFE

9

CAP

CF8/CF8M

10

BODY

CF8/CF8M

11

BALL SEAT

RPTFE

12

BALL

CF8/CF8M

13

STEM

304/316


Dimensions (mm)

Size

1/4”

3/8”

1/2”

3/4”

1”

1-1/4”

1-1/2”

2”

D

11

12.5

12.5

17.5

22

25

32

38

L

58

58

58

79.6

86

103

111

137

H

48

48

48

67

70

85

90

95

W

105

105

105

110

125

150

150

190

S

26.5

26.5

26.5

32

41

50

55

70

K

27.5

27.5

27.5

34.8

34.8

34.8

34.8

34.8

M

10-32MM

10-32MM

10-32MM

10-32MM

10-32MM

10-32MM

10-32MM

10-32MM




Advantages


High-End Mechanical Equiment

Jazzy has many factories and production lines, and has led promotional equipment to support the production of the latest promotional products. All employees must receive training before going on duty. Jazzy would organize monthly training on production skills.


222










Standardized Stainless Steel Ball Valve Packaging

In addition to production and inspection, packaging is only carried out after the inspection is passed. Final confirmation is also required before shipment.


5


Standardized Thread and Pressure Inspection

Jazzy will take the initiative to send the products to inspection and spot check. Each time our test results exceed the international standards. Jazzy is also beyond some standards of the same industry with standardized production process that is in an inspection process. All larger samples will be sent for inspection, meeting the national inspection and testing standards.


333 222

Professional Warehouse Mangagement System

Stock of Finished Goods

666





FAQ


Q1. Does Jazzy support OEM?

Yes, here are the process B of Jazzy's OEM service:

  • Customers send samples or provides drawings to JAZZY,We design for the samples.

  • After the customers confirm the samples, JAZZY begins to start making the mold or customizing.

  • Send the initial sample to the customer for confirmation.

  • After the customer confirming, JAZZY arranges mass production.

Please visit Jazzy's OEM service for more.


Q2. How can I place the order for Jazzy?

Plan - Purchase - Manufacturing - Delivery

Please visit Jazzy's Supply Chain Mangagement for more.
