Each of these valve types has its unique characteristics and advantages, making them suitable for specific scenarios in the world of process measurement and control. Choosing the right type of instrument valve is crucial to ensure optimal performance and safety in any given application.
Considerations When Selecting an Instrument Valve
In selecting an instrument valve, you should take into consideration the design of the valve as well as the construction materials used for it. Furthermore, the operating temperatures and pressures of the process must be within the range of the valve as well.

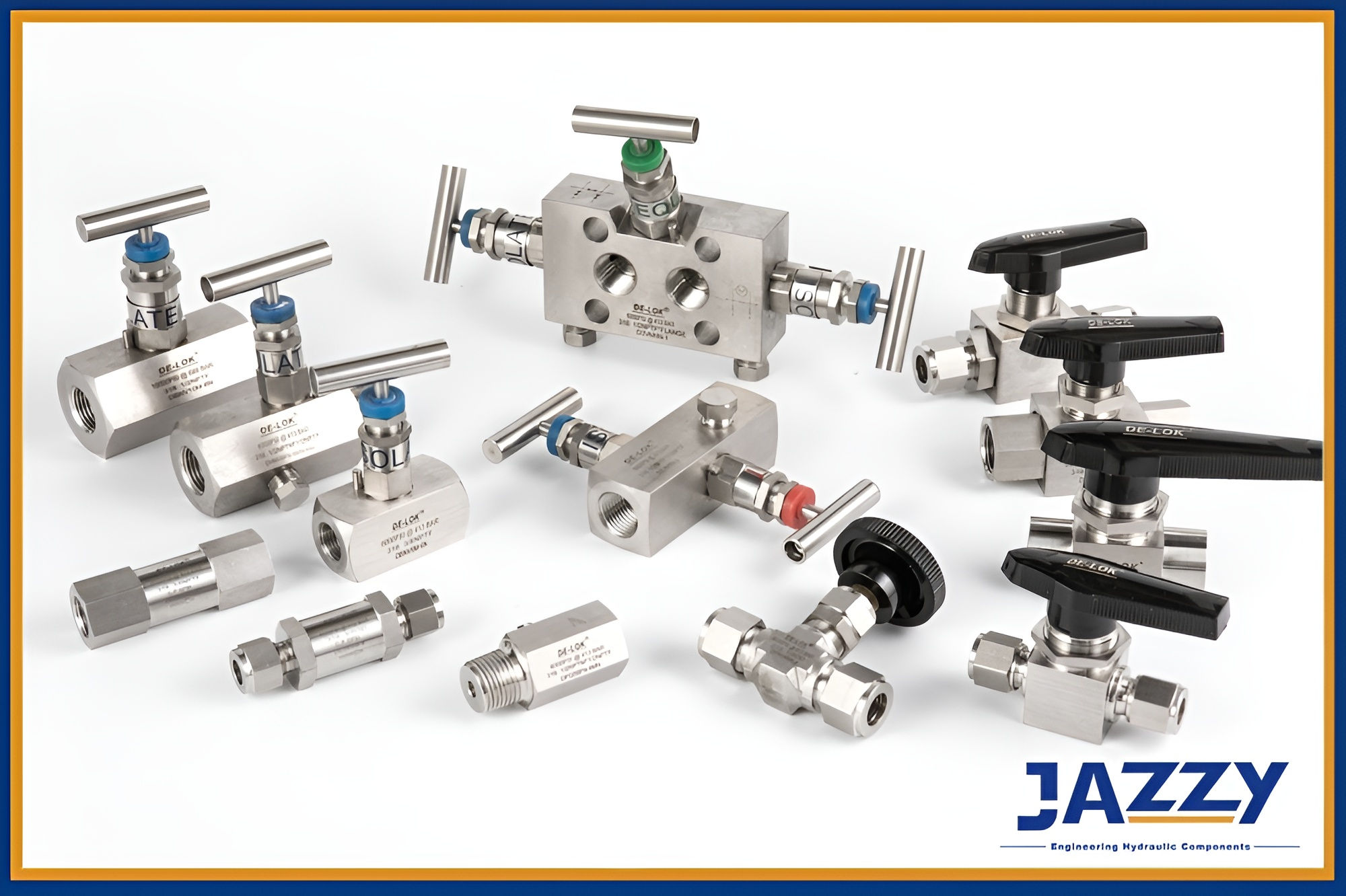

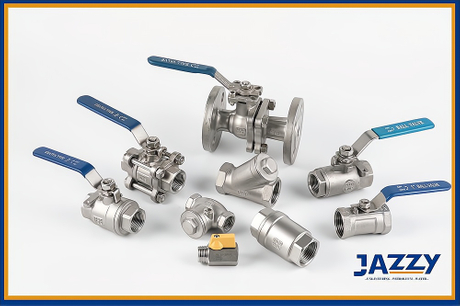

Functionality of Instrument Needle Valves and Ball Valves
In instrument needle valves, you are able to throttle, regulate, and isolate gaseous and aggressive nonviscous liquids in a reliable manner. The company offers a wide range of products ranging from simple two-way isolation valves to multiport gauge root valves with multifunction capabilities for isolating, calibrating, and venting pressure switches, gauges, and static instruments. The ball valve design, with its full-size port, enables easier cleaning and a reduced likelihood of clogging than needle valves, which do not offer the same throttling accuracy.
Basic Configurations of Instrument Valves
Instrument valves come in various configurations to meet specific operational needs in process measurement and control. These configurations determine how the valves function and what additional features they offer. Here are the basic configurations of instrument valves:
Isolation Valves:
Description: Isolation valves are the simplest form of instrument valves, typically having a single inlet and a single outlet.
Function: They provide the ability to isolate or disconnect a connected gauge or instrument from the main process piping or vessel.
Applications: Isolation valves are commonly used to enable maintenance, replacement, or servicing of connected devices without disrupting the overall process.
Isolation Valves with Added Ports:
Description: These valves resemble isolation valves but feature an additional port on the outlet side.
Function: The added port serves various purposes, such as facilitating service, calibration, sampling, purging, or other tasks while the process remains operational.
Applications: These valves are suitable for applications where additional functionalities or access points are needed without interrupting the primary process.
Multi-Port Valves (Gauge Root Valves):
Description: Multi-port valves typically have a single inlet and three outlets, providing multiple connections.
Function: They serve various purposes with their multiple outlet connections, enabling the connection of additional instruments, gauges, valves, or other equipment.
Applications: Multi-port valves are versatile and can be used in applications requiring multiple instrument connections or when flexibility in configuring instrument setups is essential.
These basic configurations cater to a range of process measurement and control needs, allowing engineers and operators to choose the most suitable valve design for their specific applications. Whether it's a straightforward isolation valve or a multi-port valve with enhanced functionality, the choice depends on the complexity and requirements of the system in question.
Conclusion
Instrument valves are crucial components in process measurement and control, facilitating the connection and isolation of gauges and instruments. They are available in various types, including needle valves, ball valves, and gate valves, each tailored to specific applications like precise flow control, on/off control, or full flow/shutoff.
When selecting an instrument valve, factors like design, construction materials, and compatibility with process conditions should be considered. Needle valves offer precise control, while ball valves prioritize easy cleaning.
Instrument valves come in different configurations, such as isolation valves, isolation valves with added ports, and multi-port valves (gauge root valves). These configurations accommodate various operational needs, from simple isolation to enhanced functionality and multiple instrument connections.
In summary, choosing the right instrument valve is essential for ensuring optimal performance and safety in process measurement and control systems across different industries.
