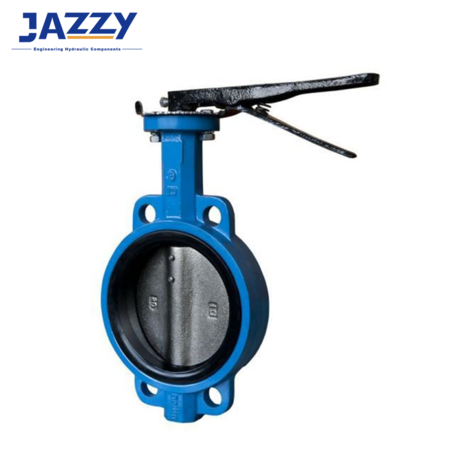

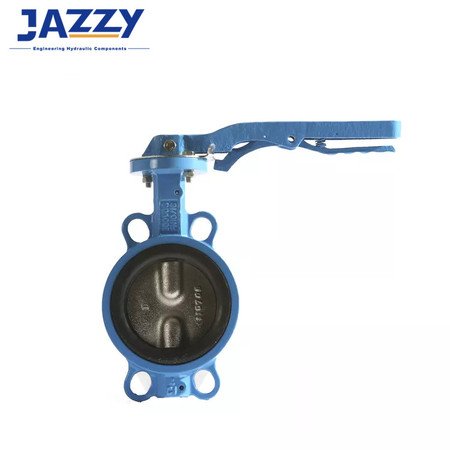

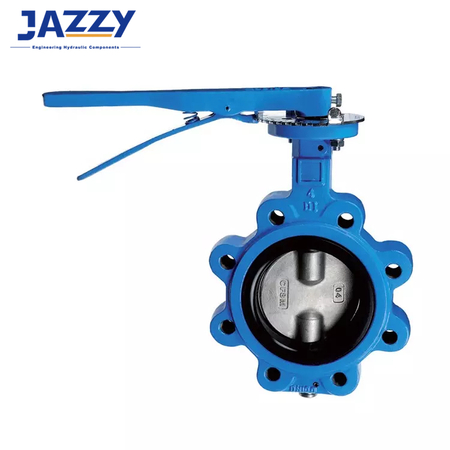

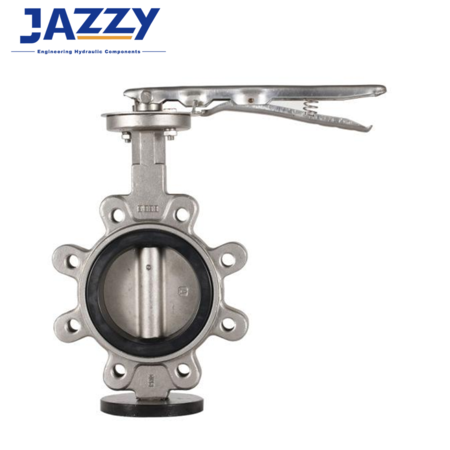

Butterfly Valve

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Code JZ-BFV-001
Series Butterfly Series
Spec 2" - 24"
Material Stainless Steel / Carbon Steel / Forged Steel
Color Natural (Metal)
Brand JAZZY
Model JZ-VALVE
Detail


———— Butterfly Valve ————

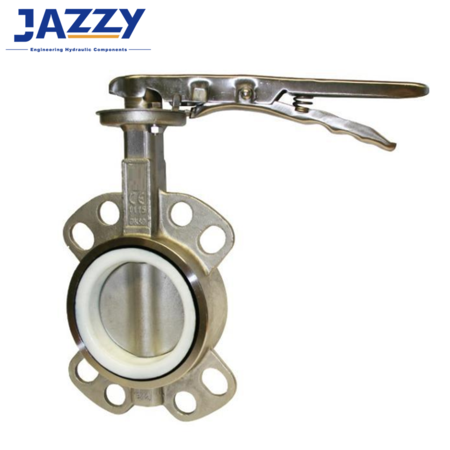

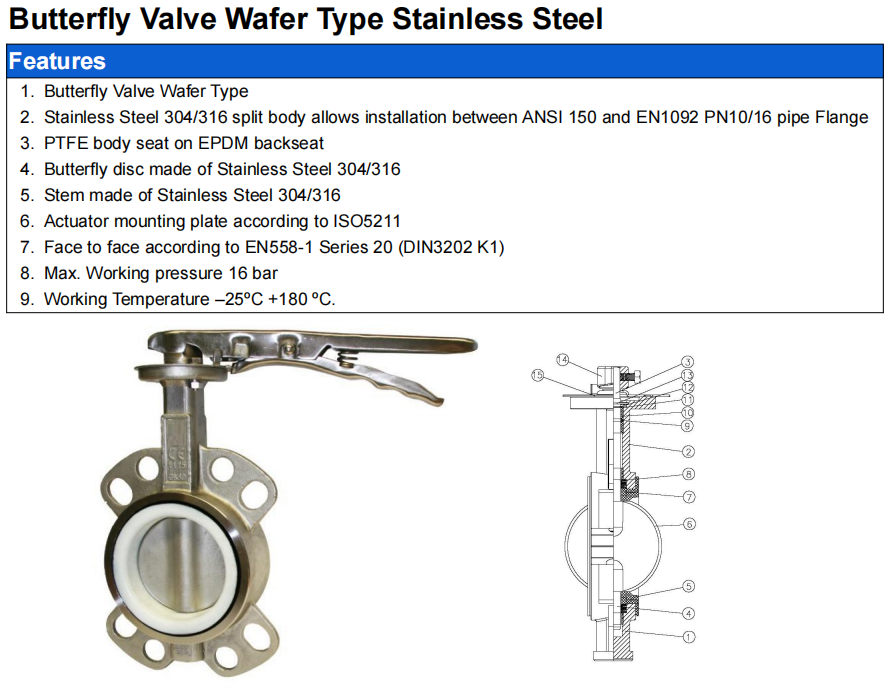

JAZZY wafer-type butterfly valve features a stainless steel 304/316 split body,

allowing installation between ANSI 150 and EN1092 PN10/16 pipe flanges.

Key features:

PTFE body seat with EPDM backseat

Disc and stem: stainless steel 304/316

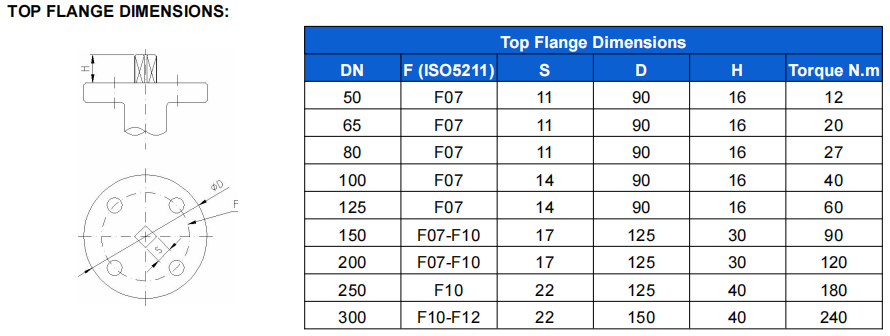

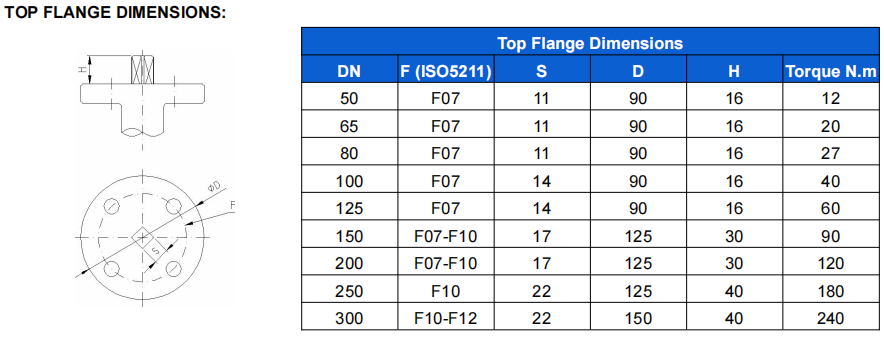

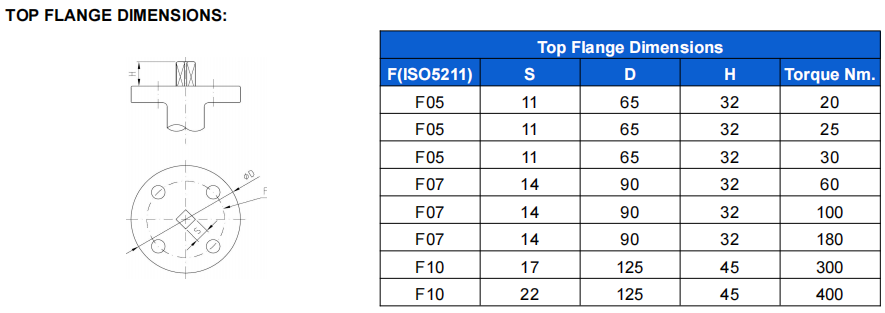

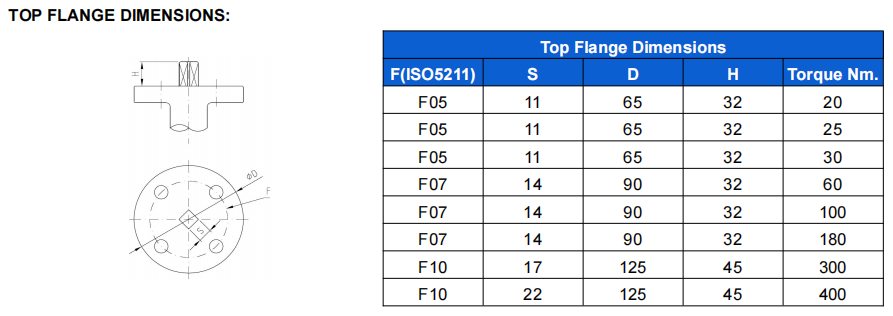

Actuator mounting plate per ISO5211

Face-to-face: EN558-1 Series 20 (DIN3202 K1)

Pressure: Max. 16 bar

Temperature: –25ºC to +180ºC

Suitable for water, air, oil, and chemical media in industrial pipelines.

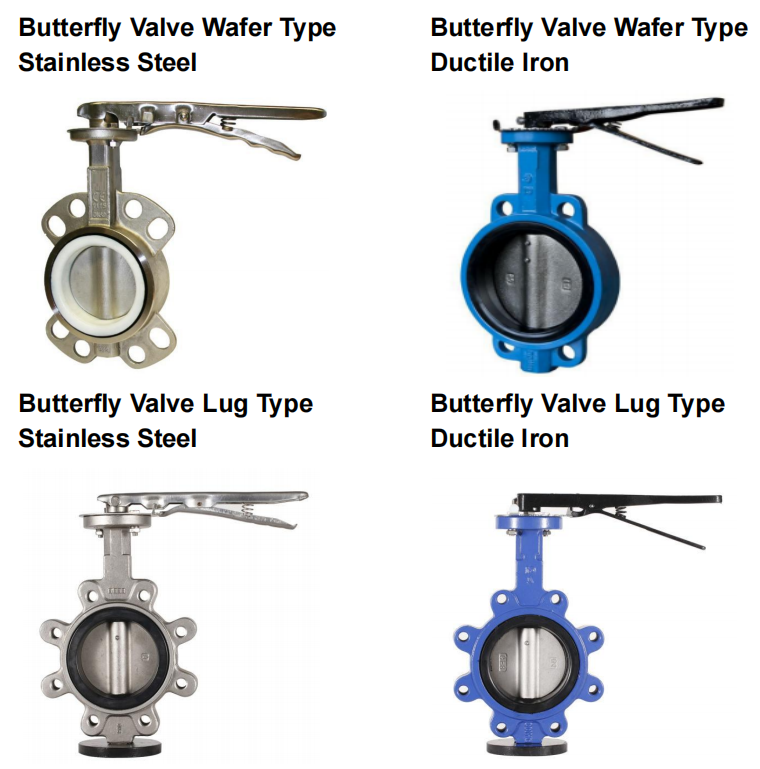

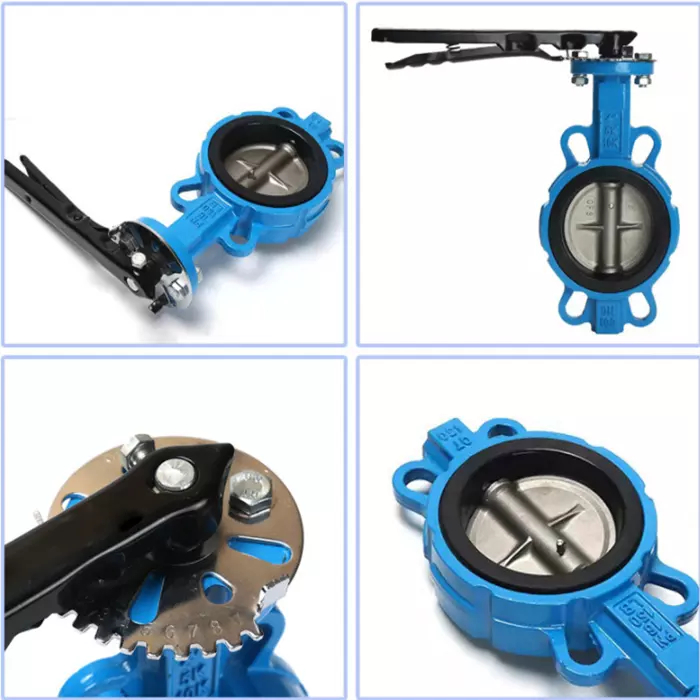

———— Product display ————




———— Workshop pictures ————

（车间图片）


———— Quality inspection images ————

（质检图片）

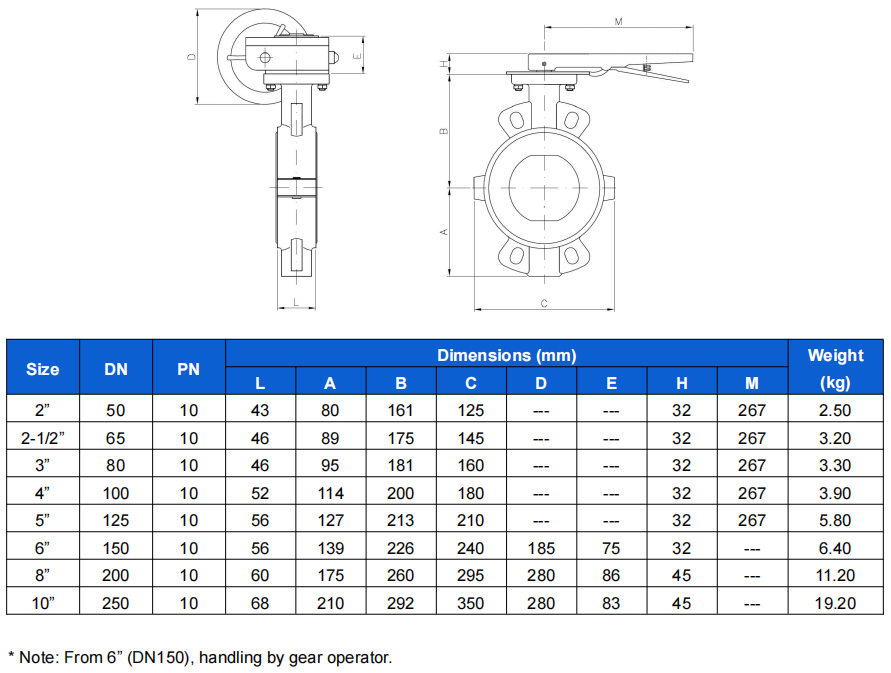

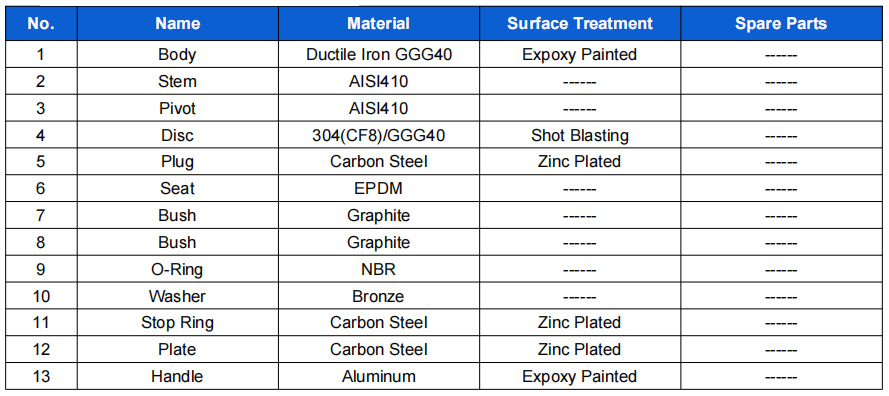

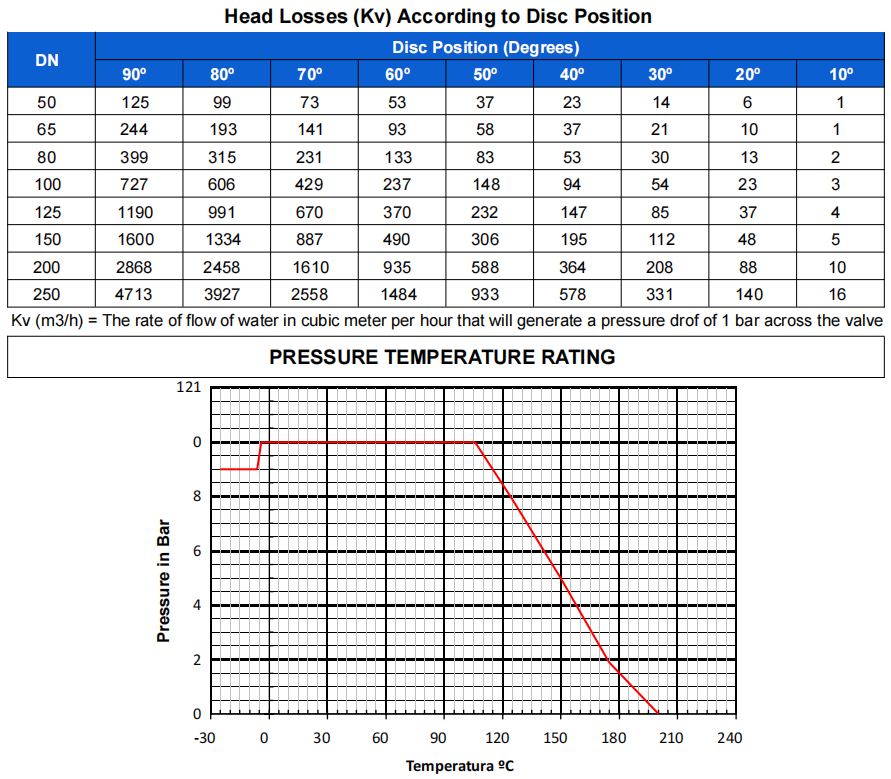

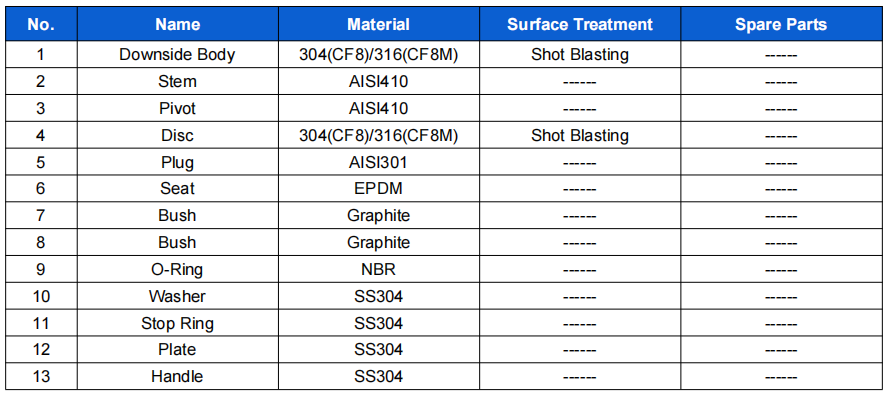

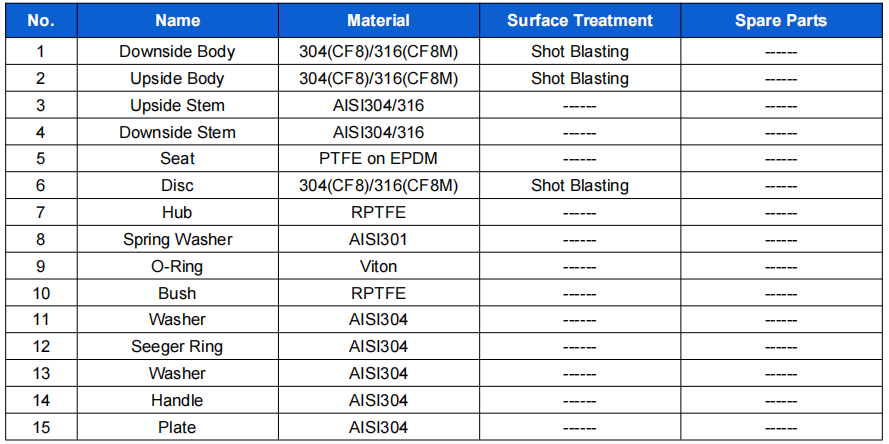

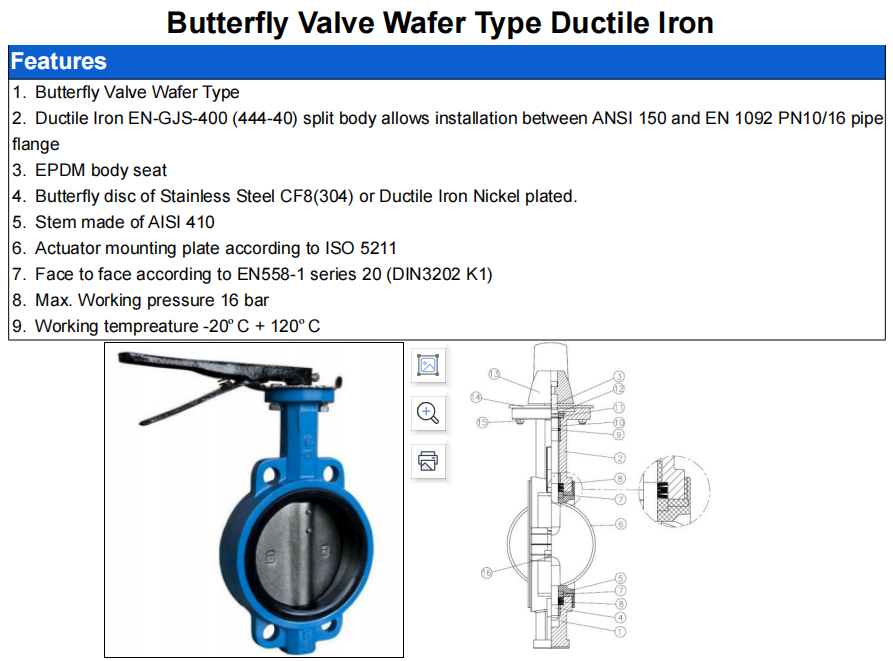

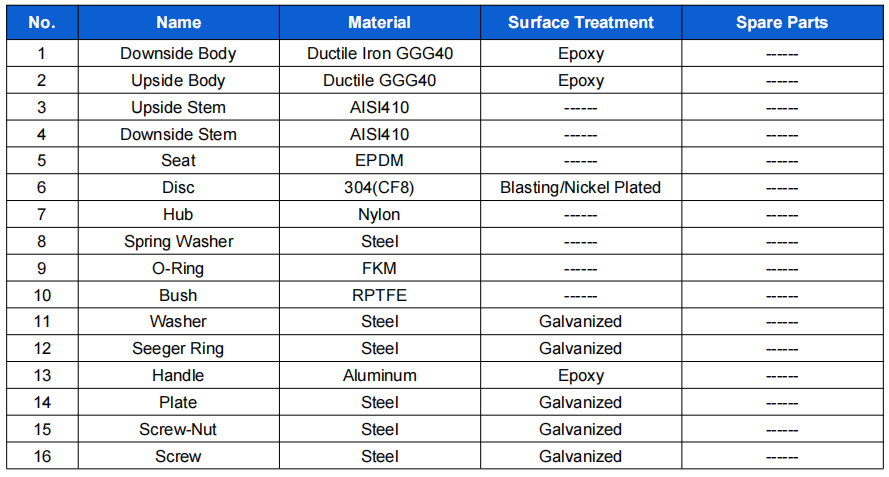

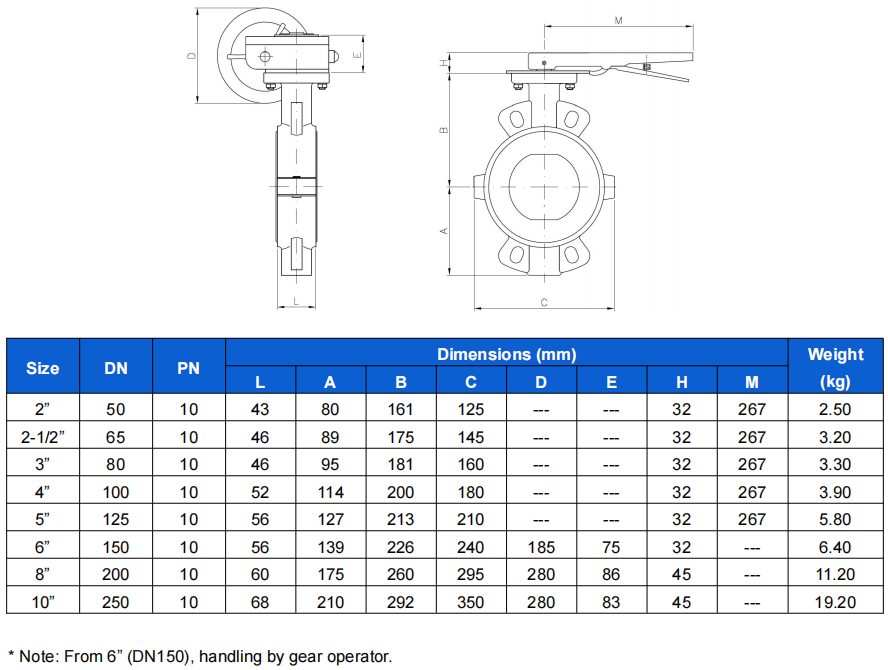

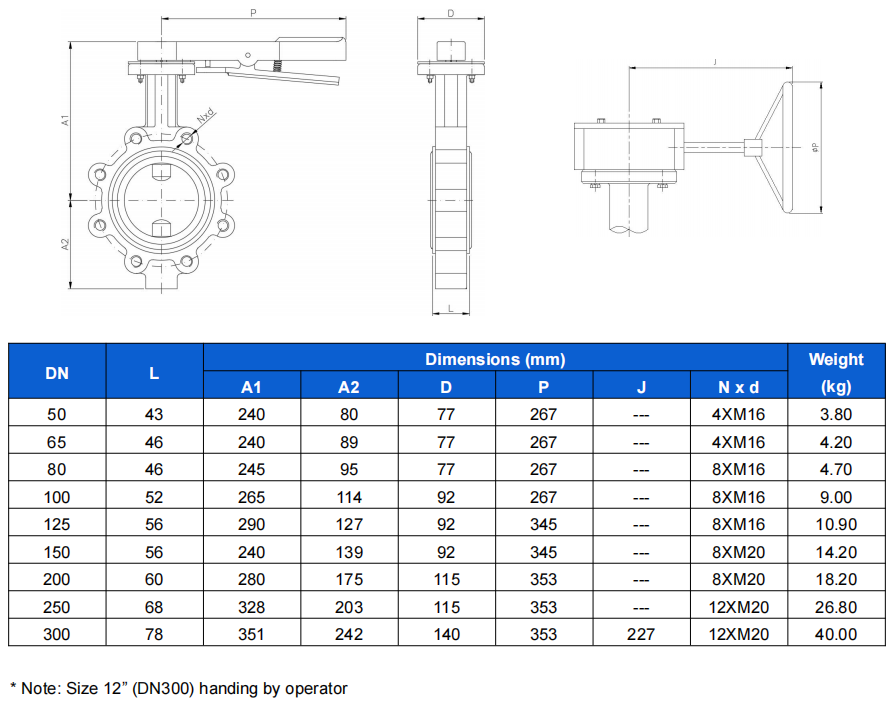

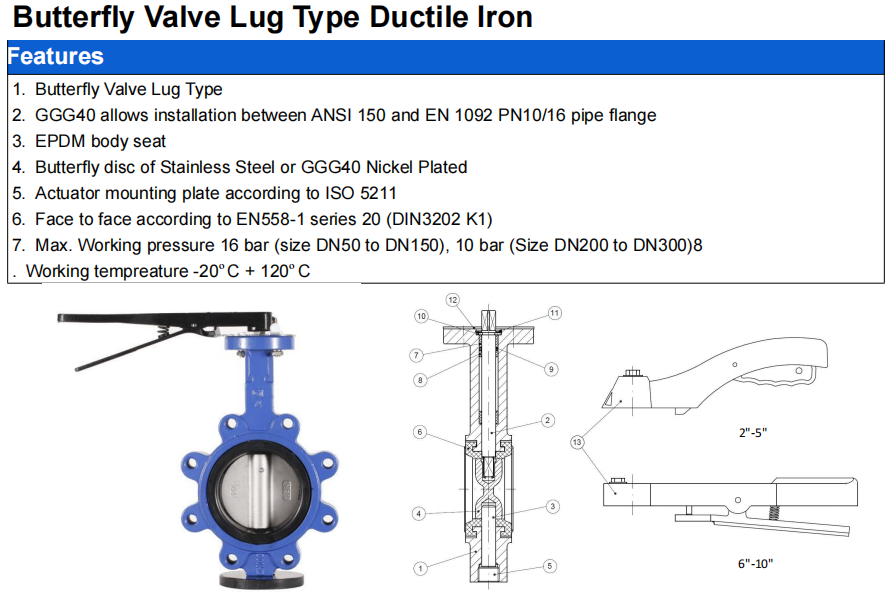

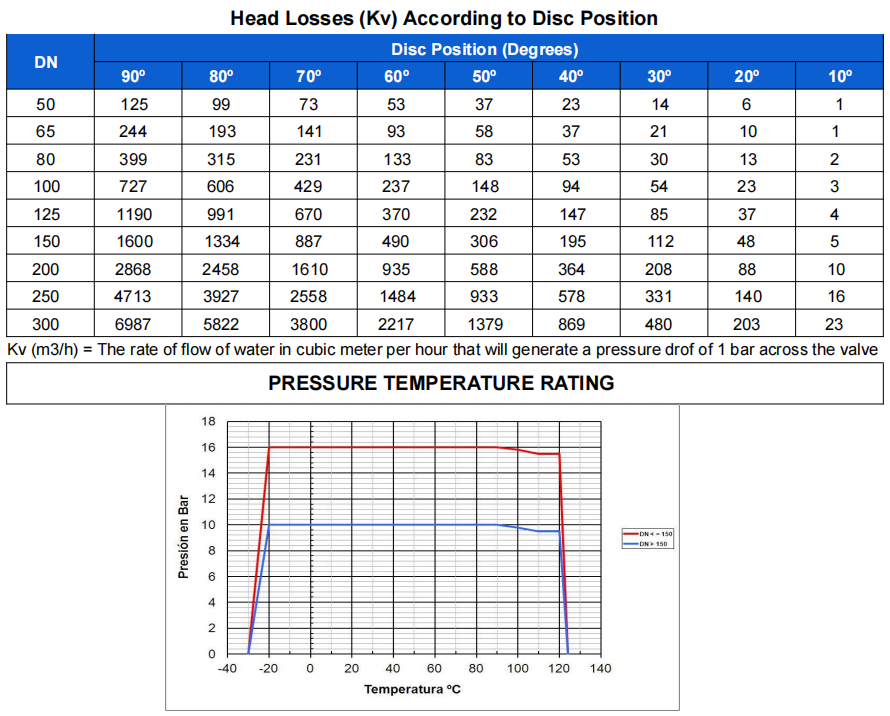

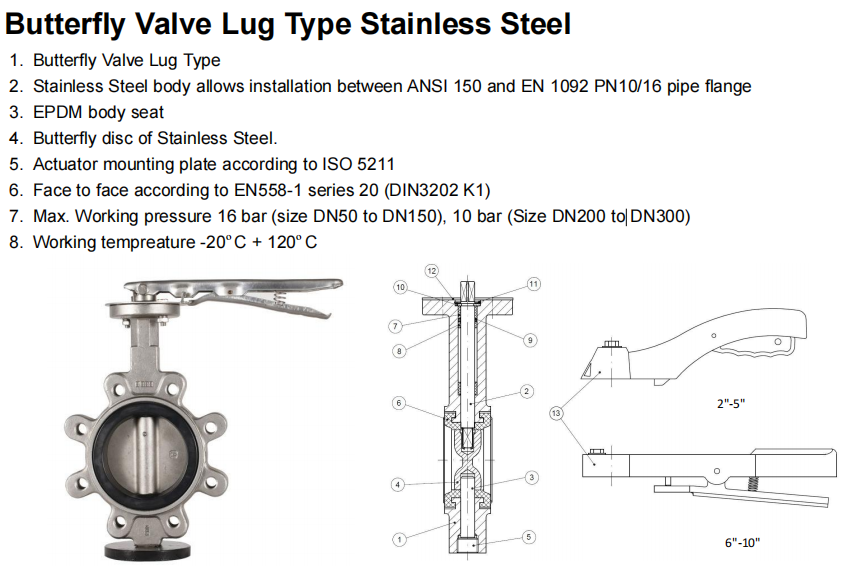

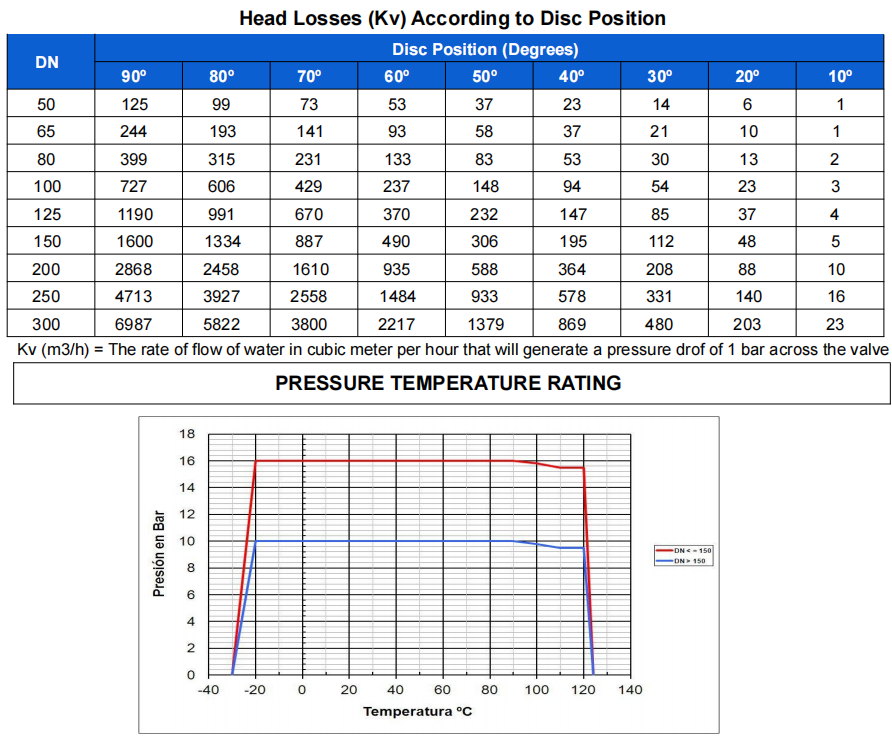

———— Product Specifications ————

1-1.jpg1-2.jpg1-3.jpg1-4.jpg1-5.jpg2-1.jpg2-2.jpg2-3.jpg2-4.jpg2-5.jpg3-1.jpg3-2.jpg3-3.jpg3-4.jpg3-5.jpg4-1.jpg4-2.jpg4-3.jpg4-4.jpg4-5.jpg
