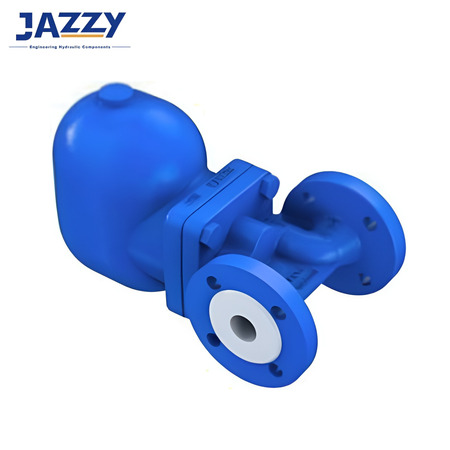

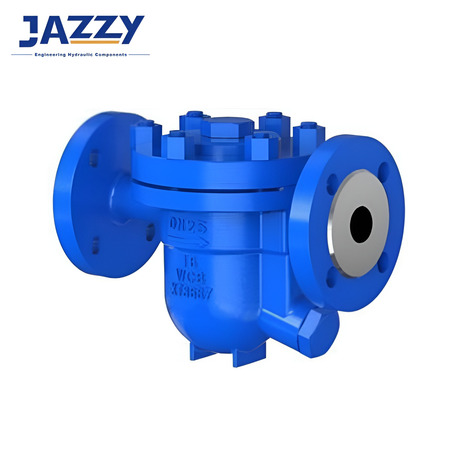

Float Steam Trap

———— Float Steam Trap ————

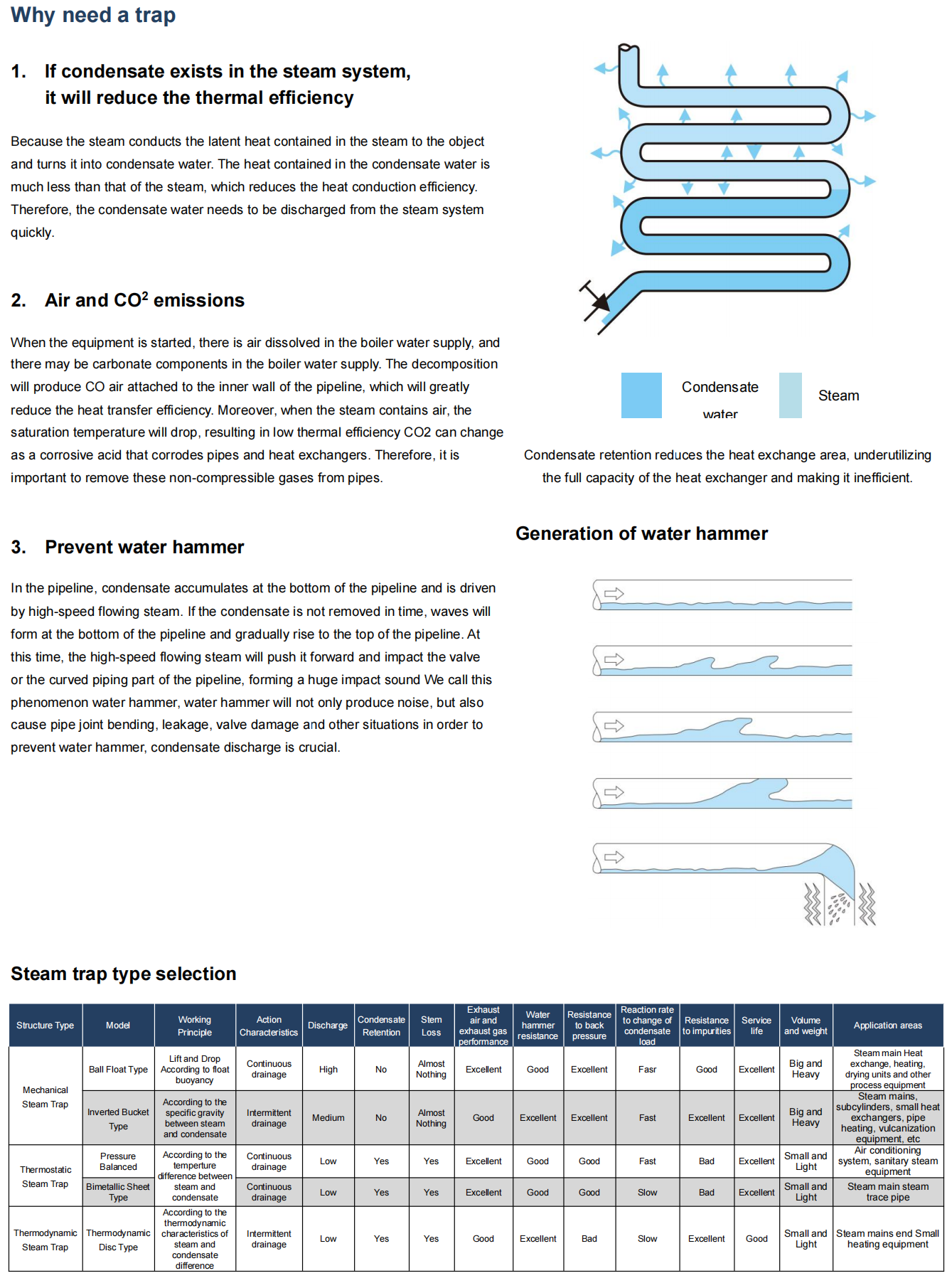

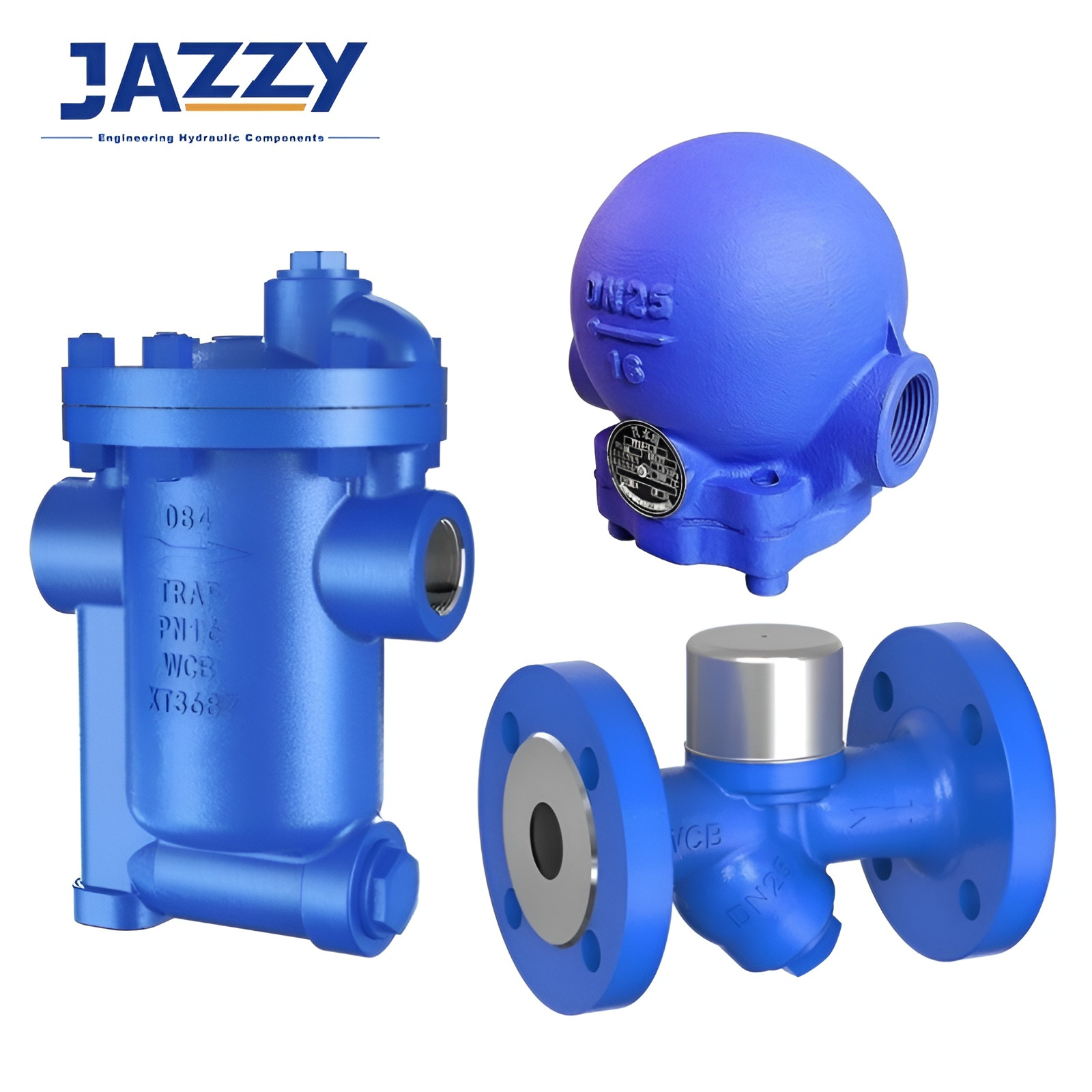

A steam trap is an automatic valve that removes condensate and non-condensable gases (like air) from steam systems without letting steam escape. JAZZY offers float & thermostatic, thermodynamic, and inverted bucket traps for drip, tracing, and process applications.

Key types & features:

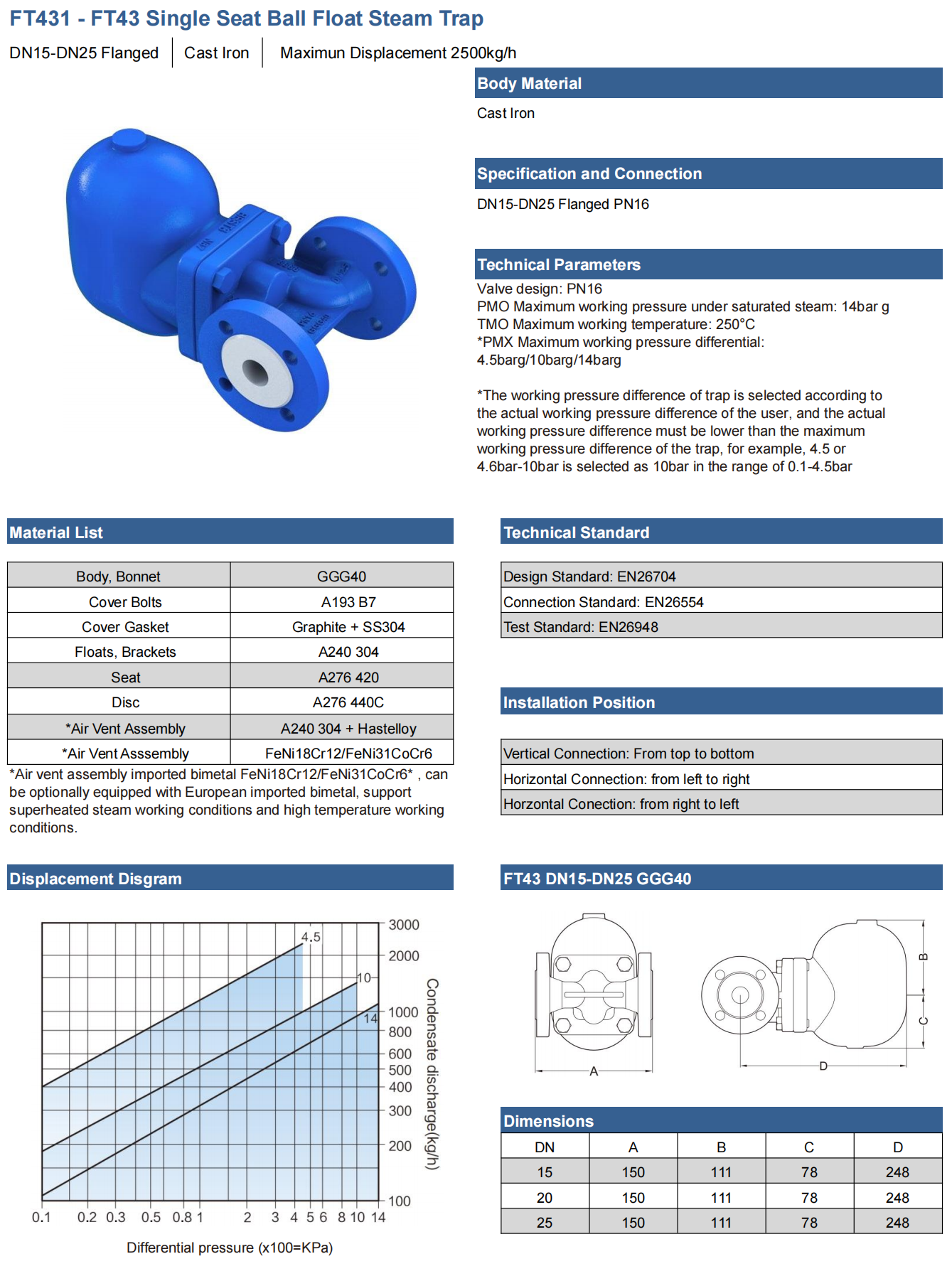

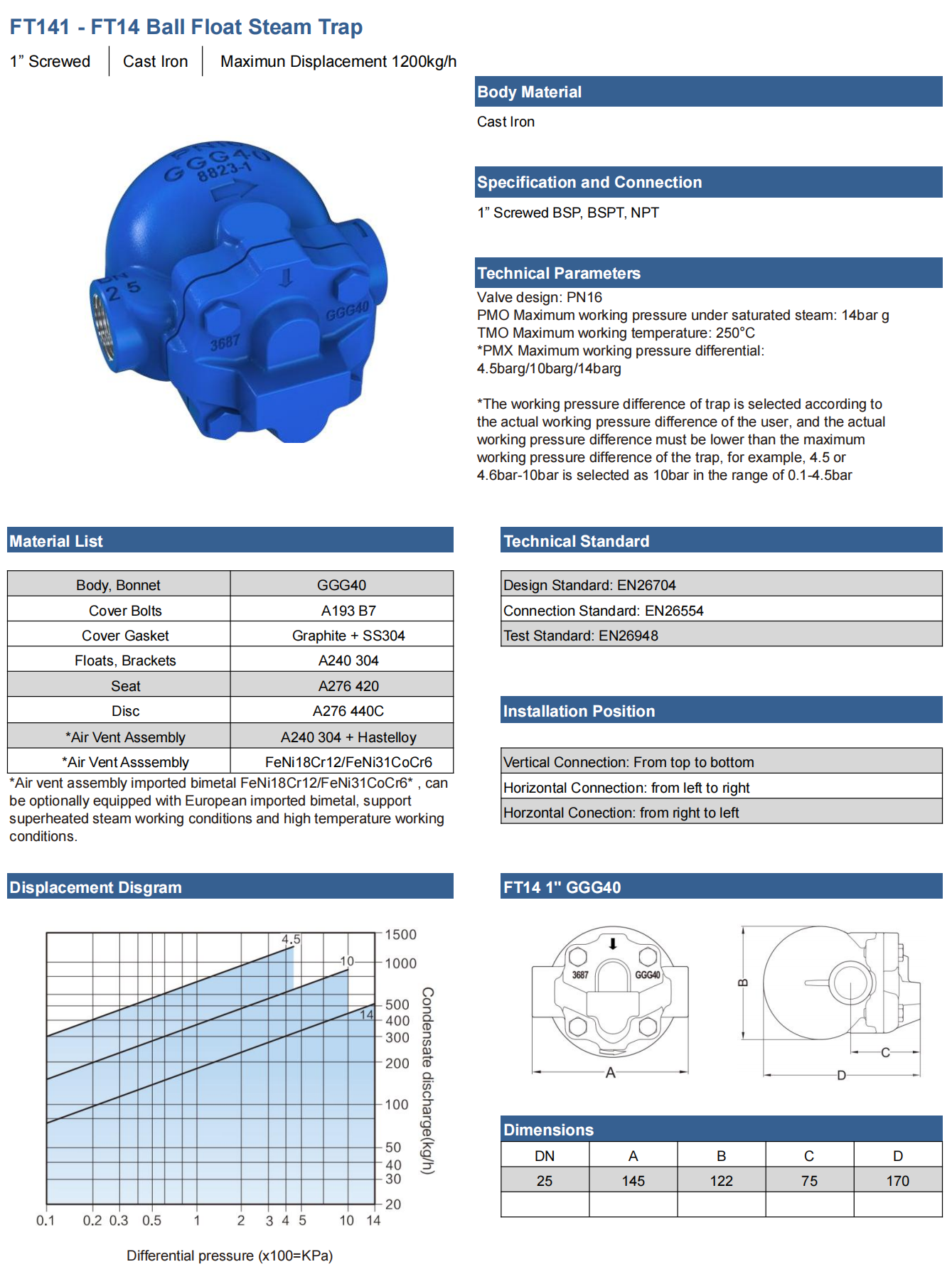

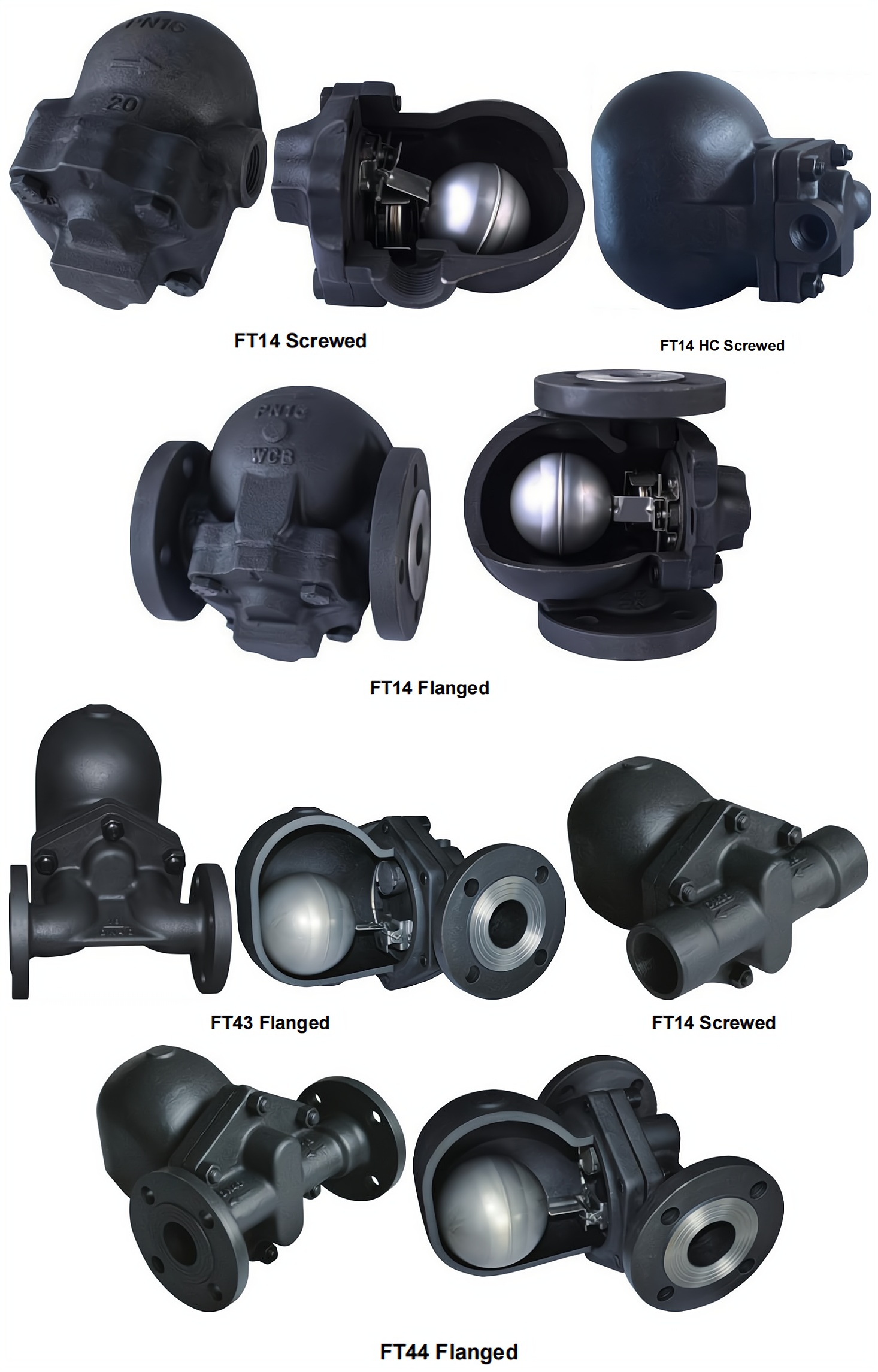

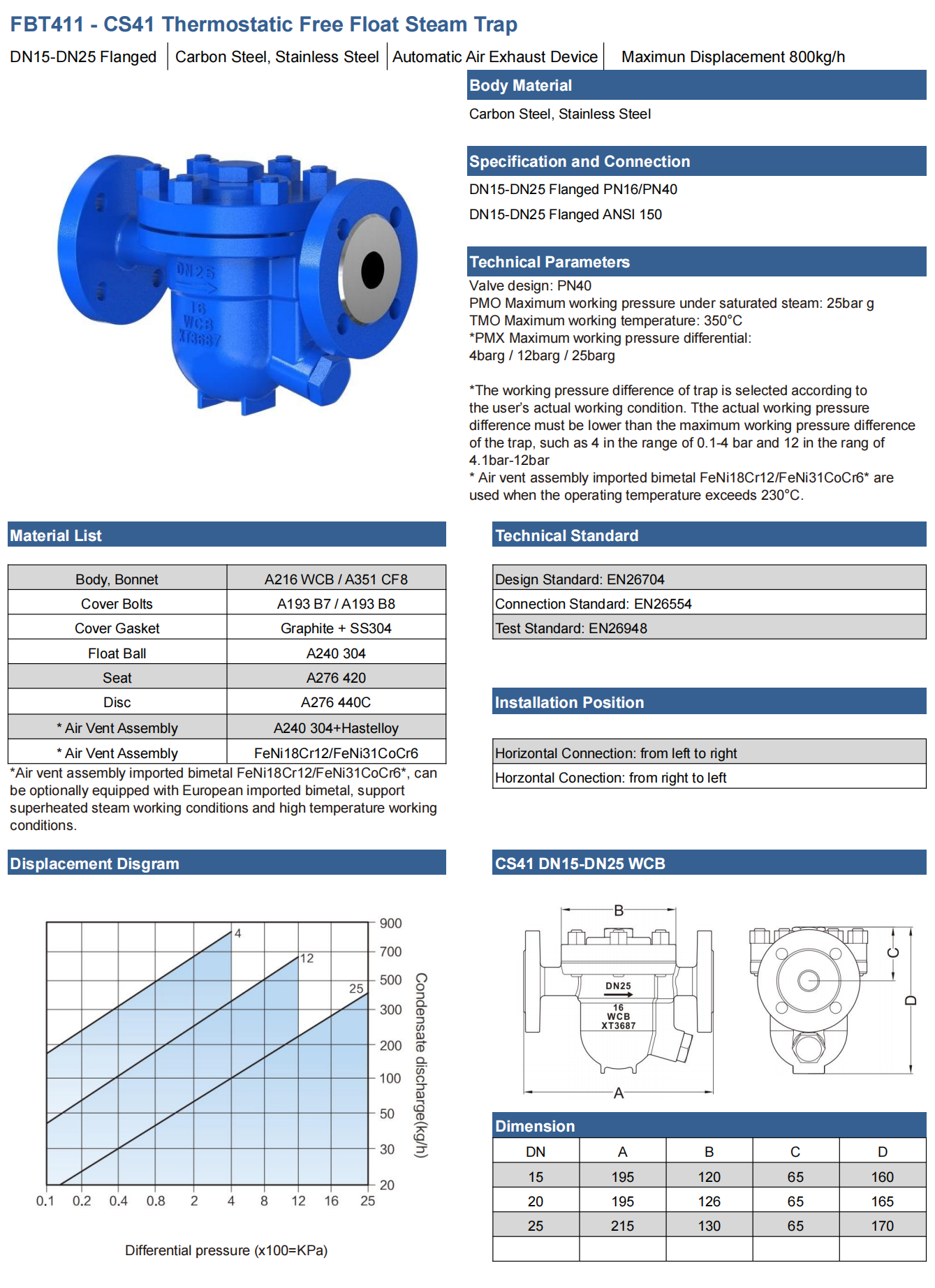

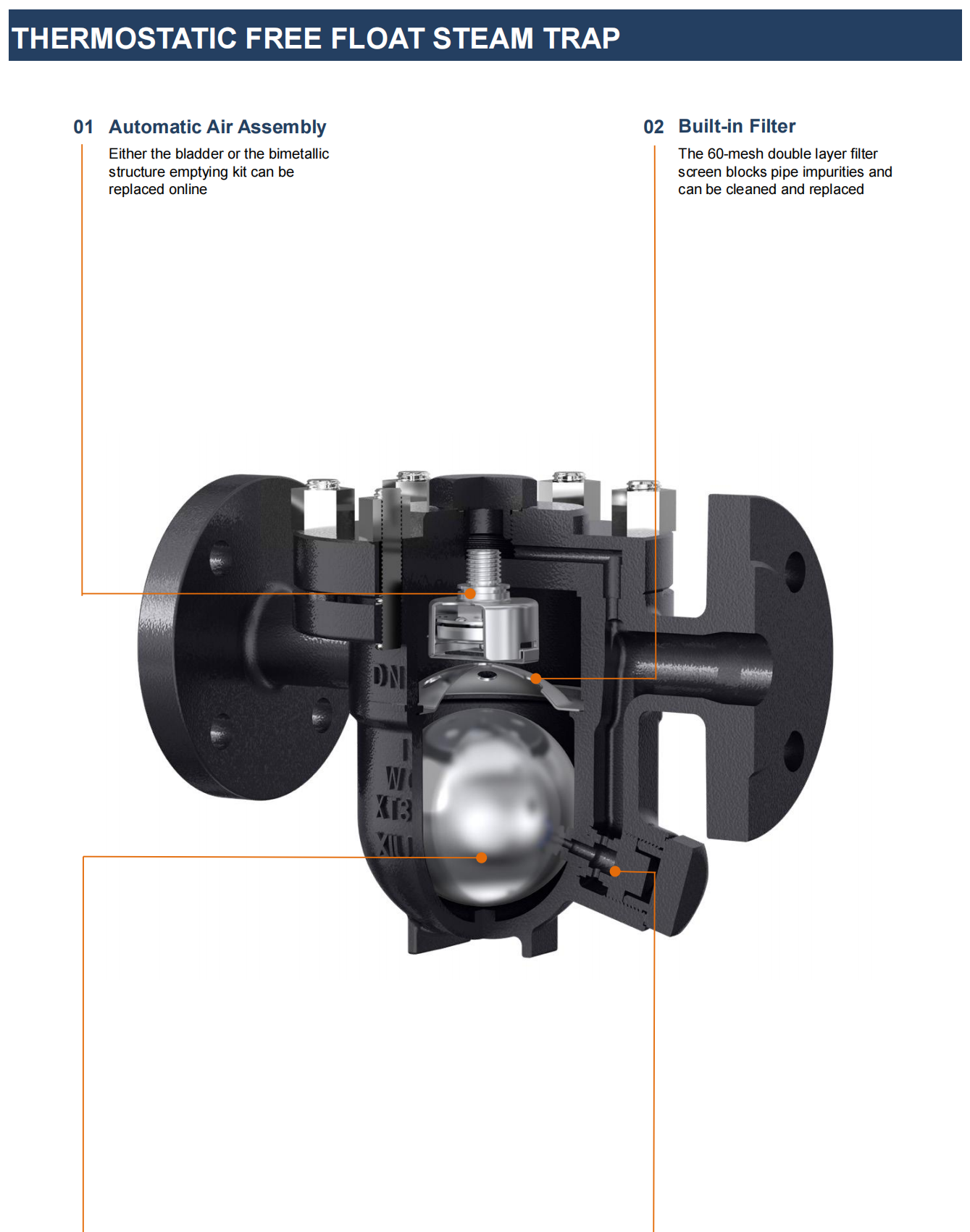

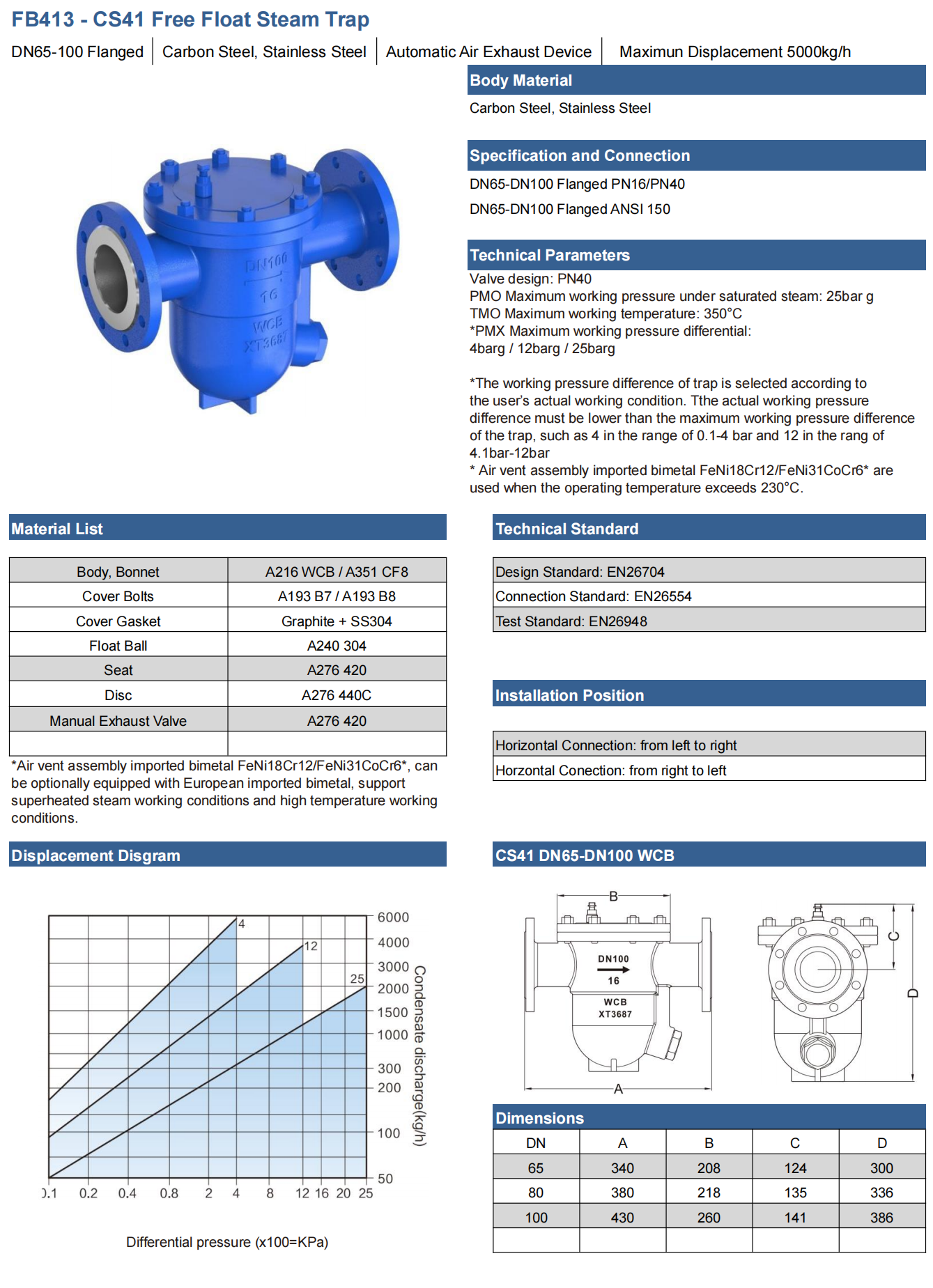

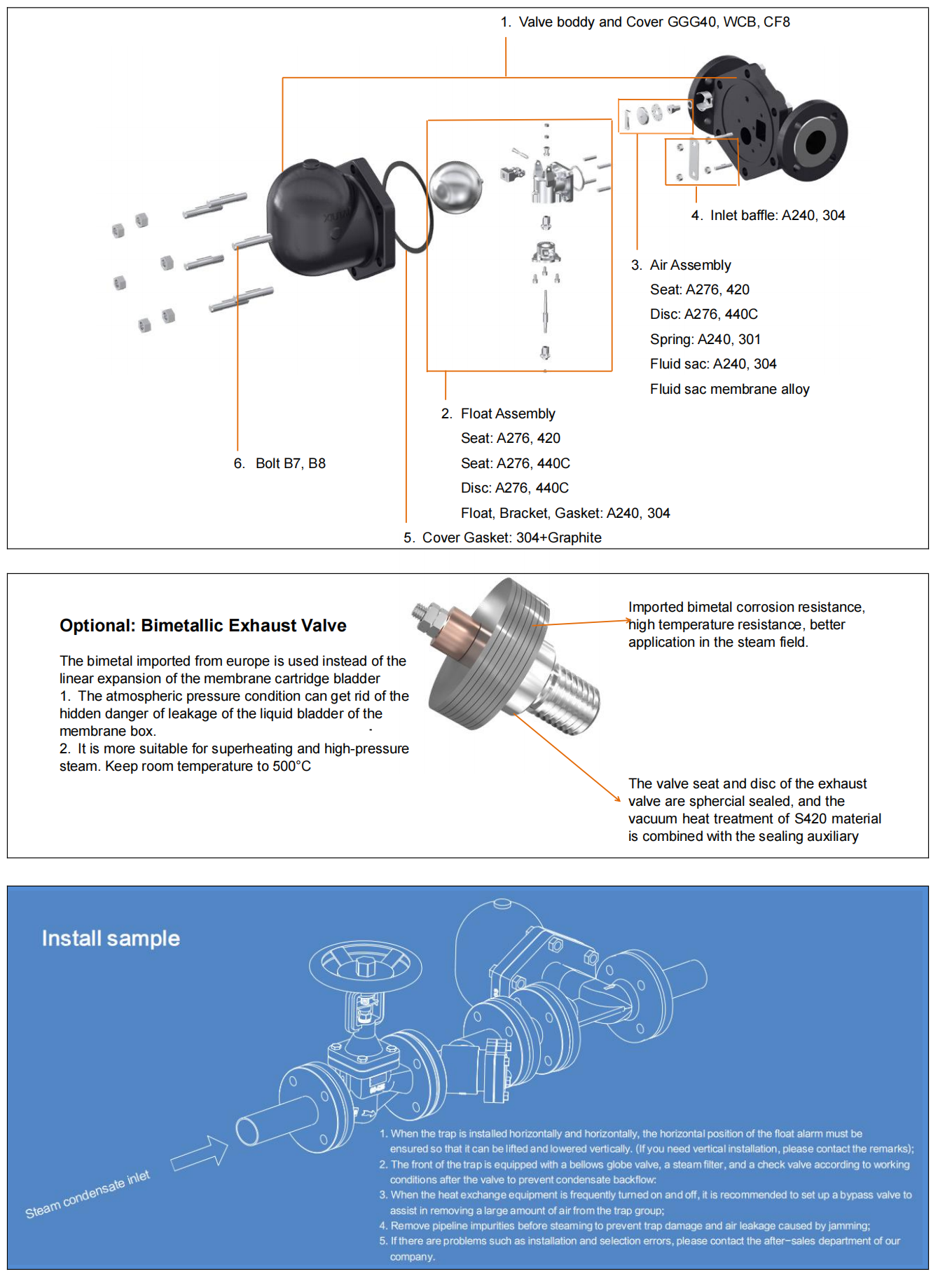

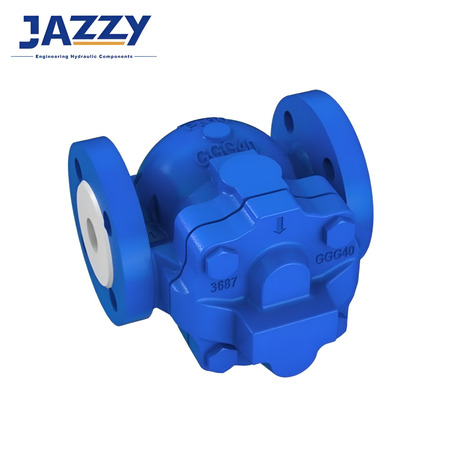

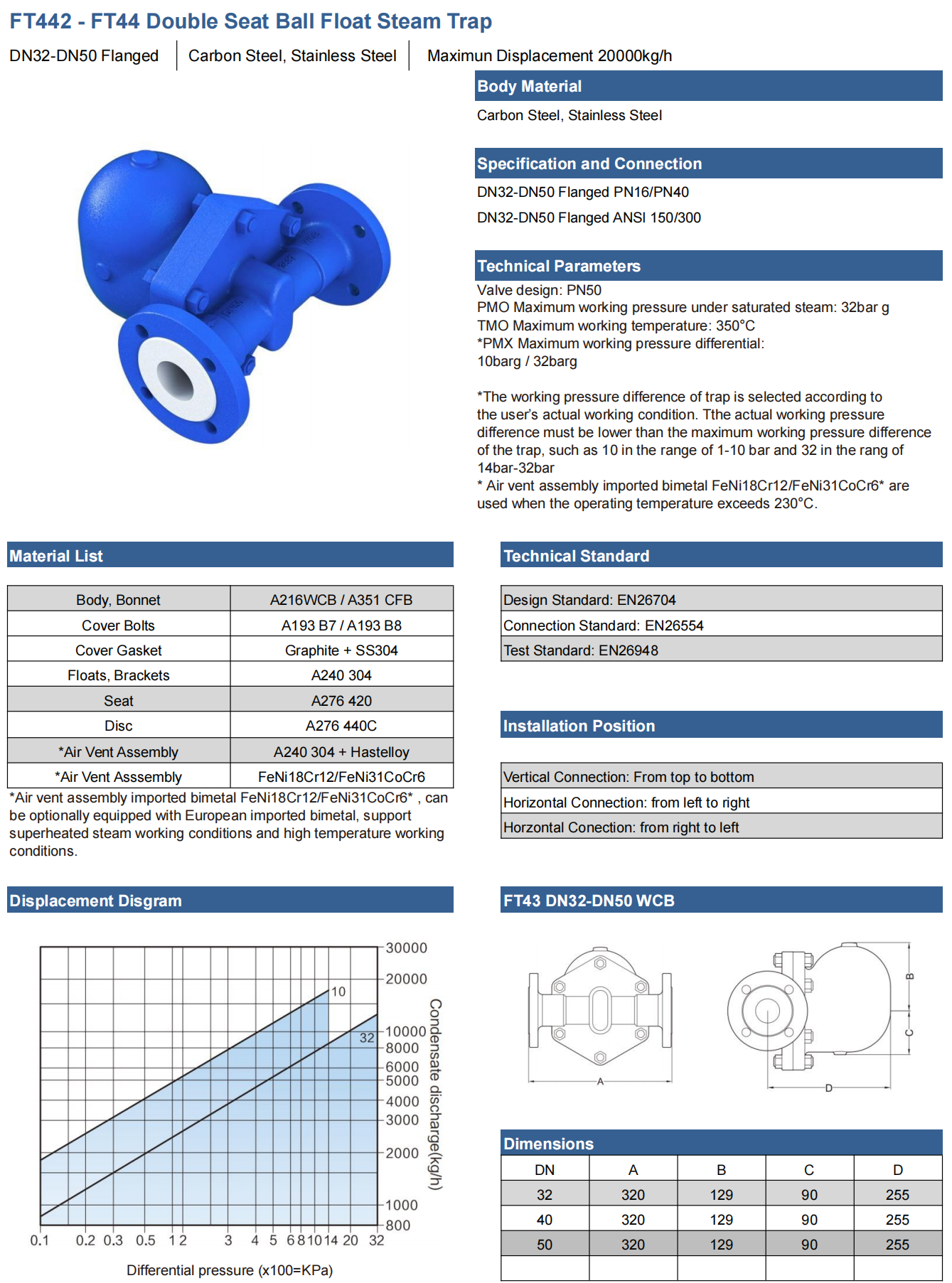

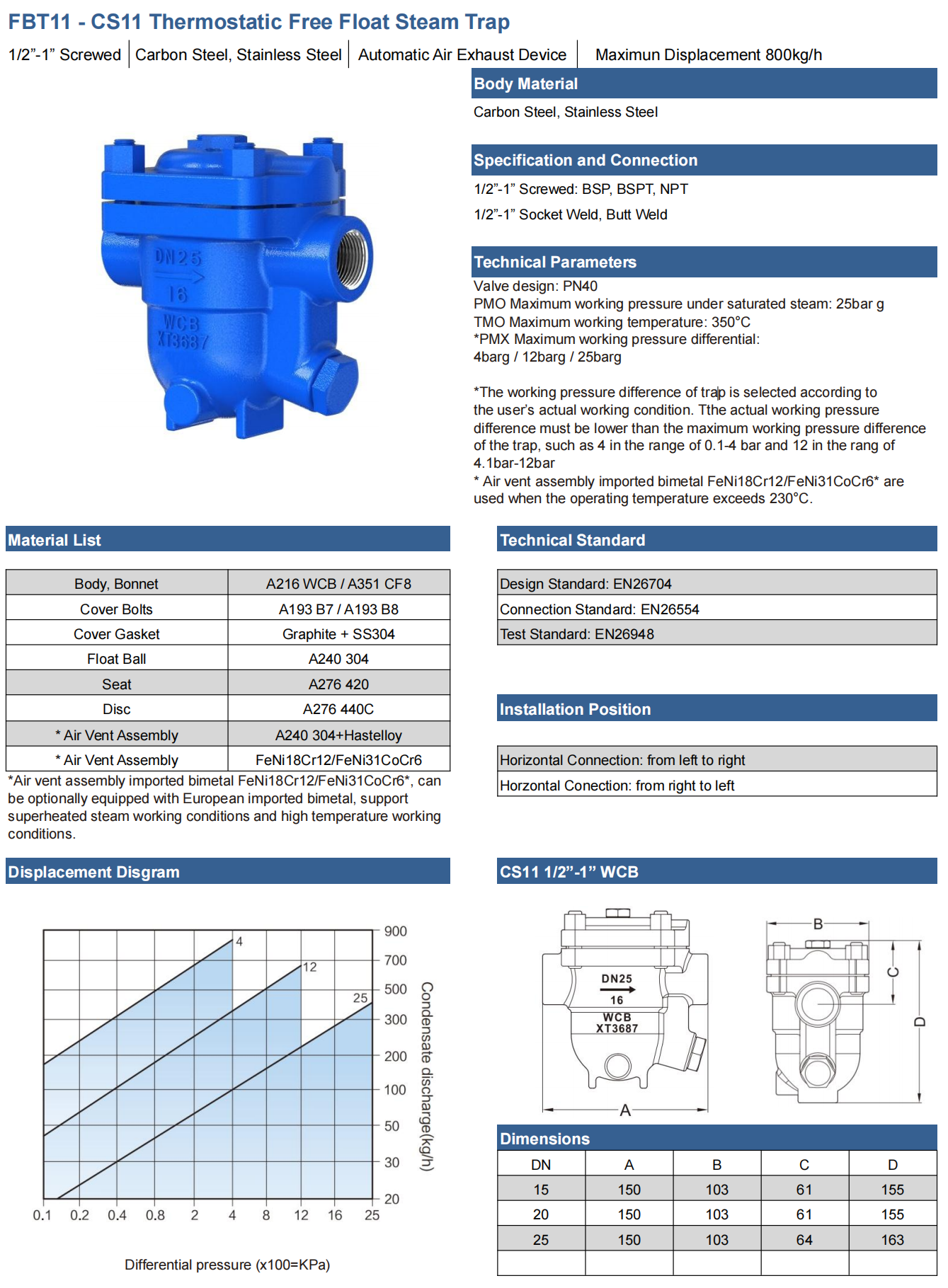

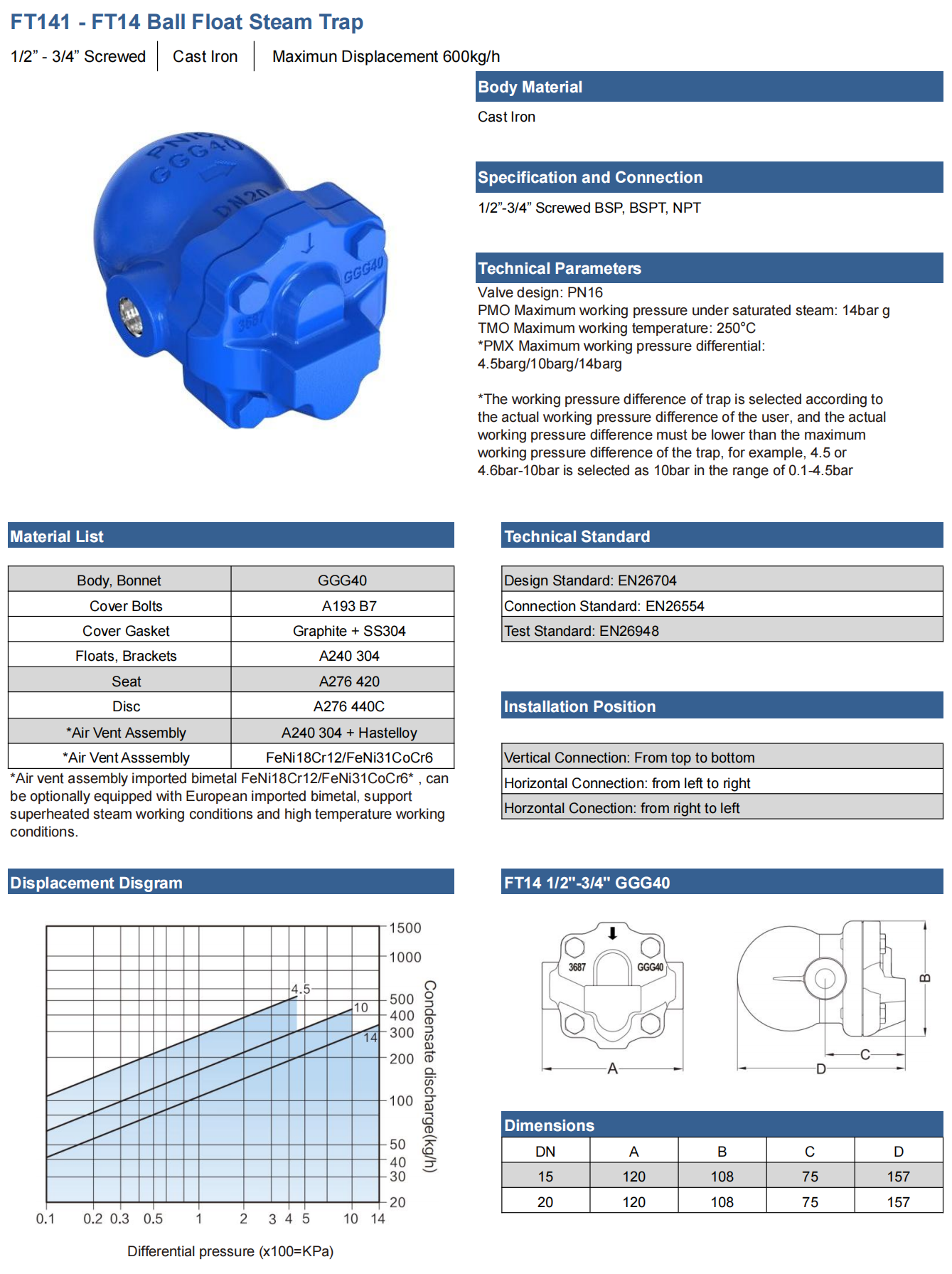

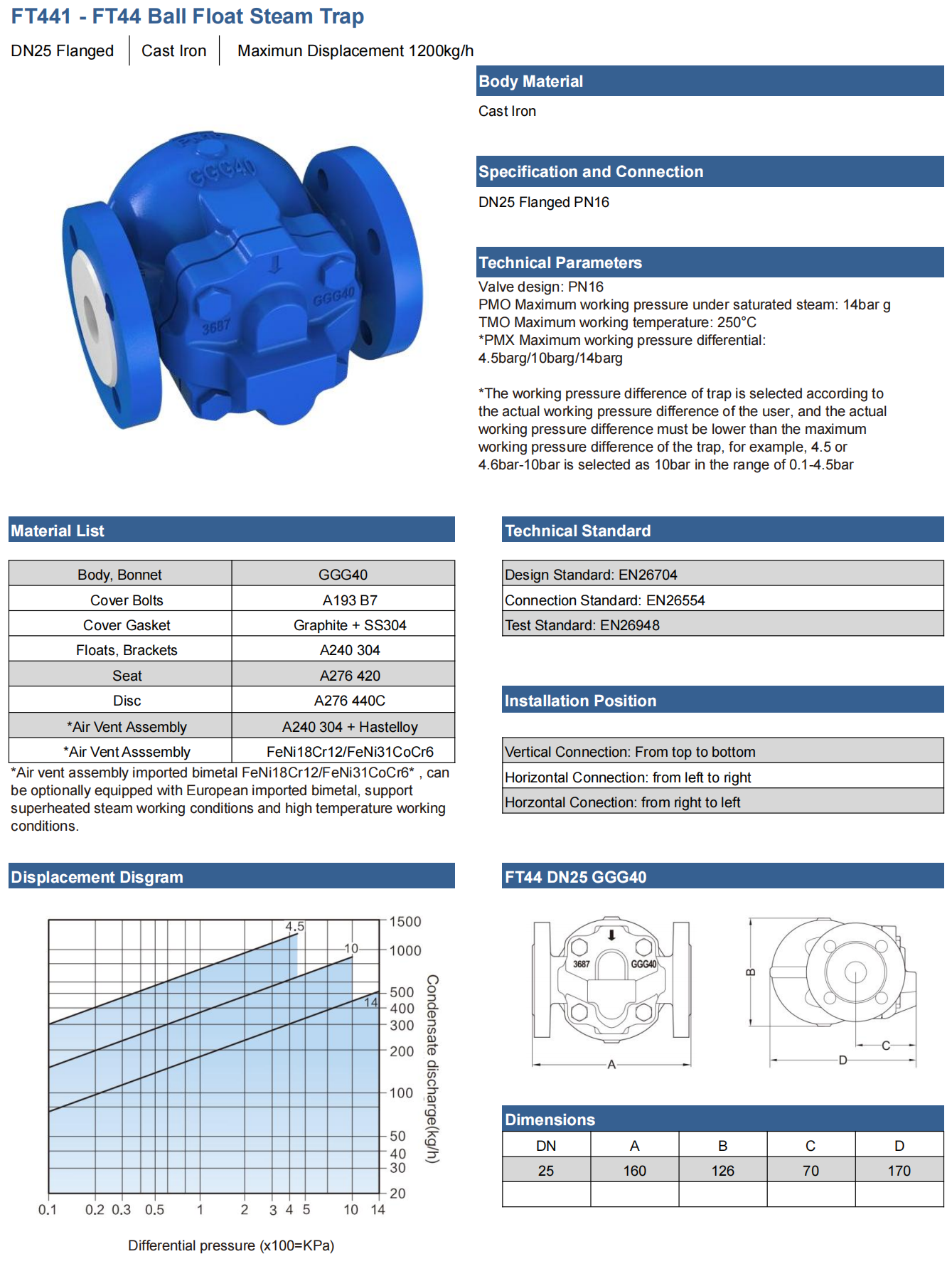

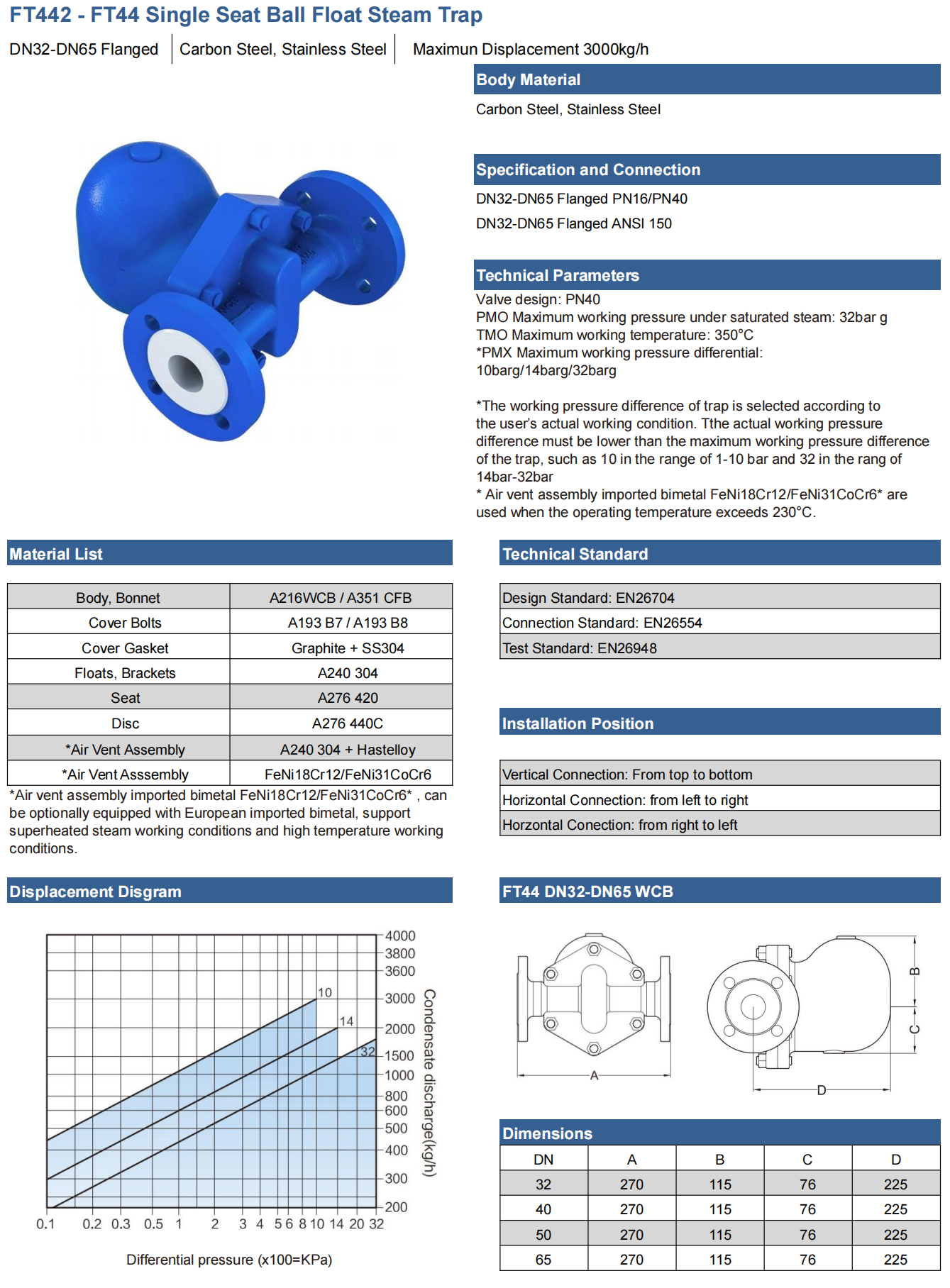

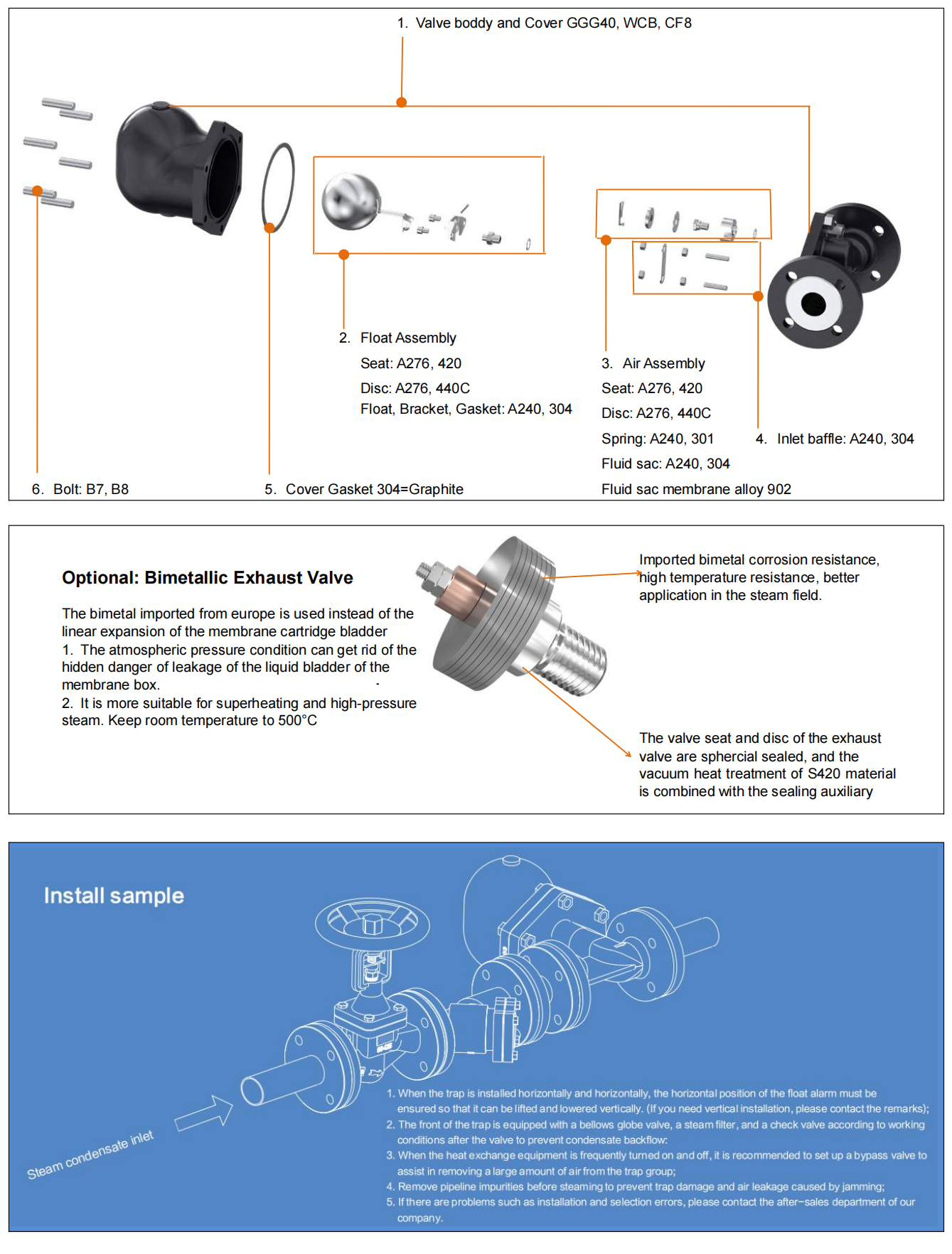

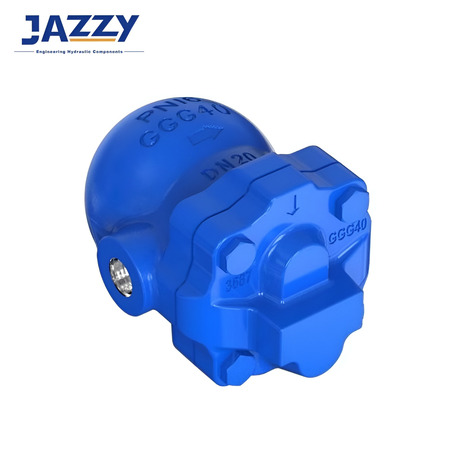

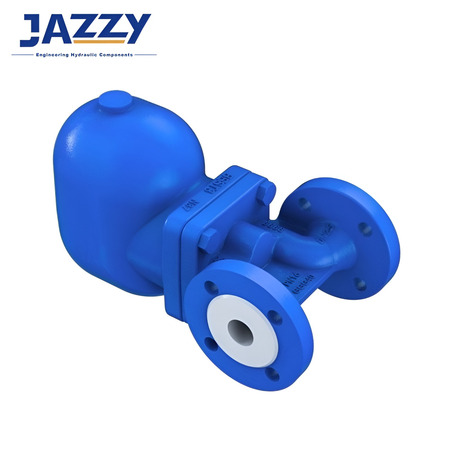

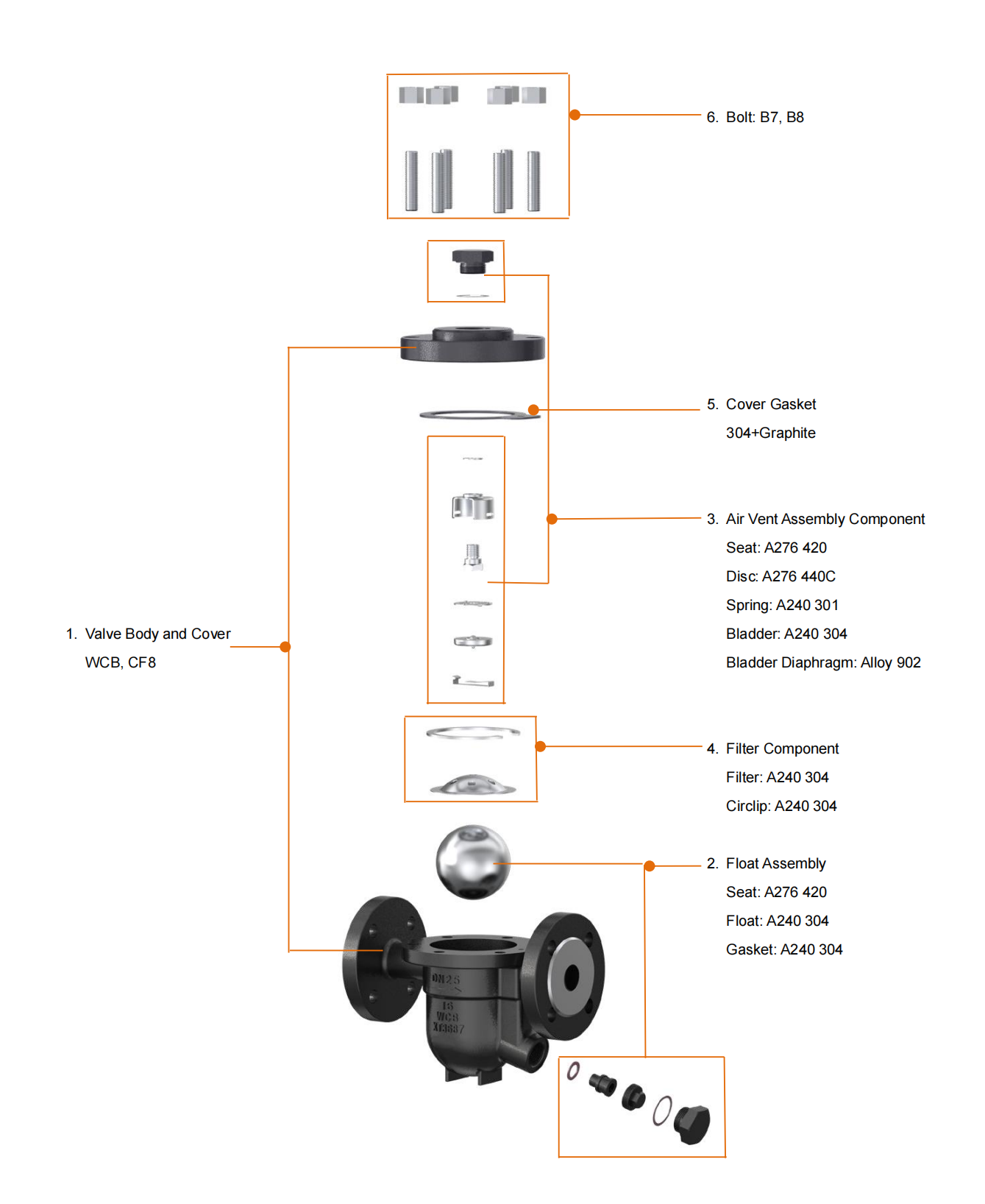

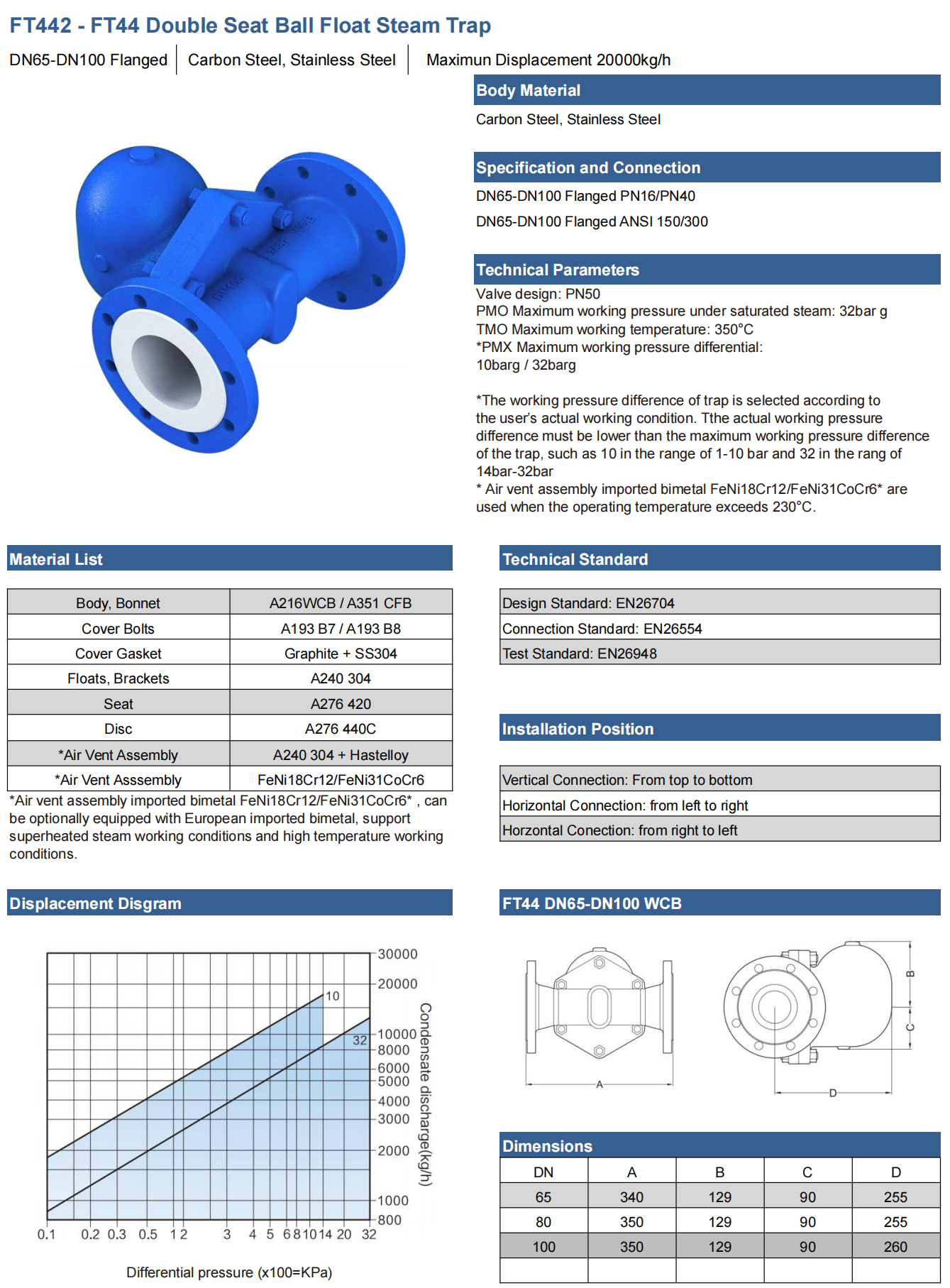

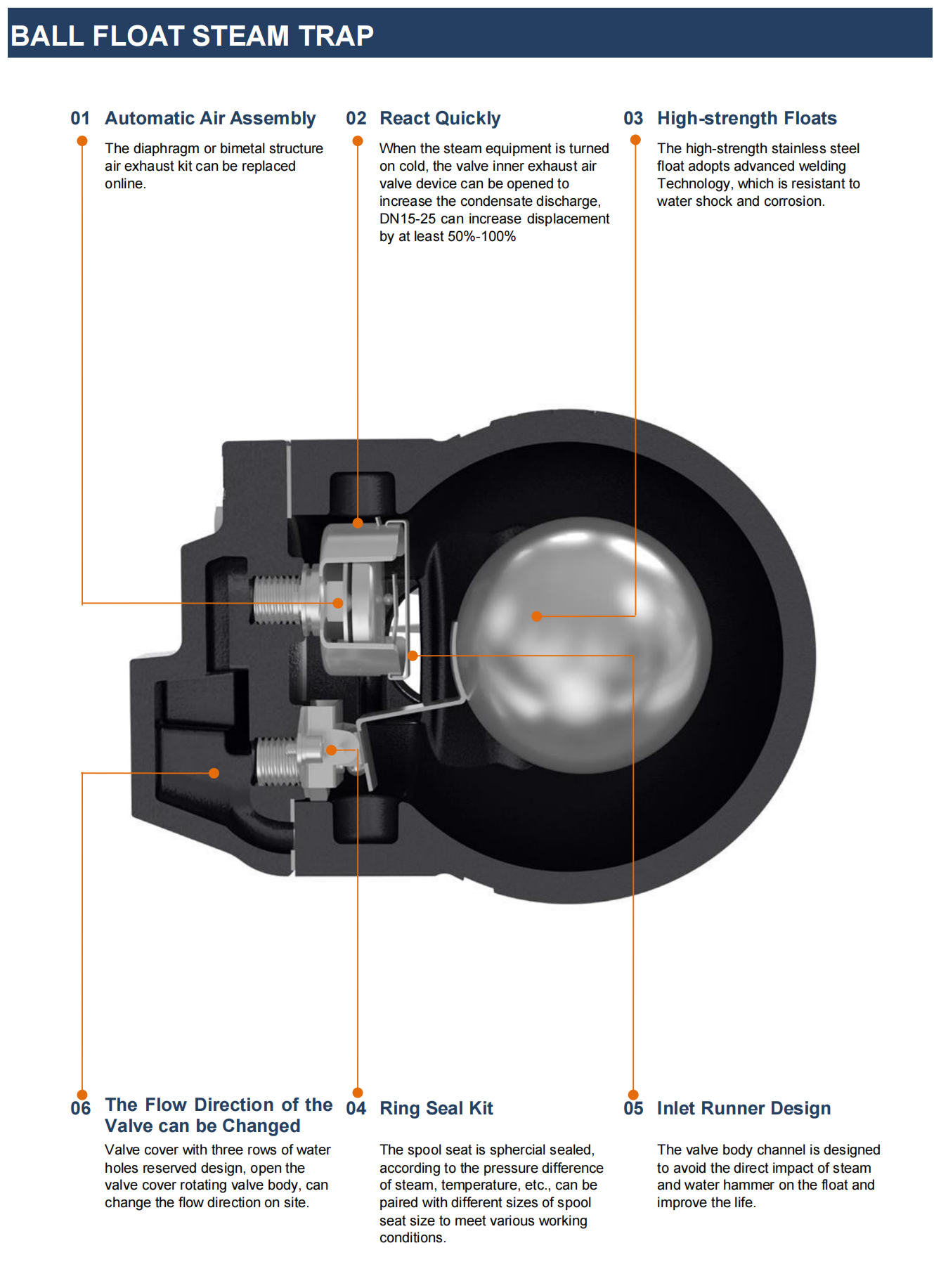

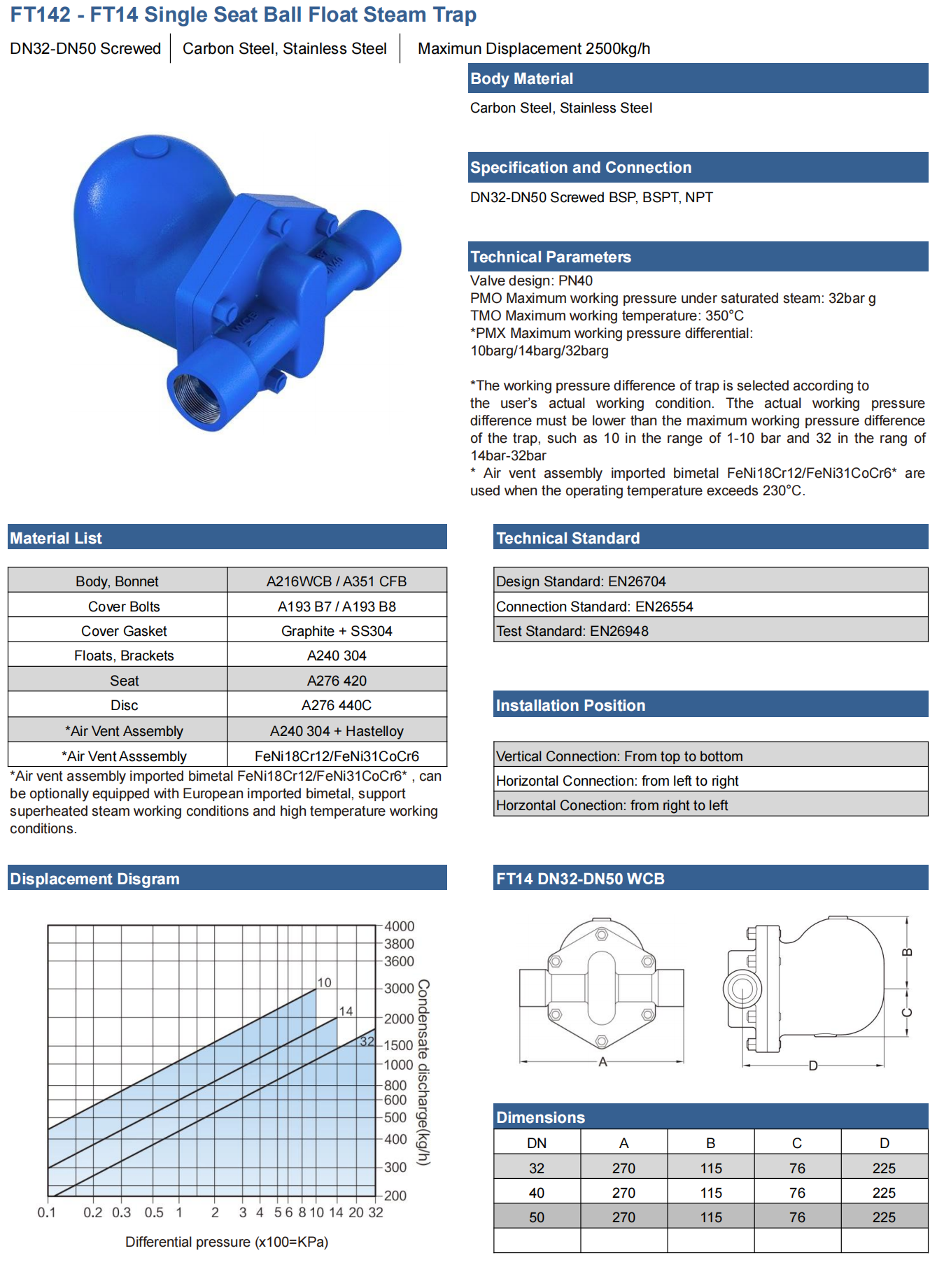

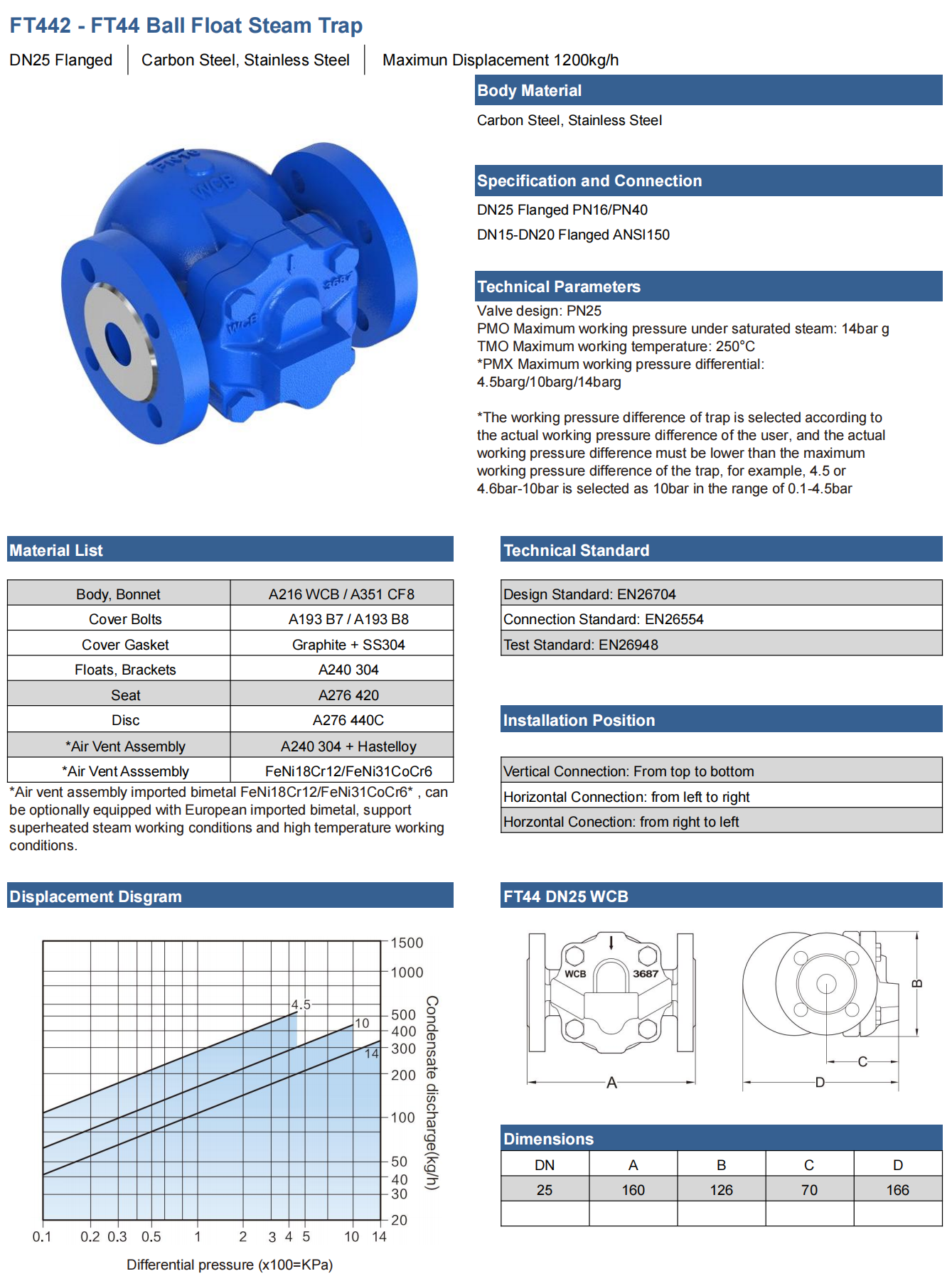

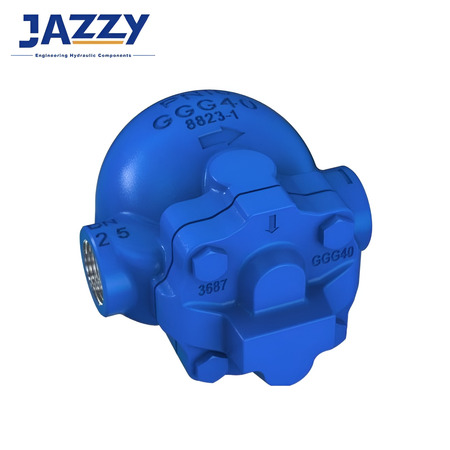

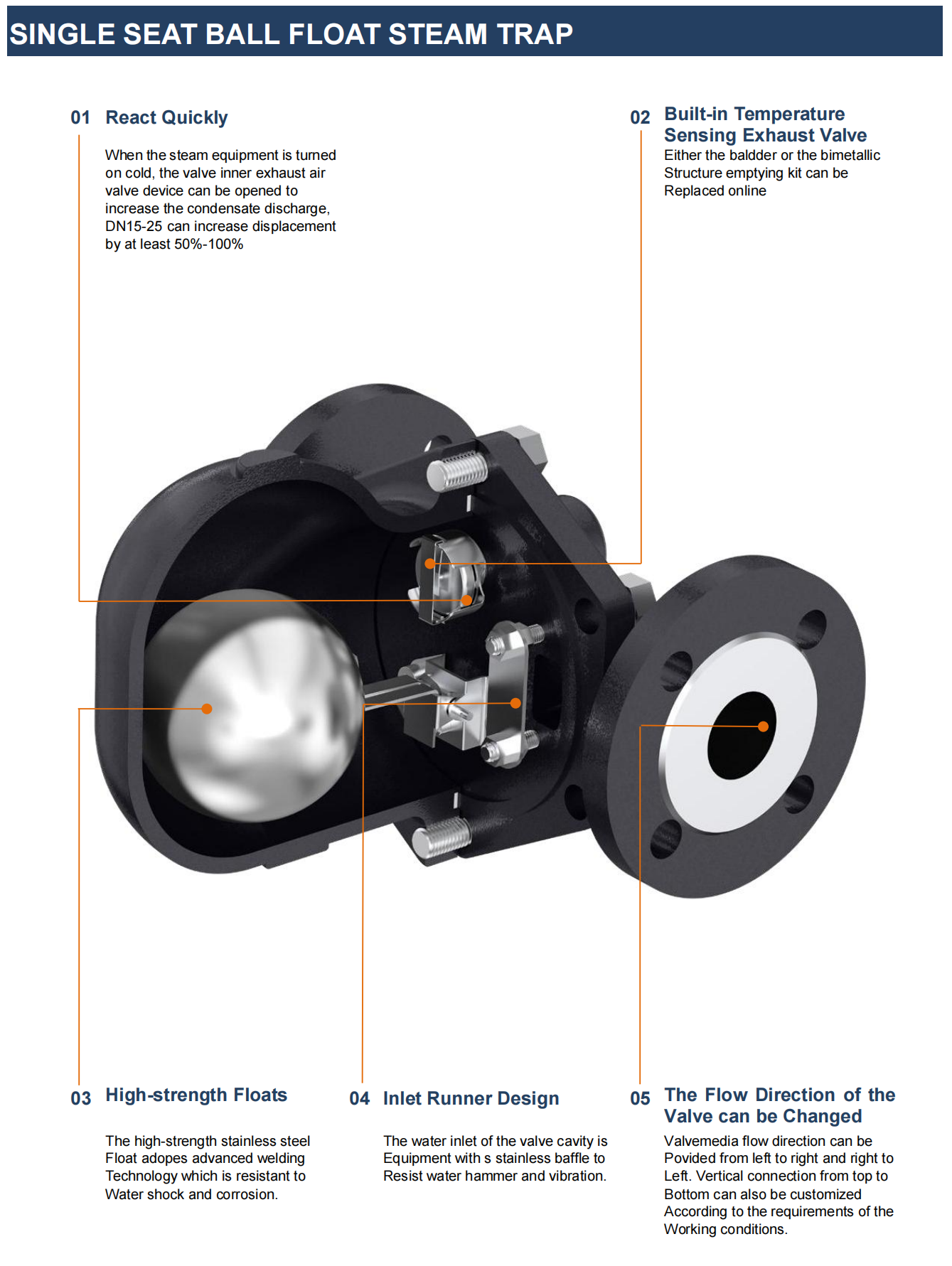

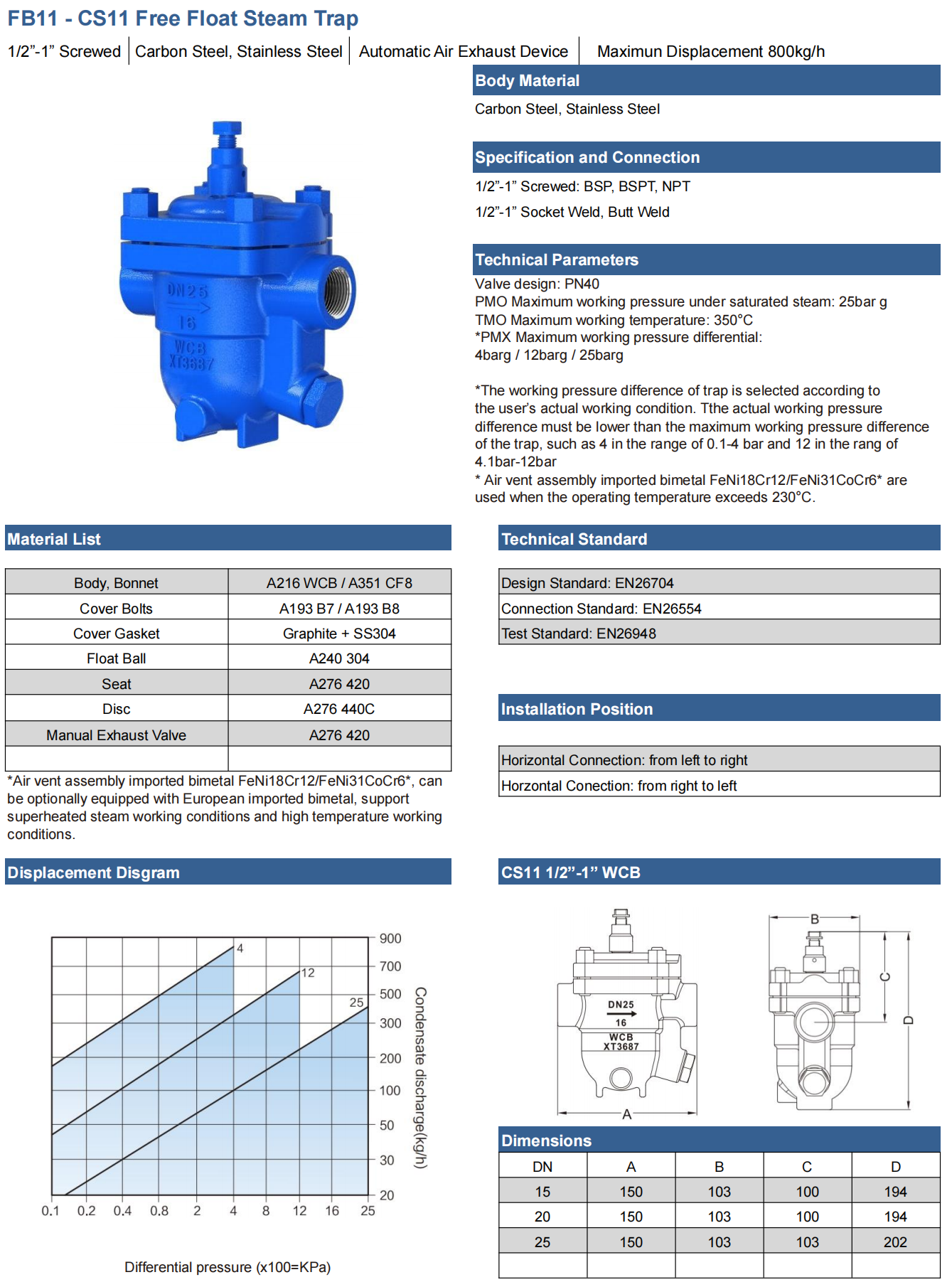

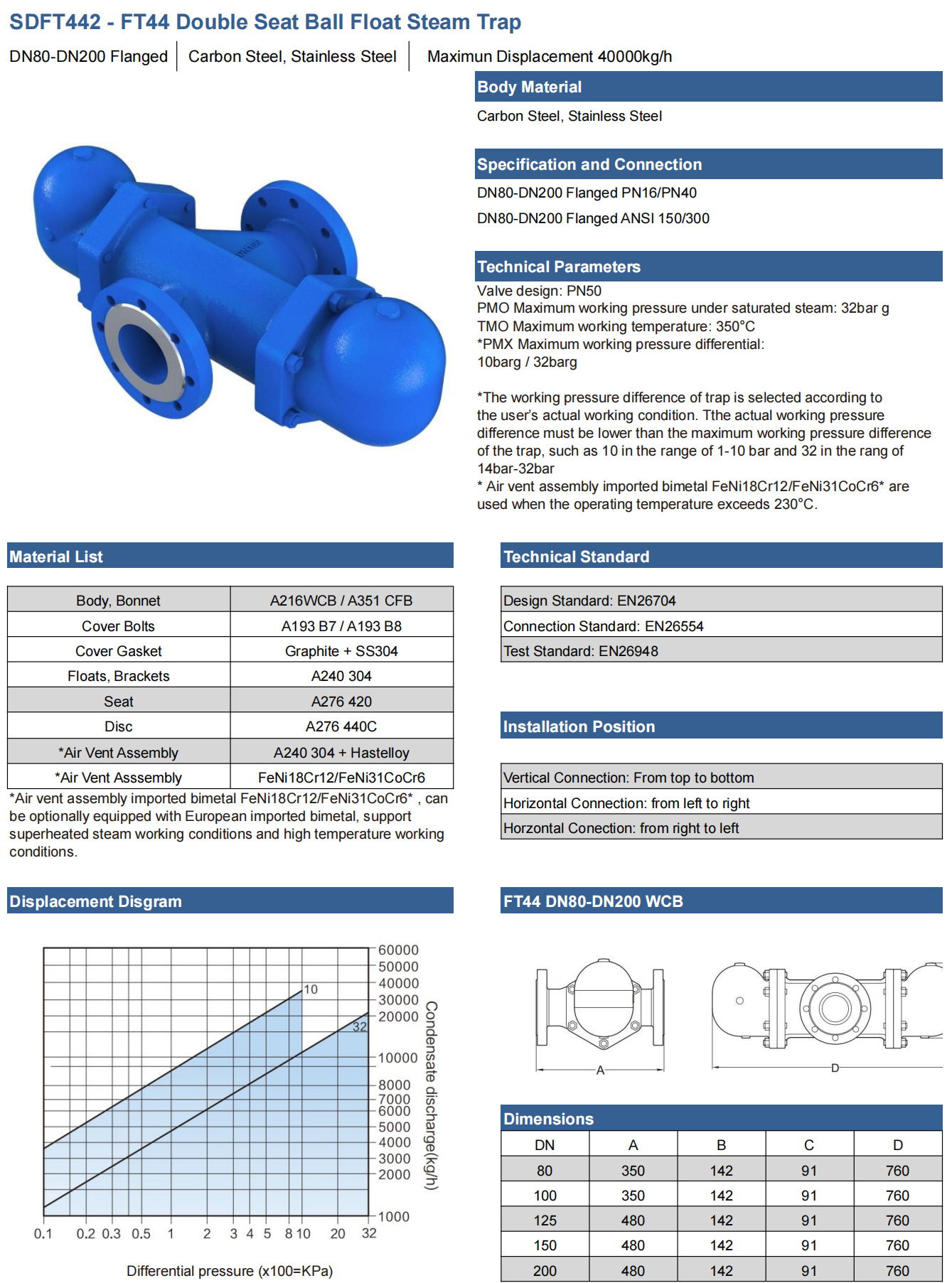

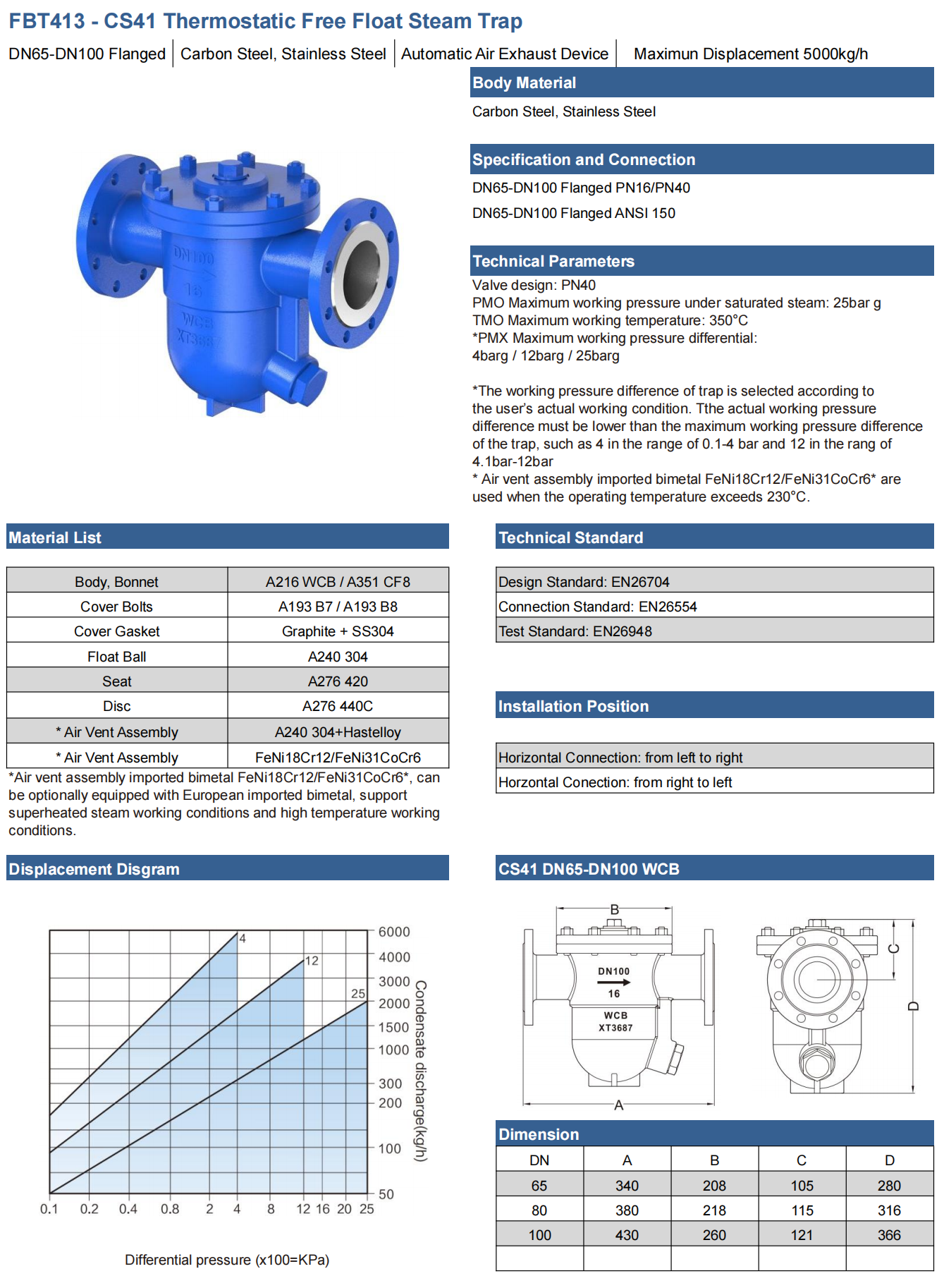

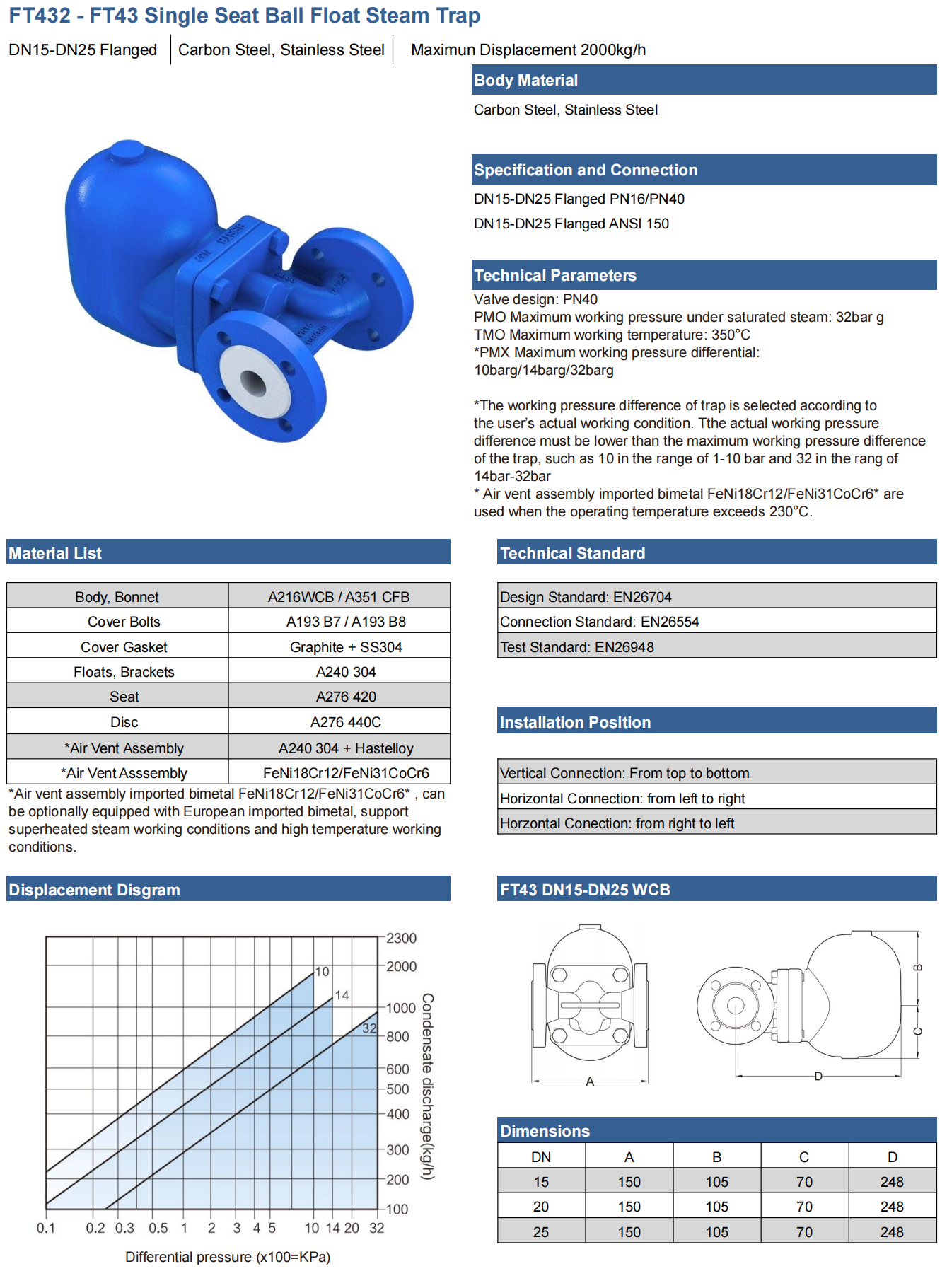

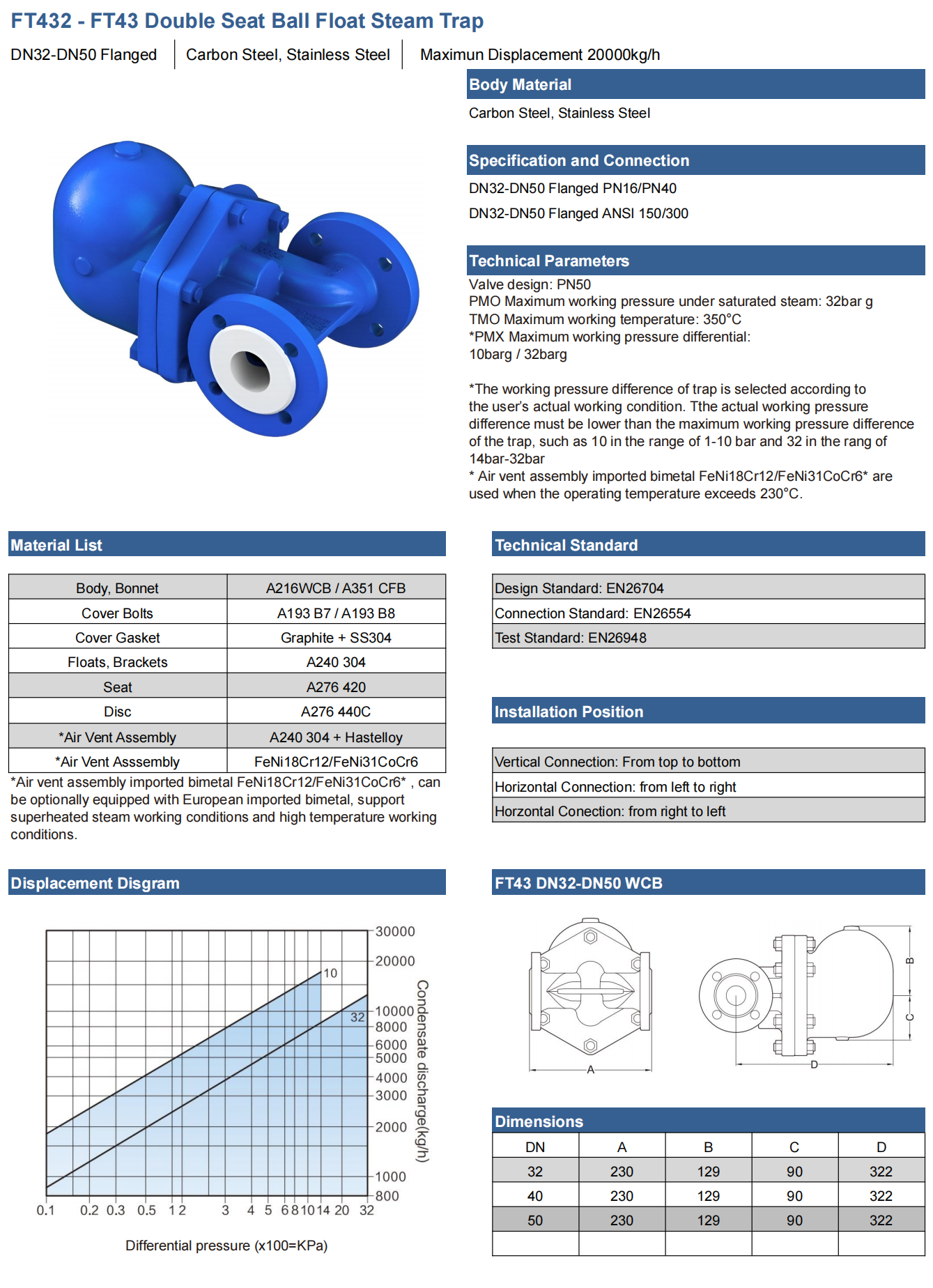

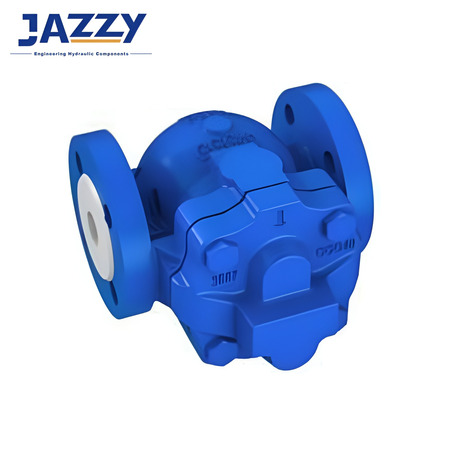

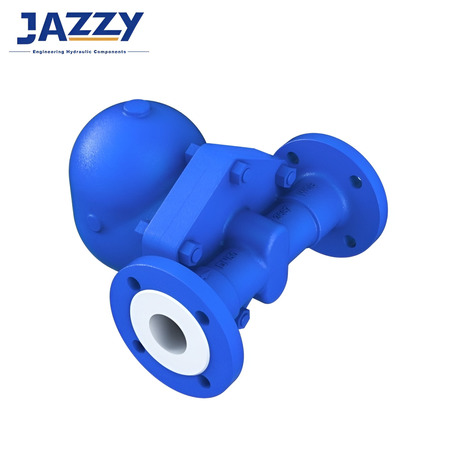

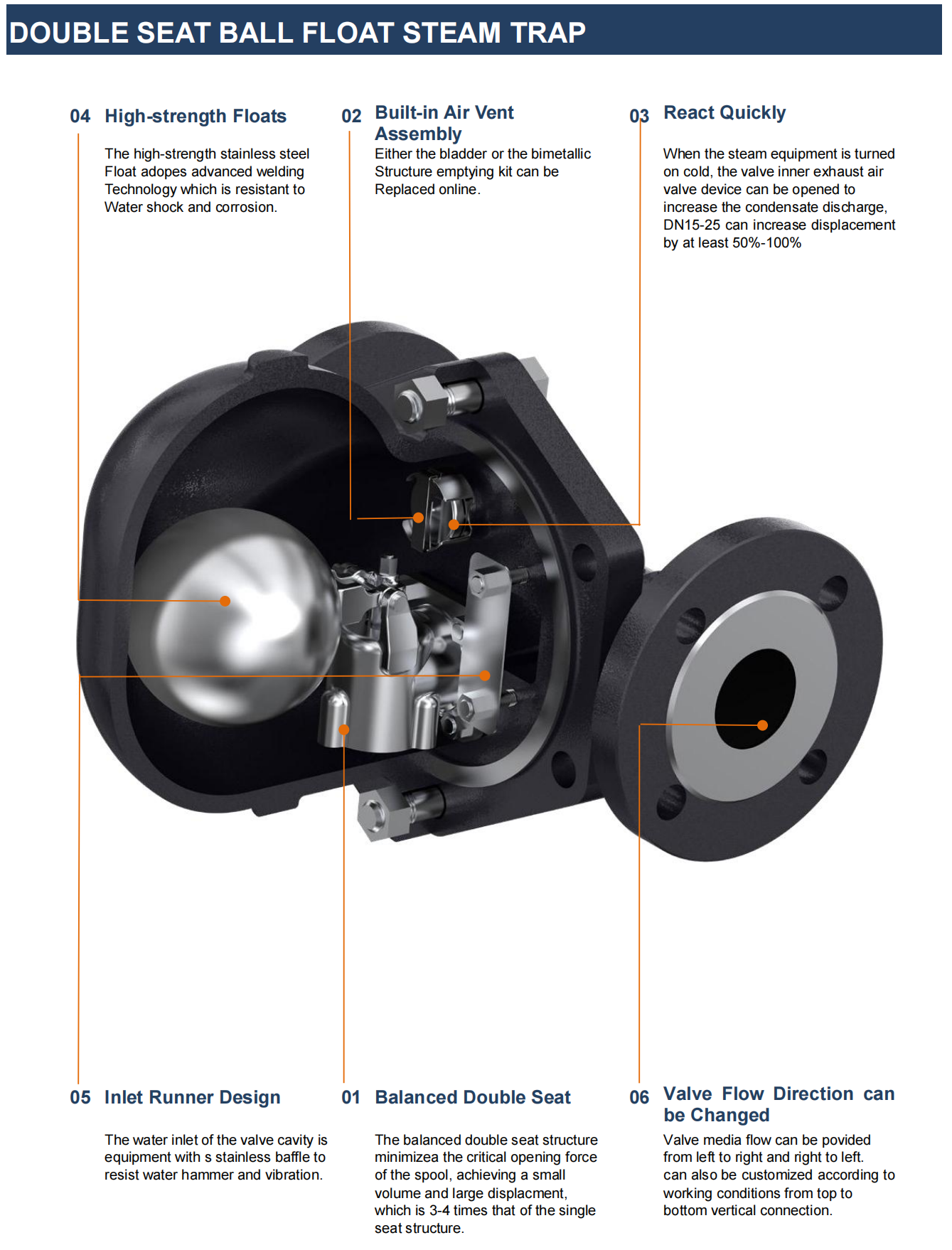

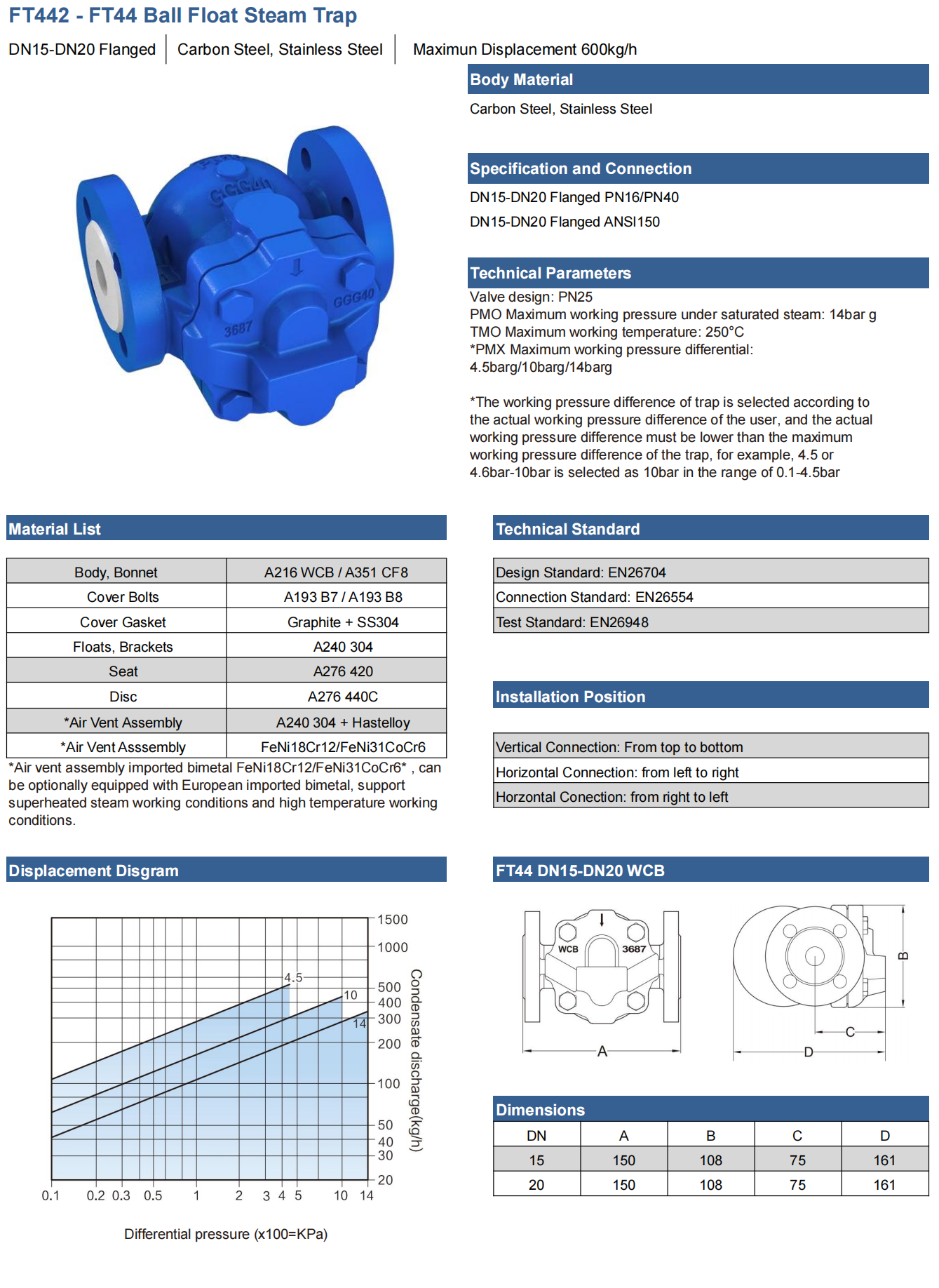

Float & Thermostatic – Continuous drainage, excellent air handling, ideal for heat exchangers and process applications.

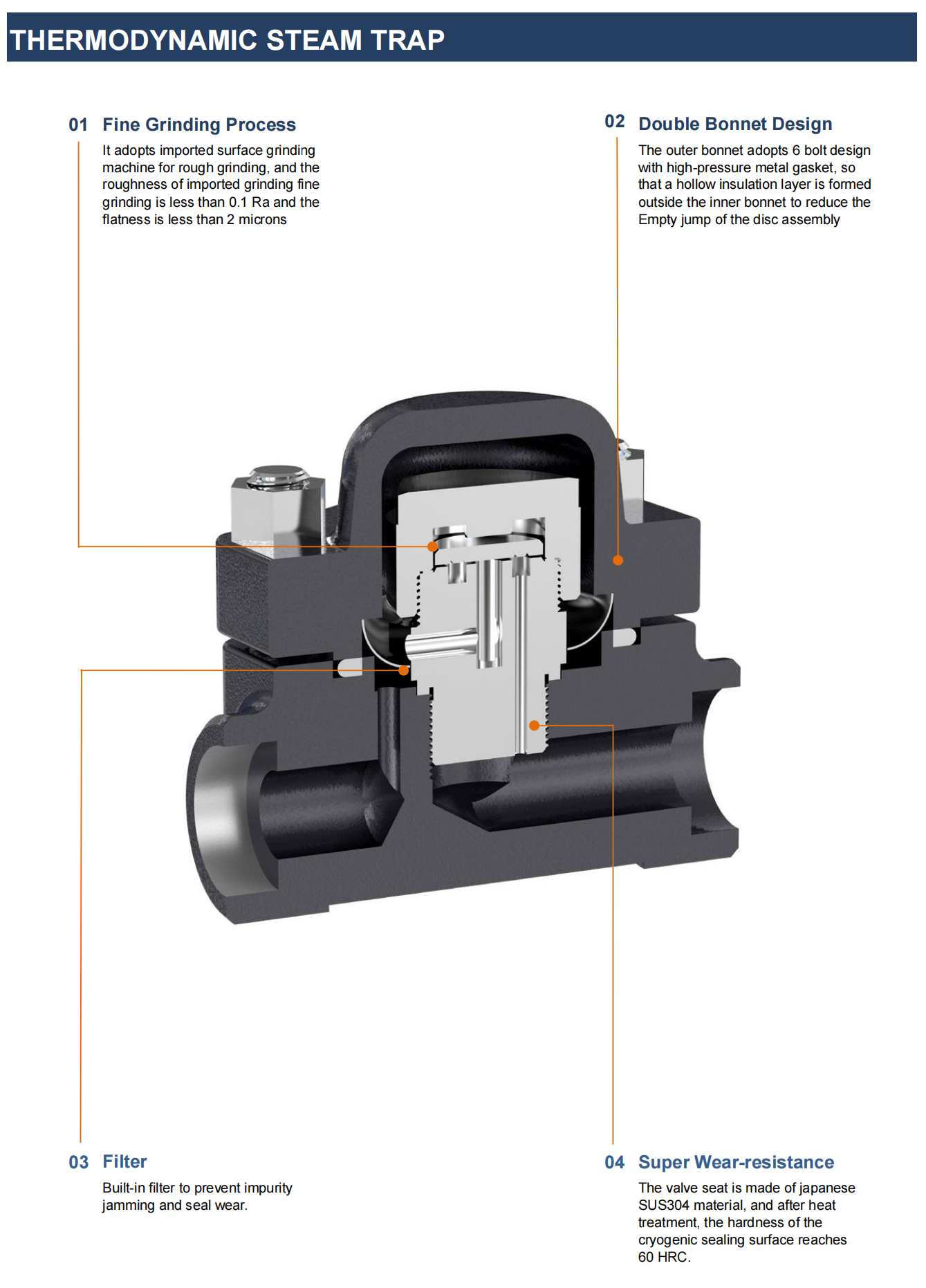

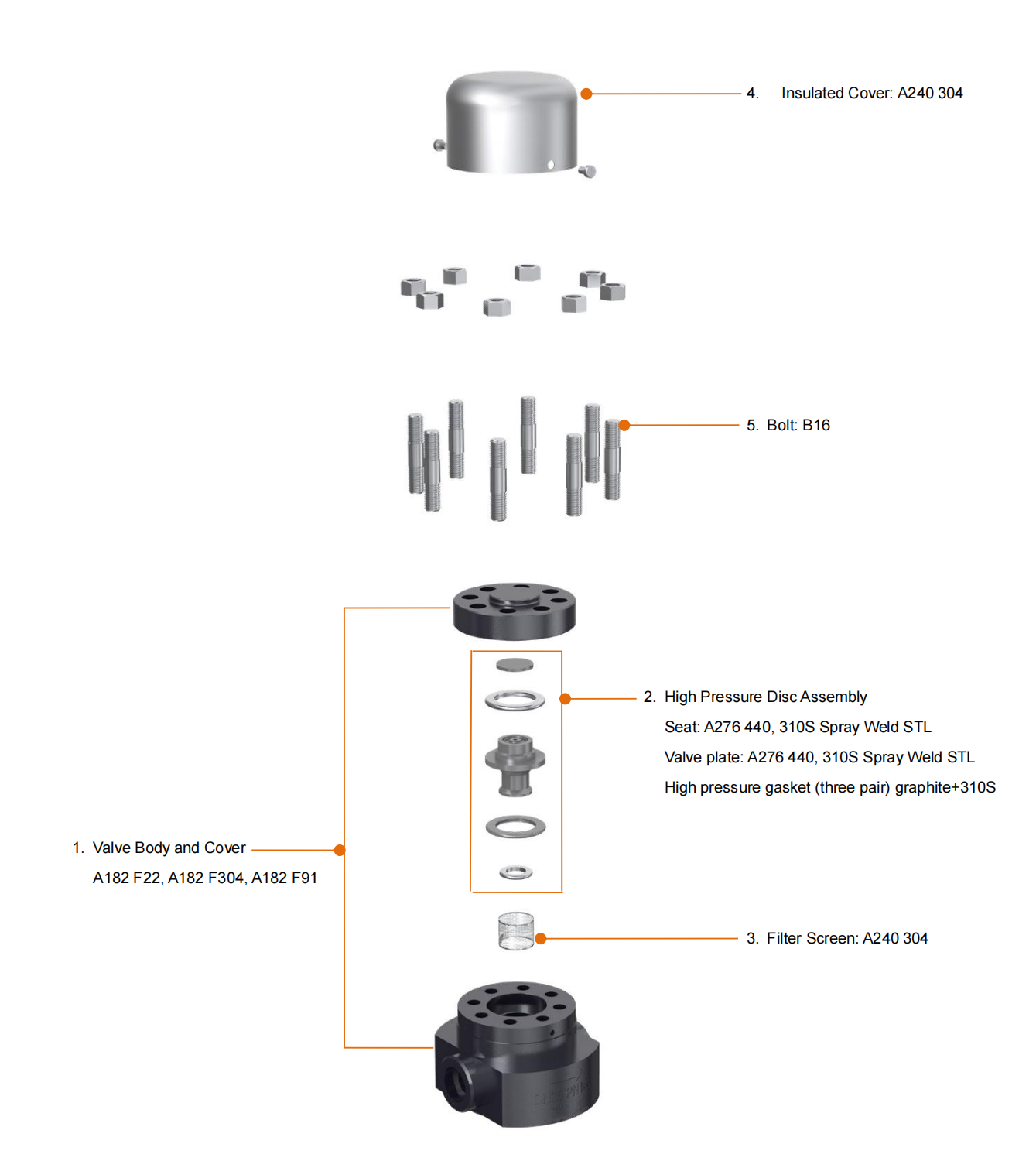

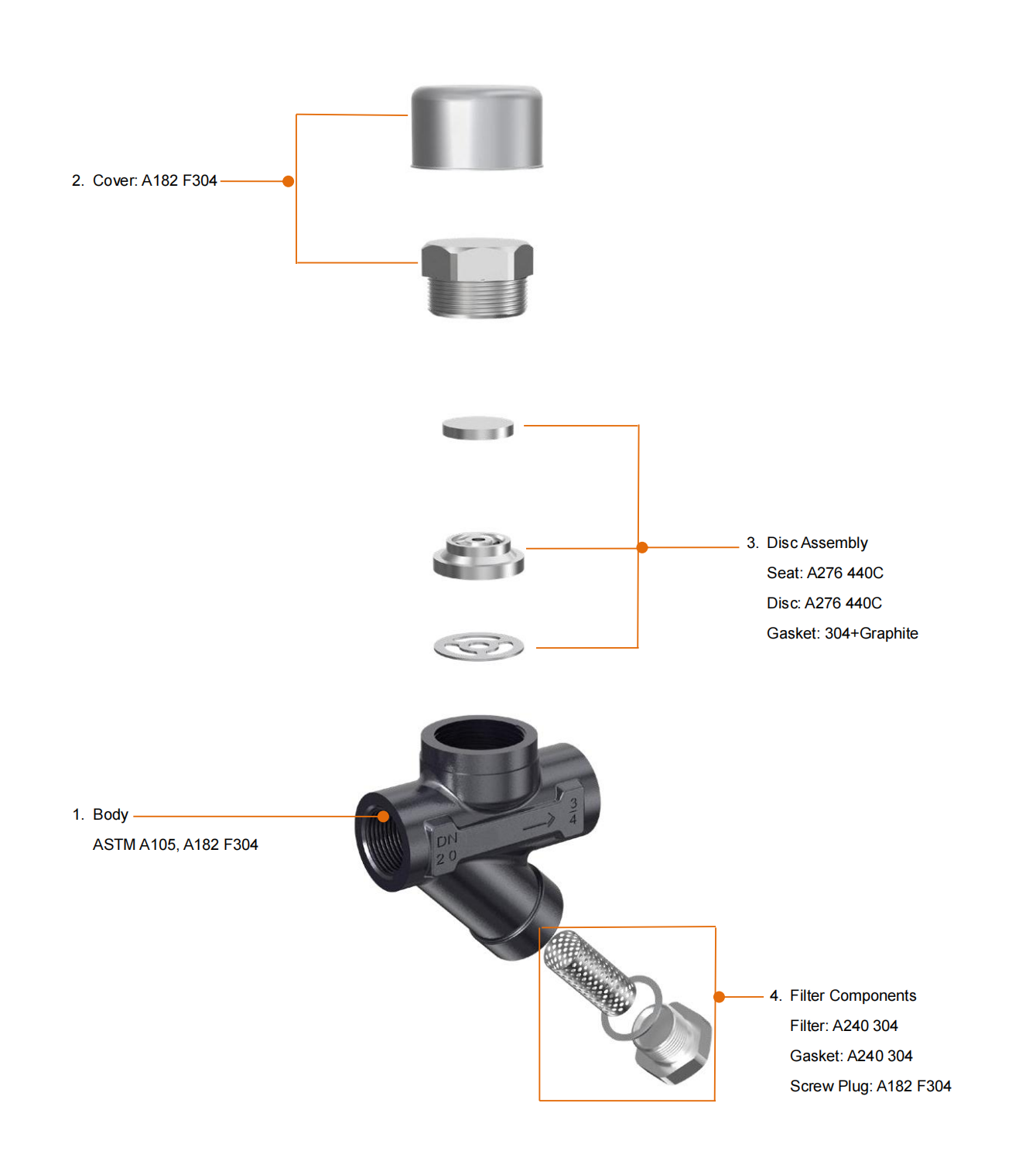

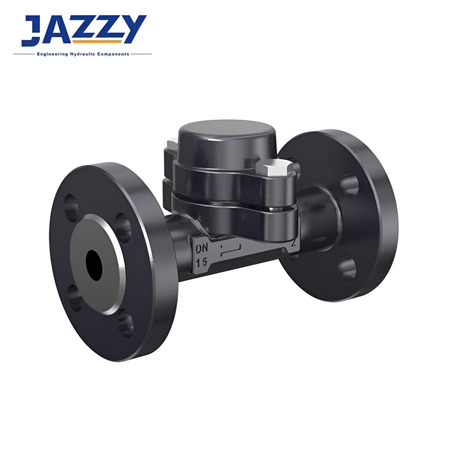

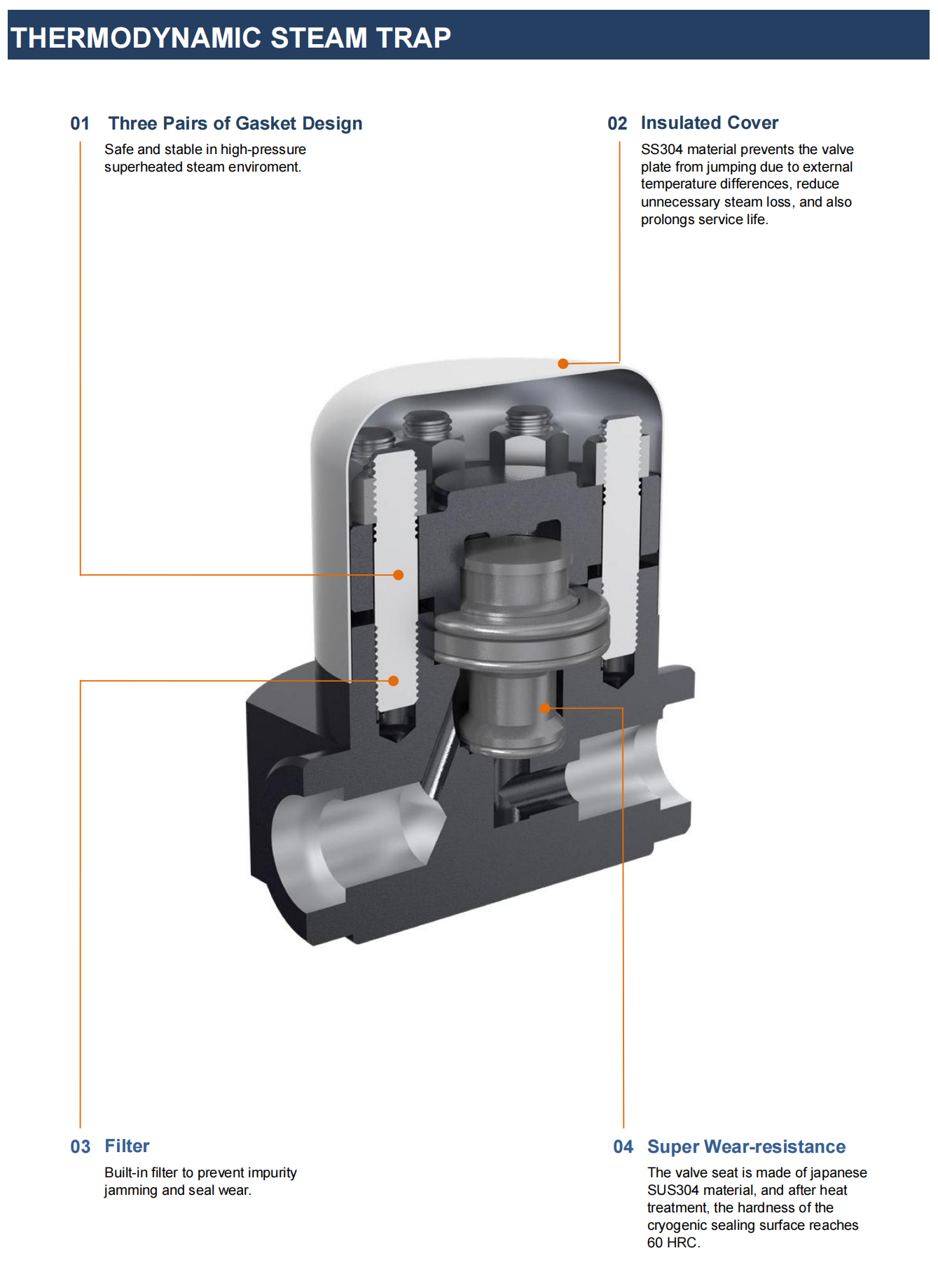

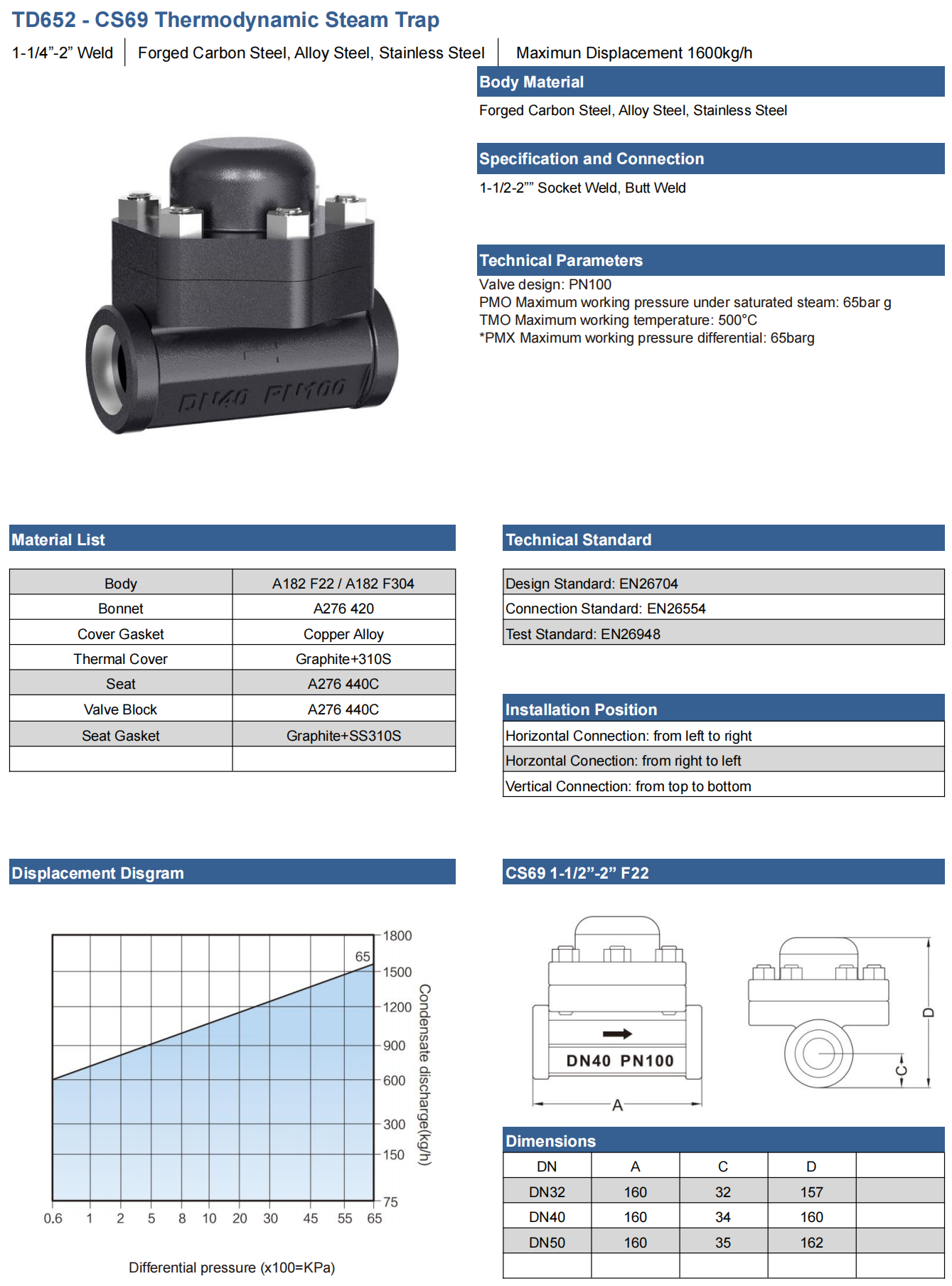

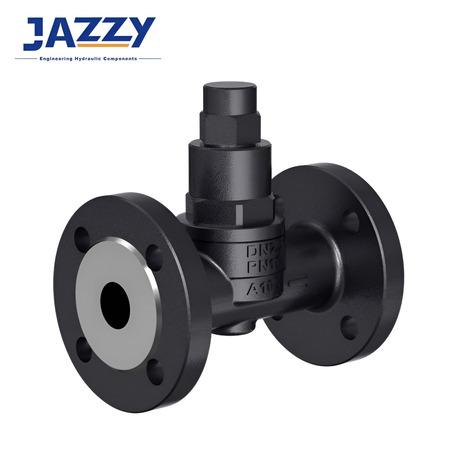

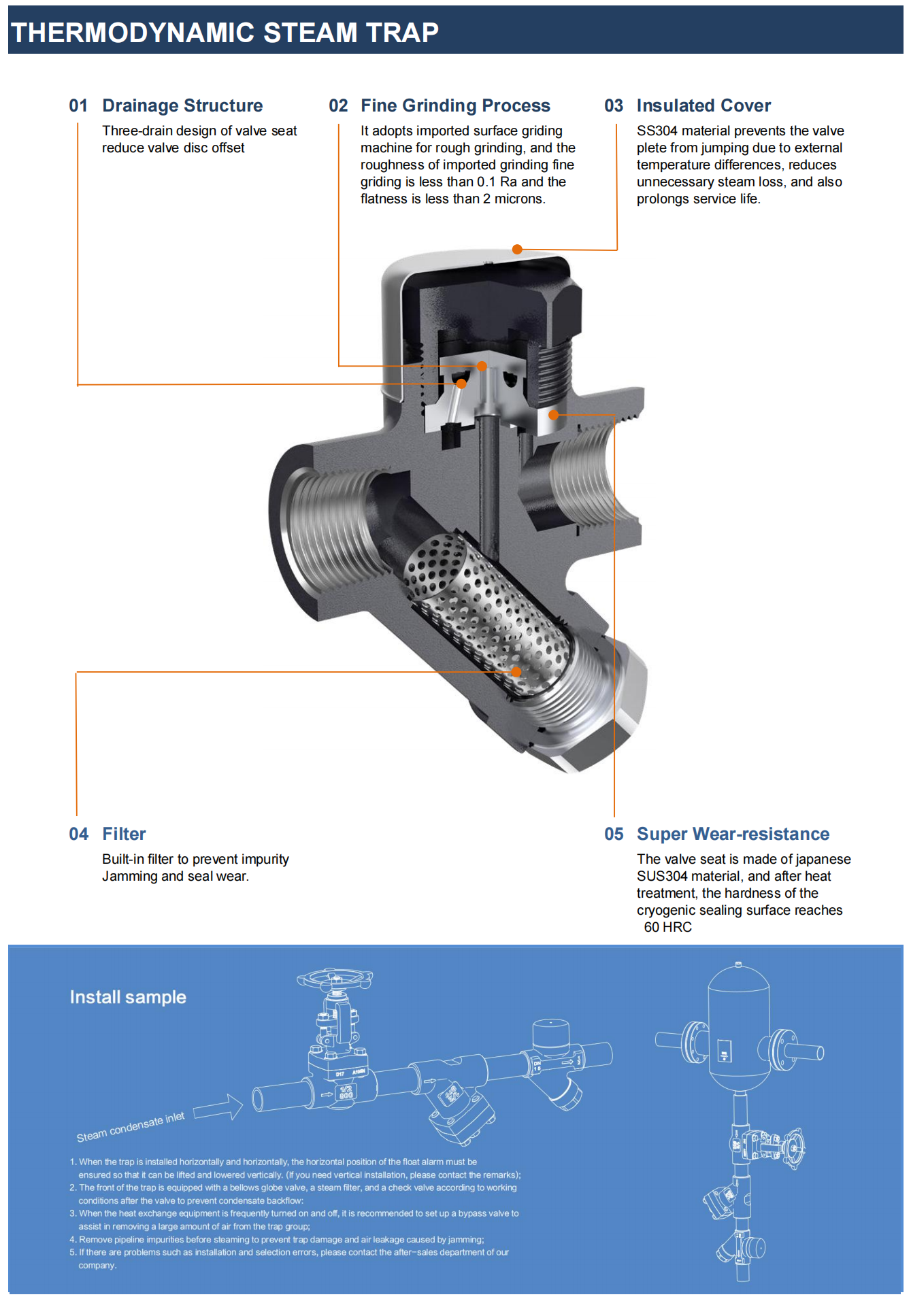

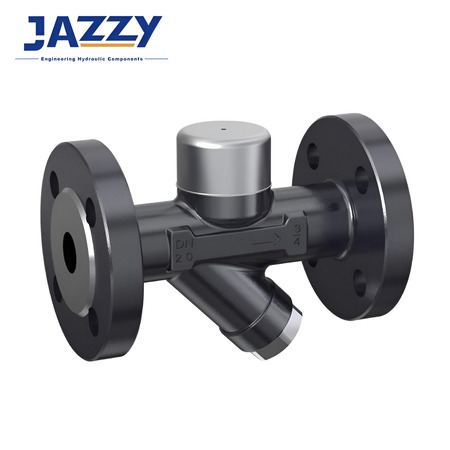

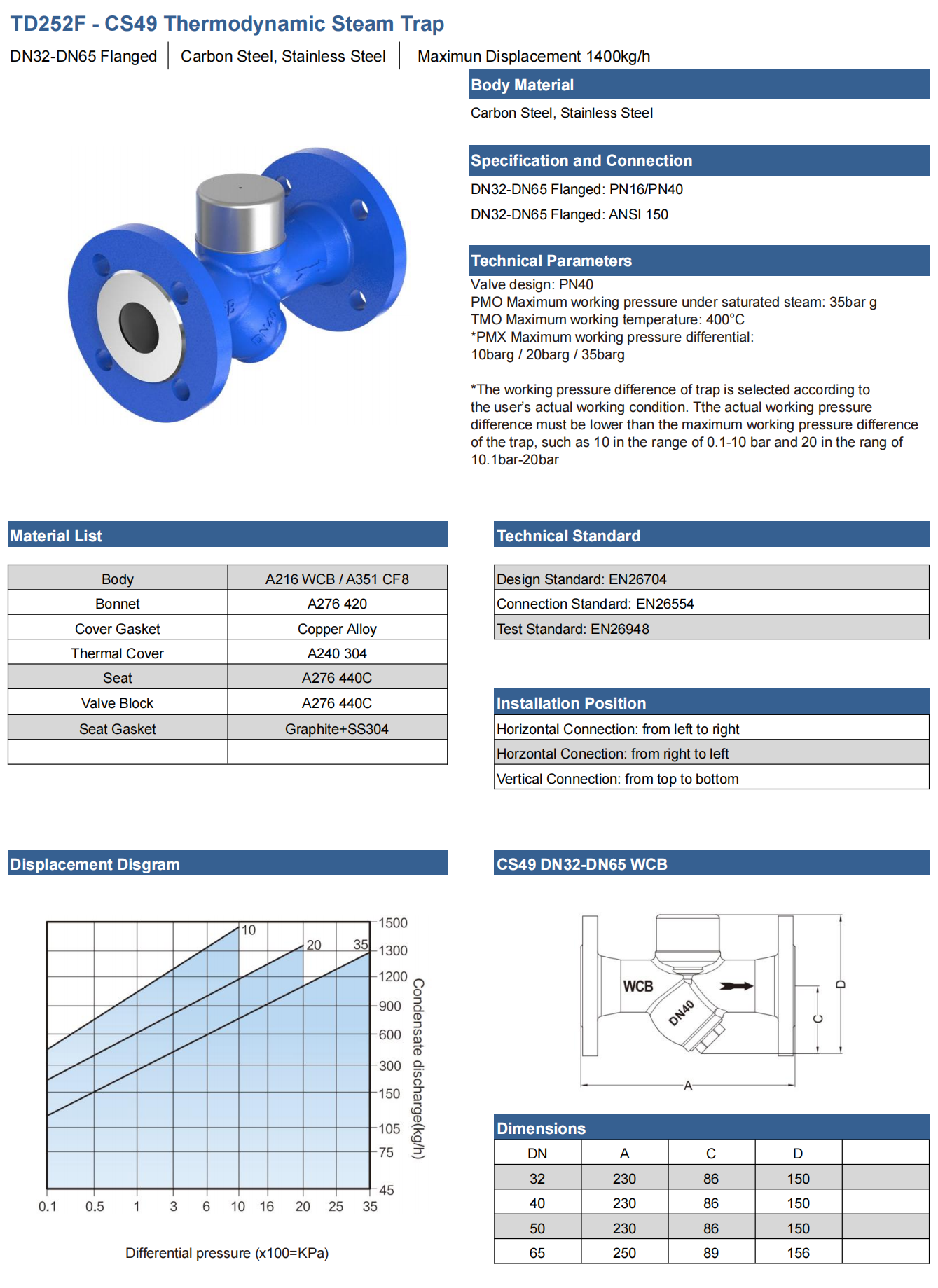

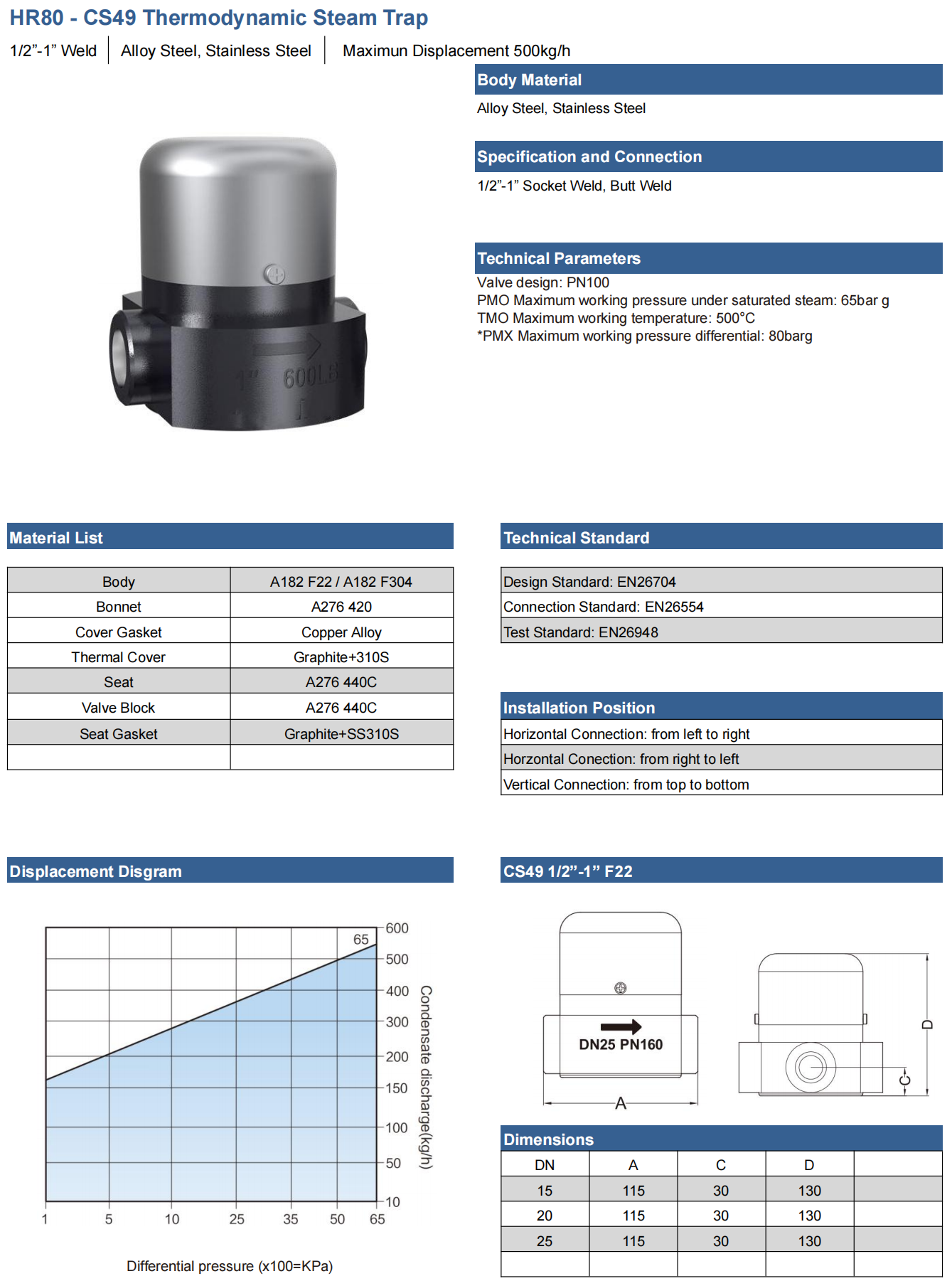

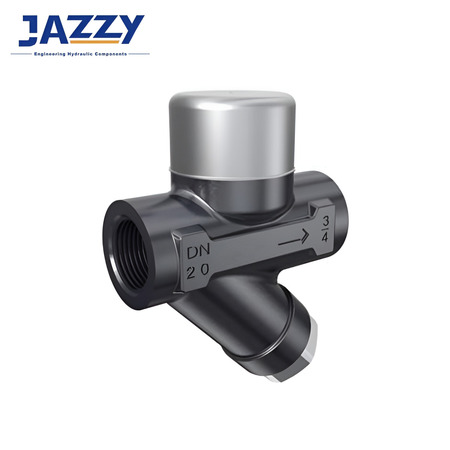

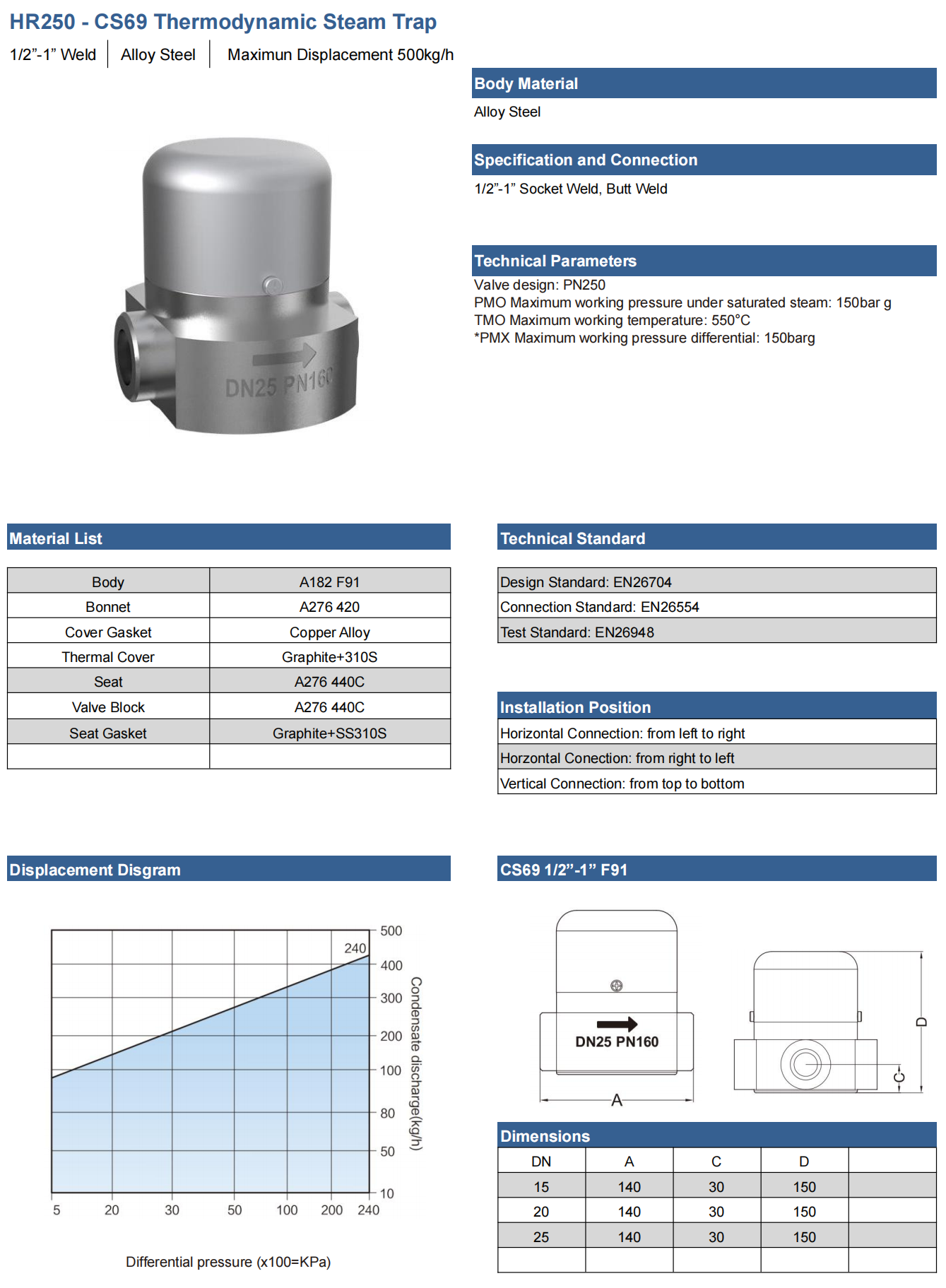

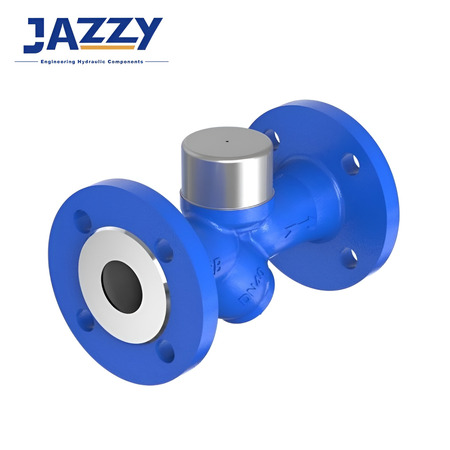

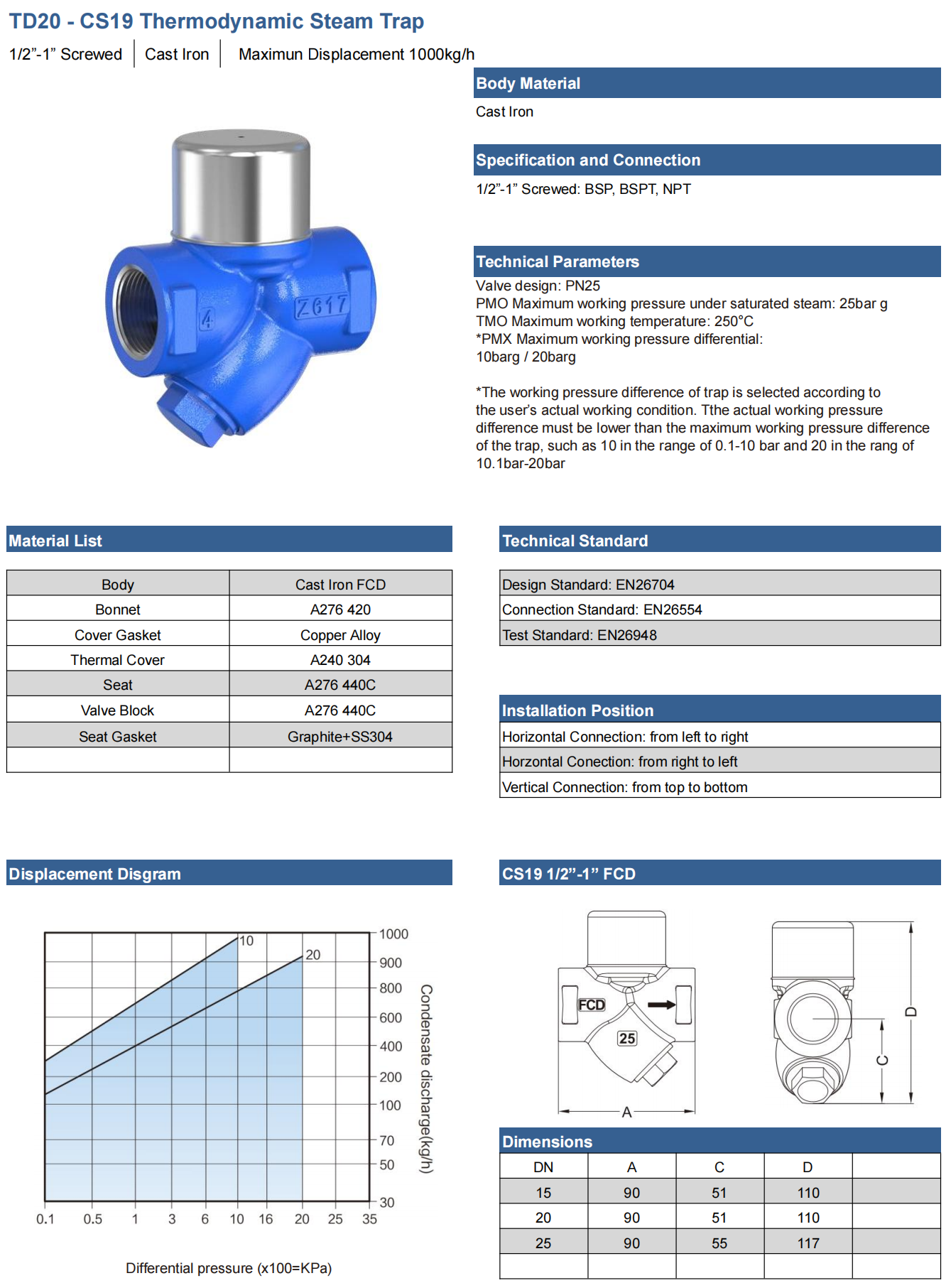

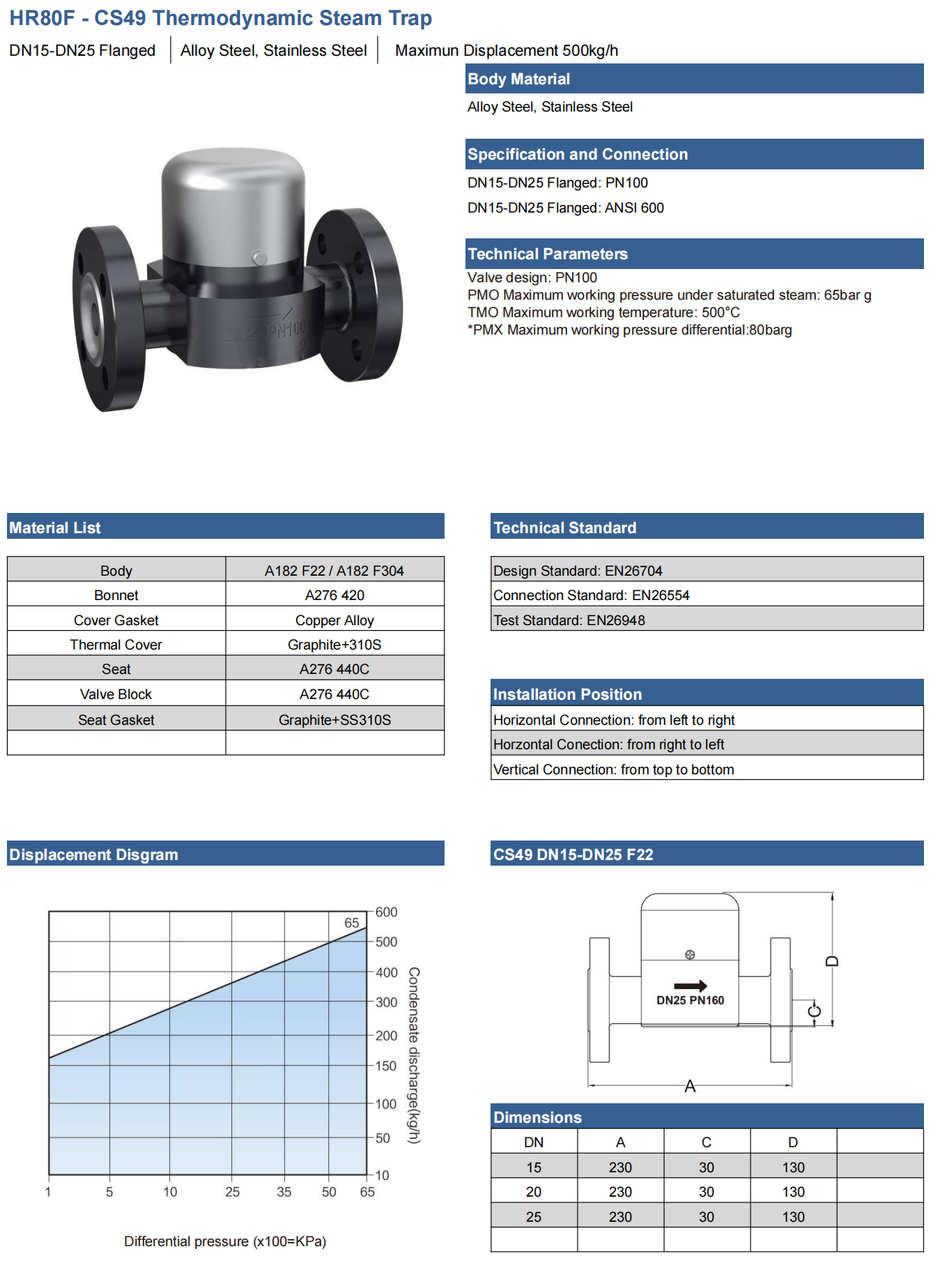

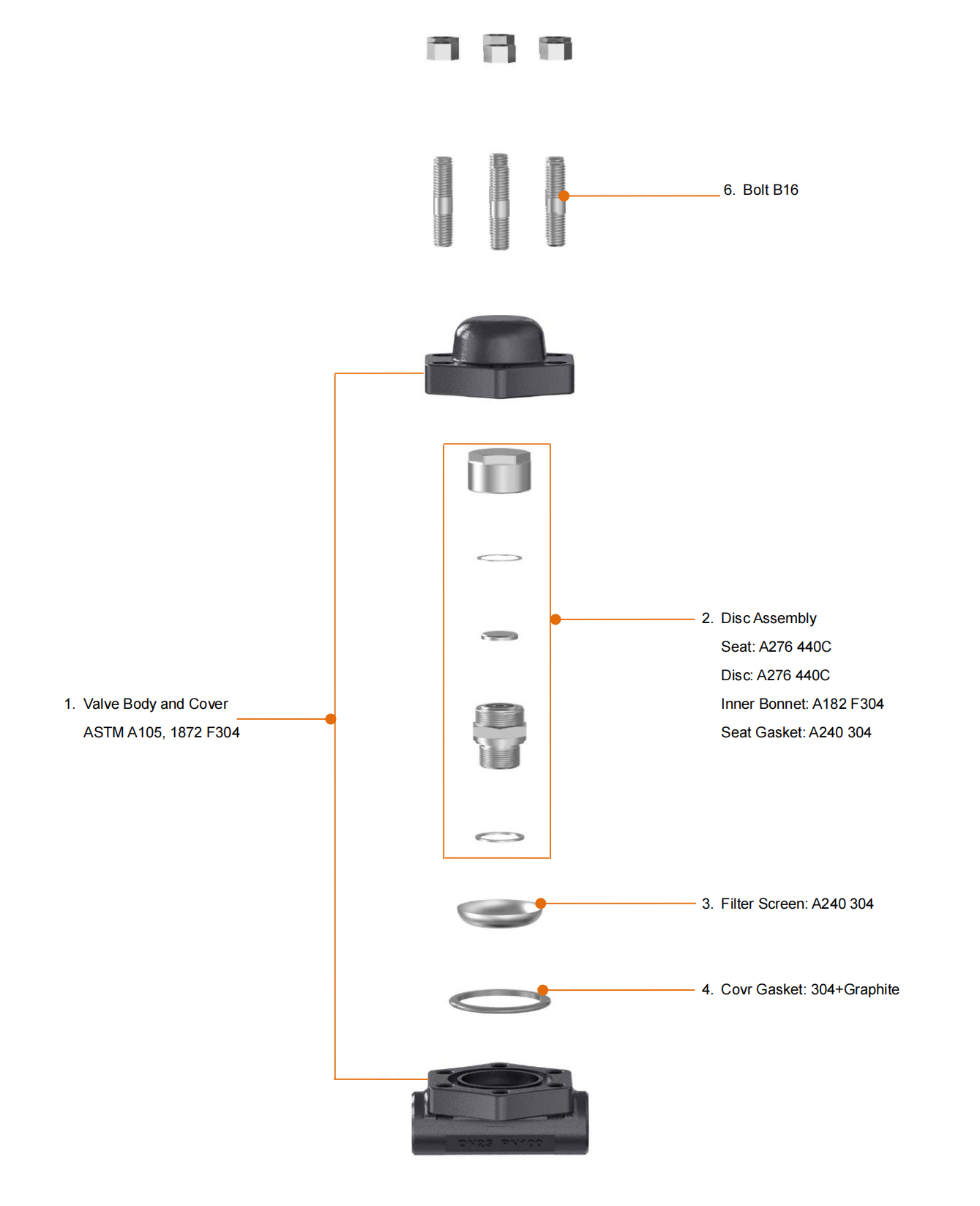

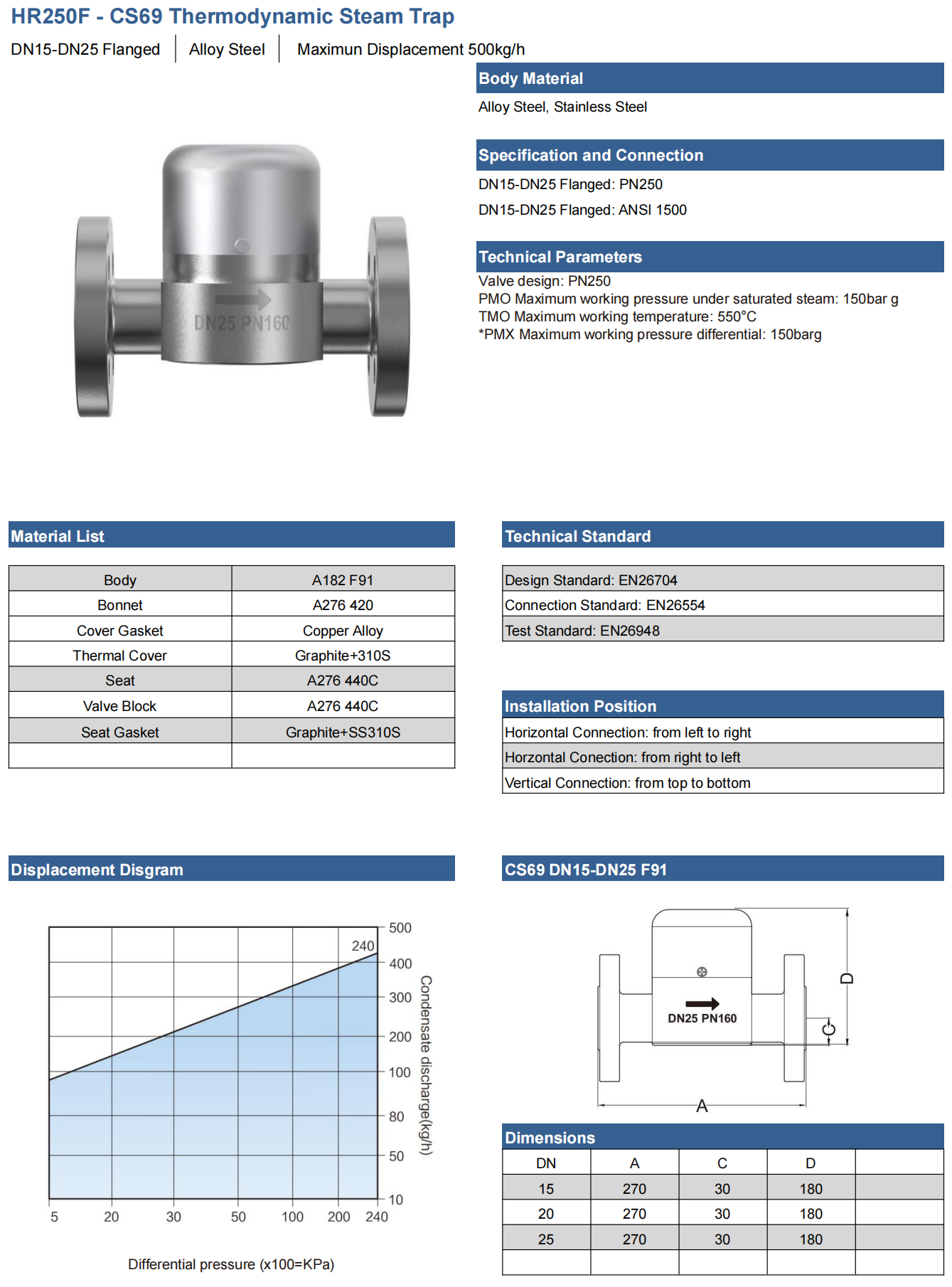

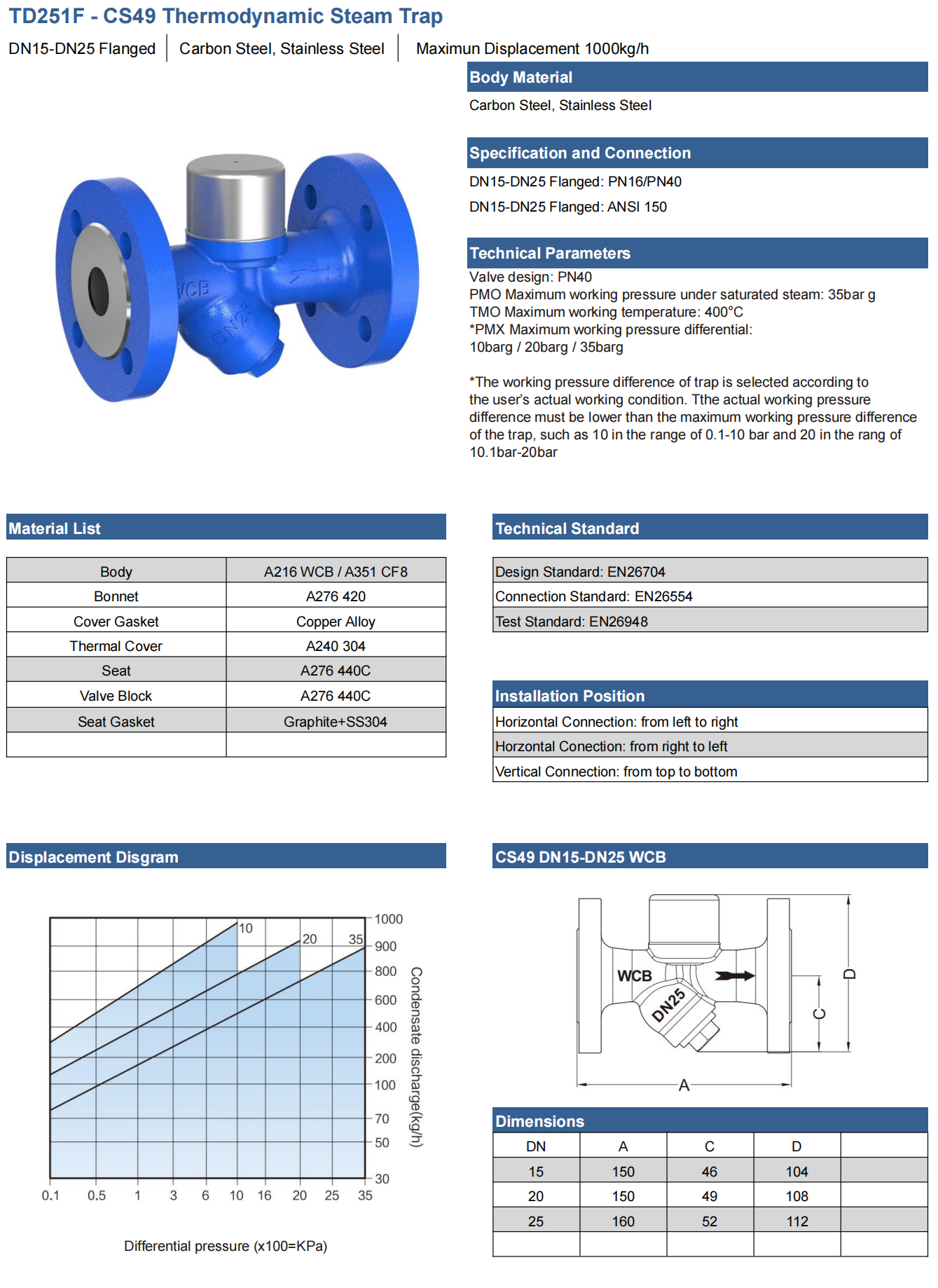

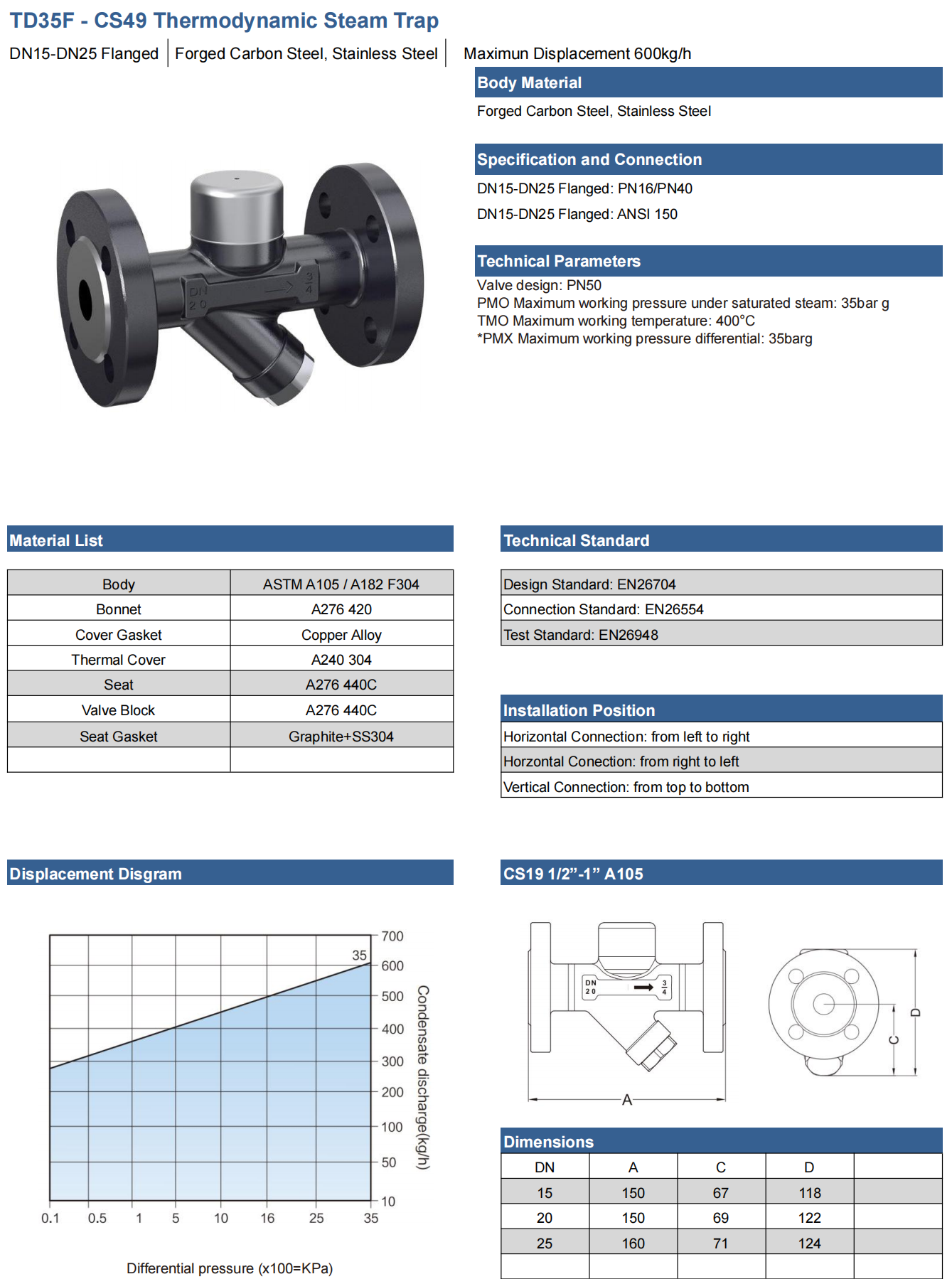

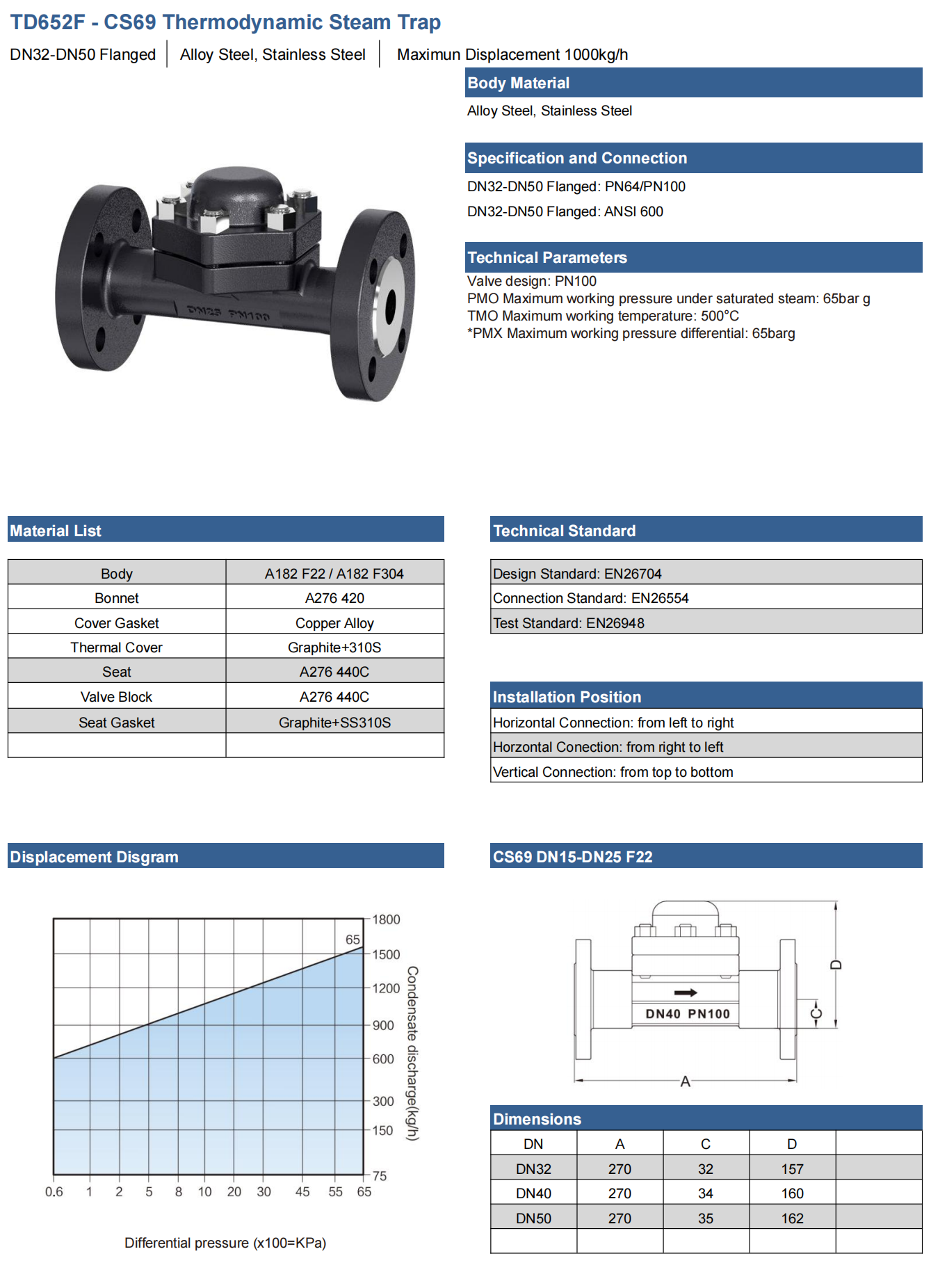

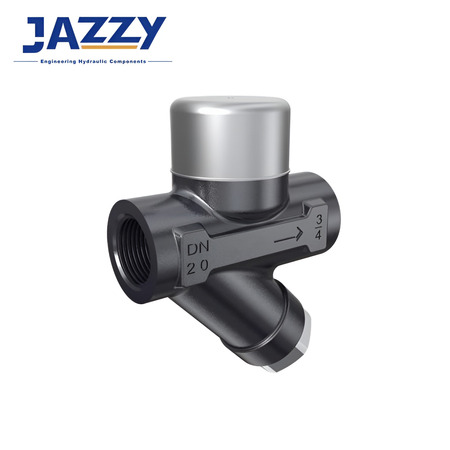

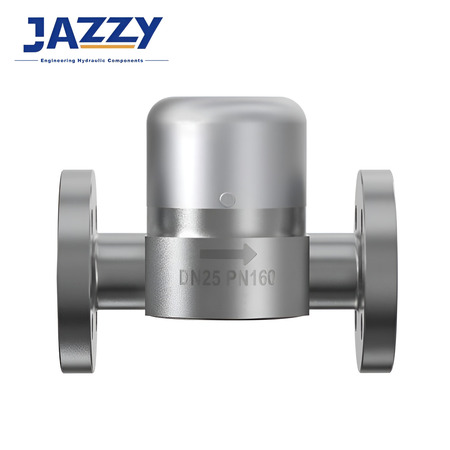

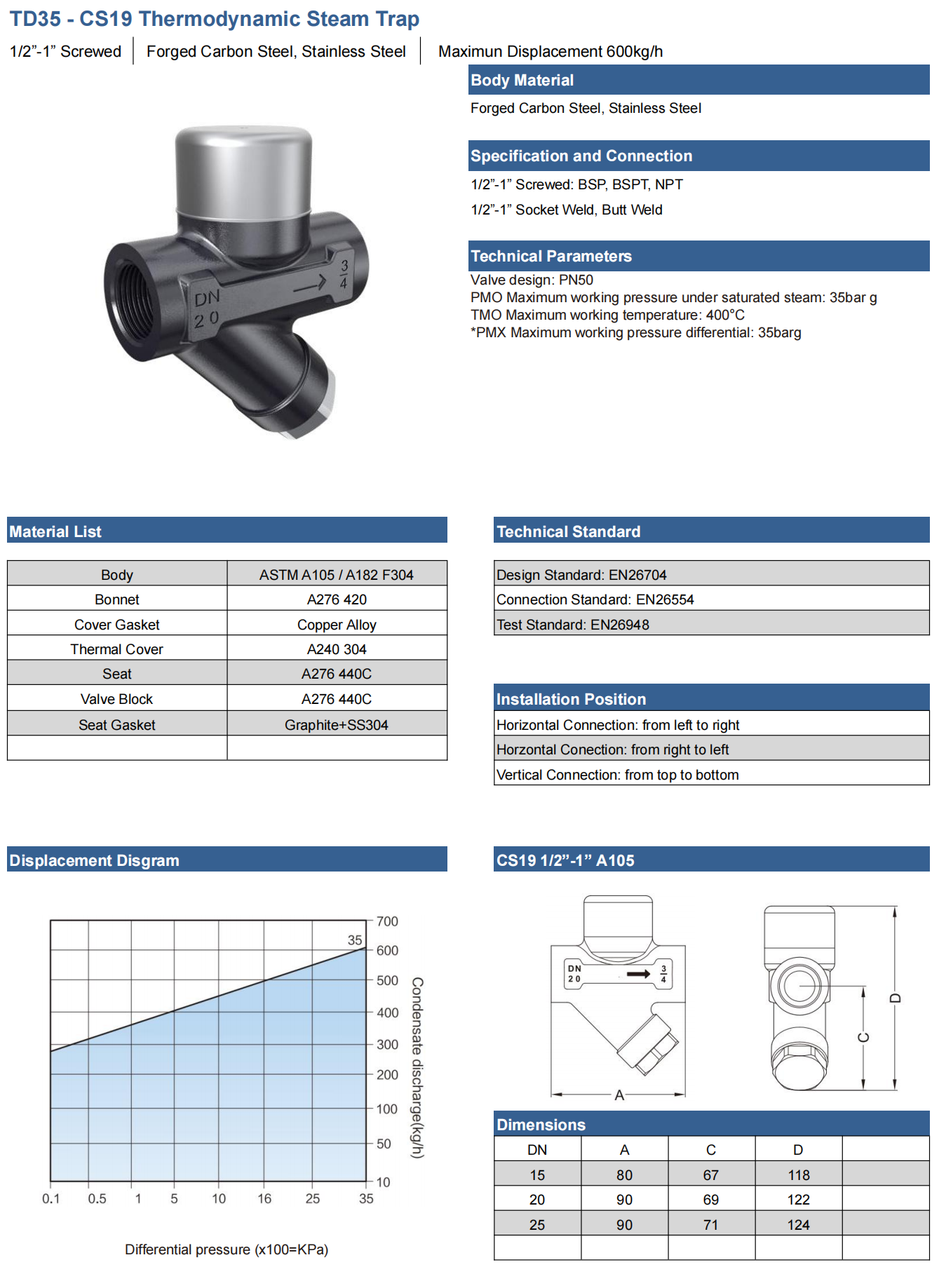

Thermodynamic – Robust design with a single moving disc, suitable for high pressure and superheated steam systems.

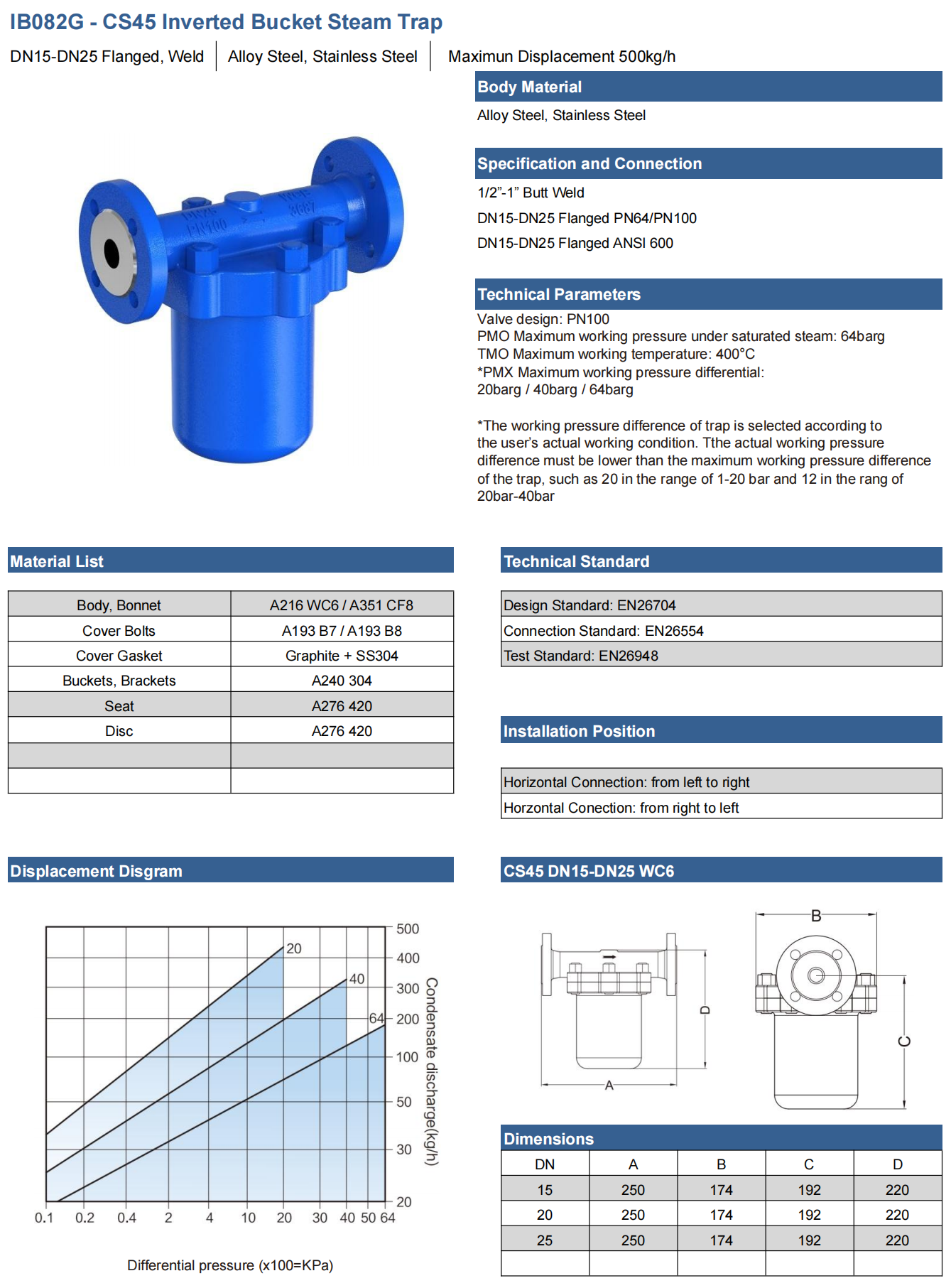

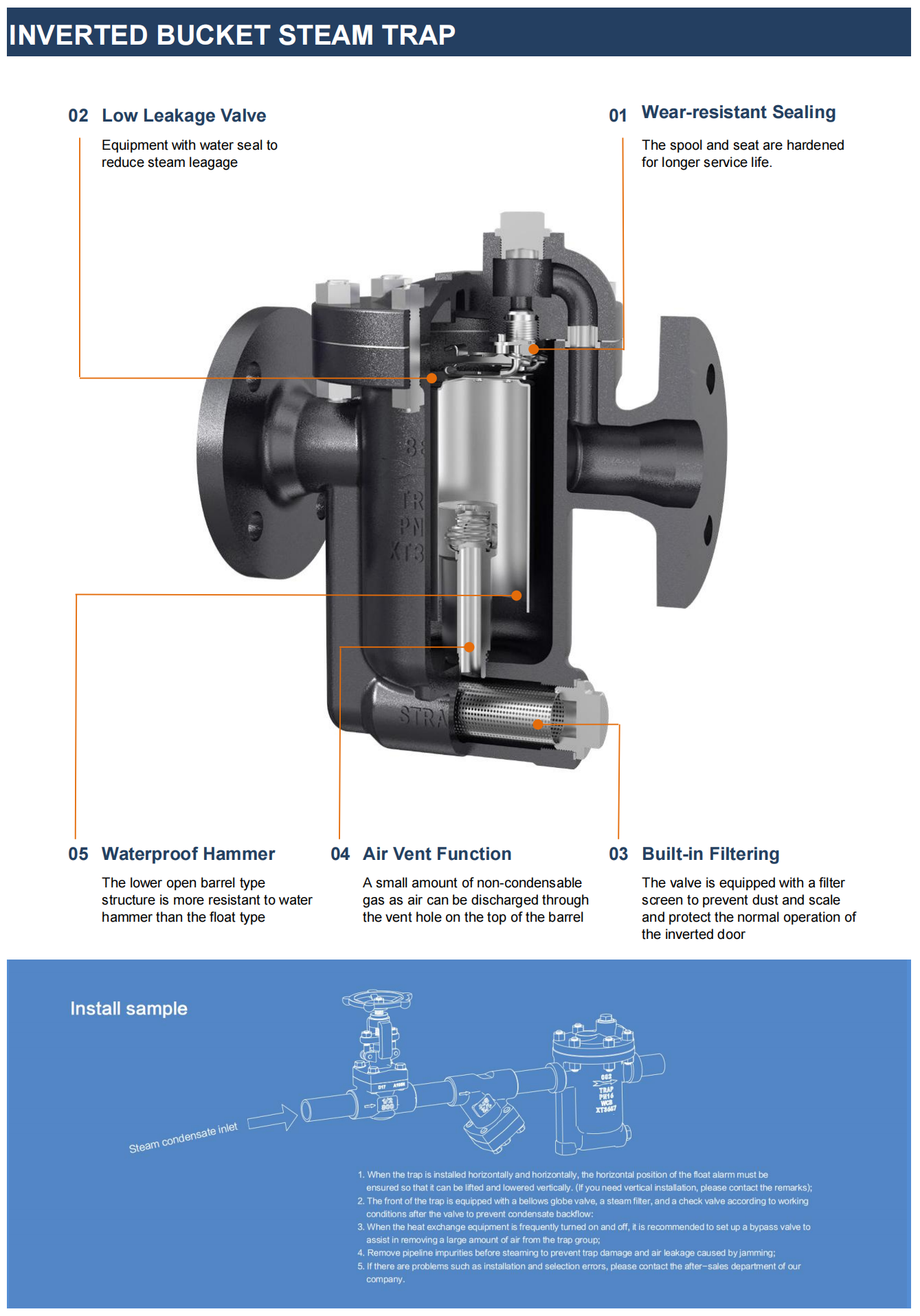

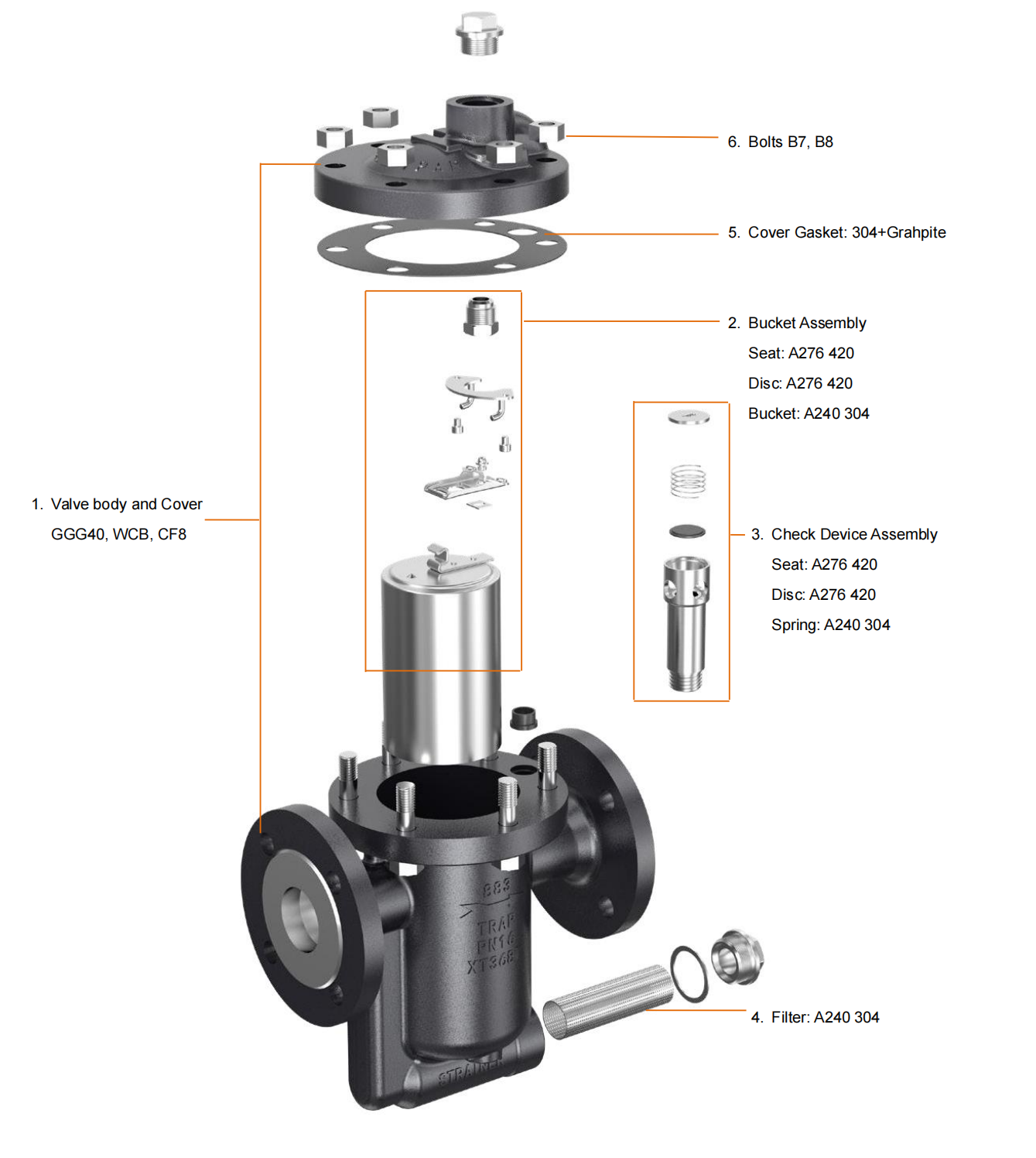

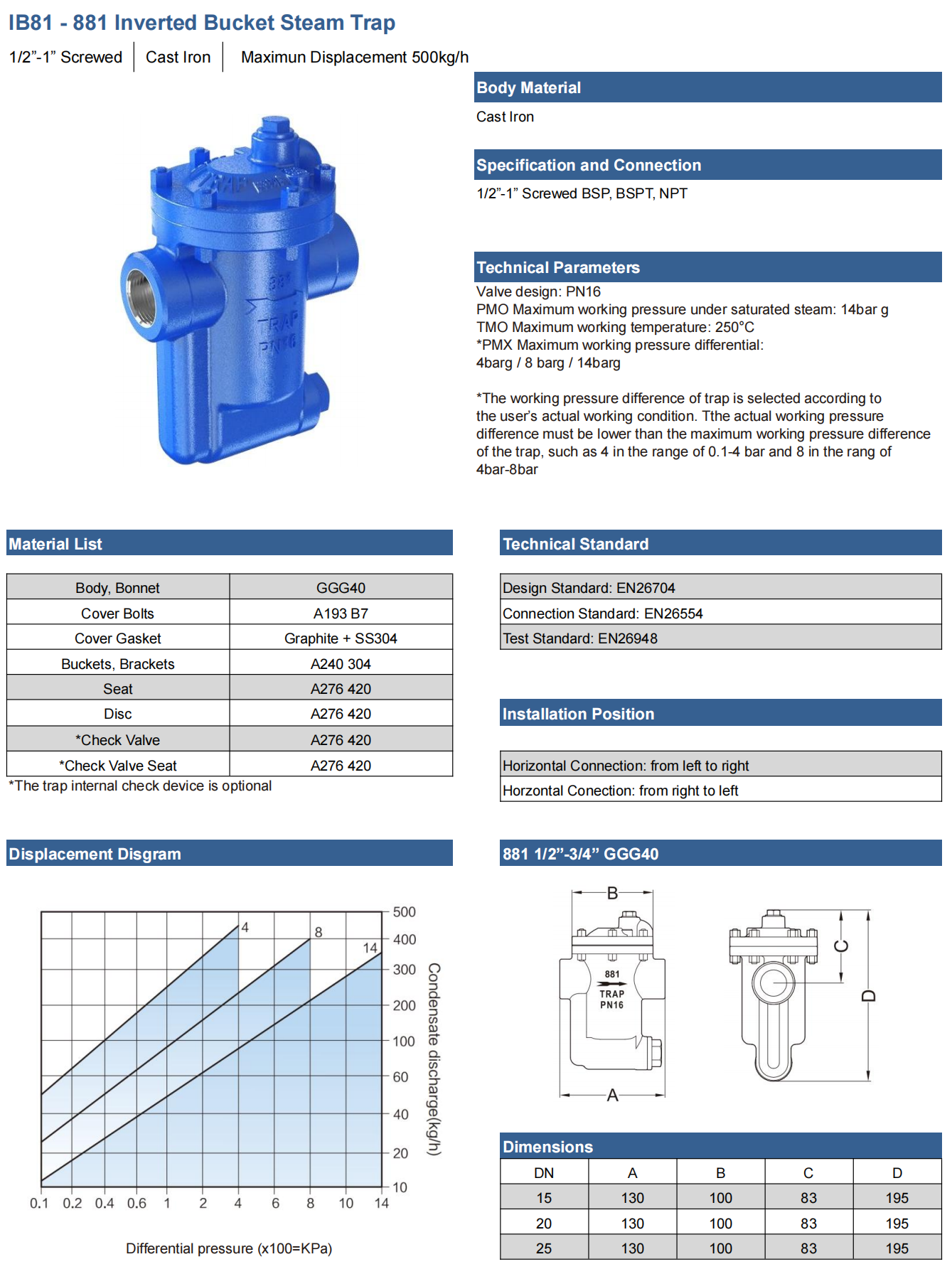

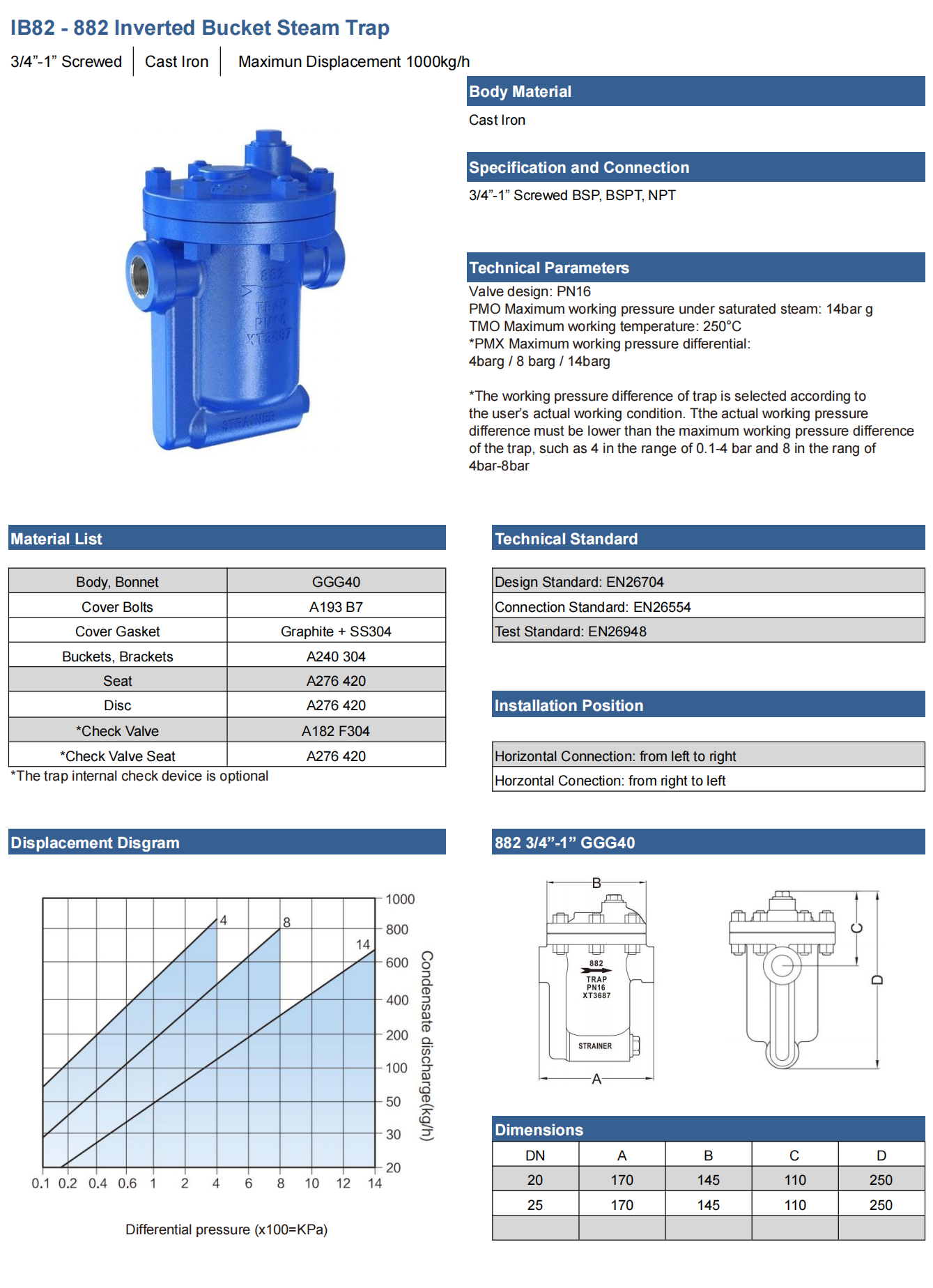

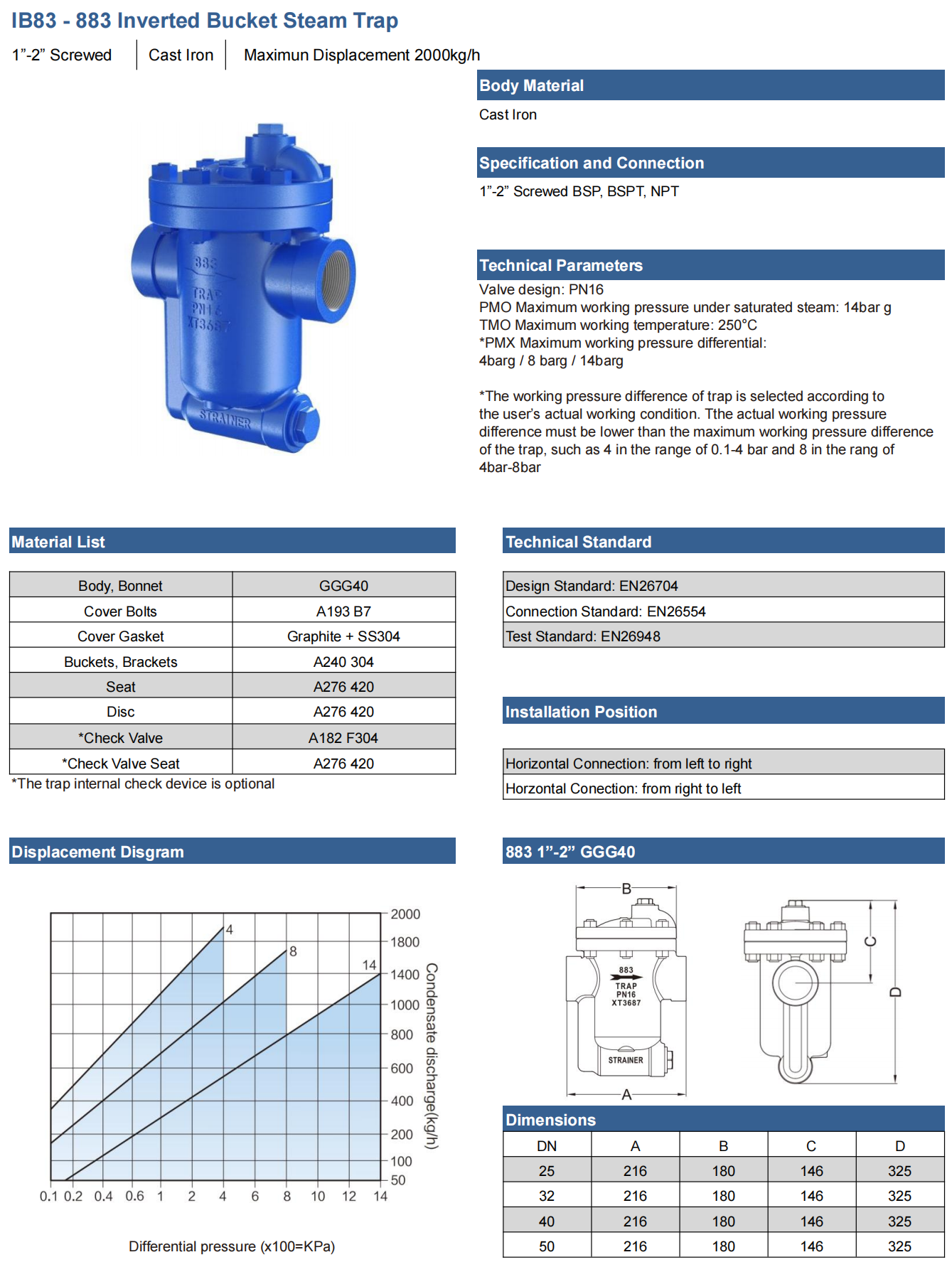

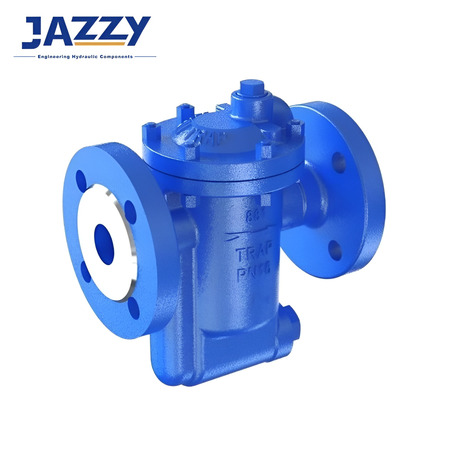

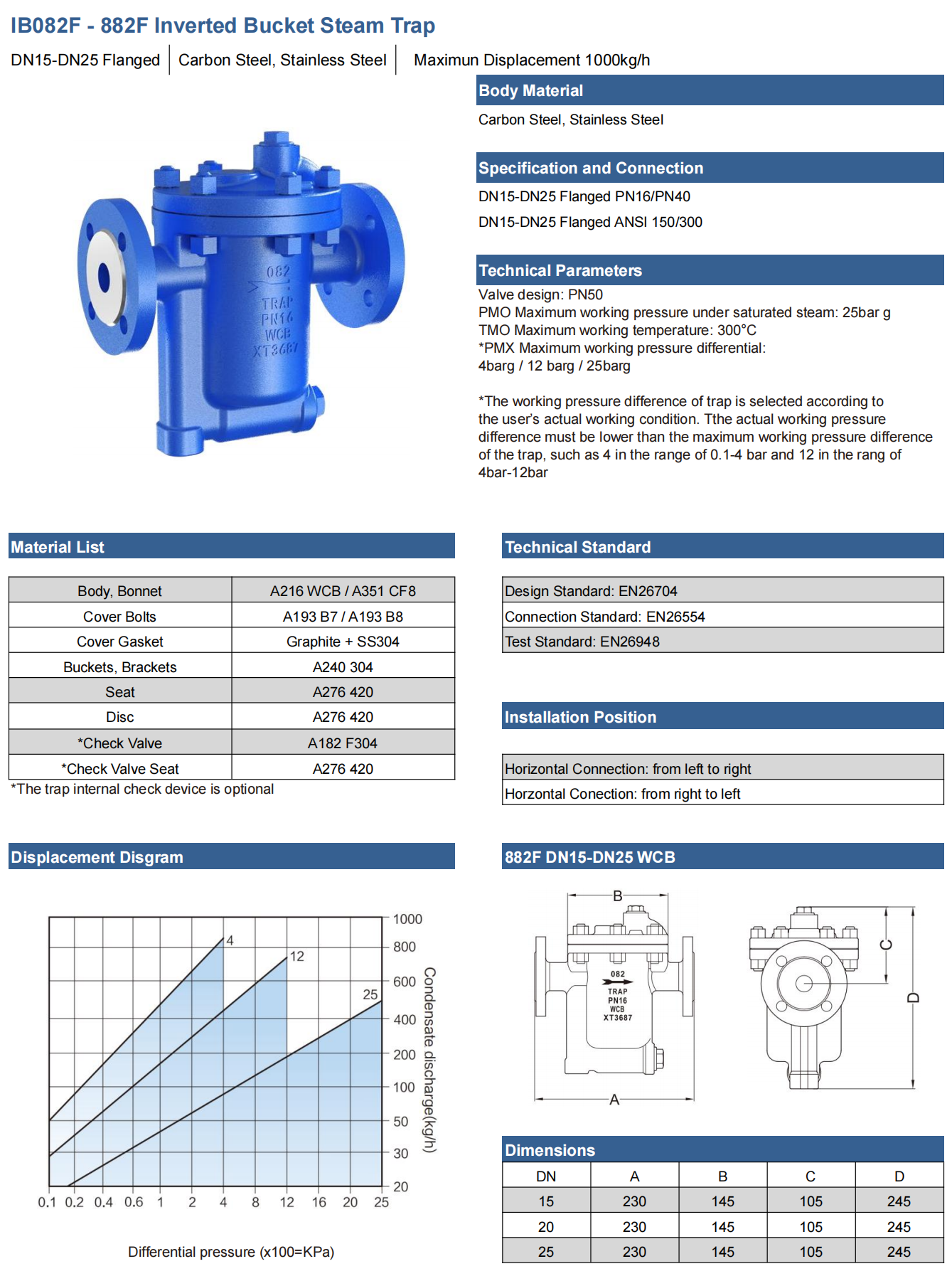

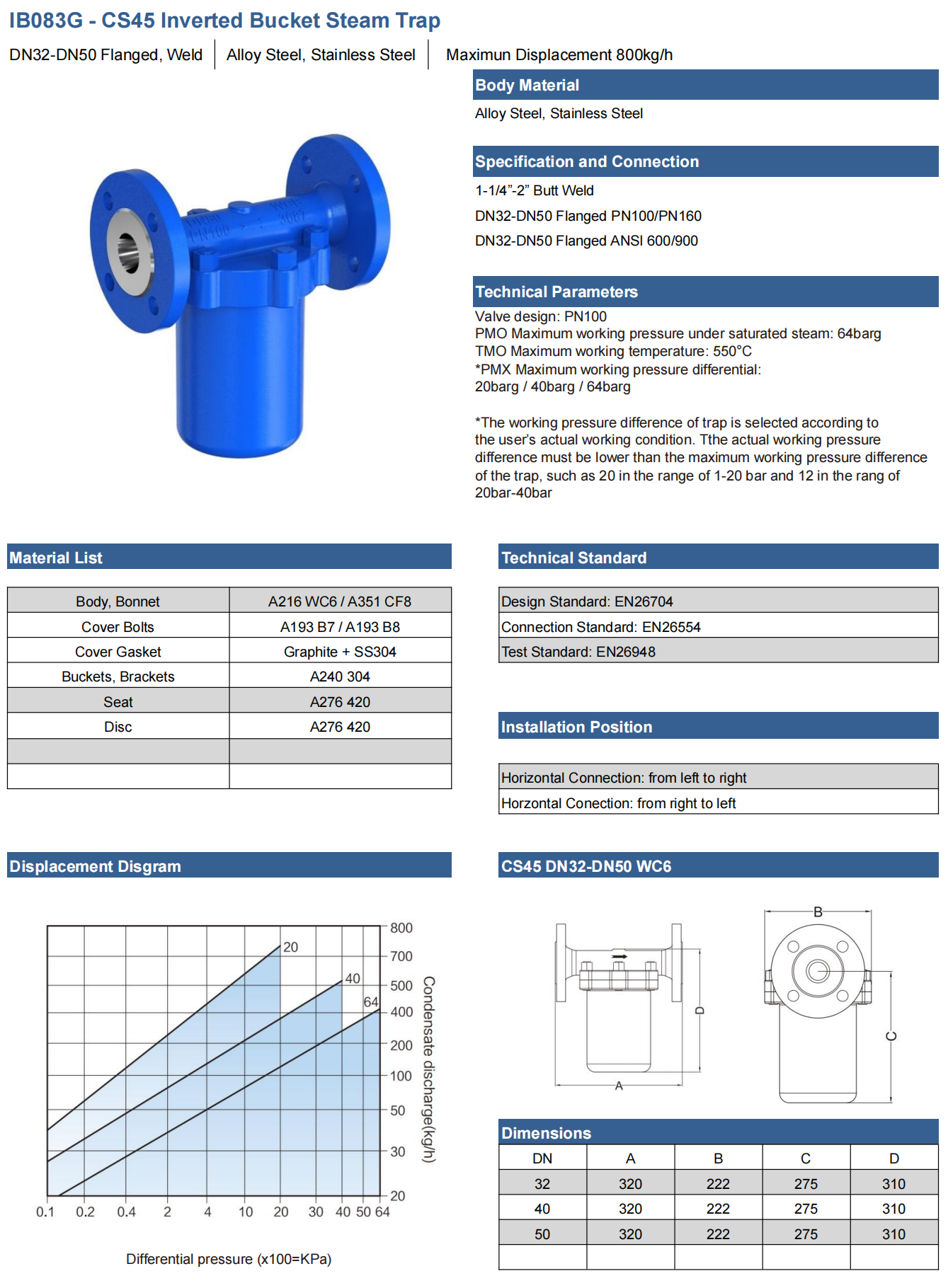

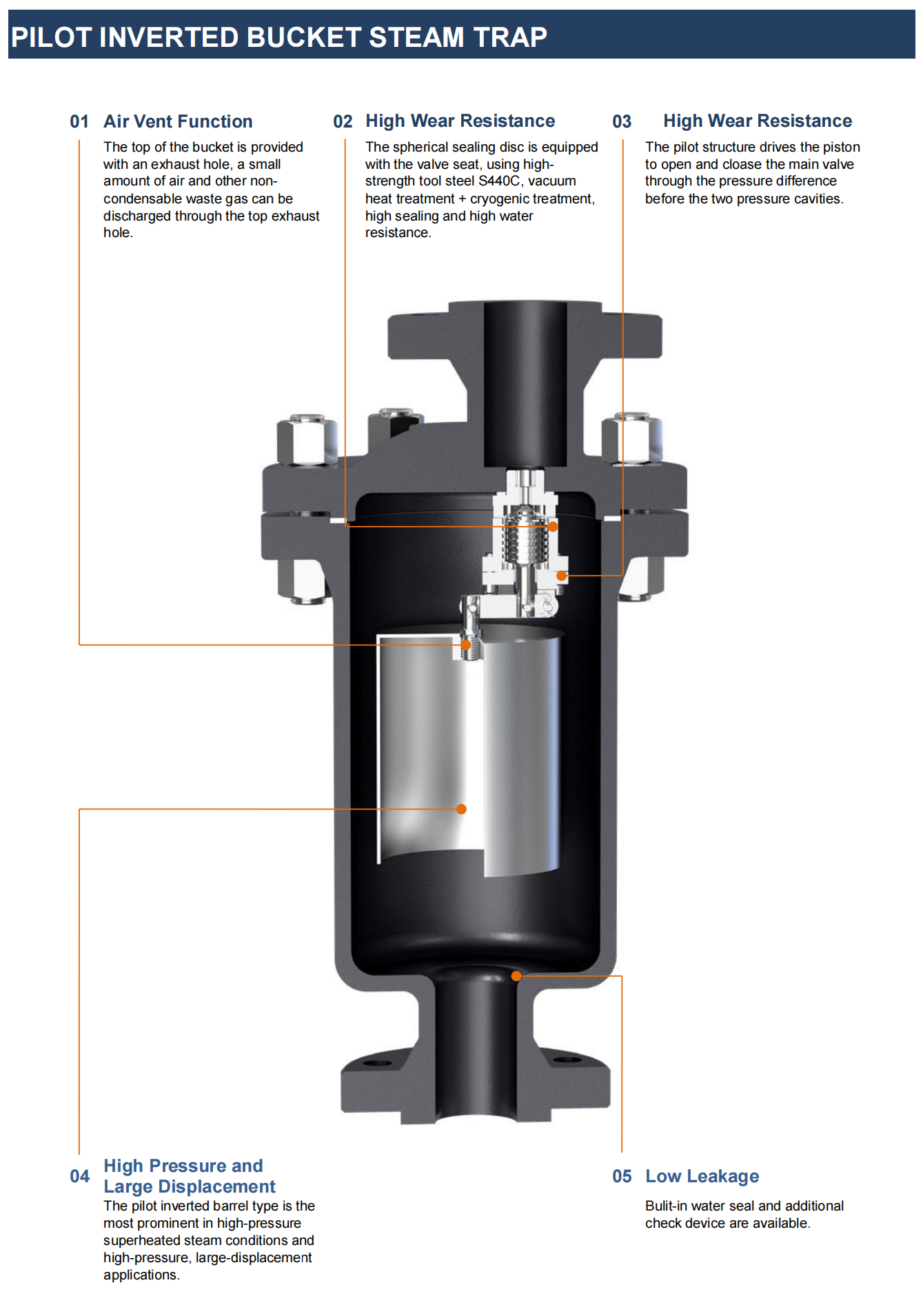

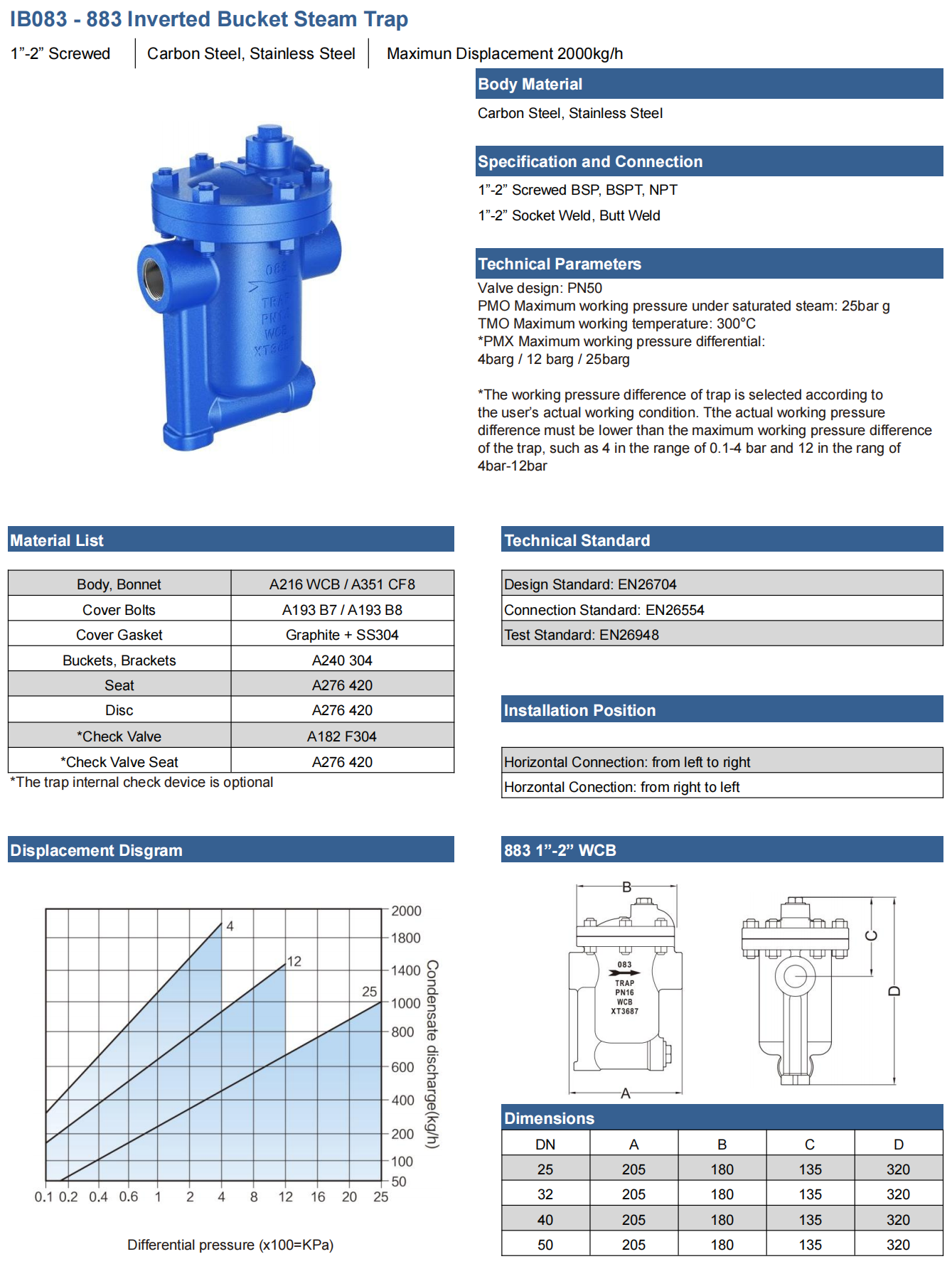

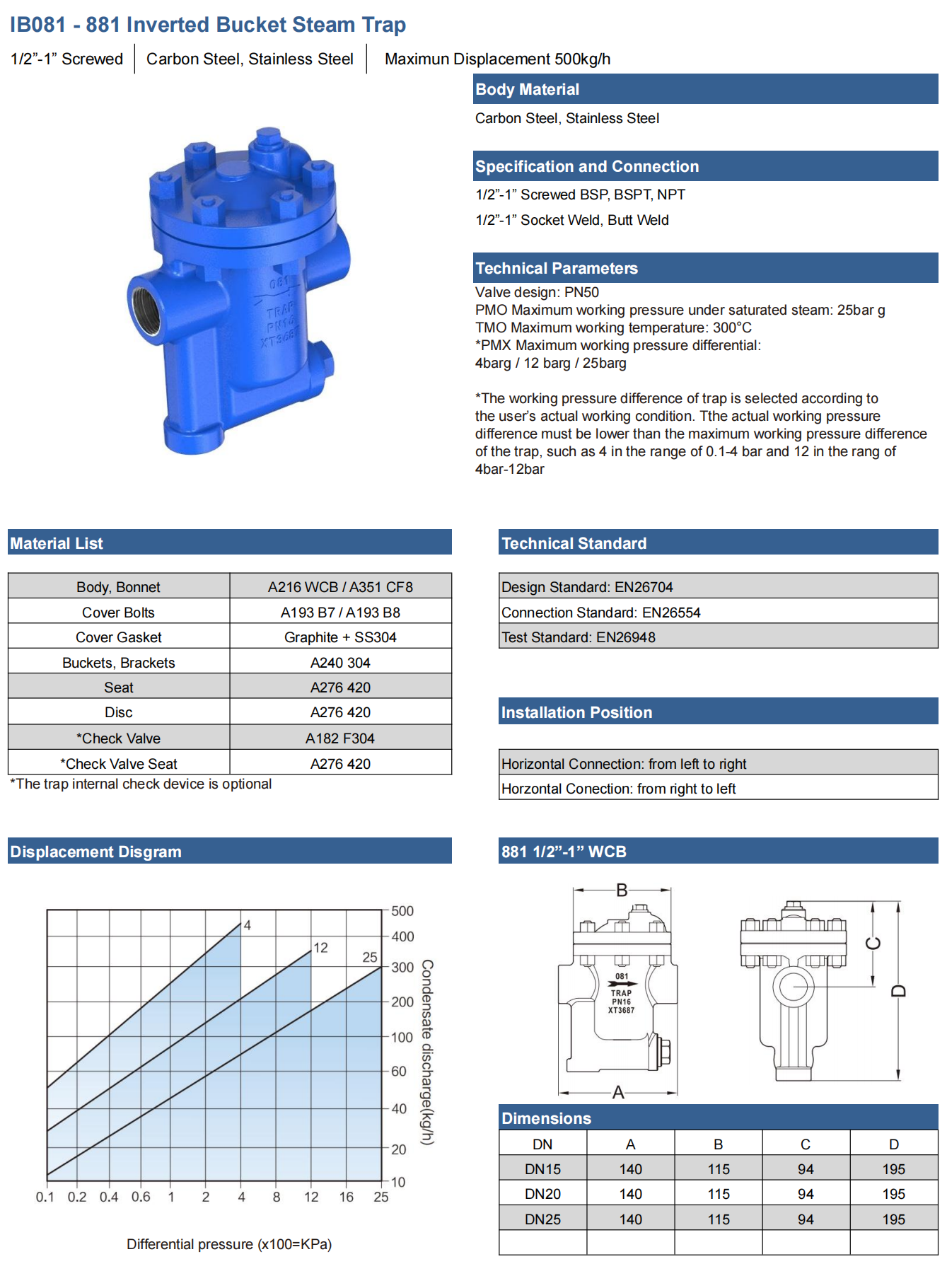

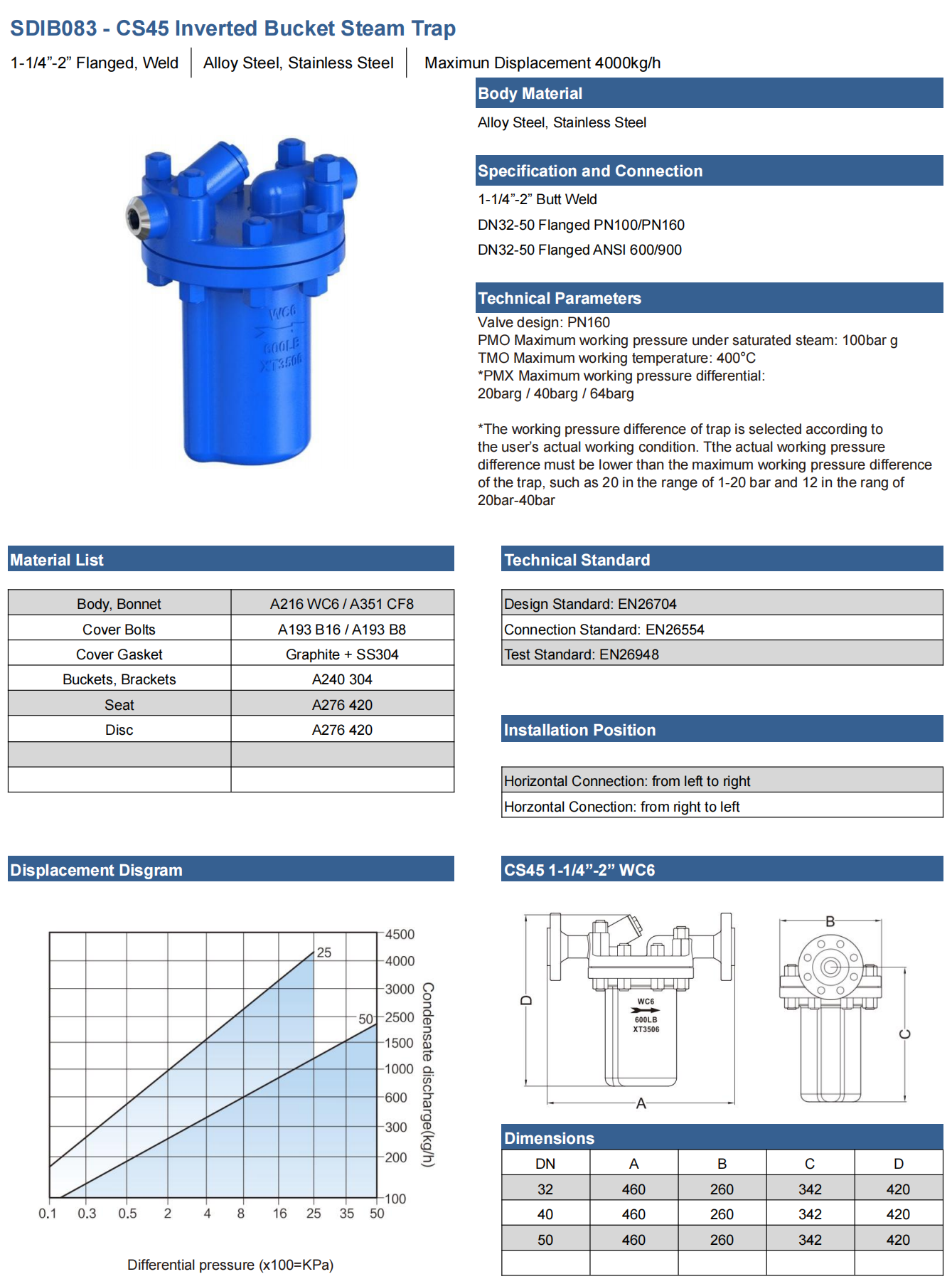

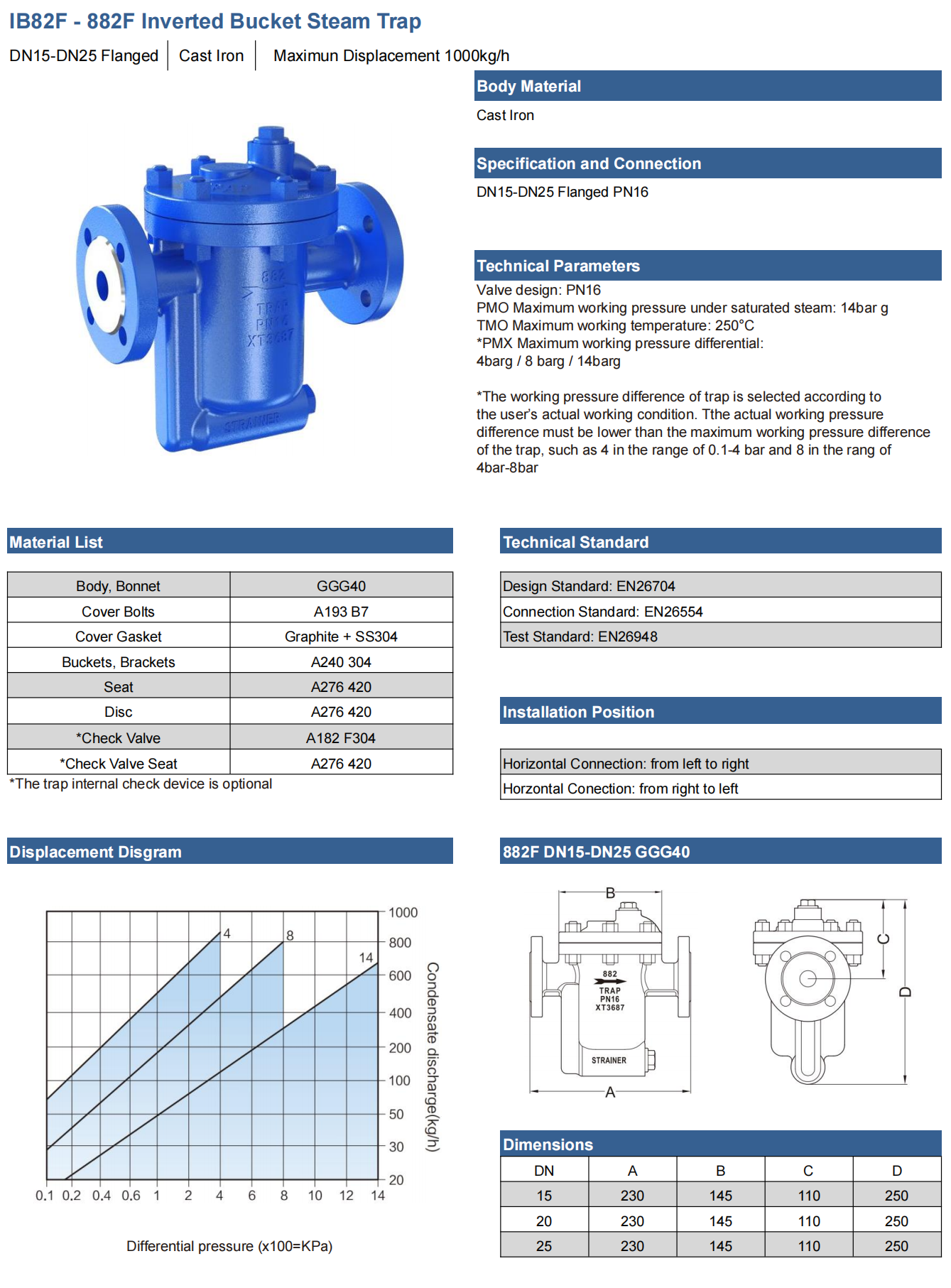

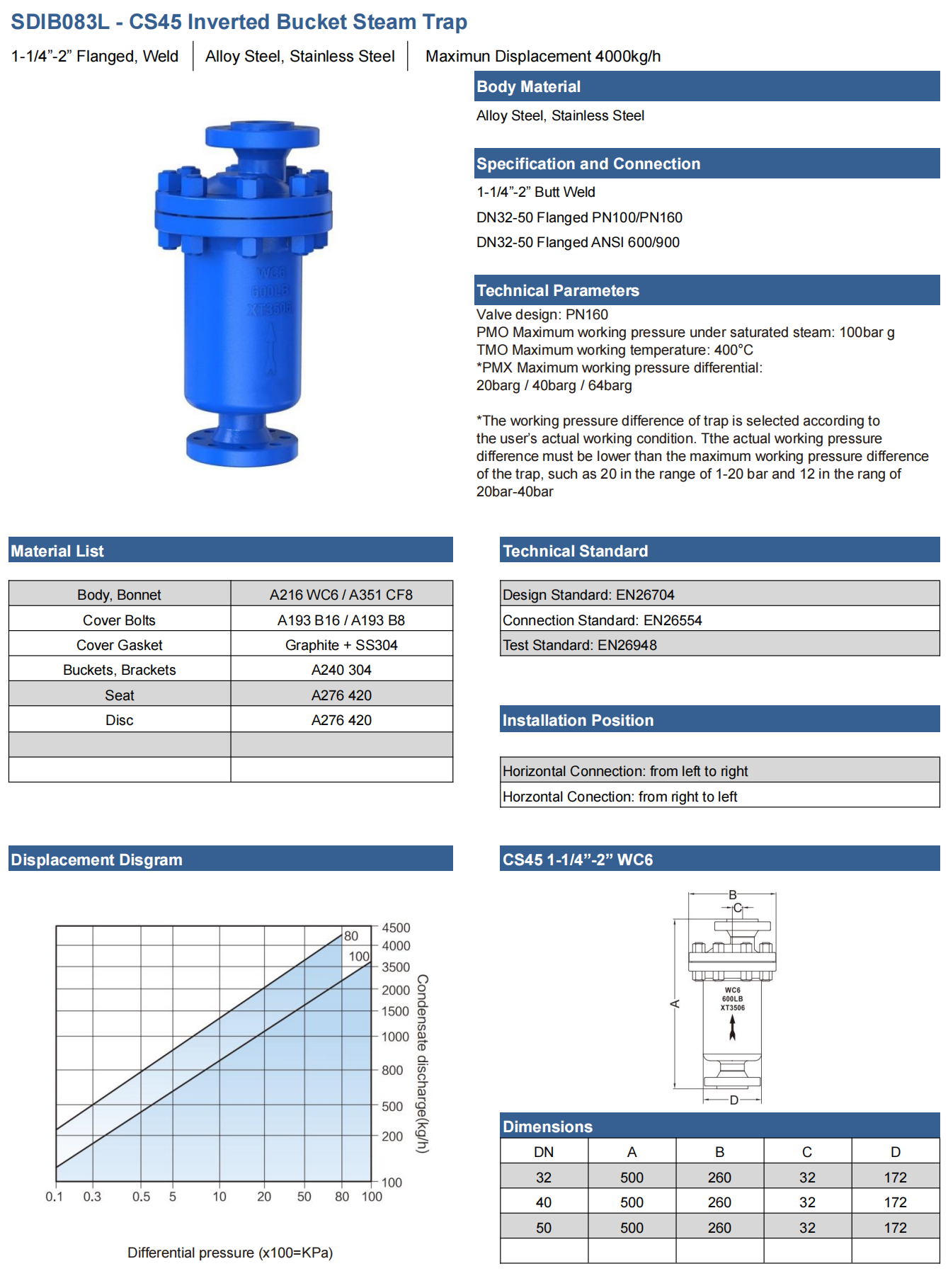

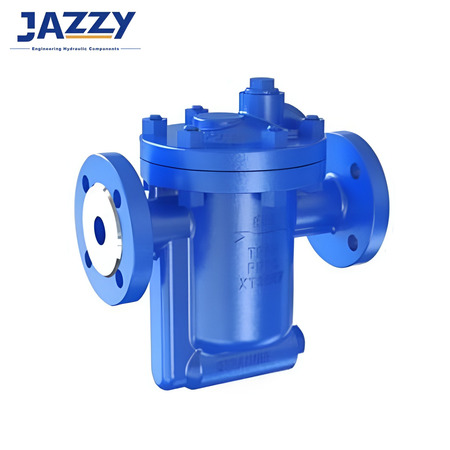

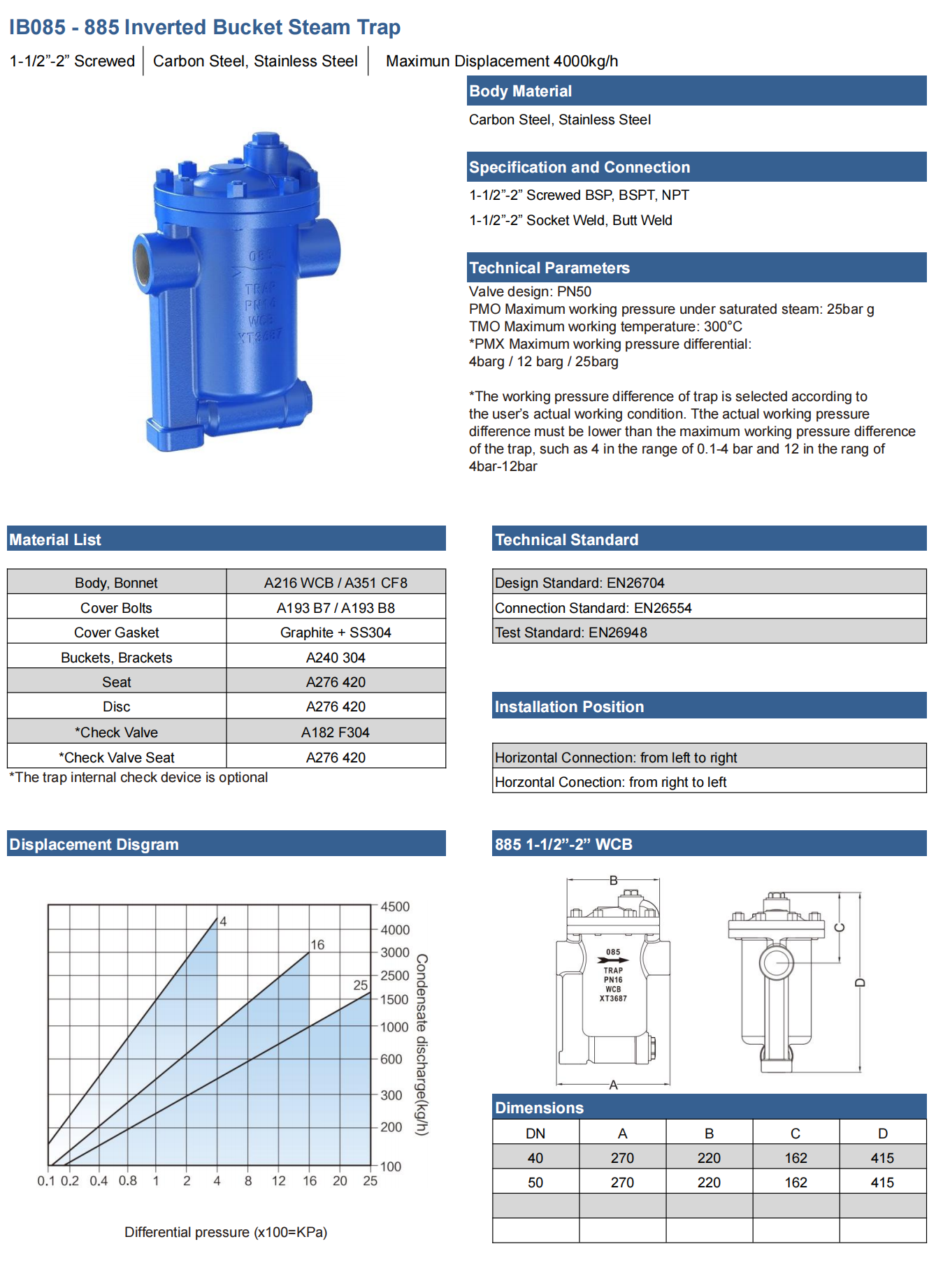

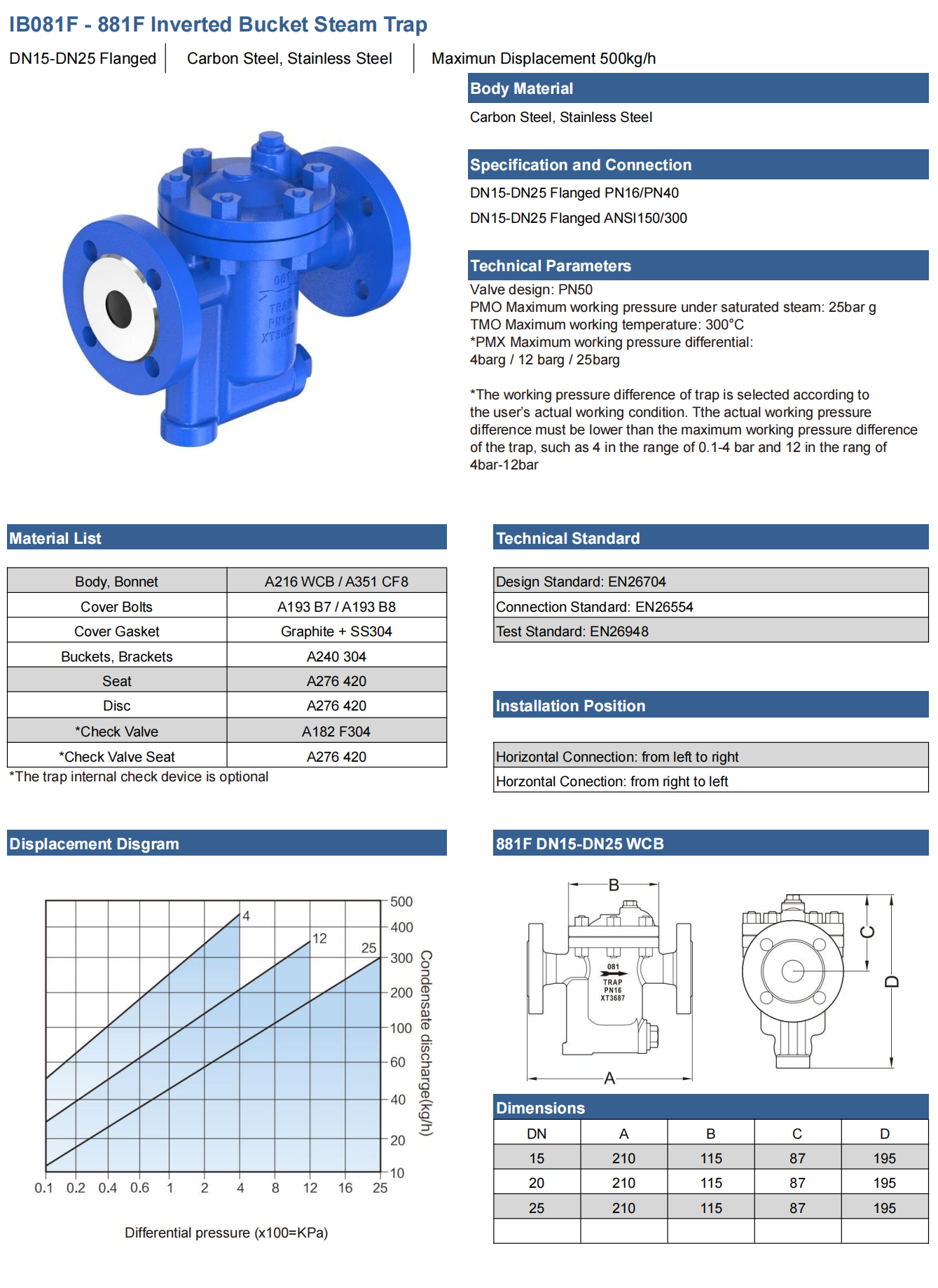

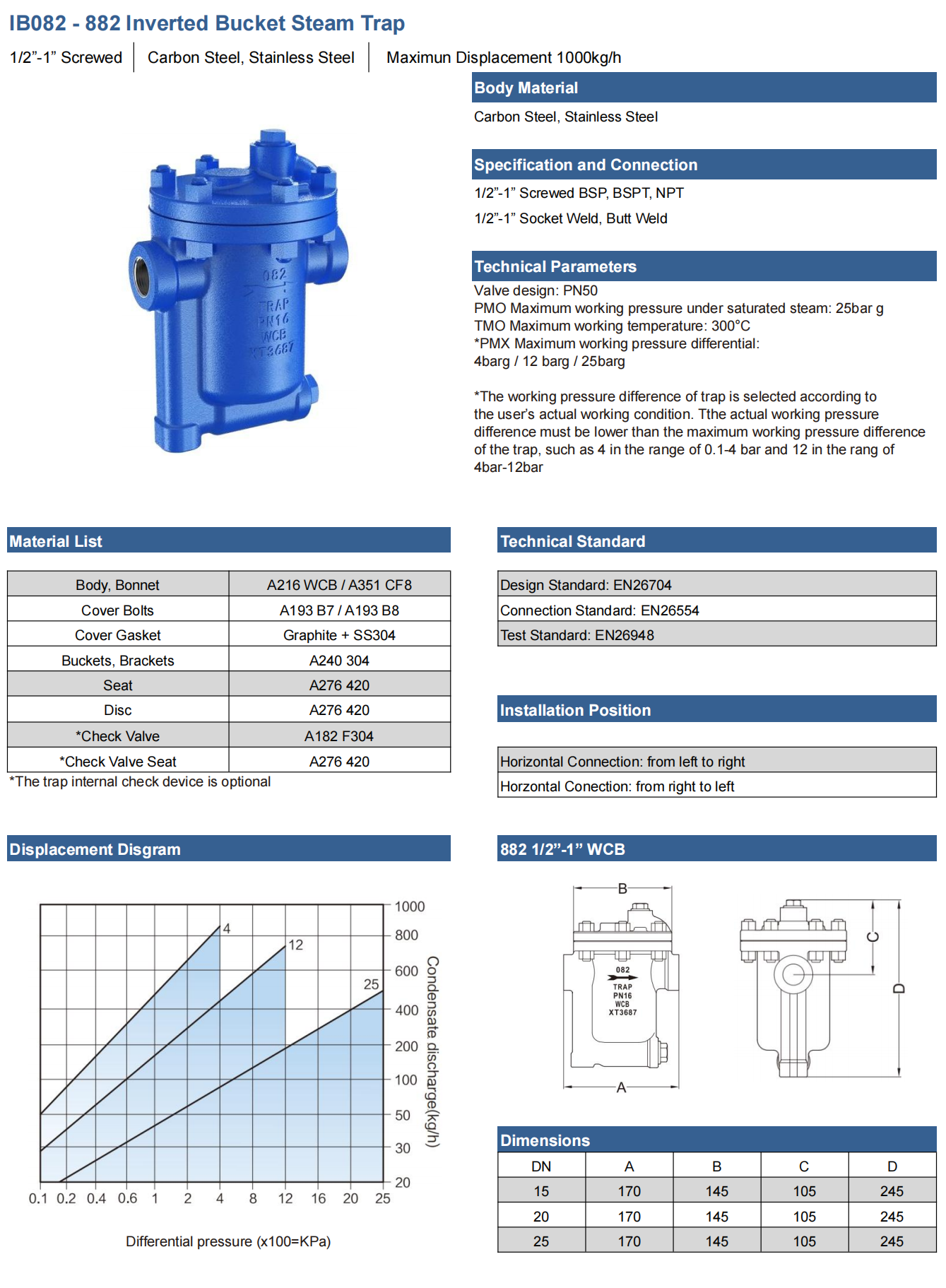

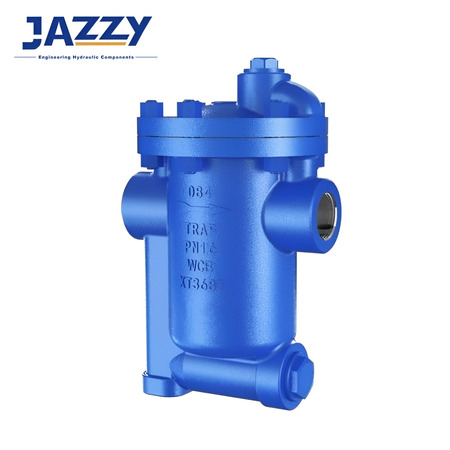

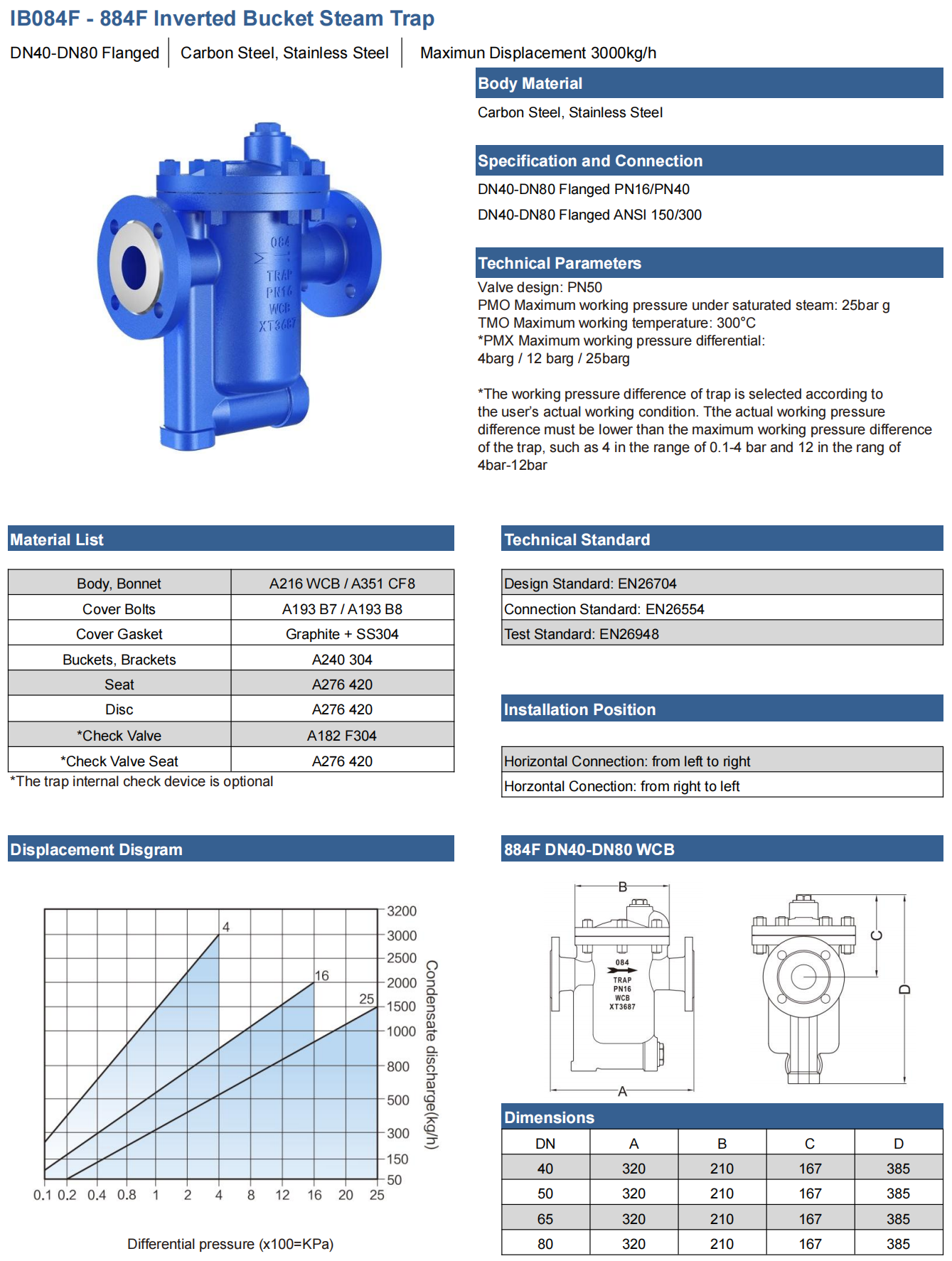

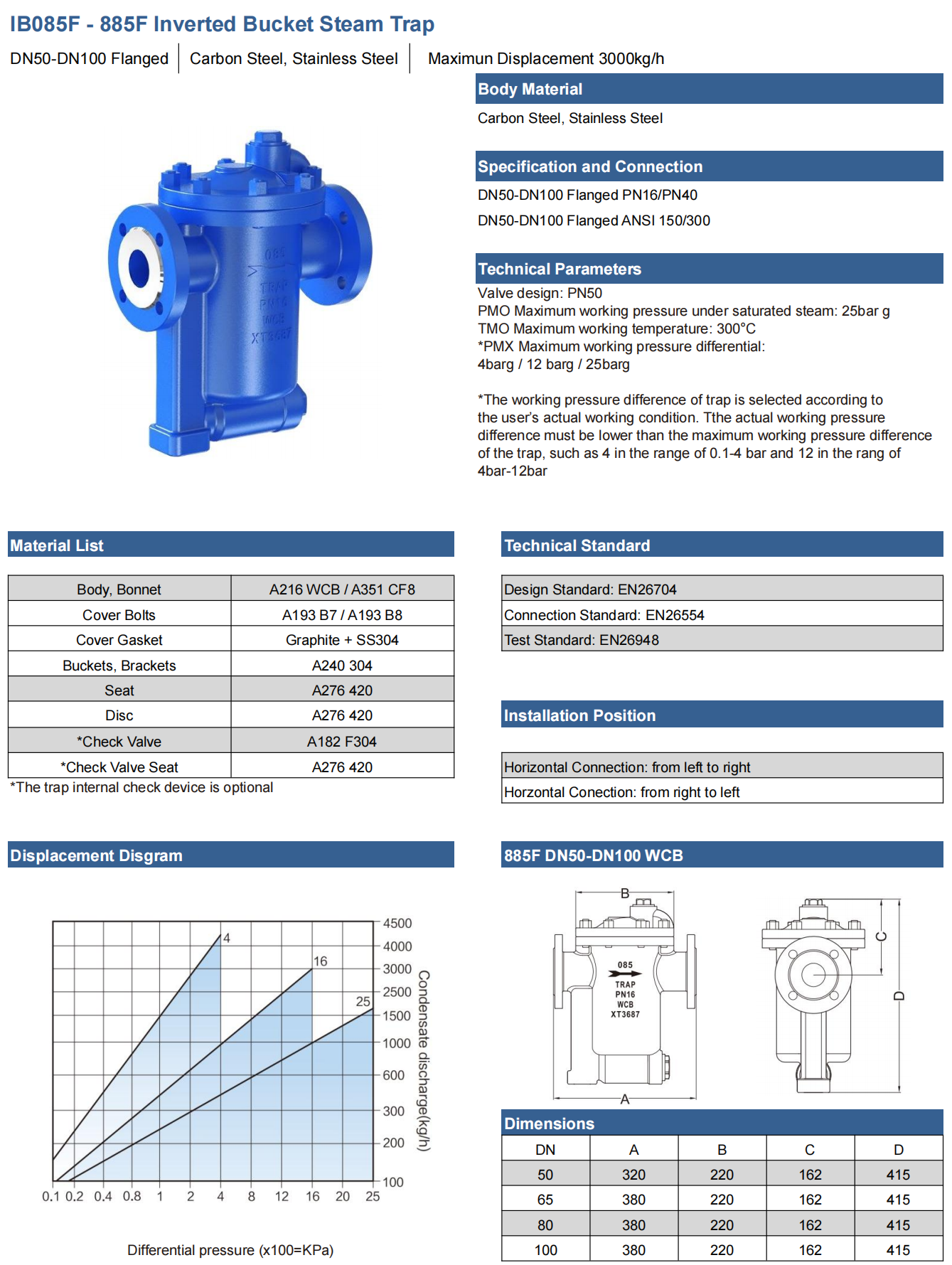

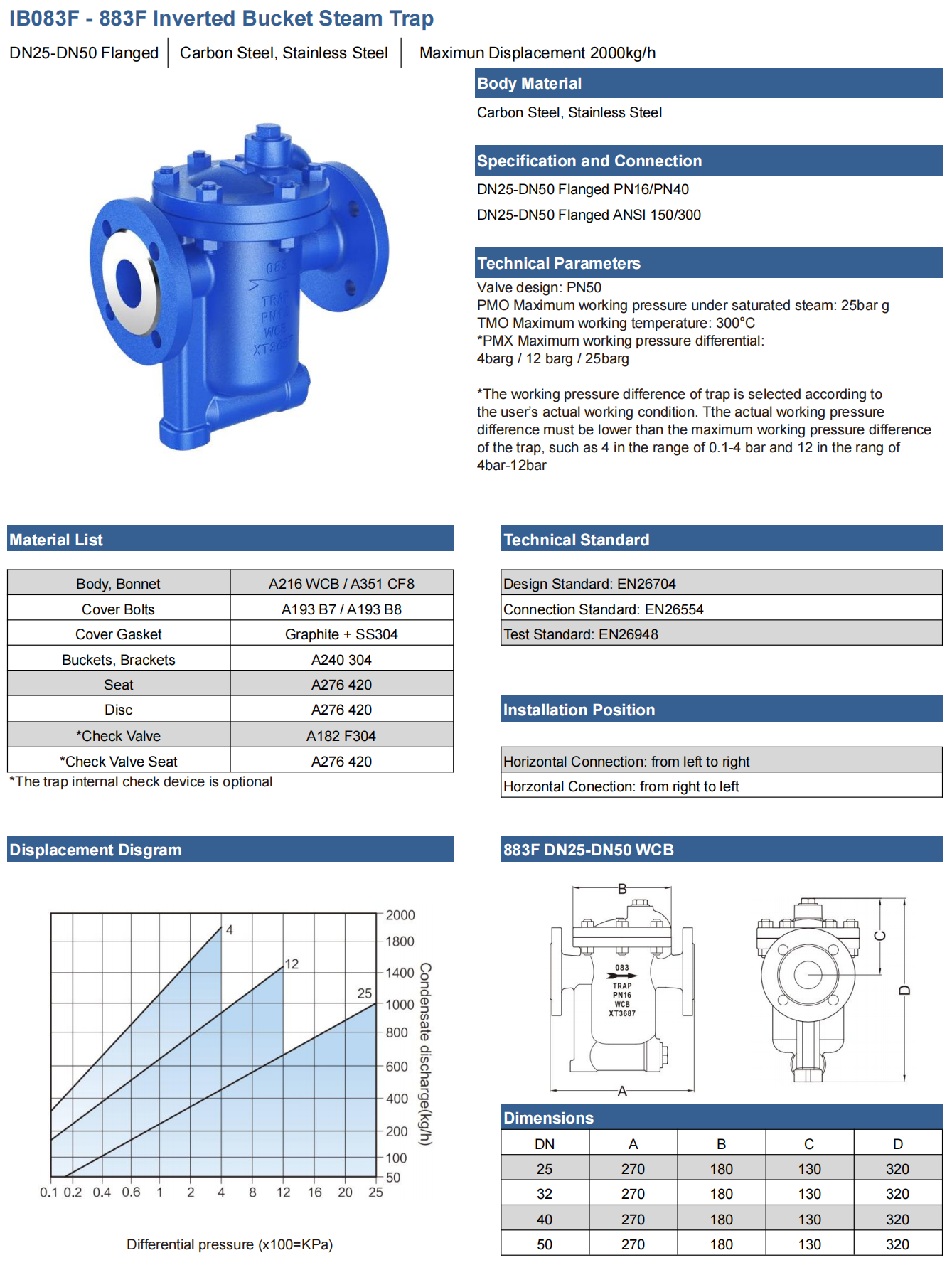

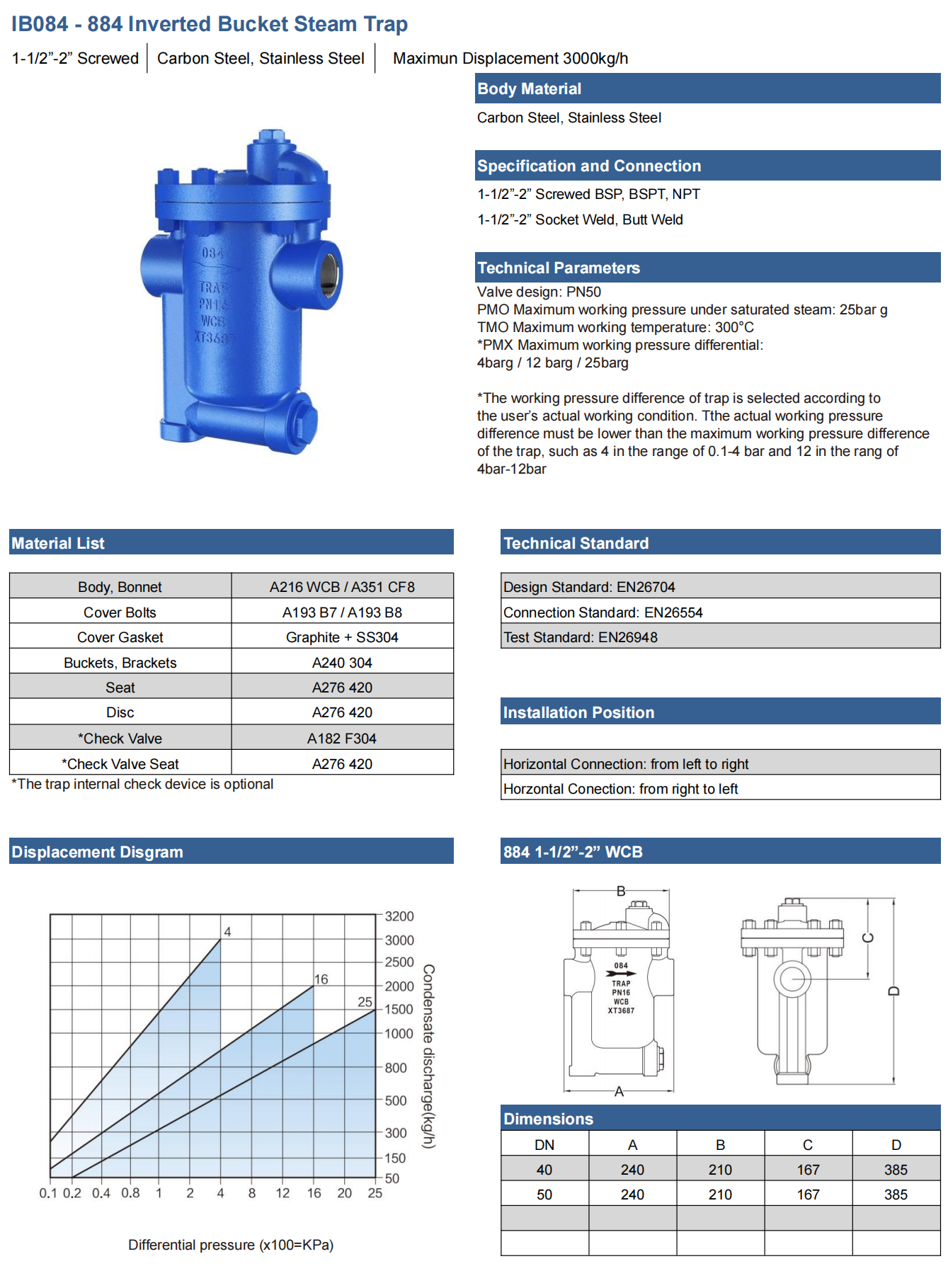

Inverted Bucket – Resists water hammer and dirt, well-suited for drip applications on steam mains.

Material: Cast iron, carbon steel, stainless steel.

Connections: Threaded (NPT/BSP), socket weld, flanged.

Applications: Steam mains, heat exchangers, steam tracing, unit heaters, process equipment.

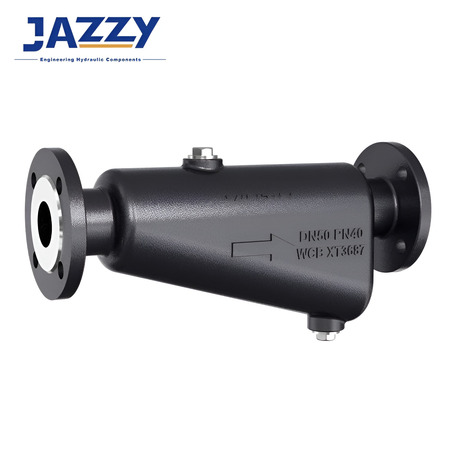

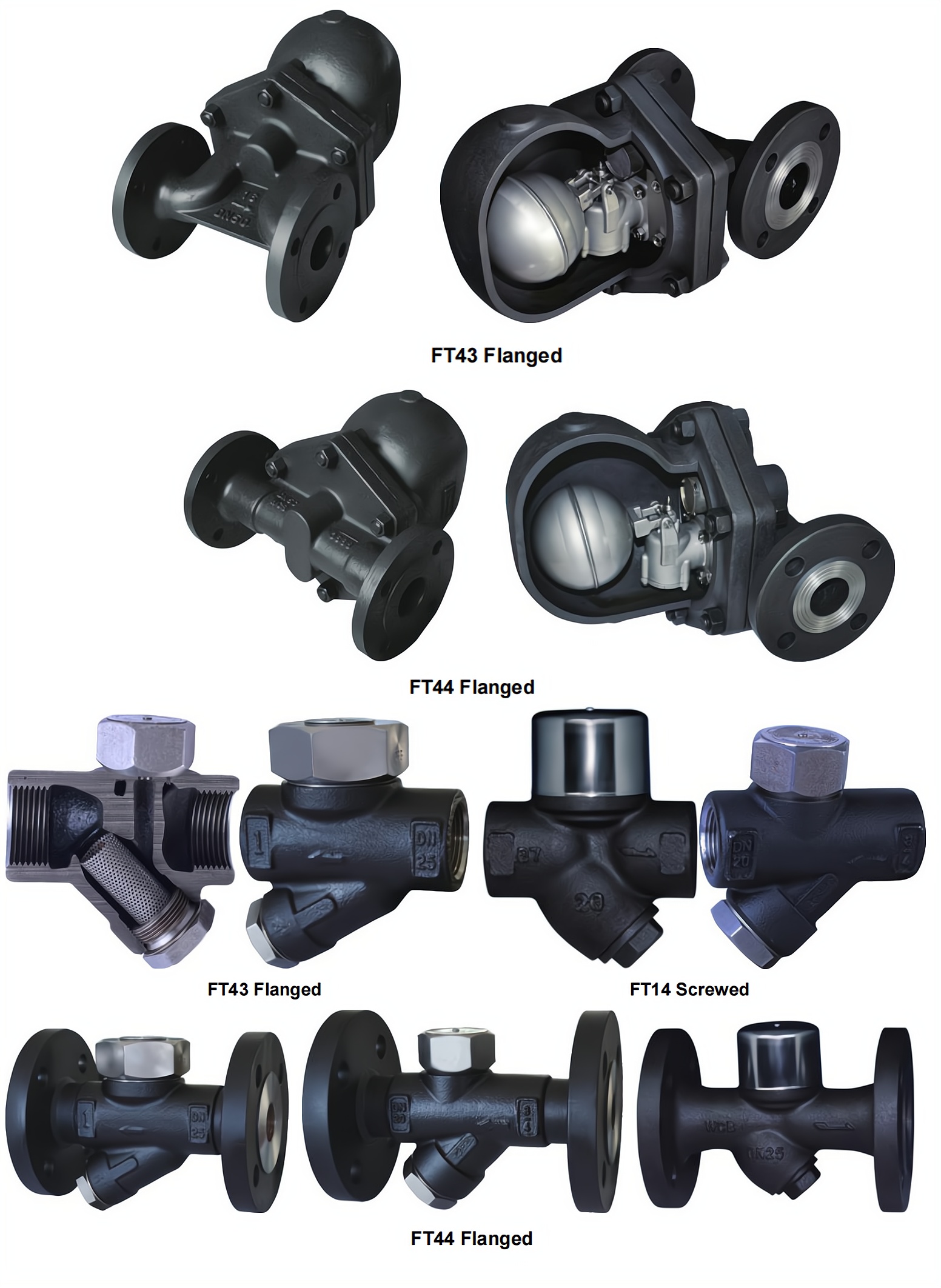

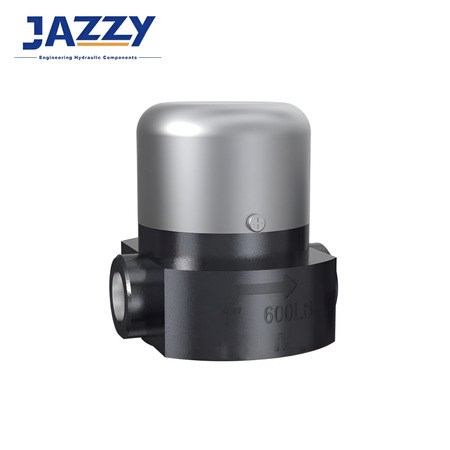

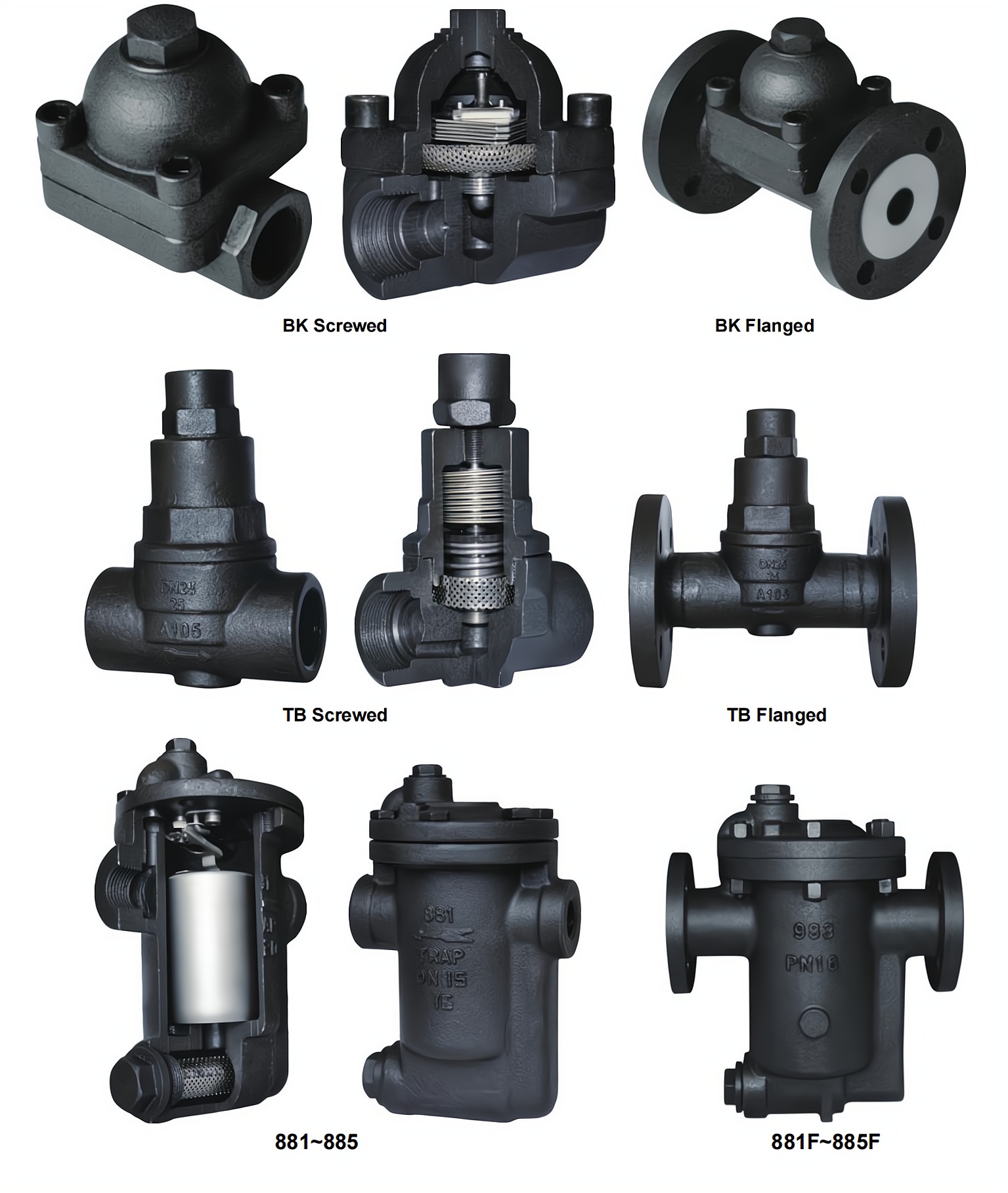

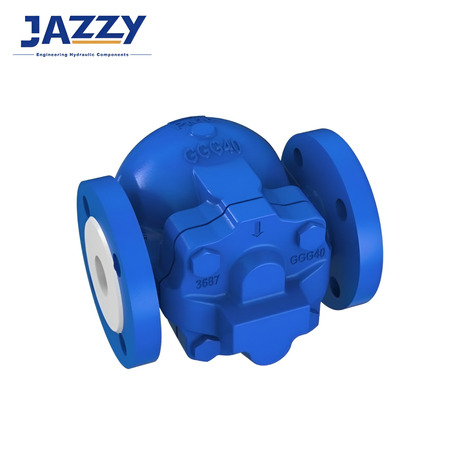

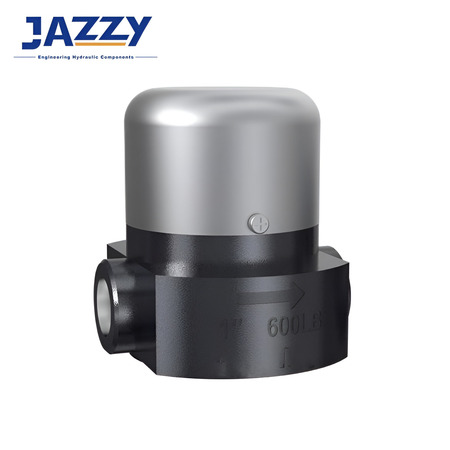

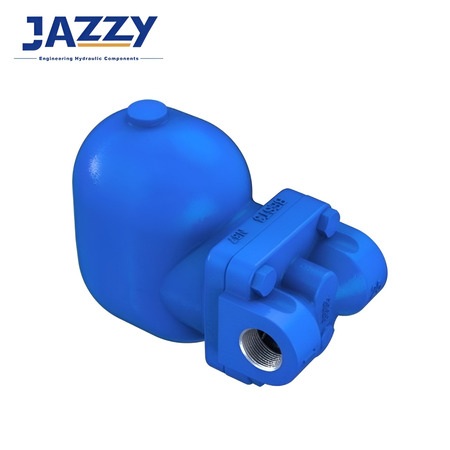

———— Product display ————

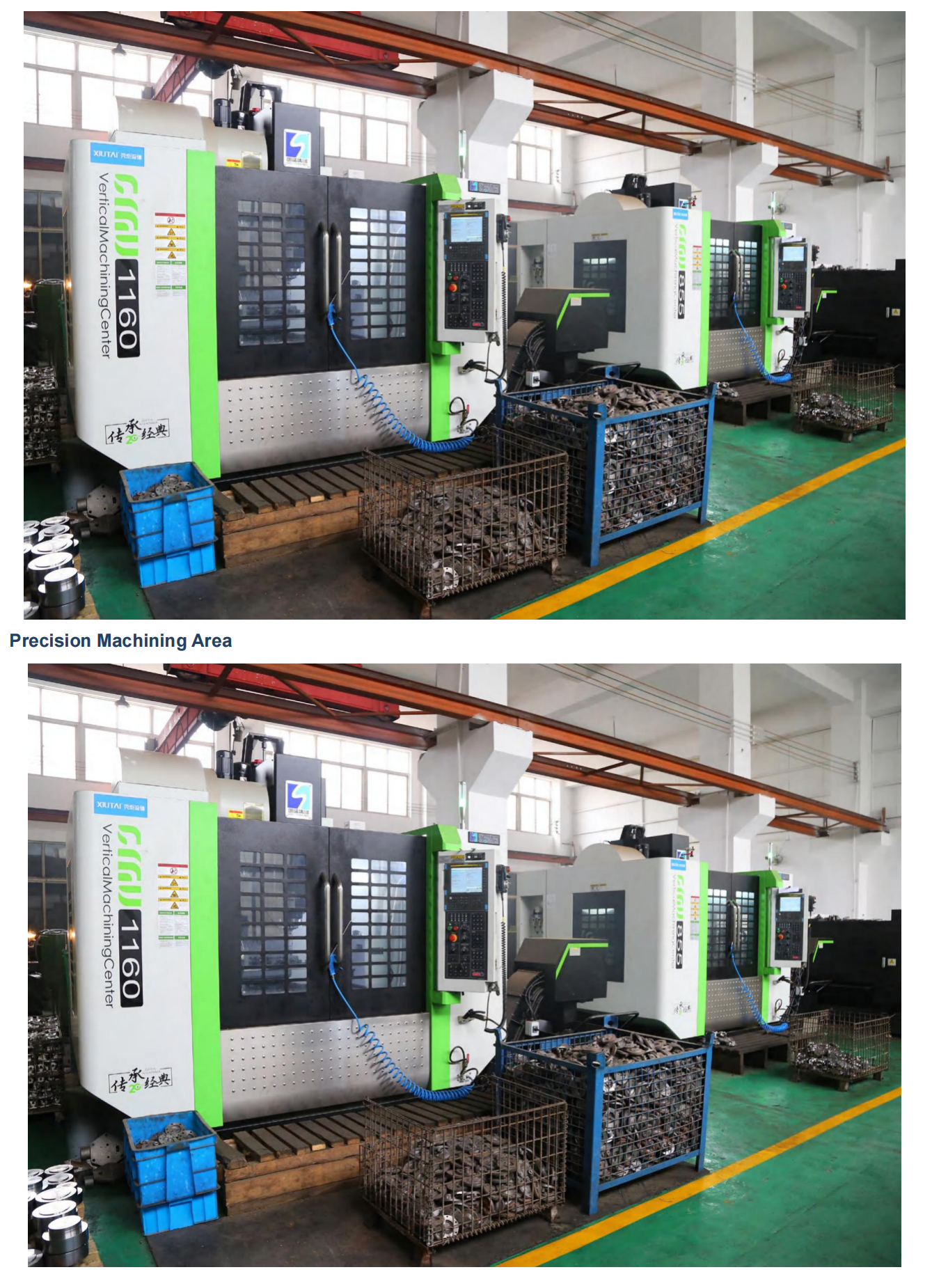

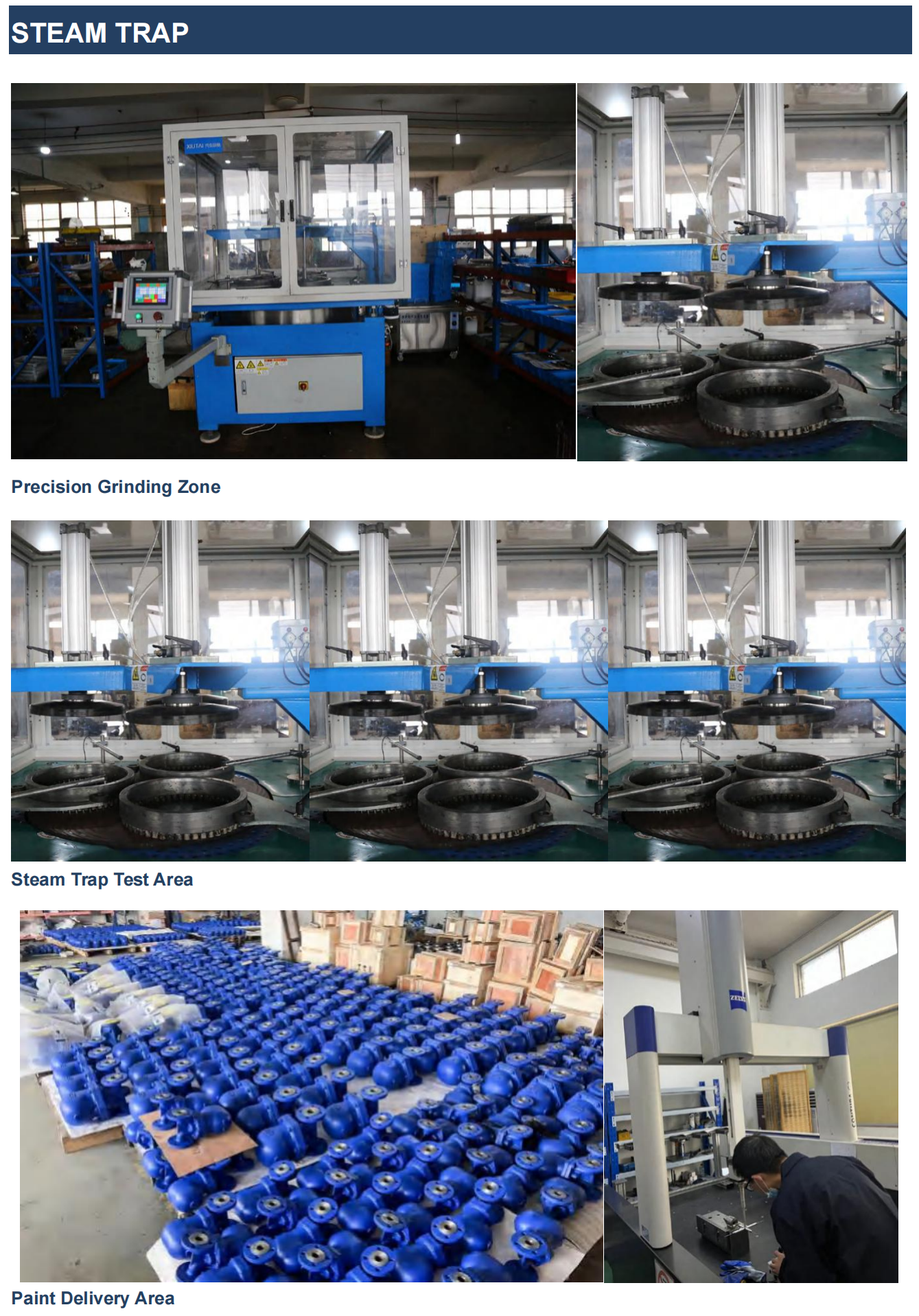

———— Workshop pictures ————

（车间图片）

———— Quality inspection images ————

（质检图片）

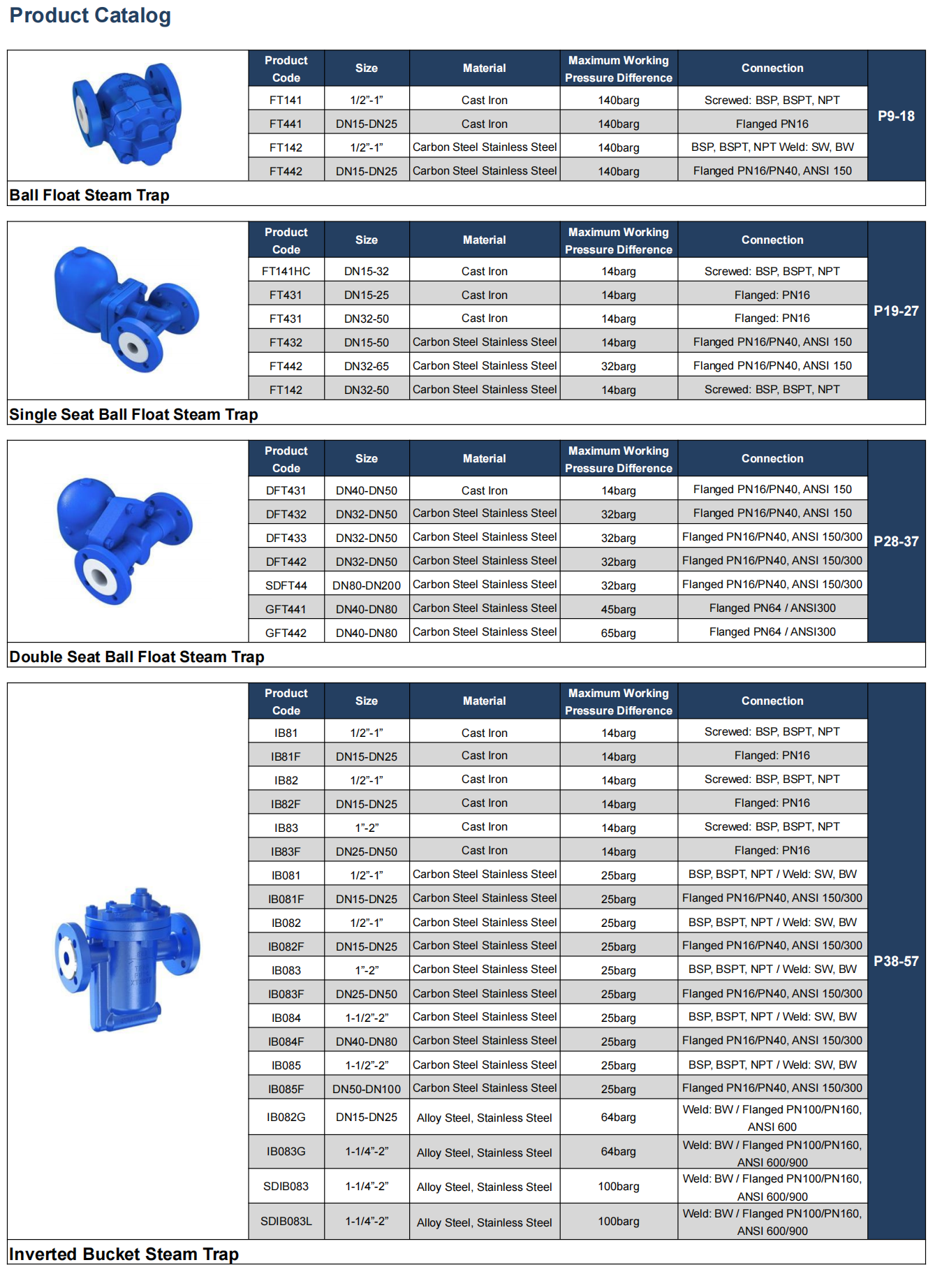

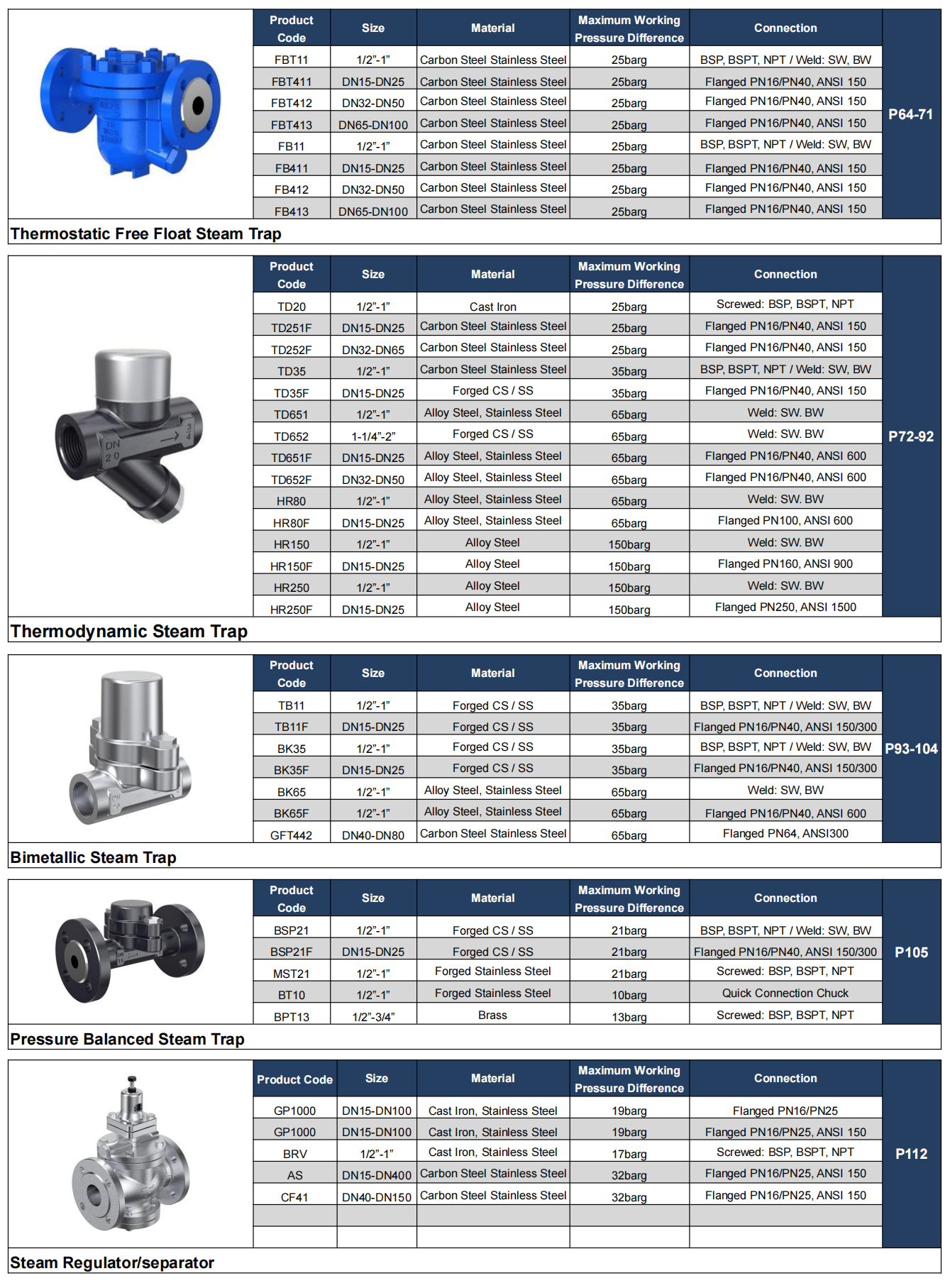

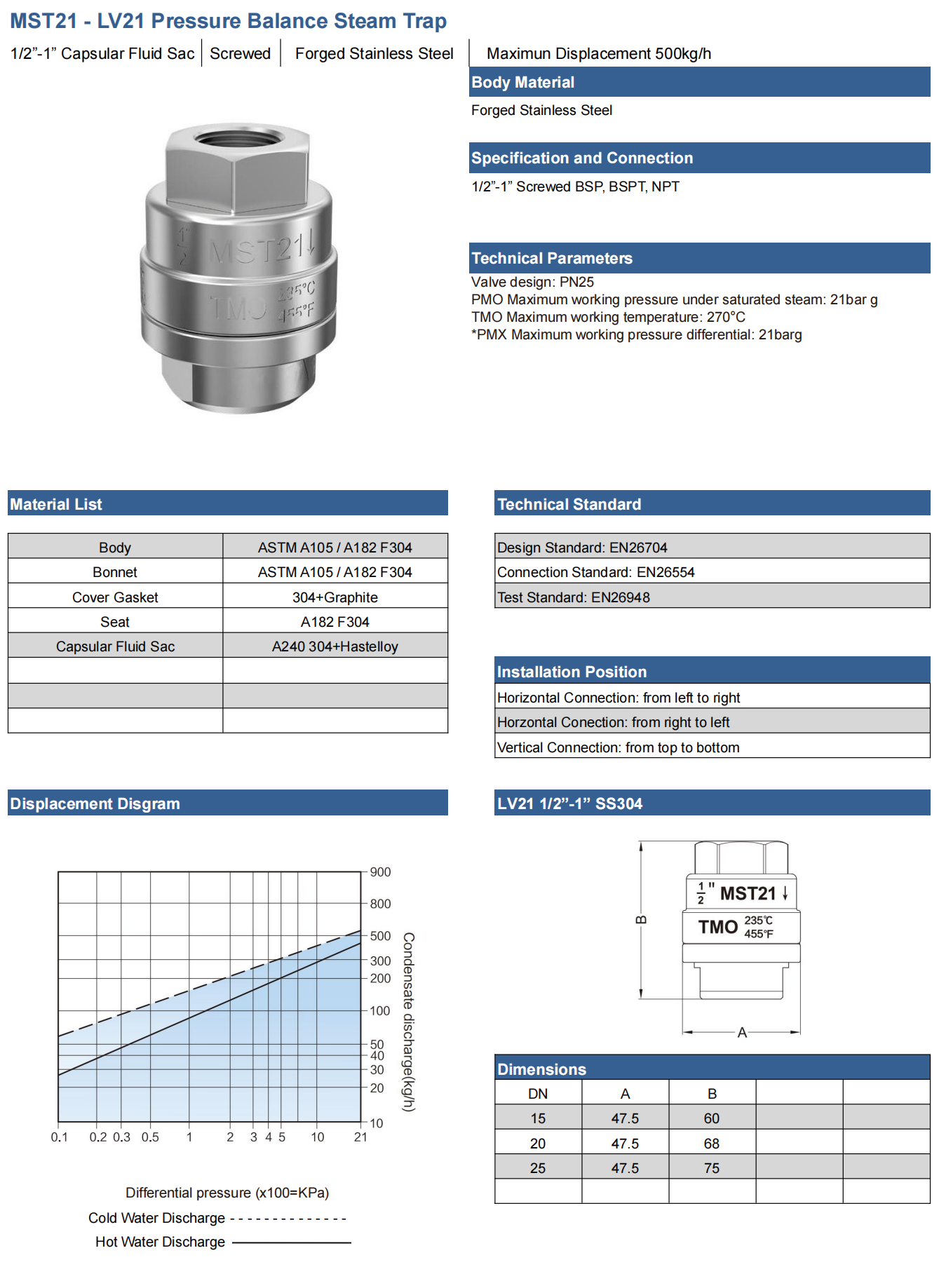

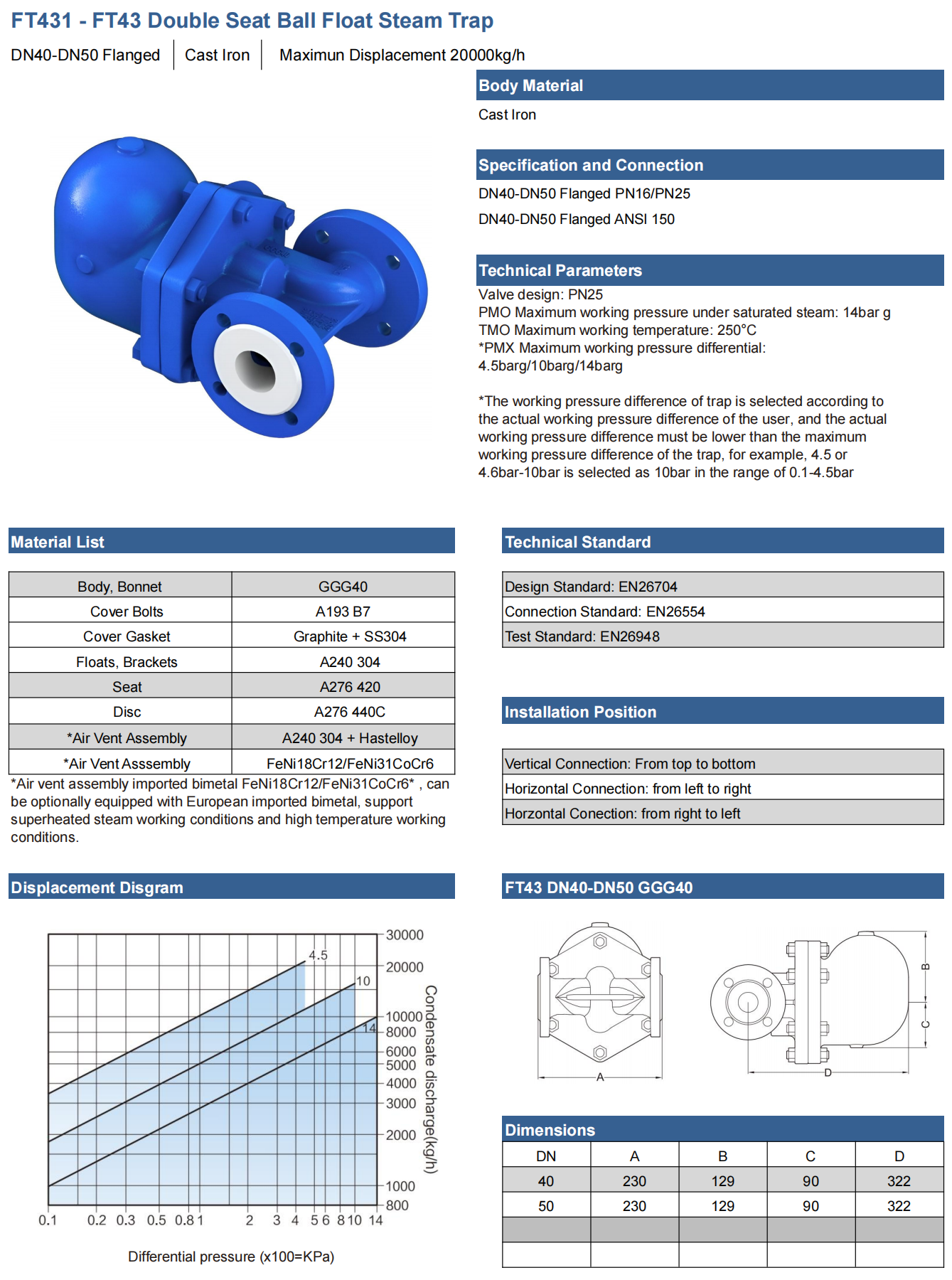

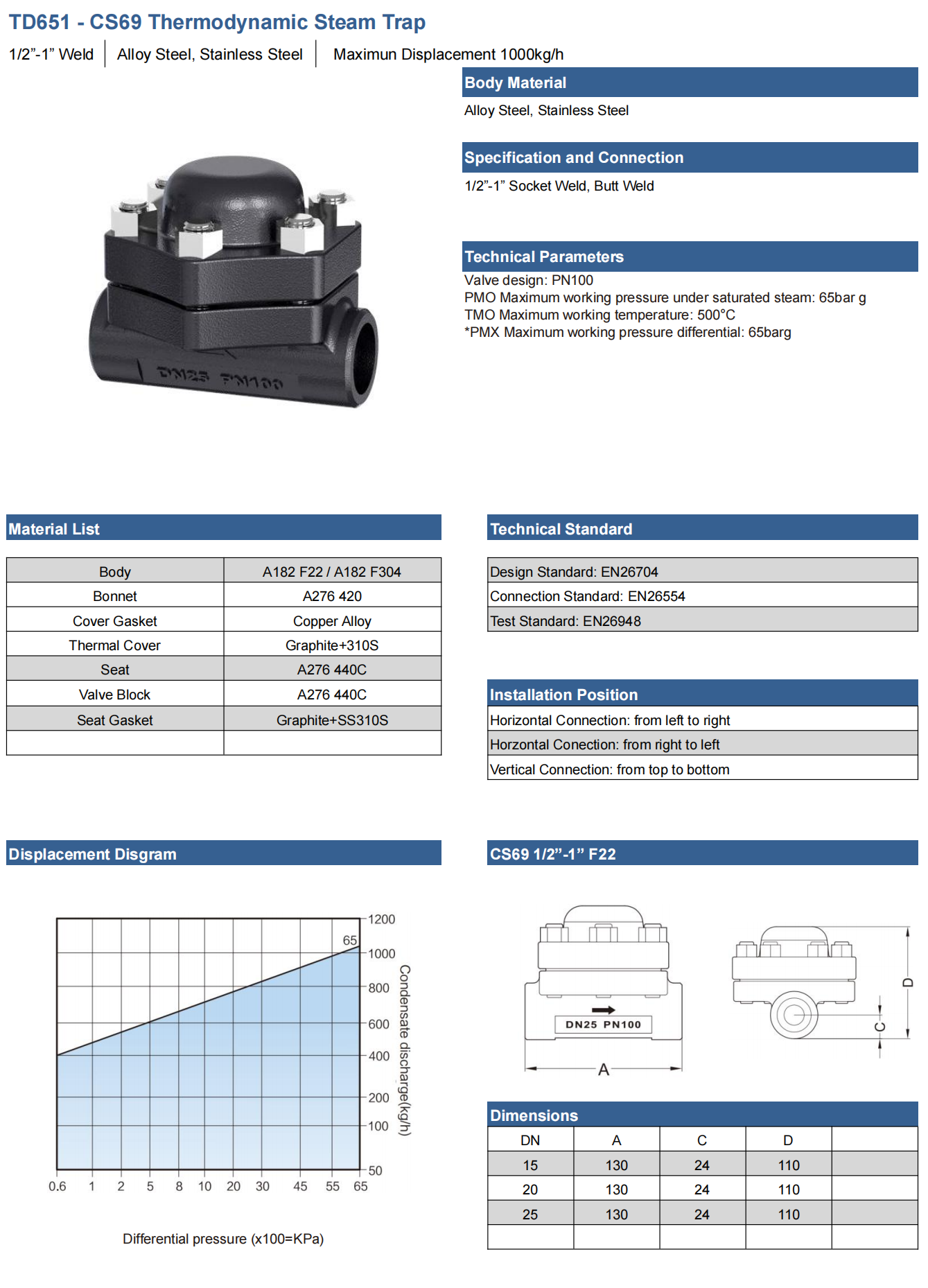

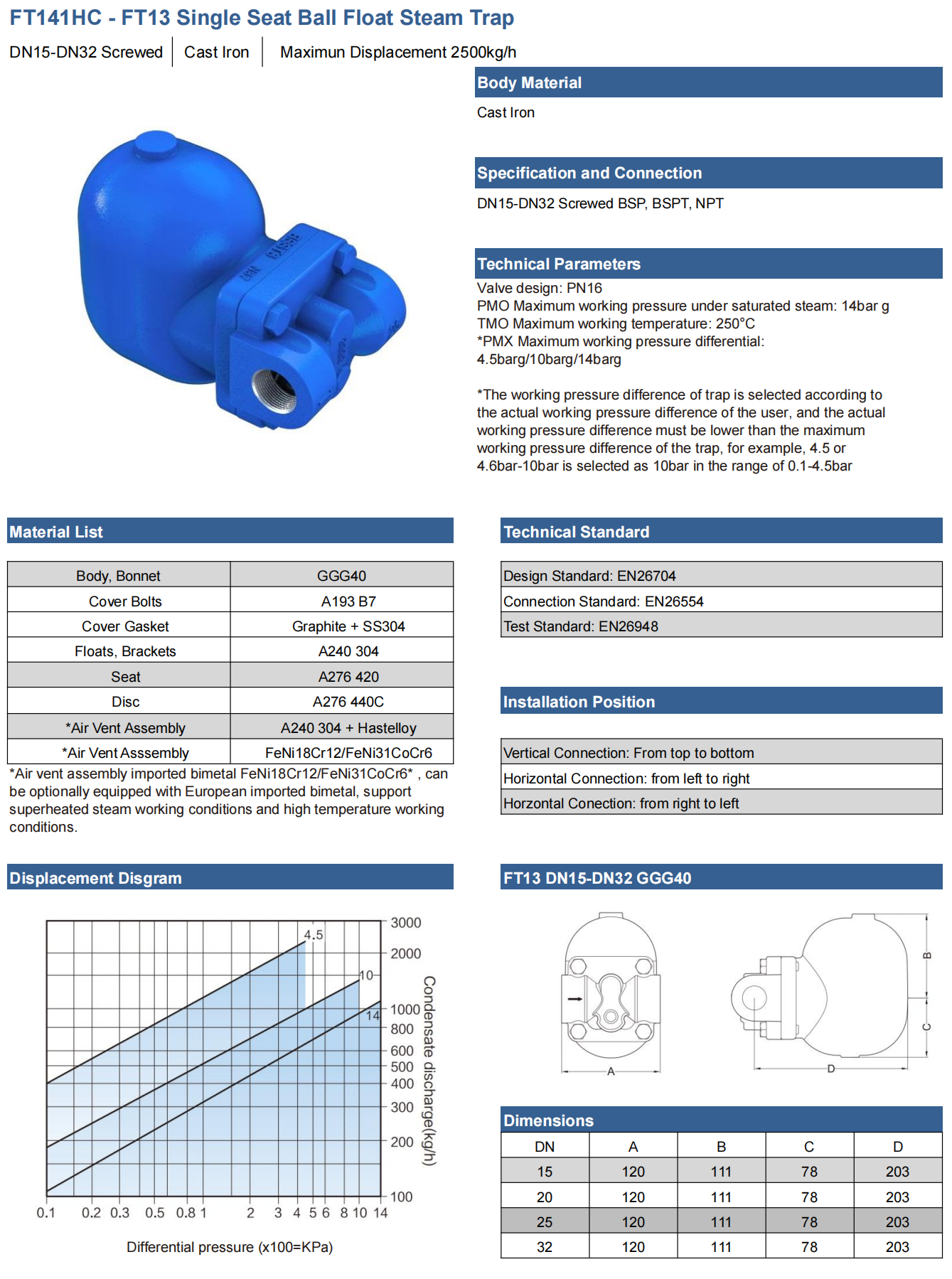

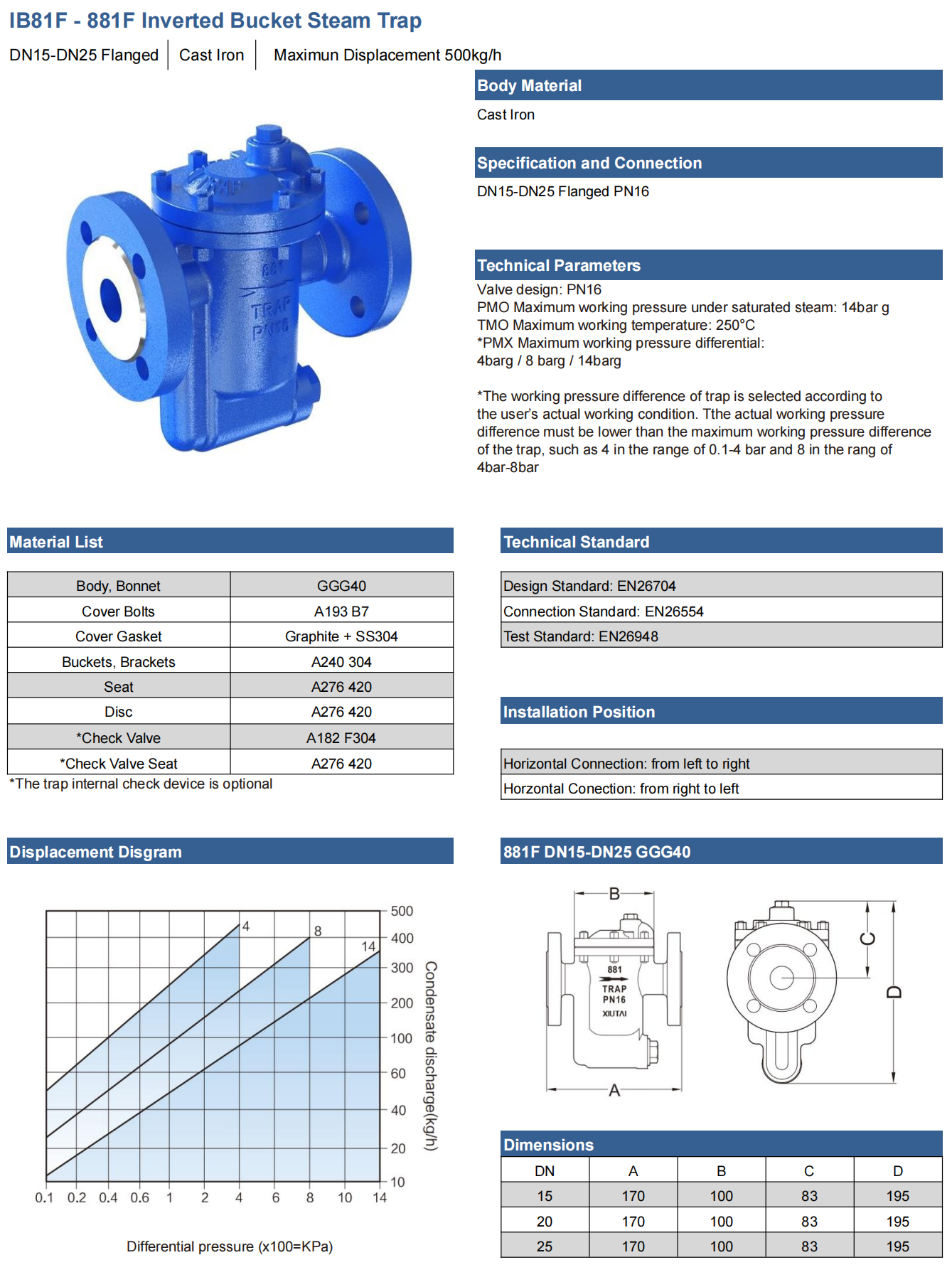

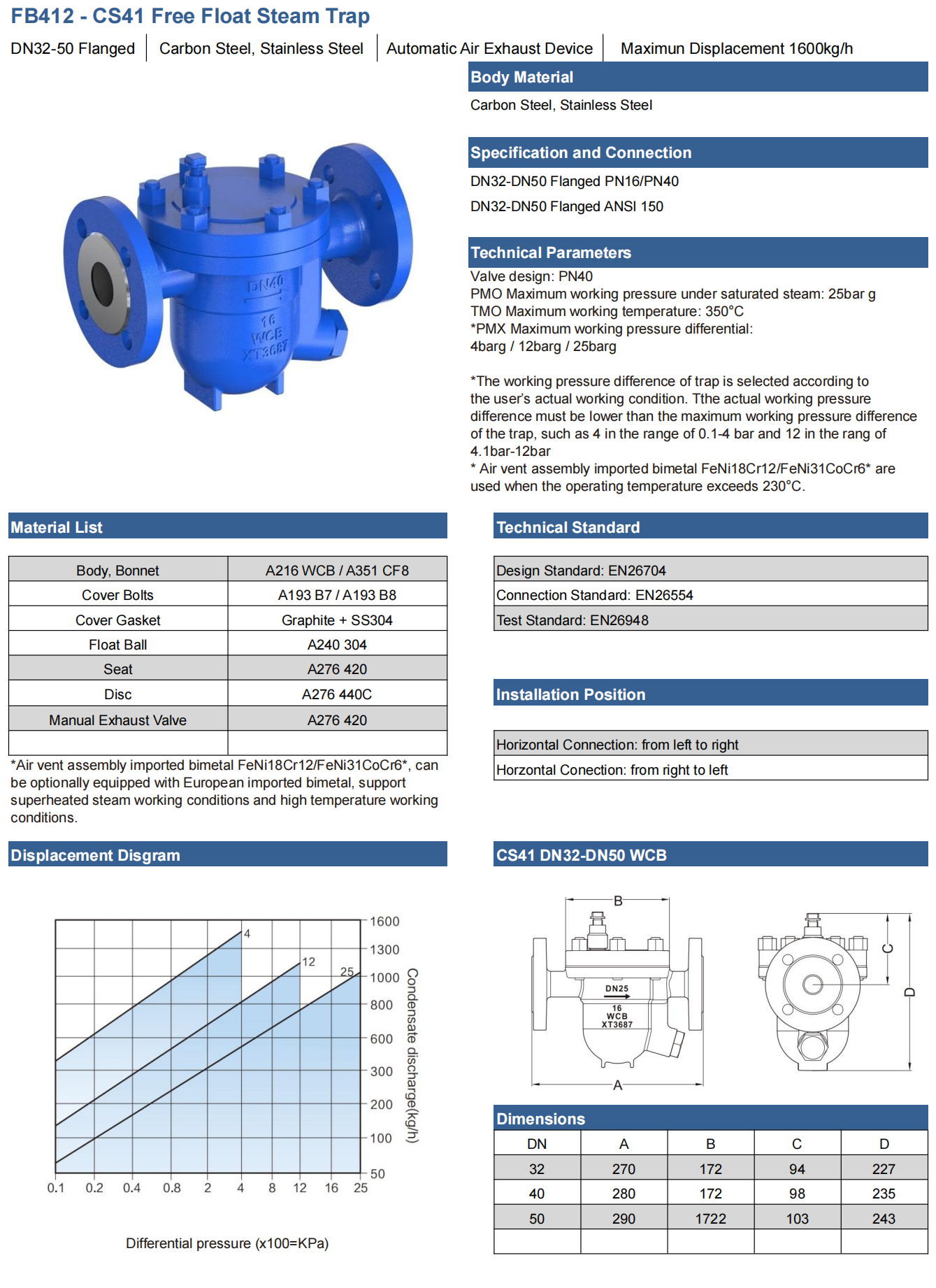

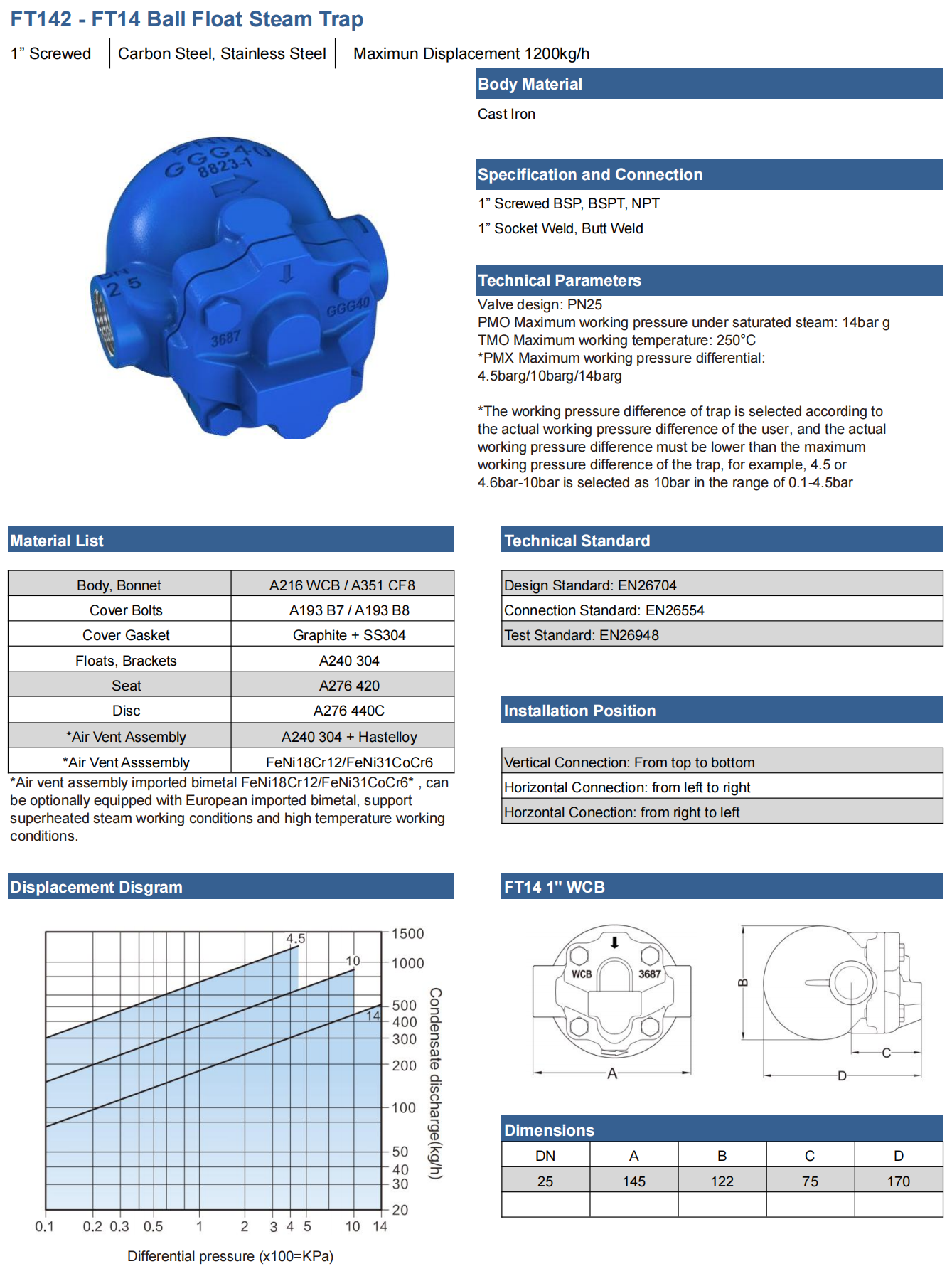

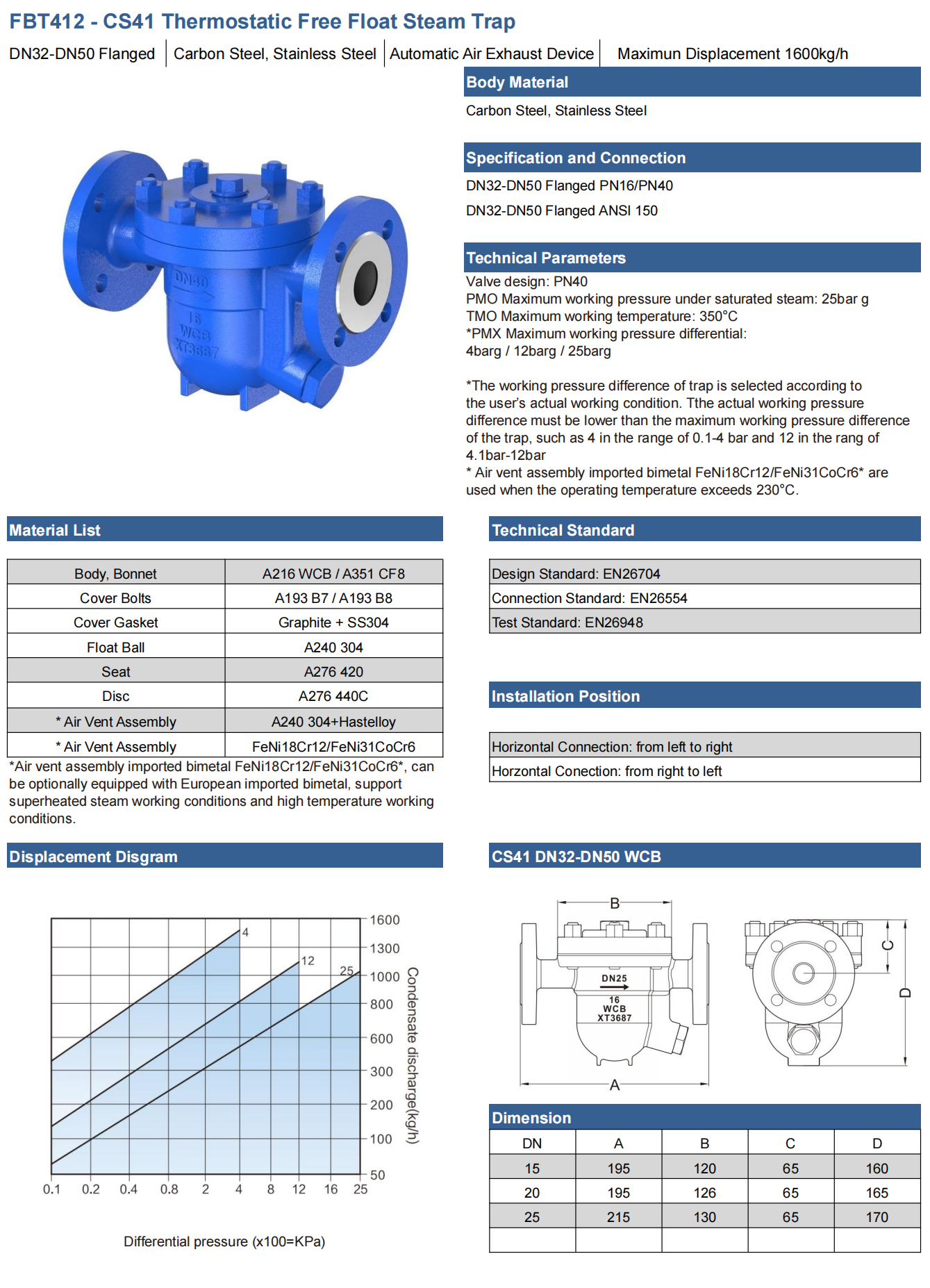

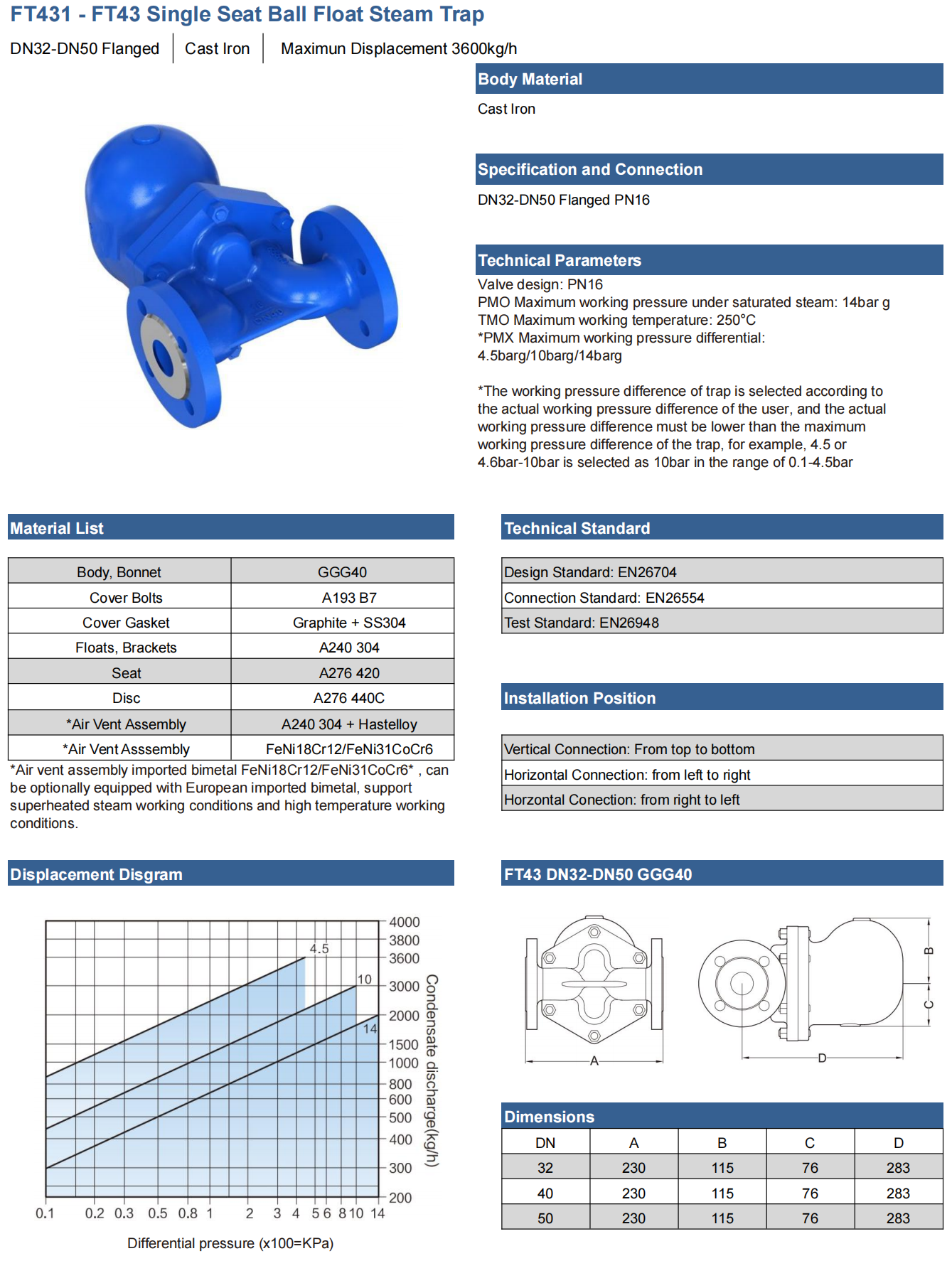

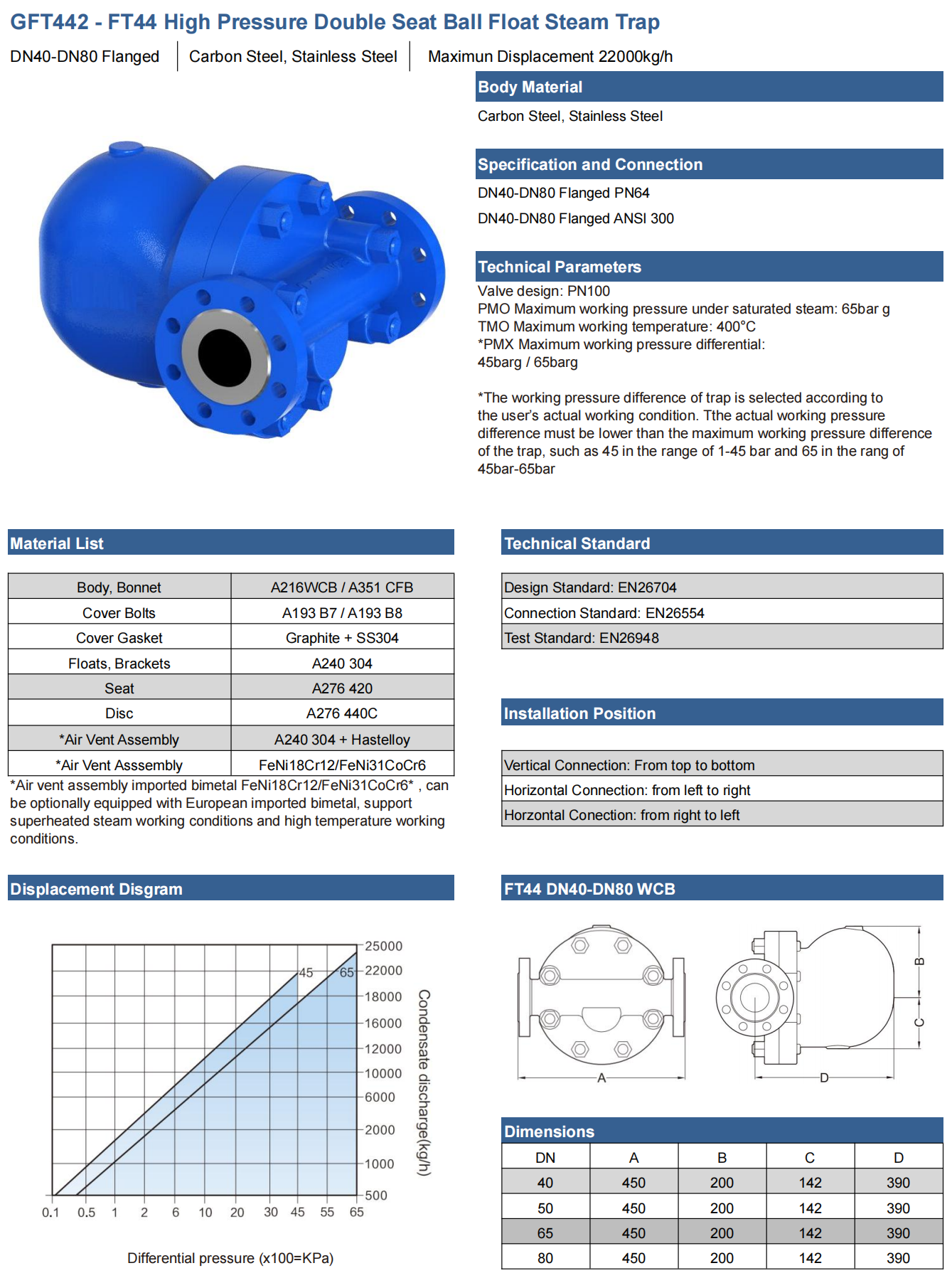

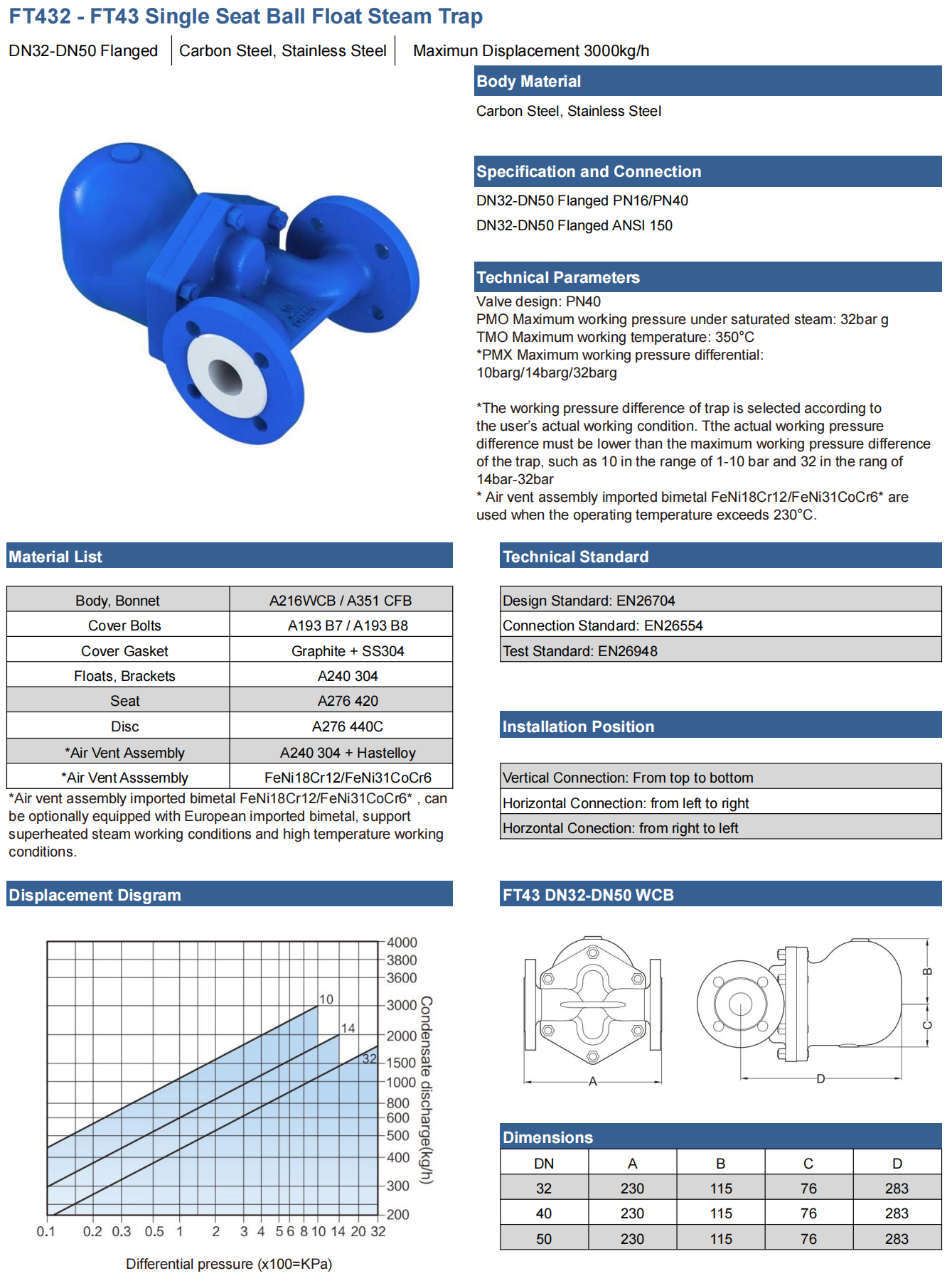

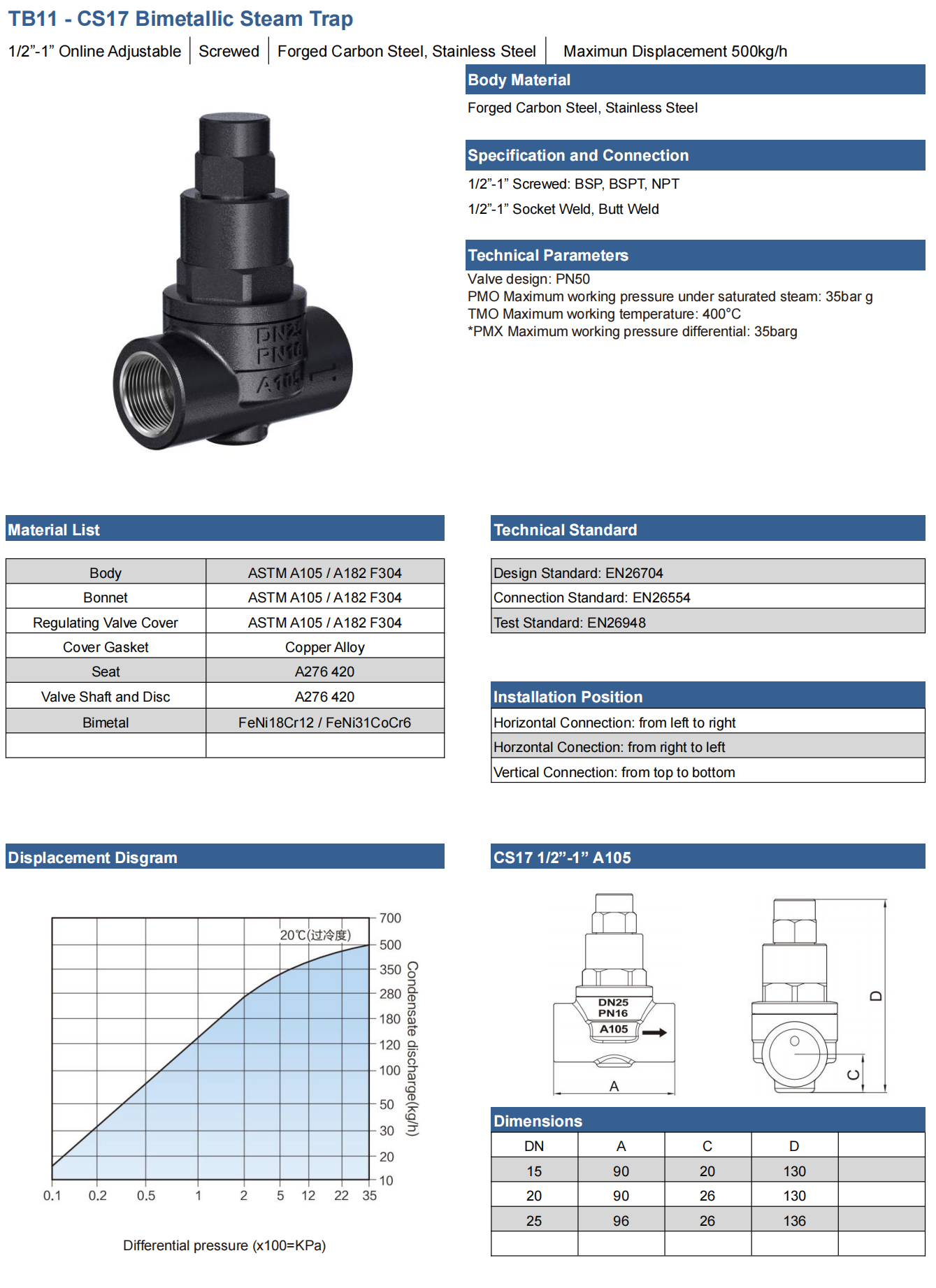

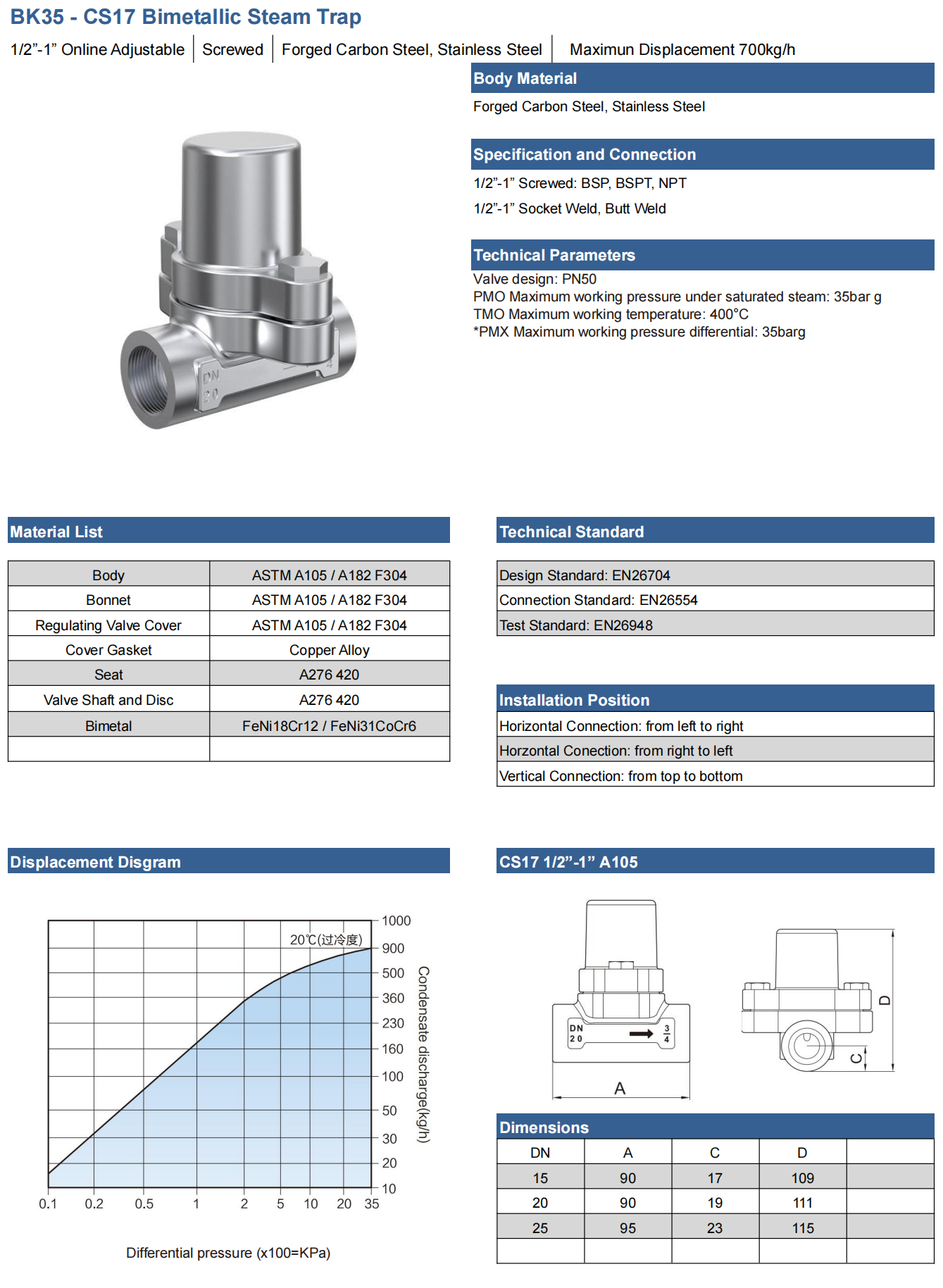

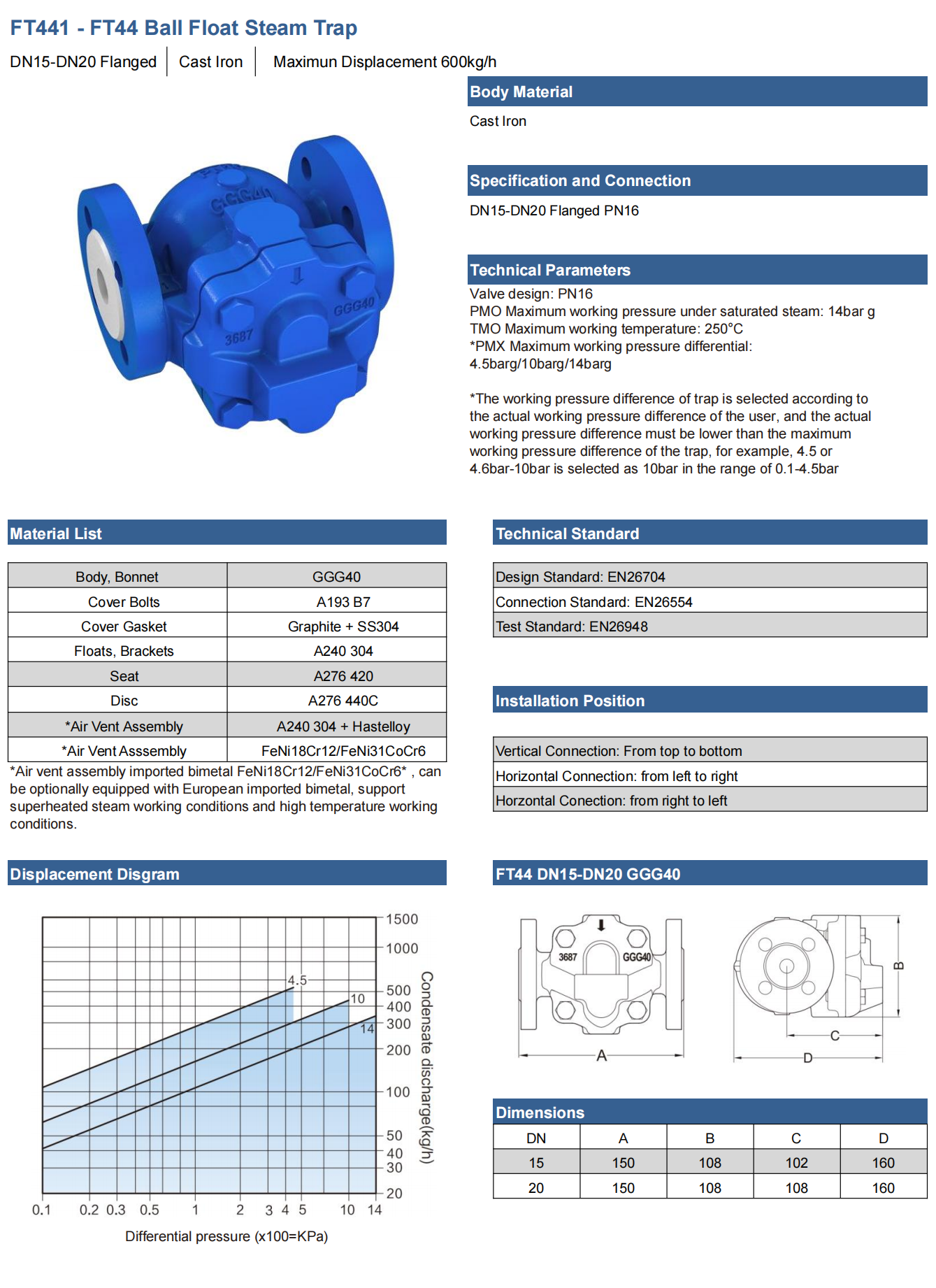

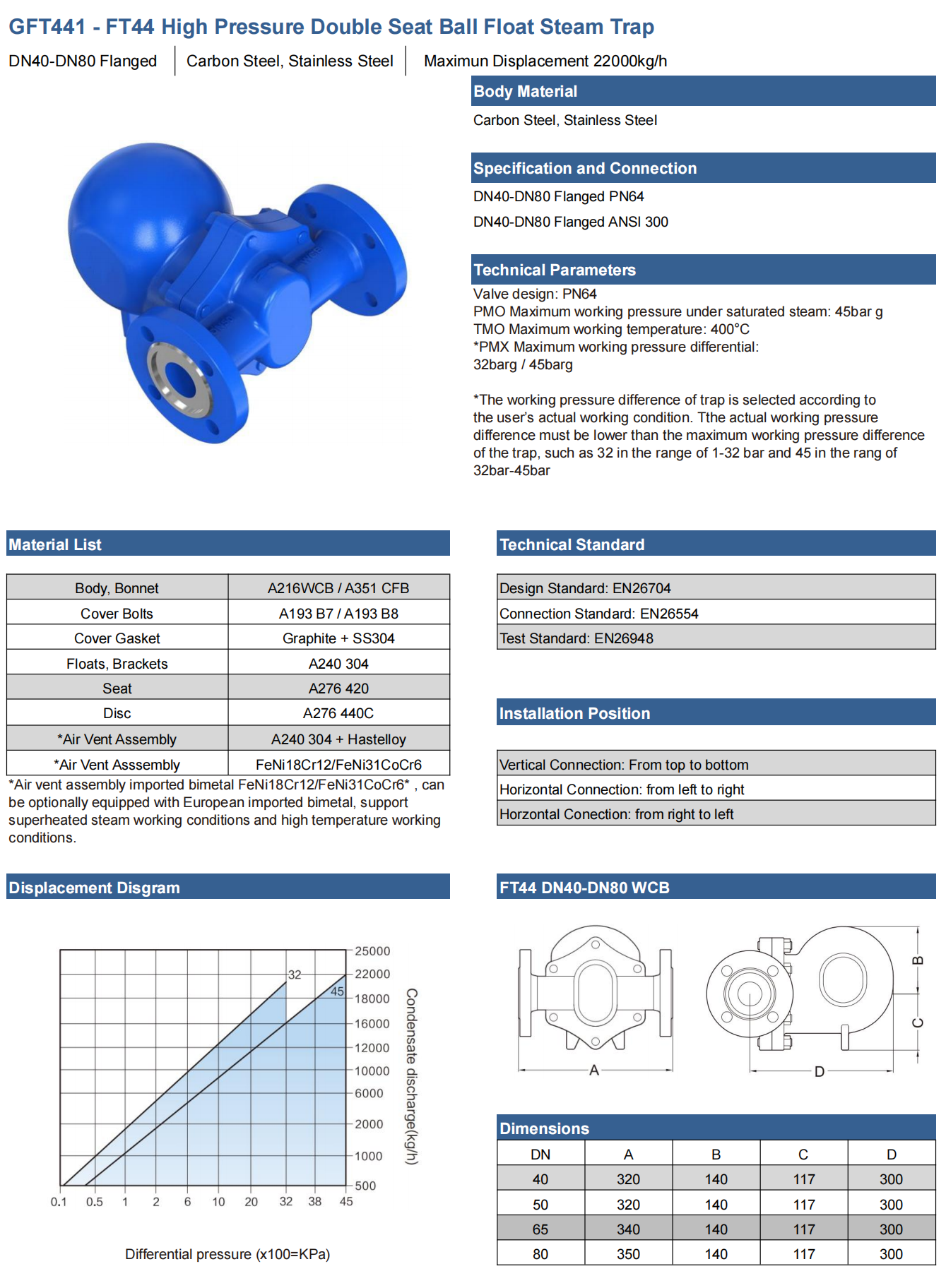

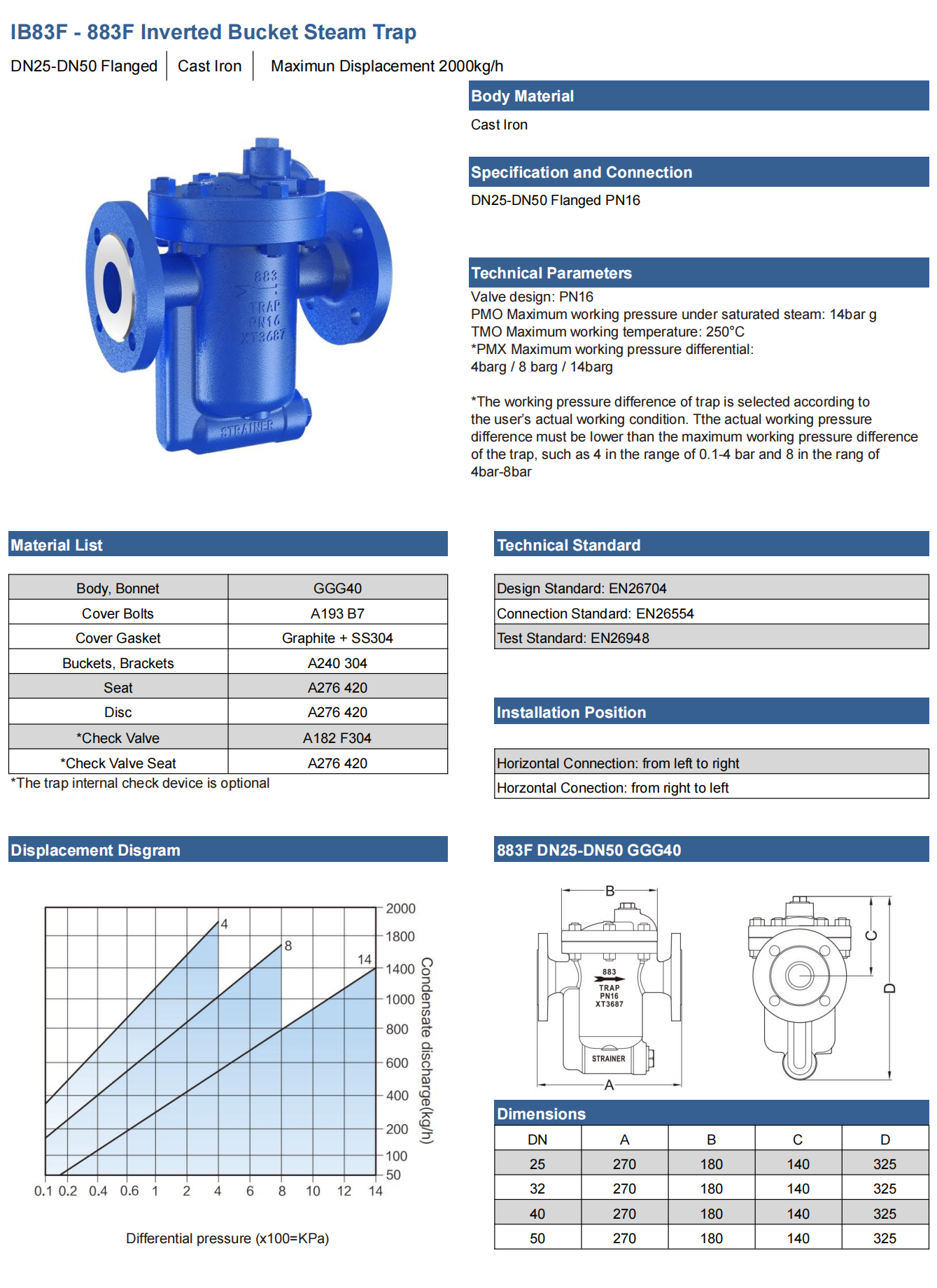

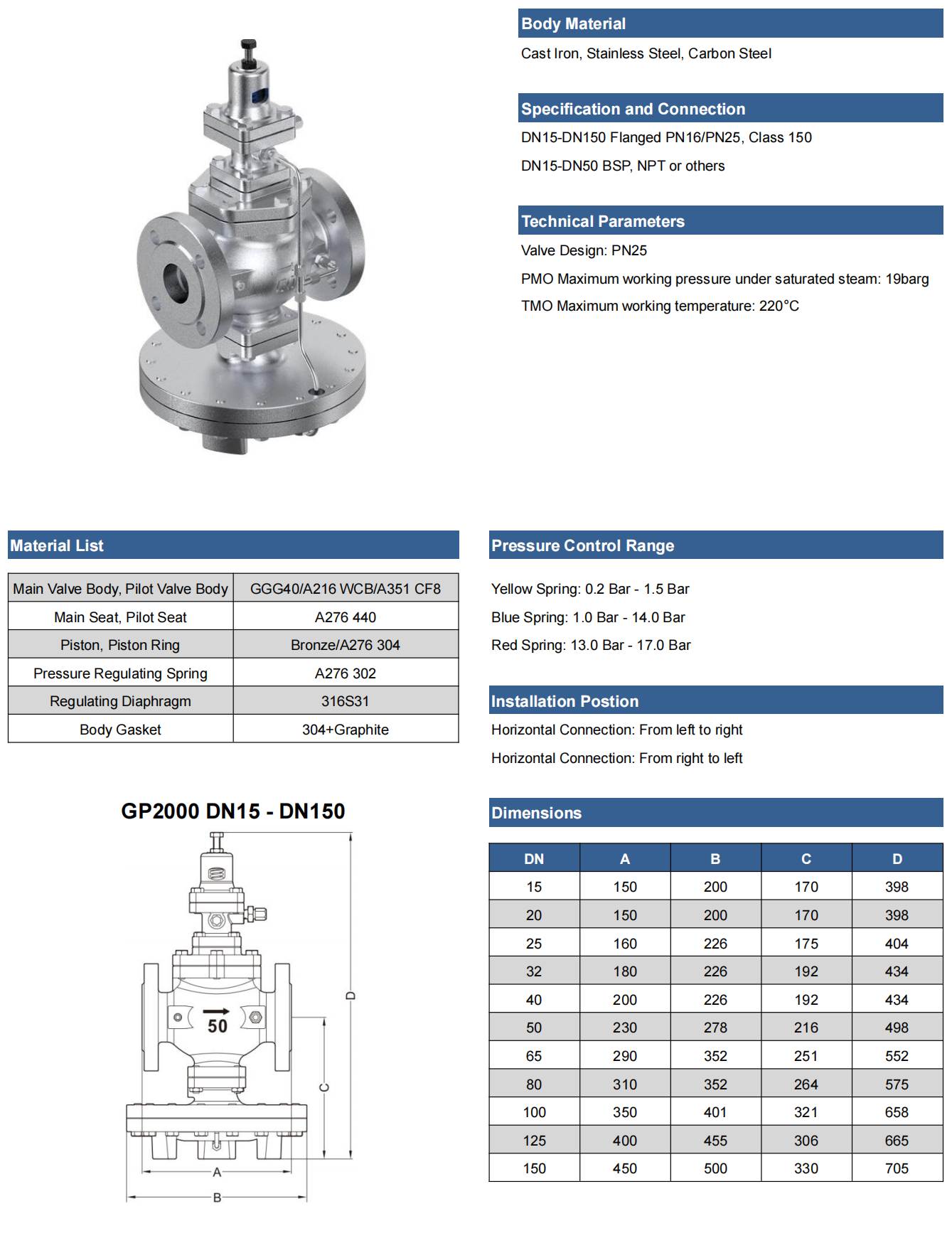

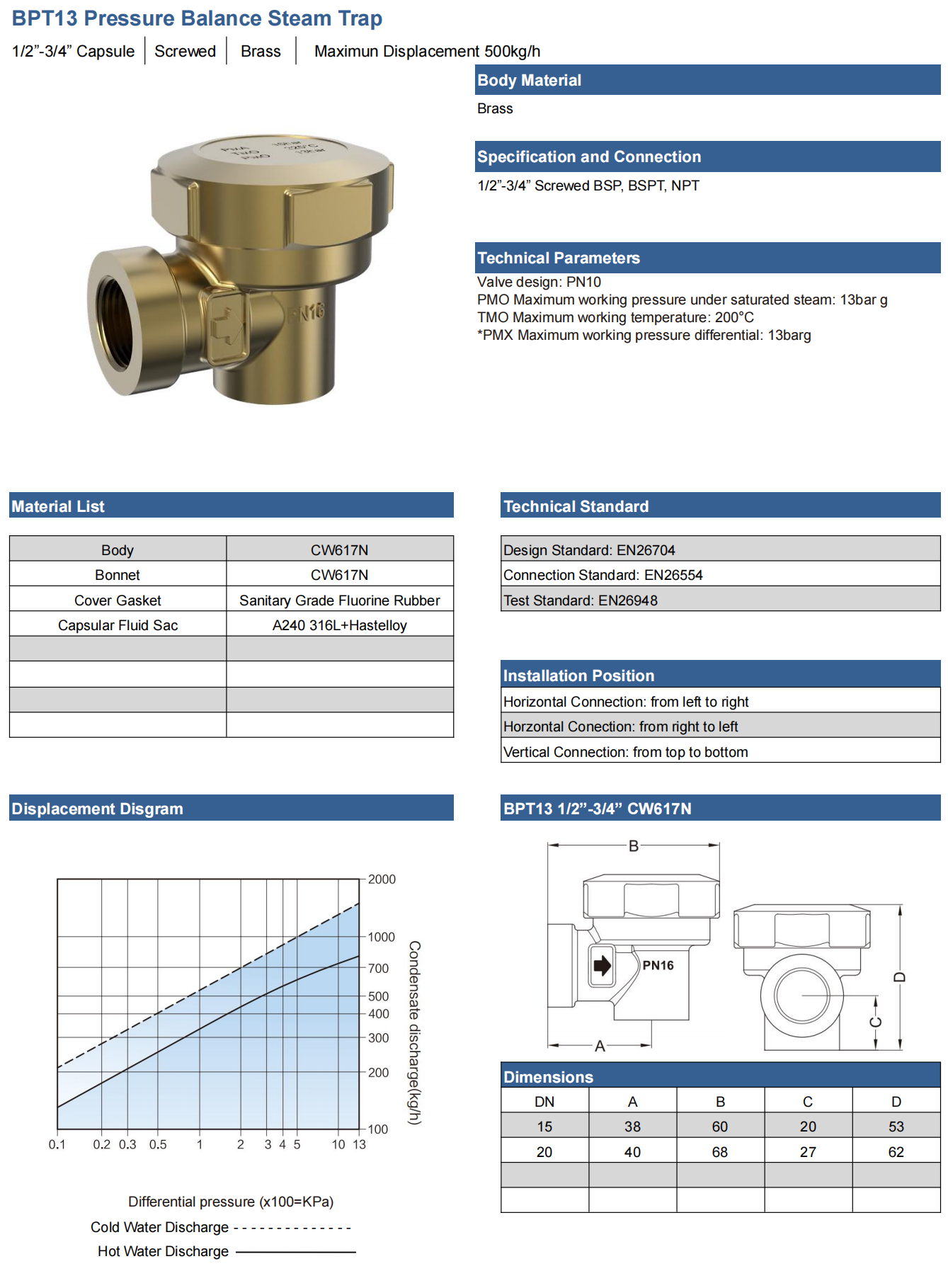

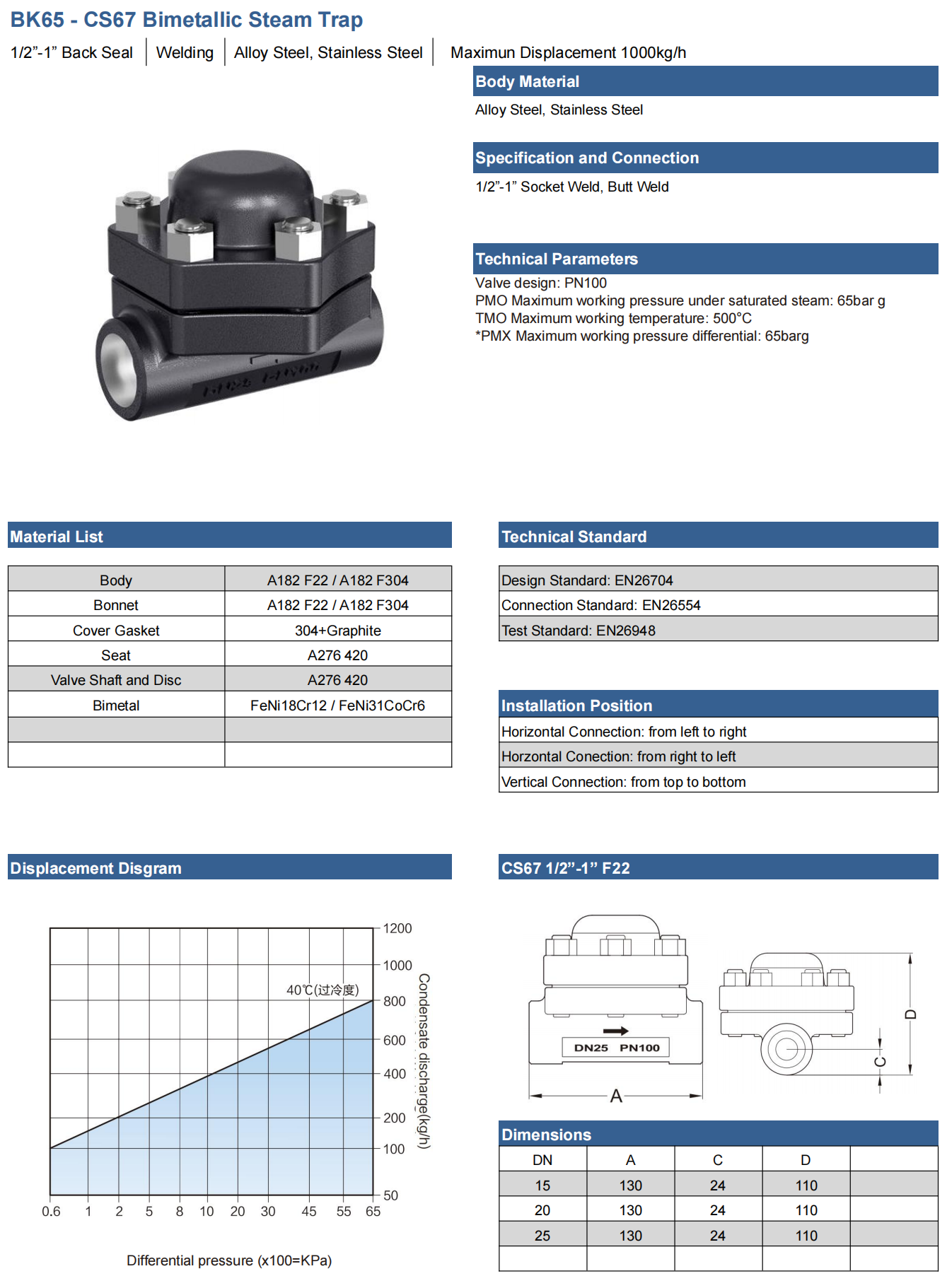

———— Product Specifications ————

———— Exhibition ————

———— Payment ————

Secure & flexible options for global buyers
