Forged Flange

———— Forged Flange ————

JAZZY forged flanges connect pipes, valves, and equipment,

allowing easy access for cleaning and inspection.

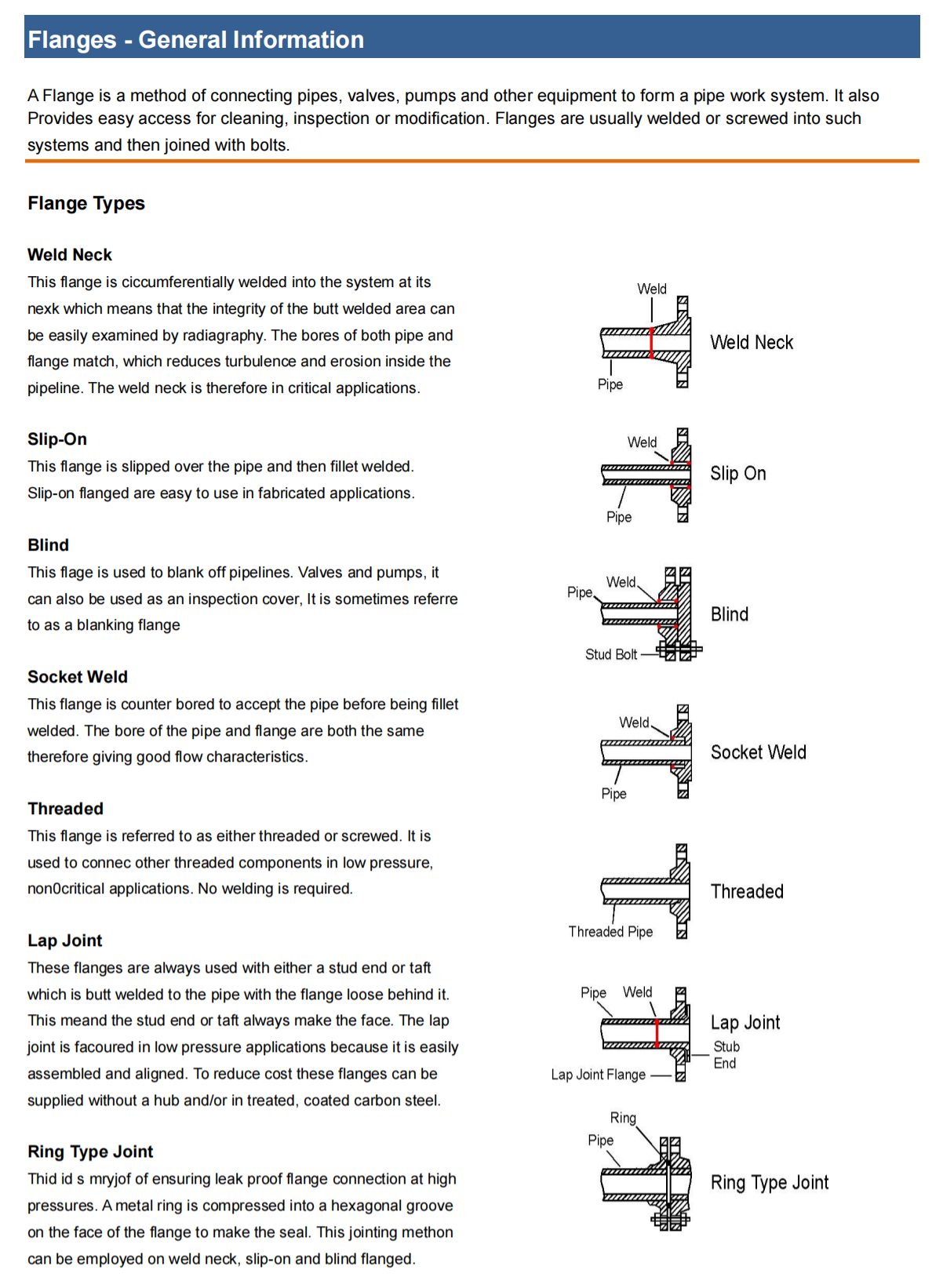

Types:

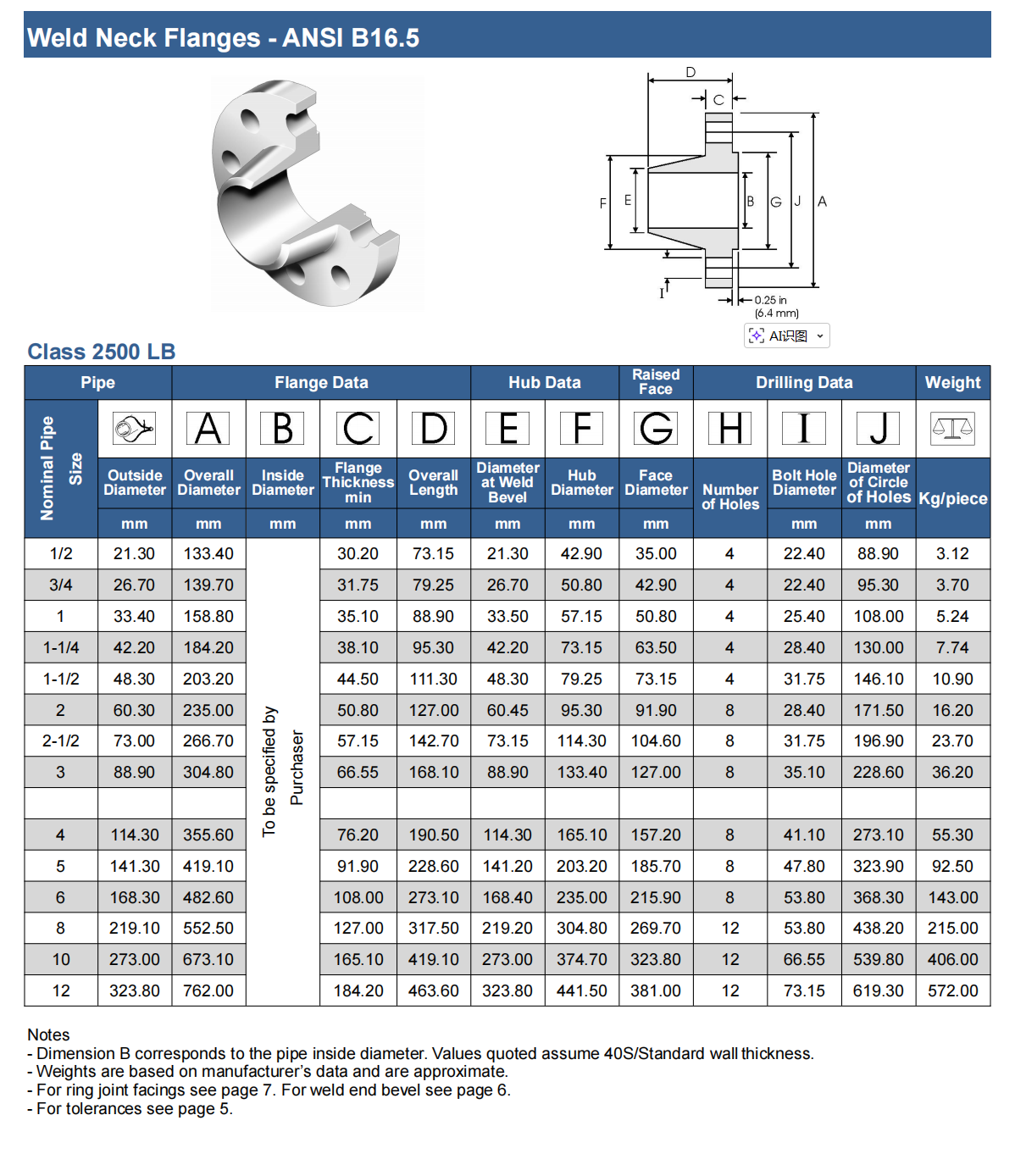

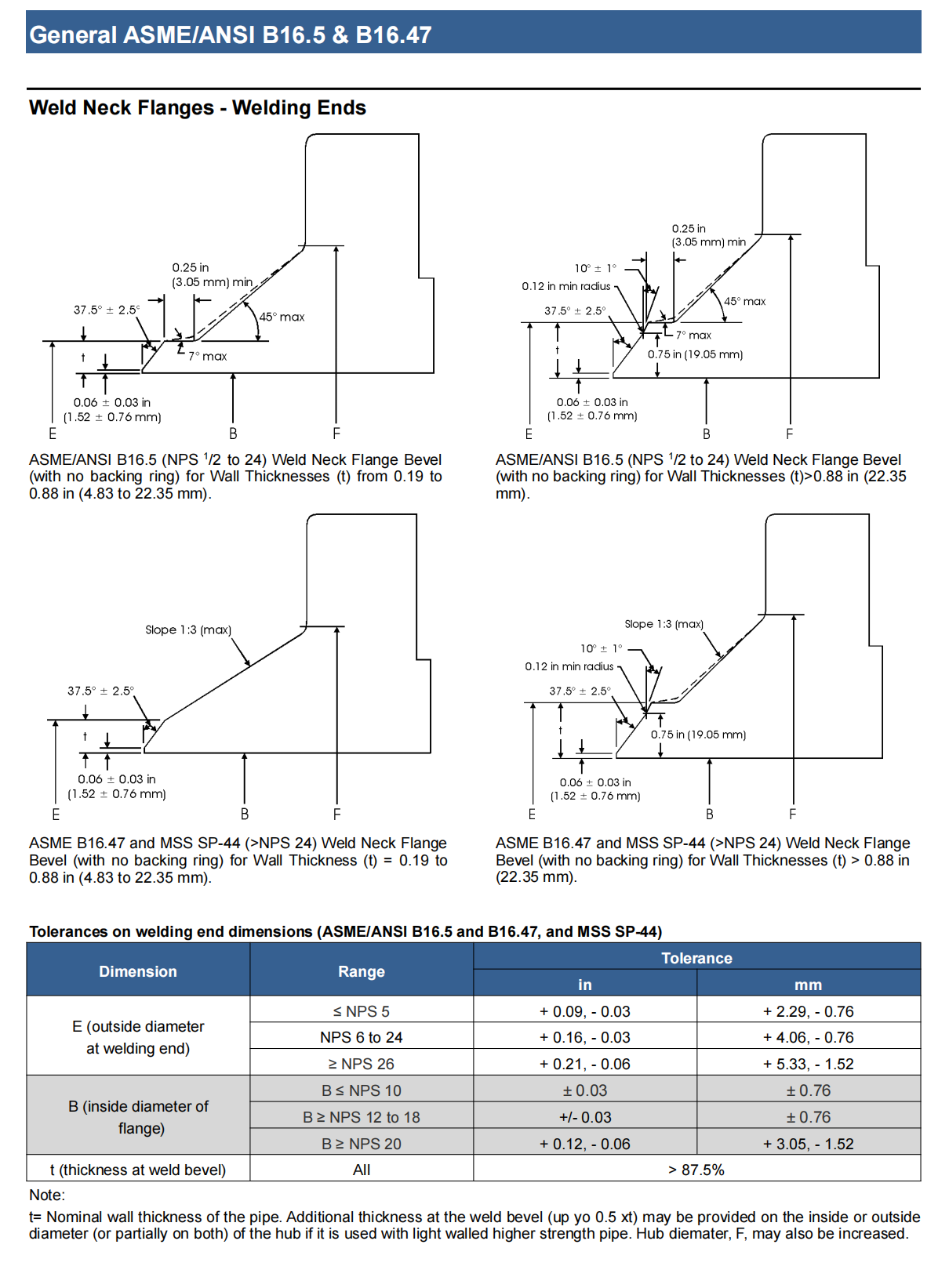

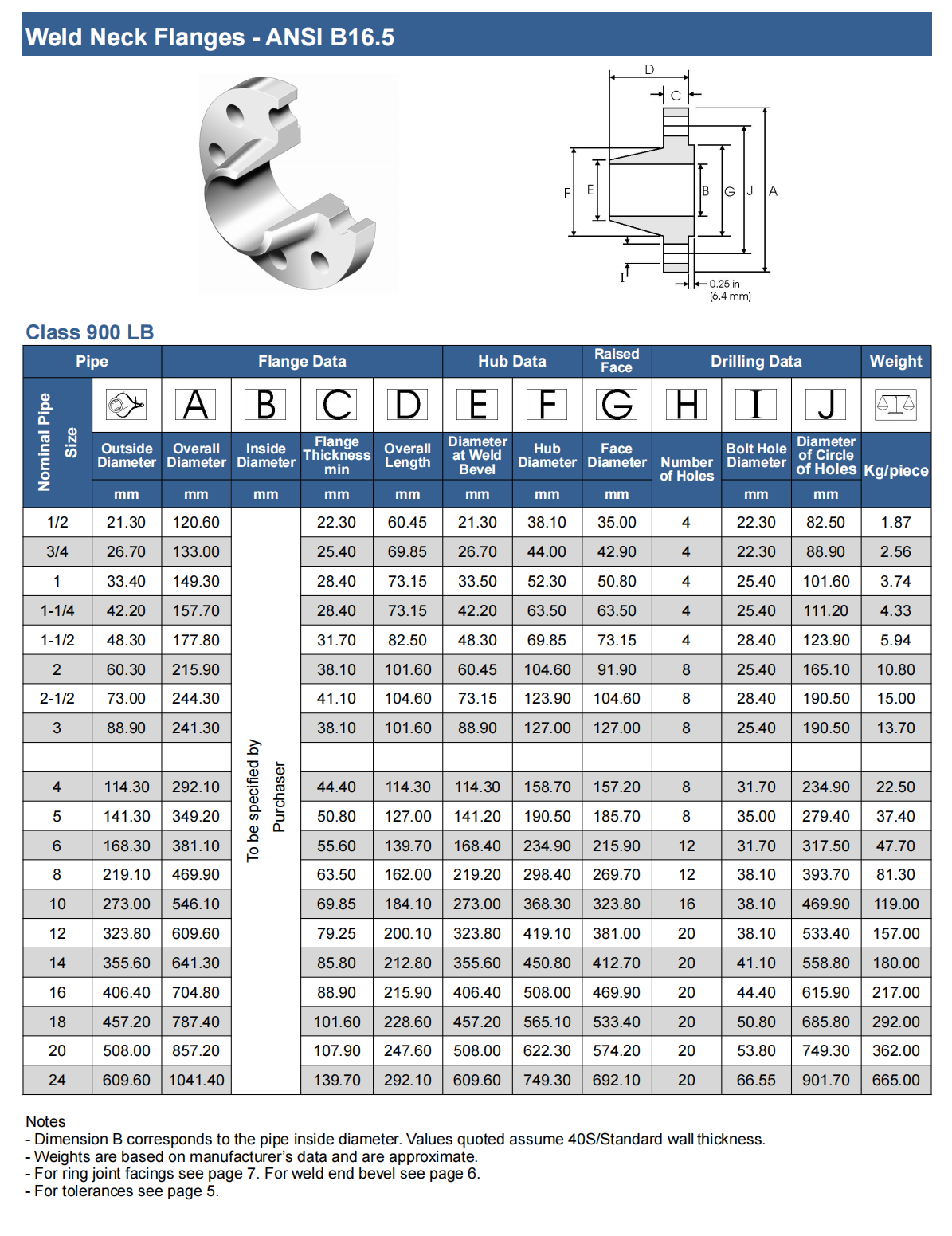

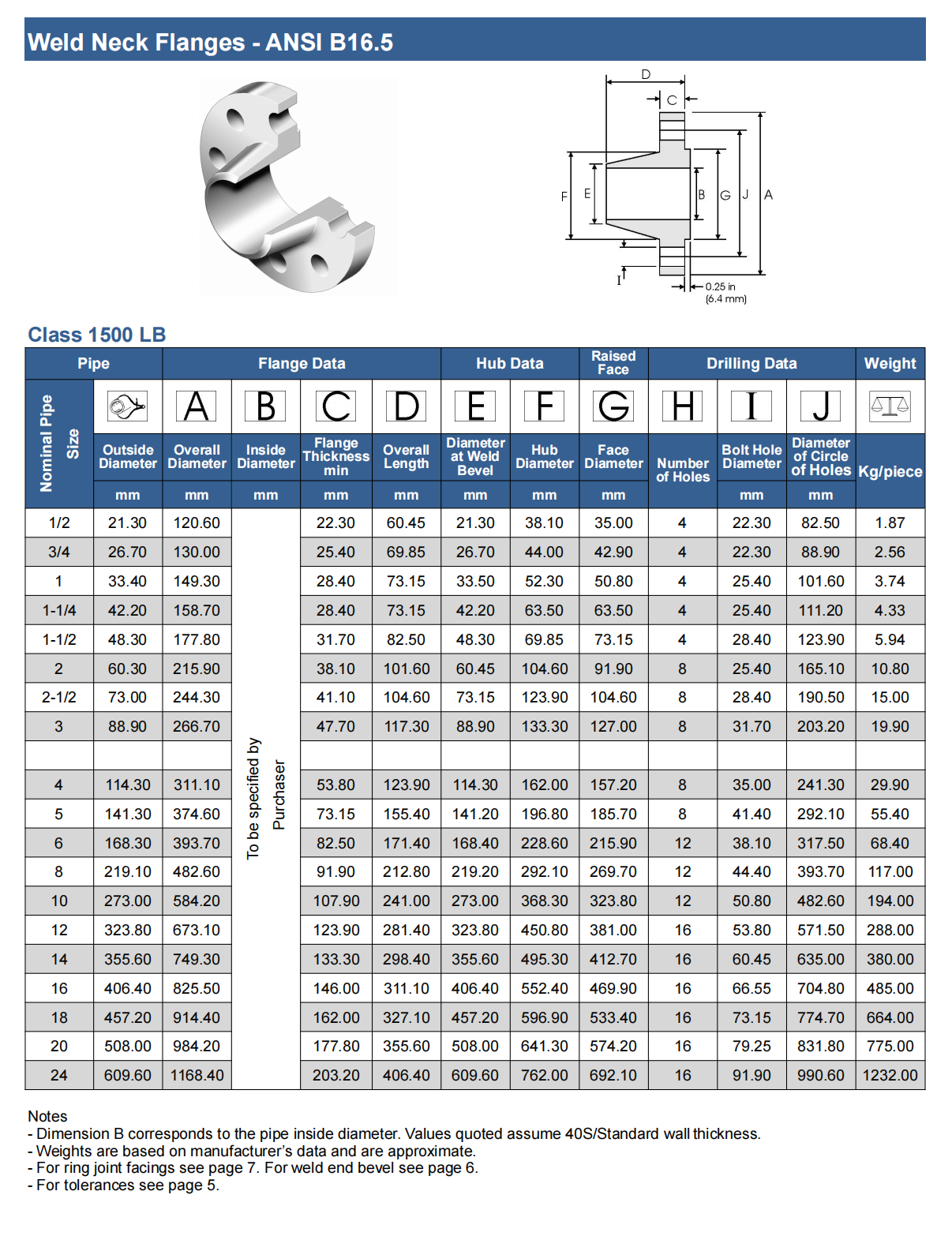

Weld Neck – for high pressure, smooth flow

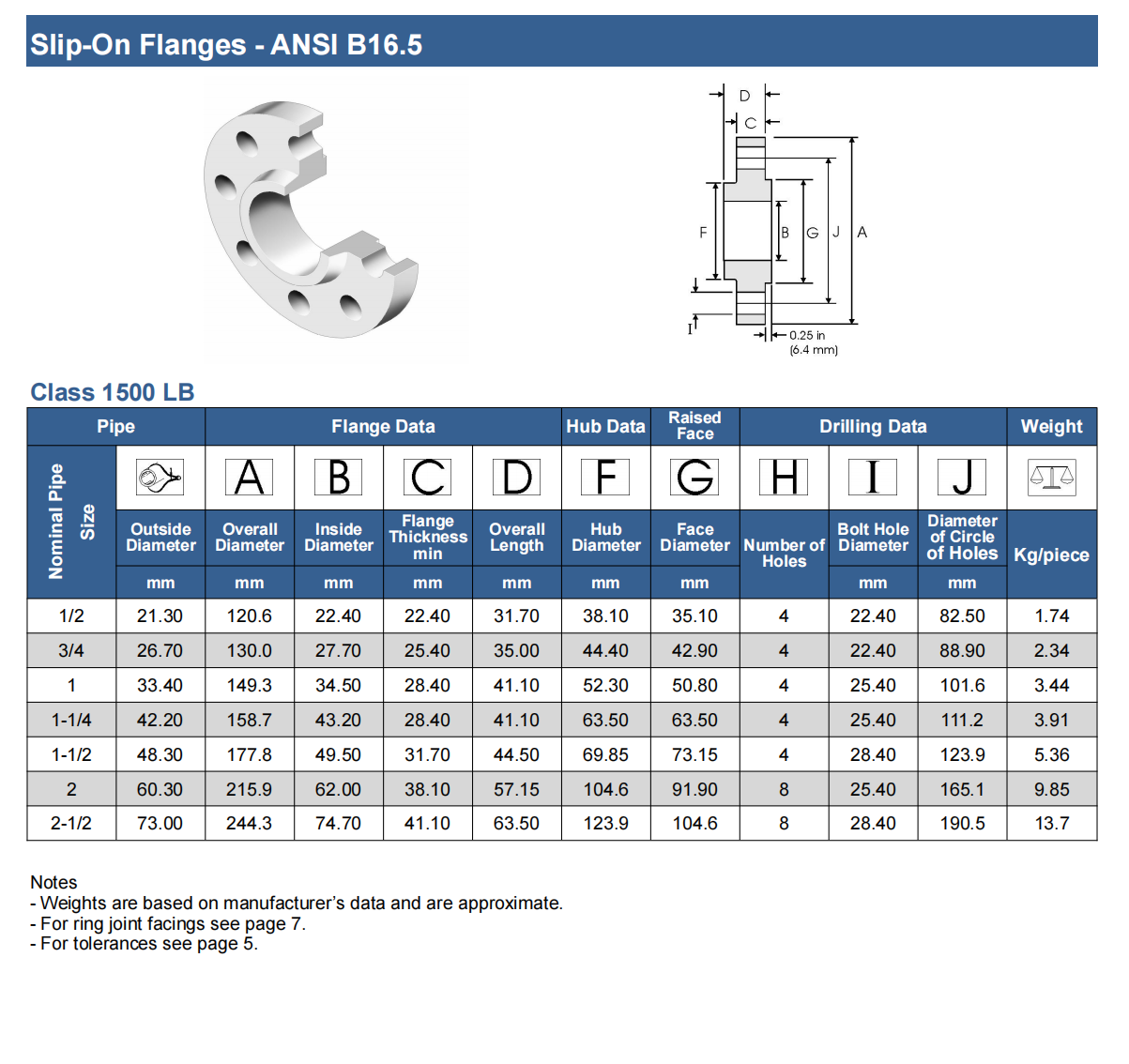

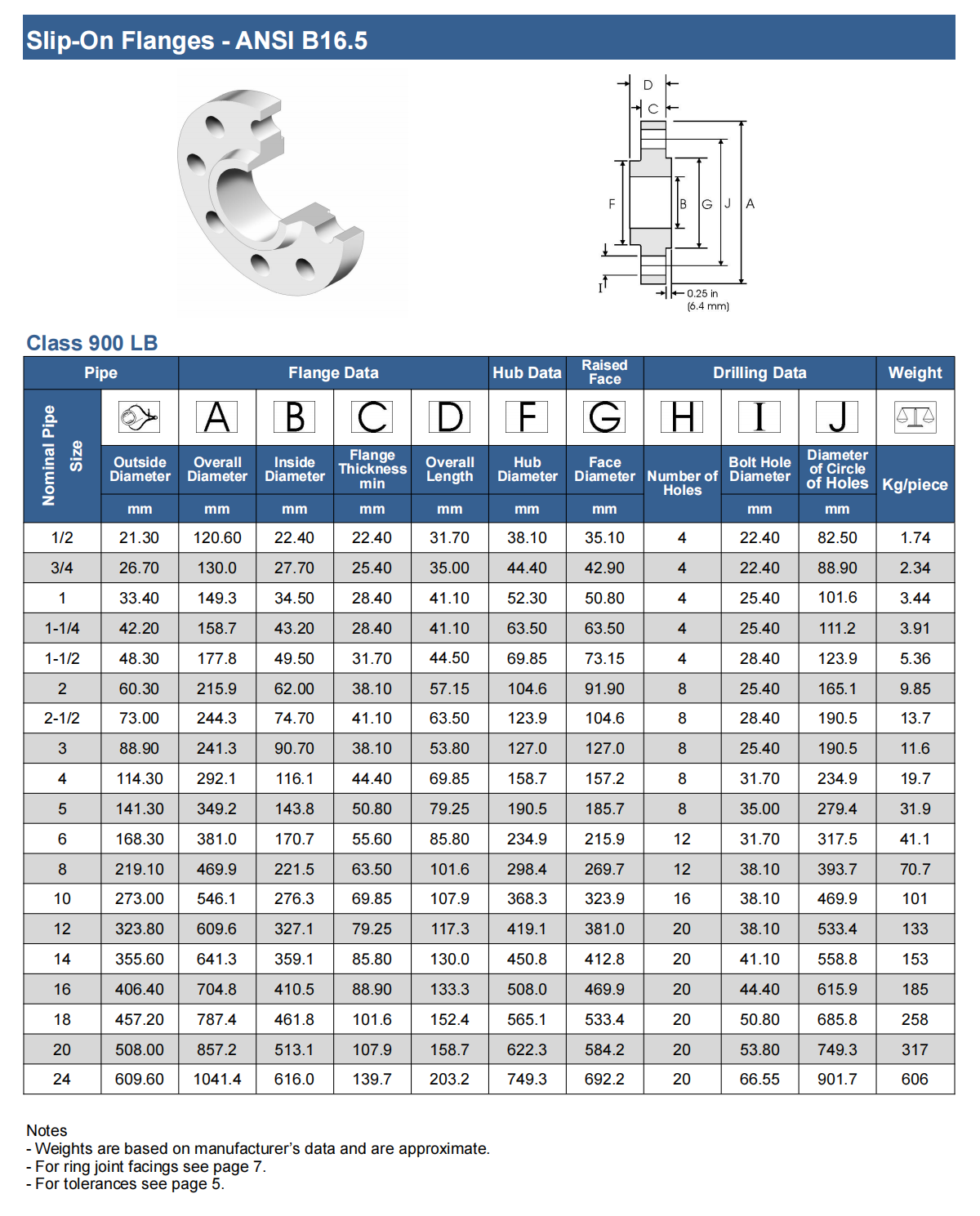

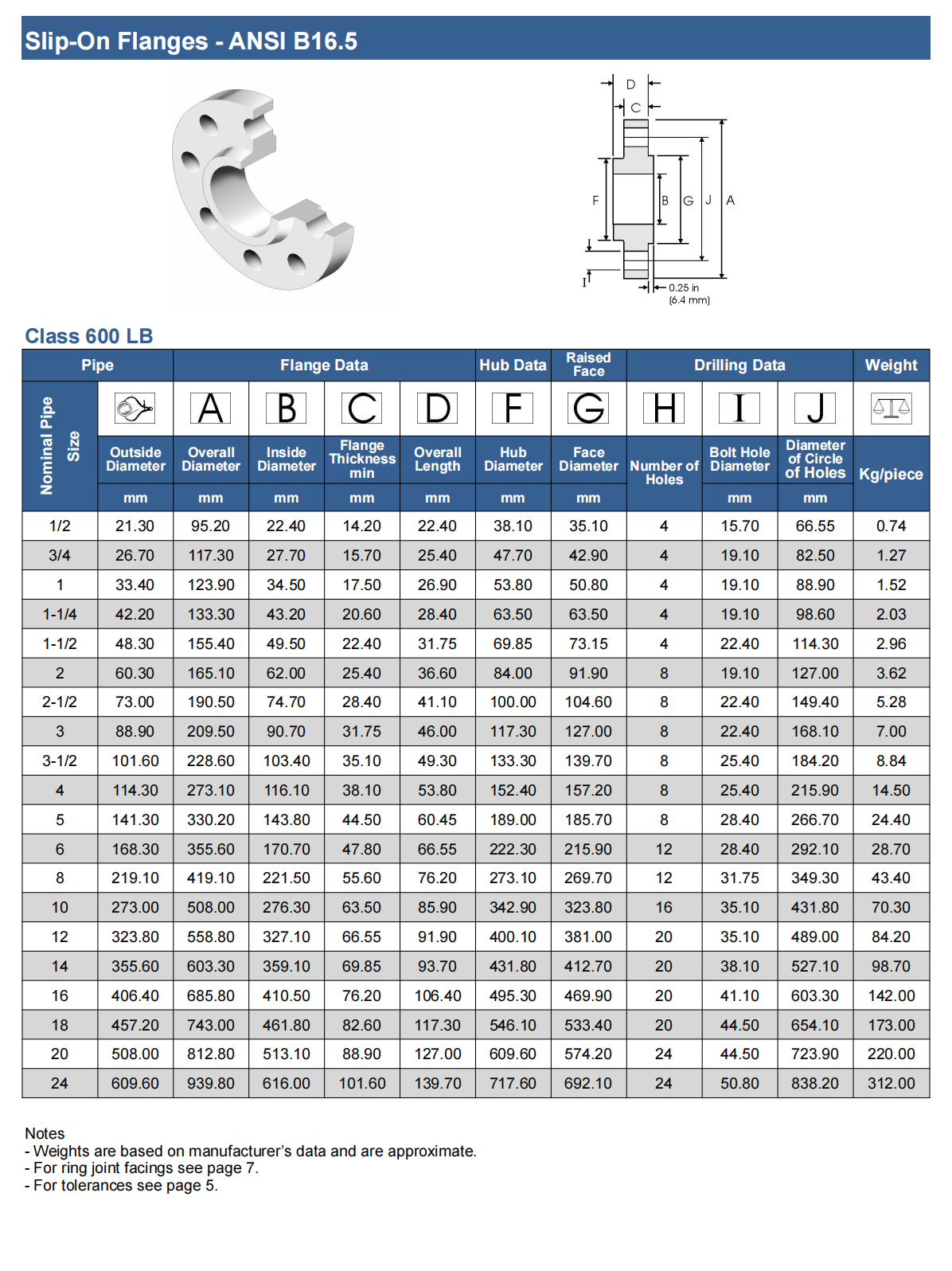

Slip-On – easy fabrication, fillet welded

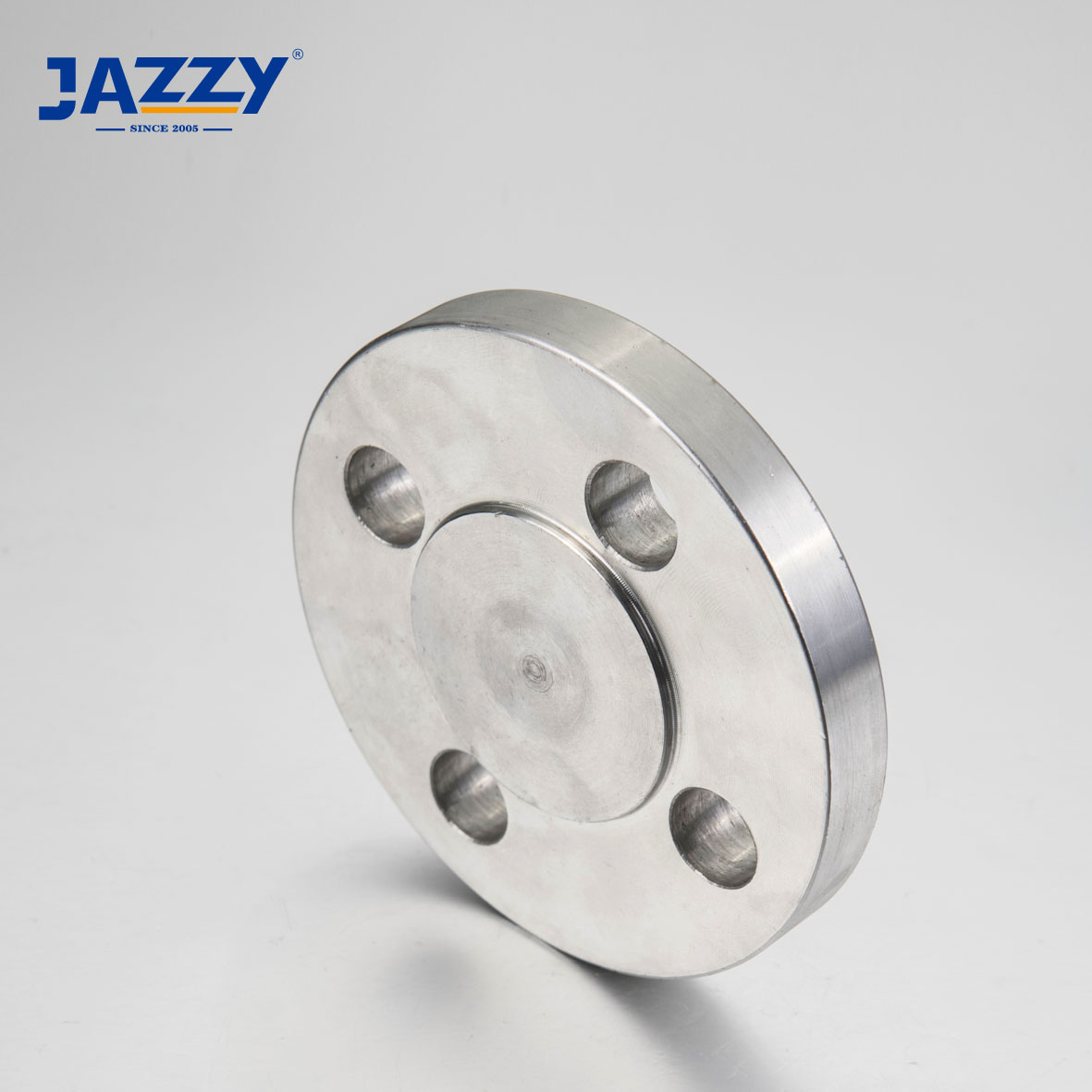

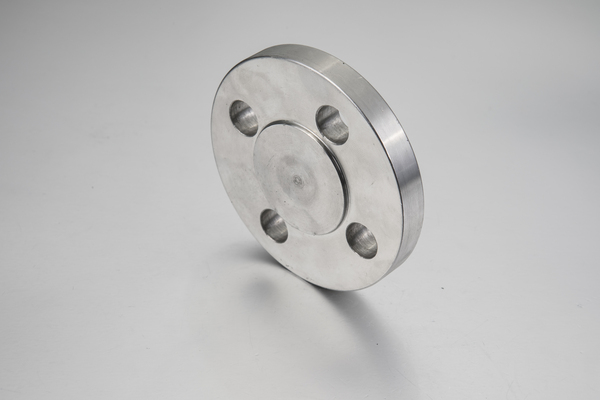

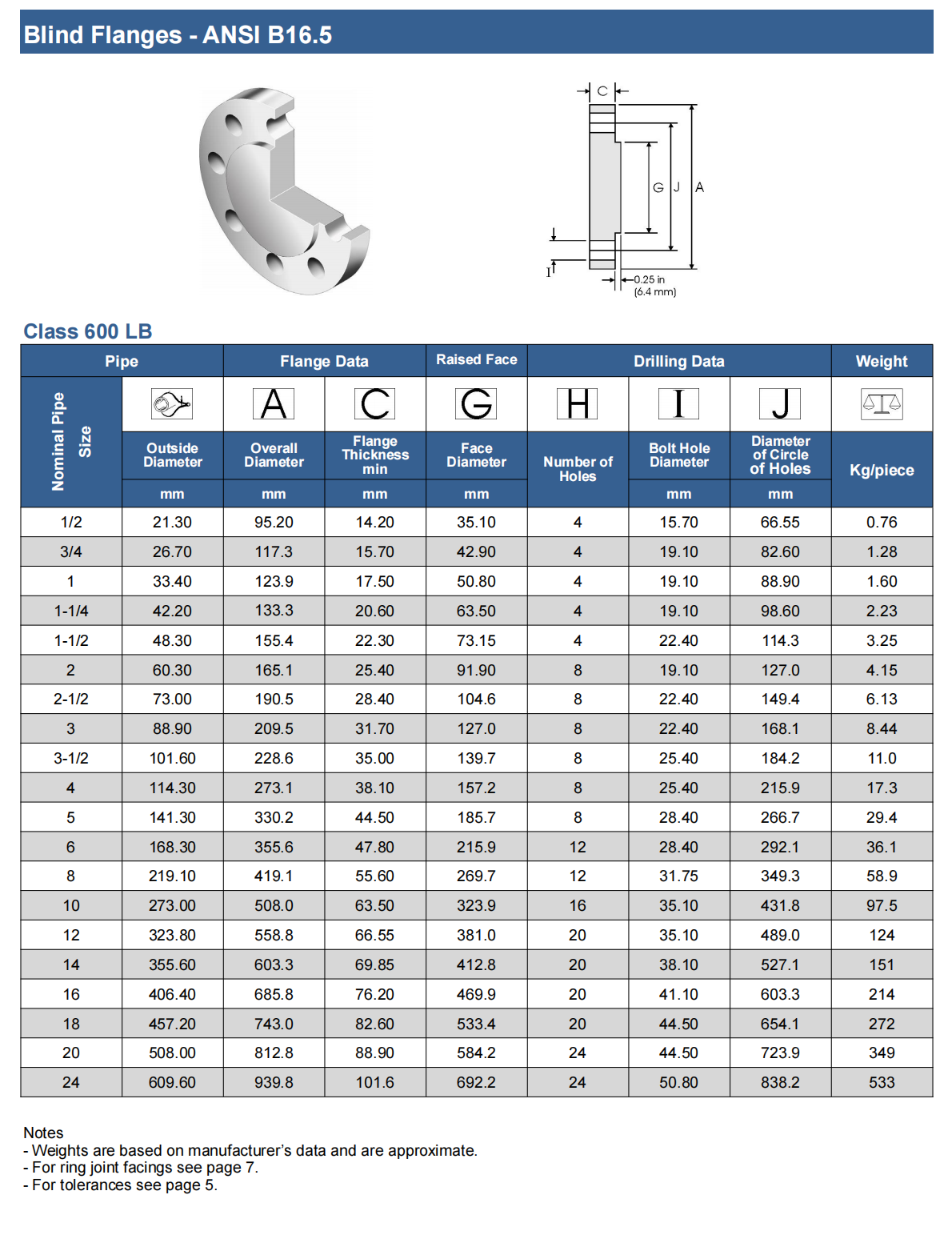

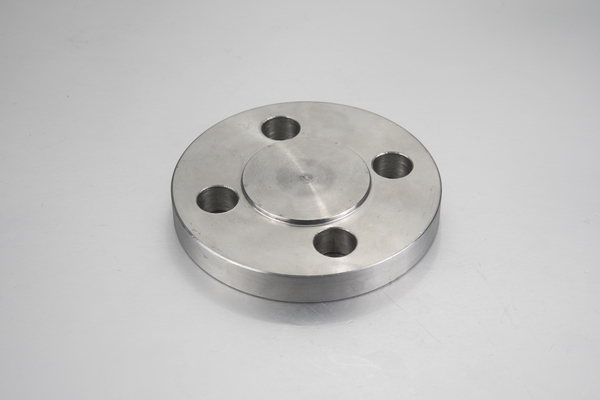

Blind – blank off pipe ends or valves

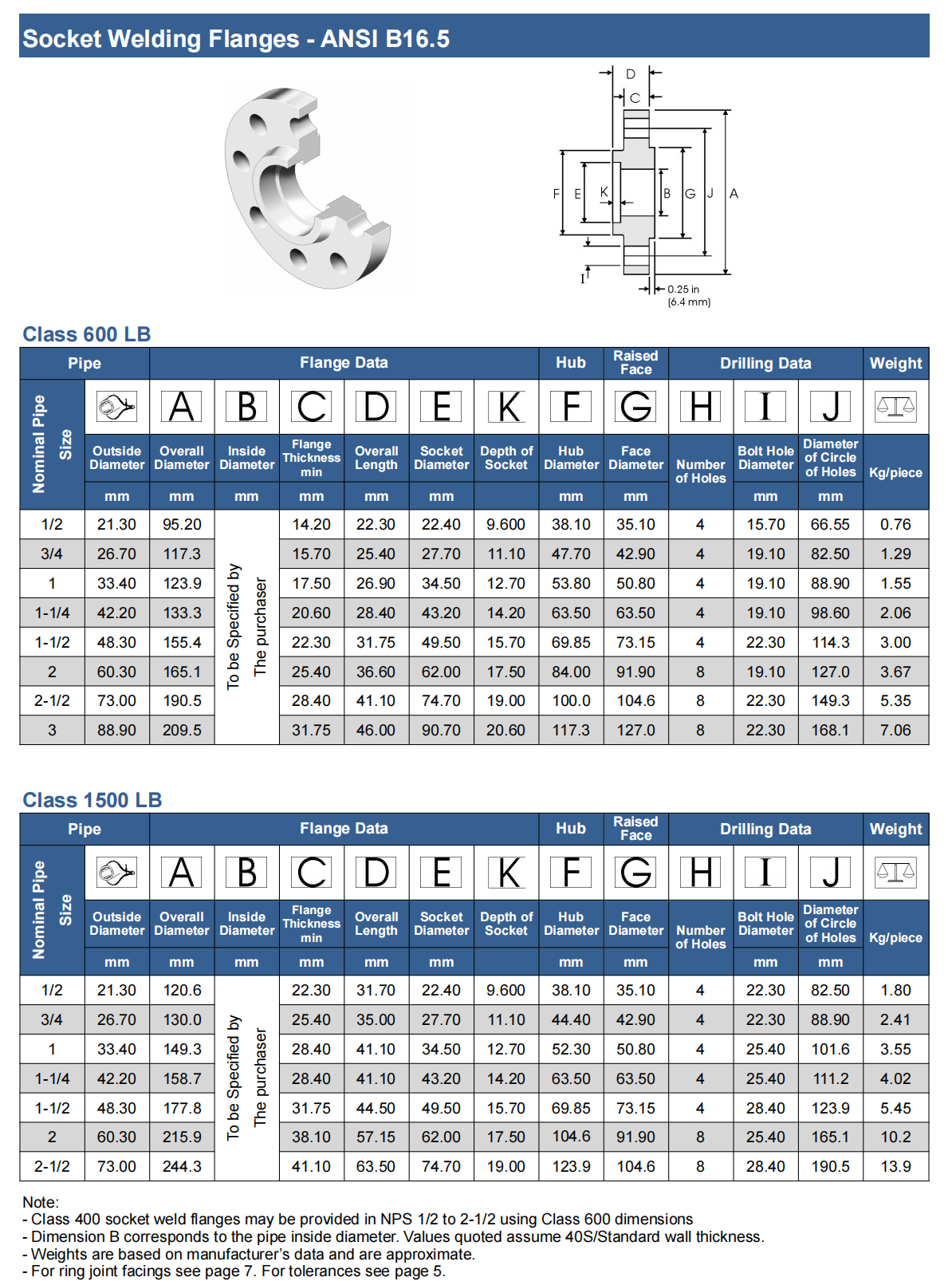

Socket Weld – good flow, fillet welded

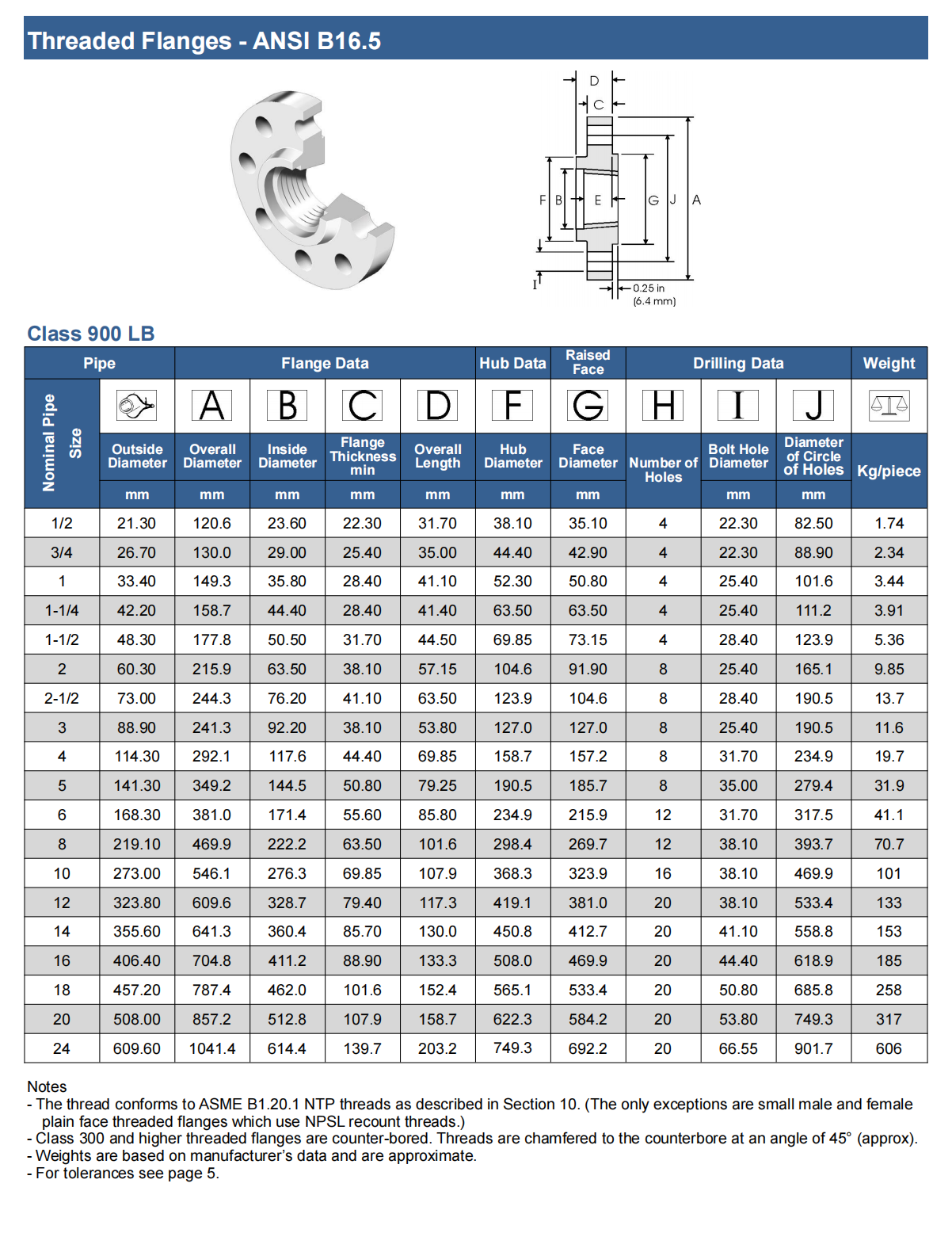

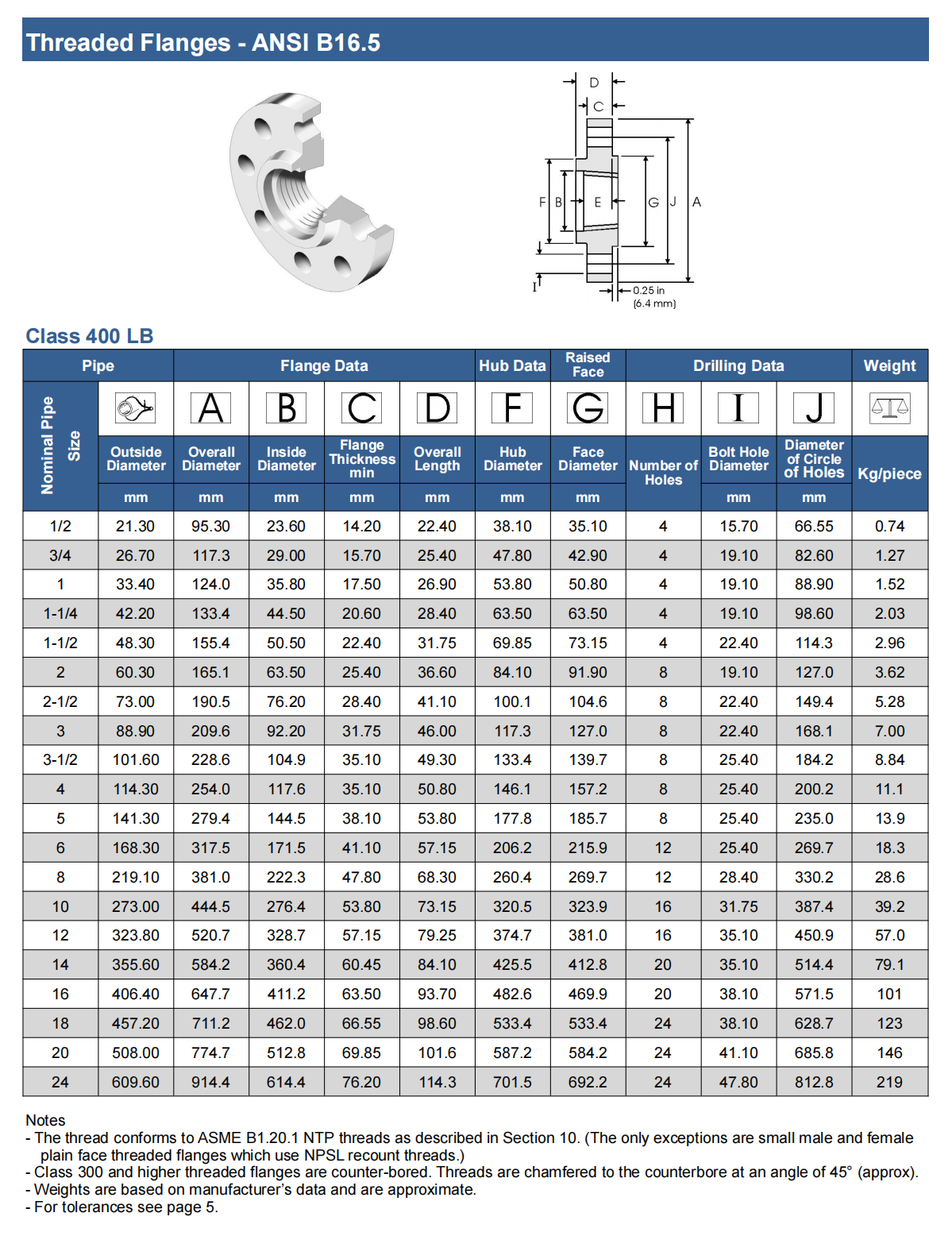

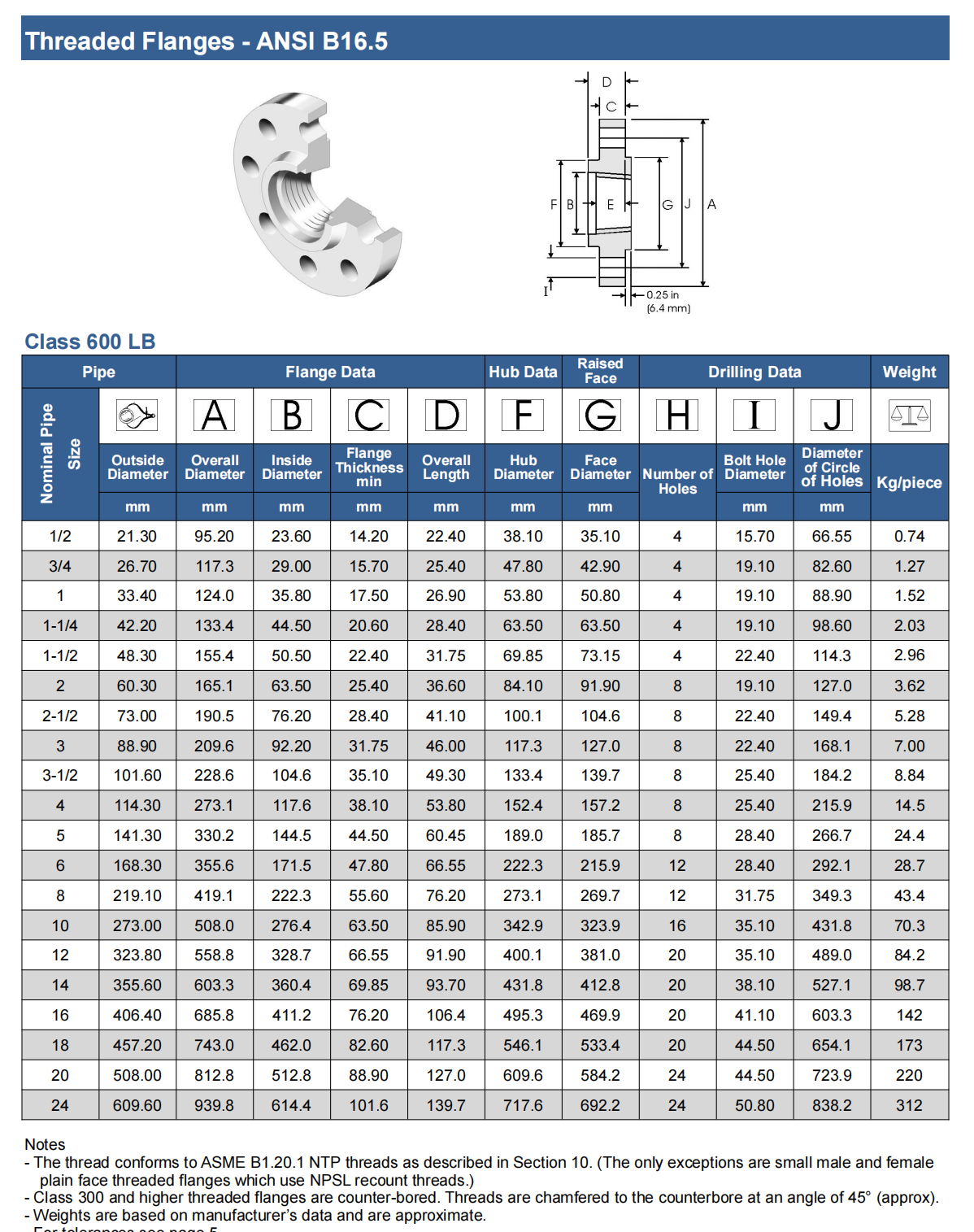

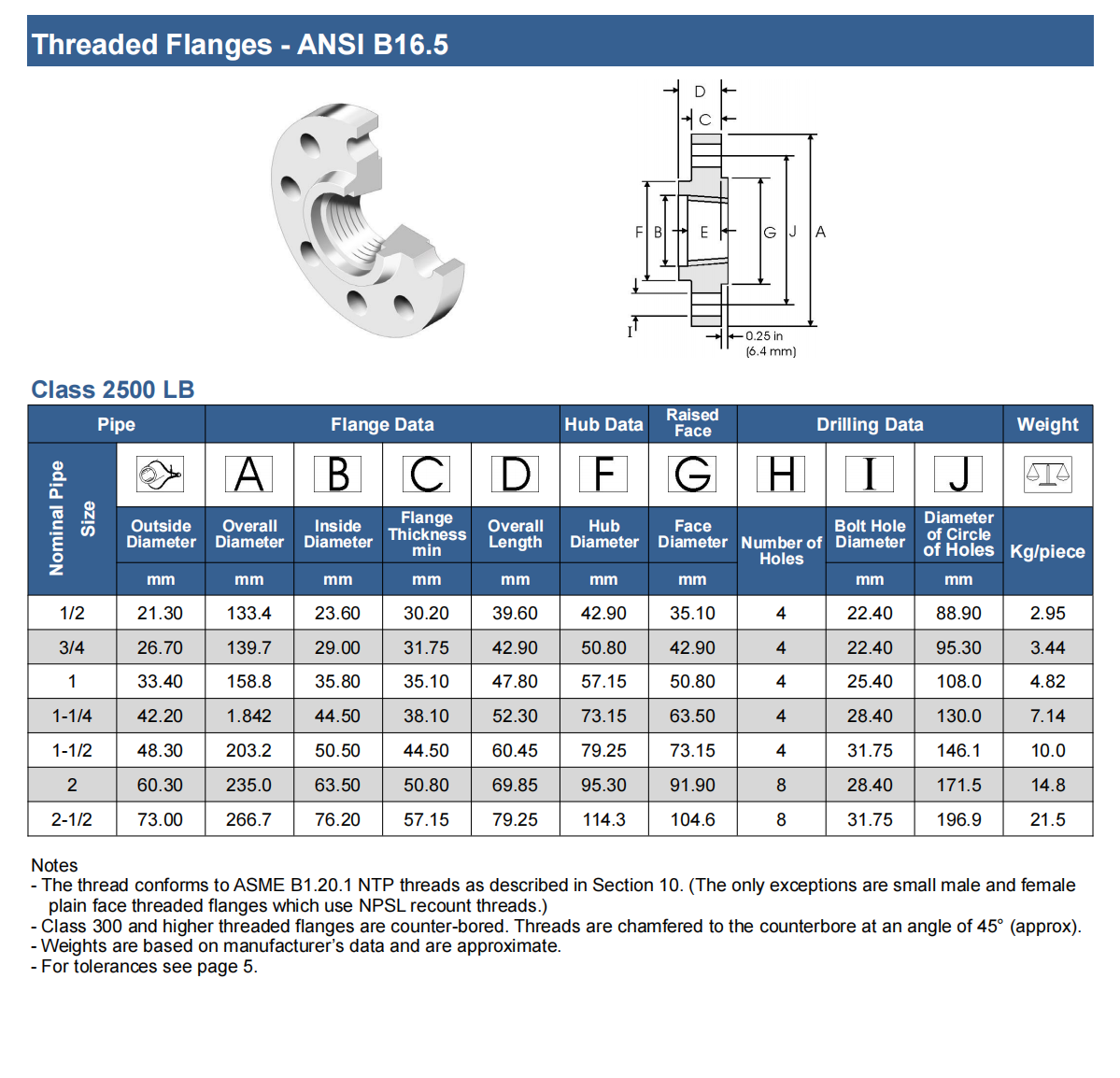

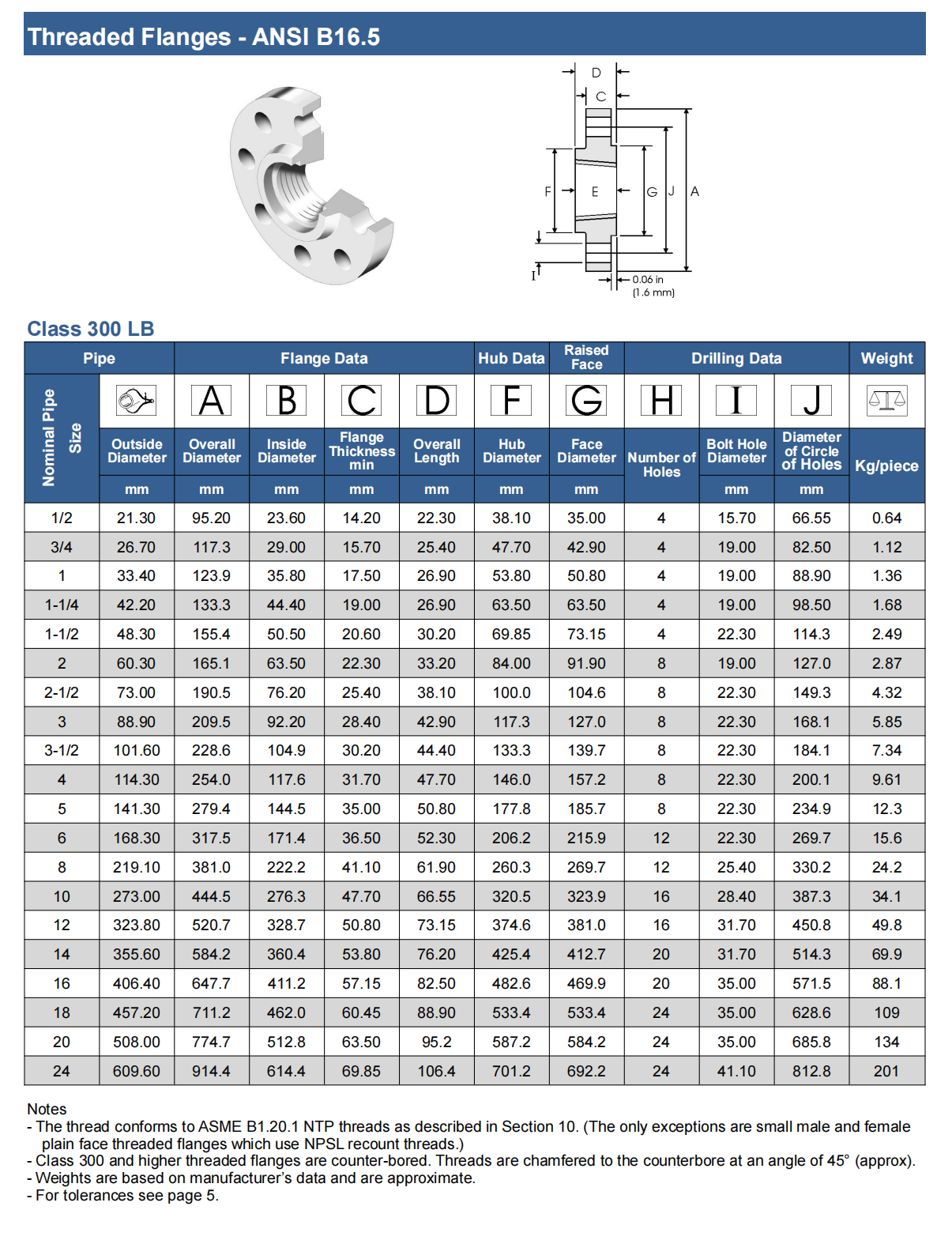

Threaded – no welding, low pressure

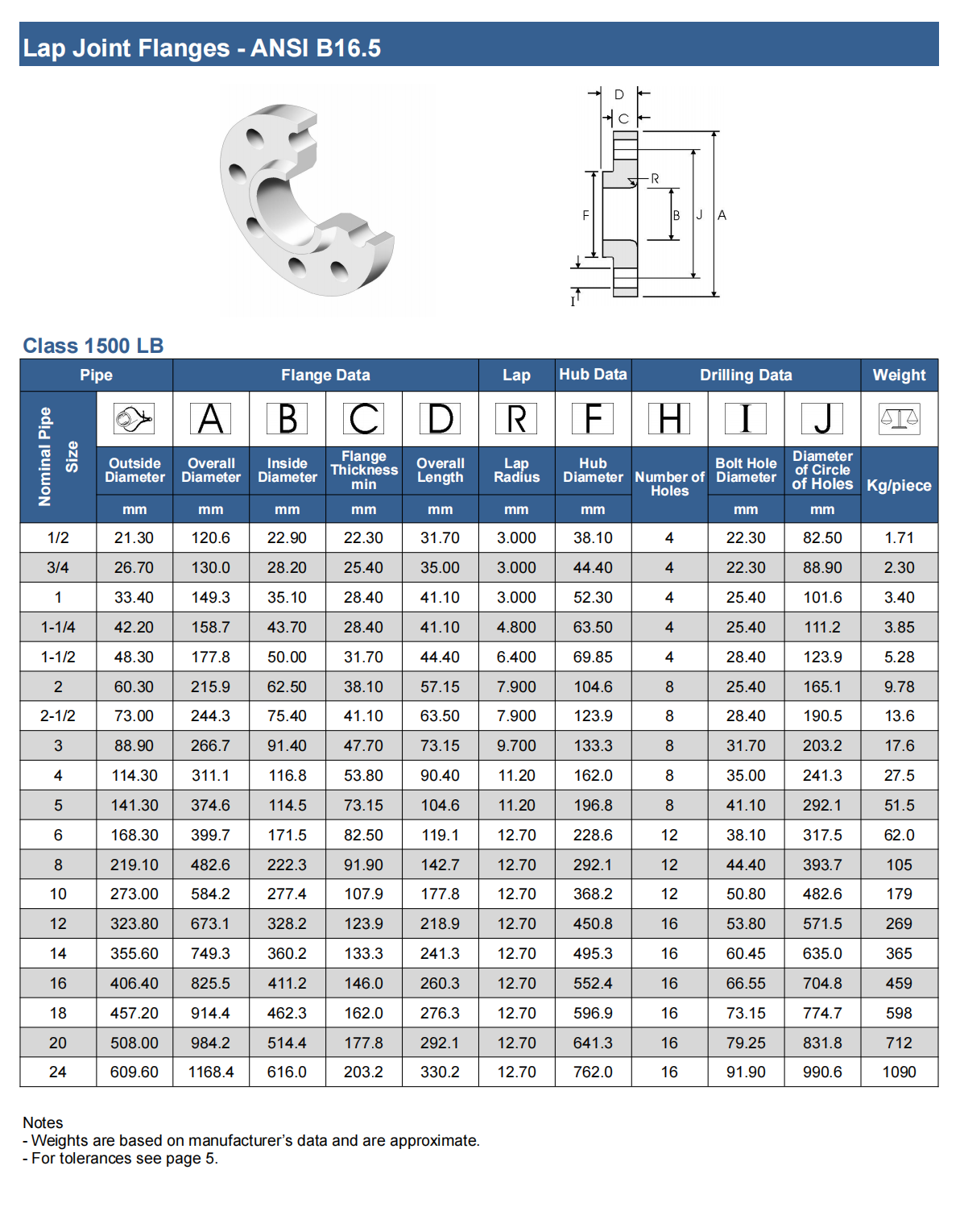

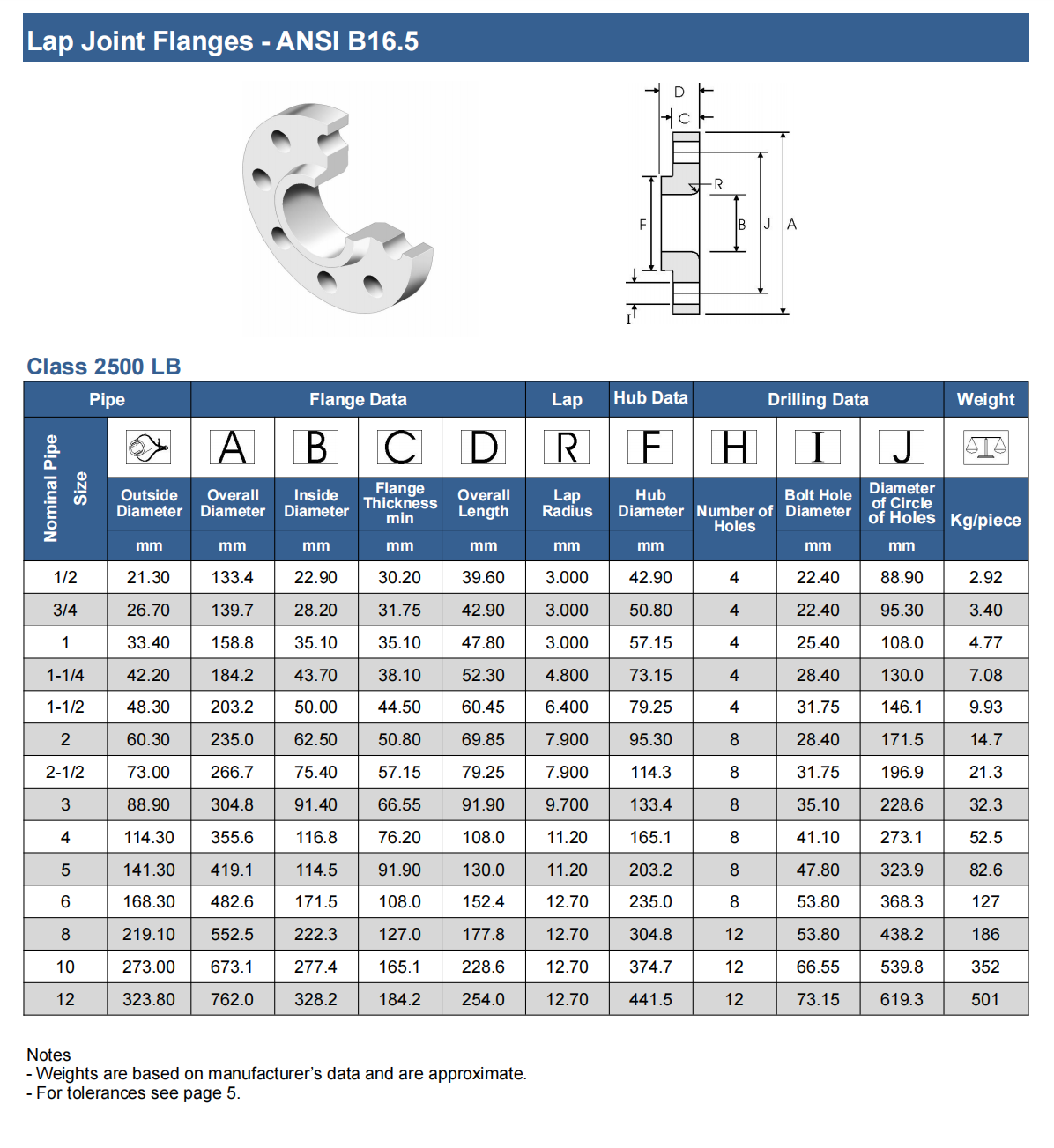

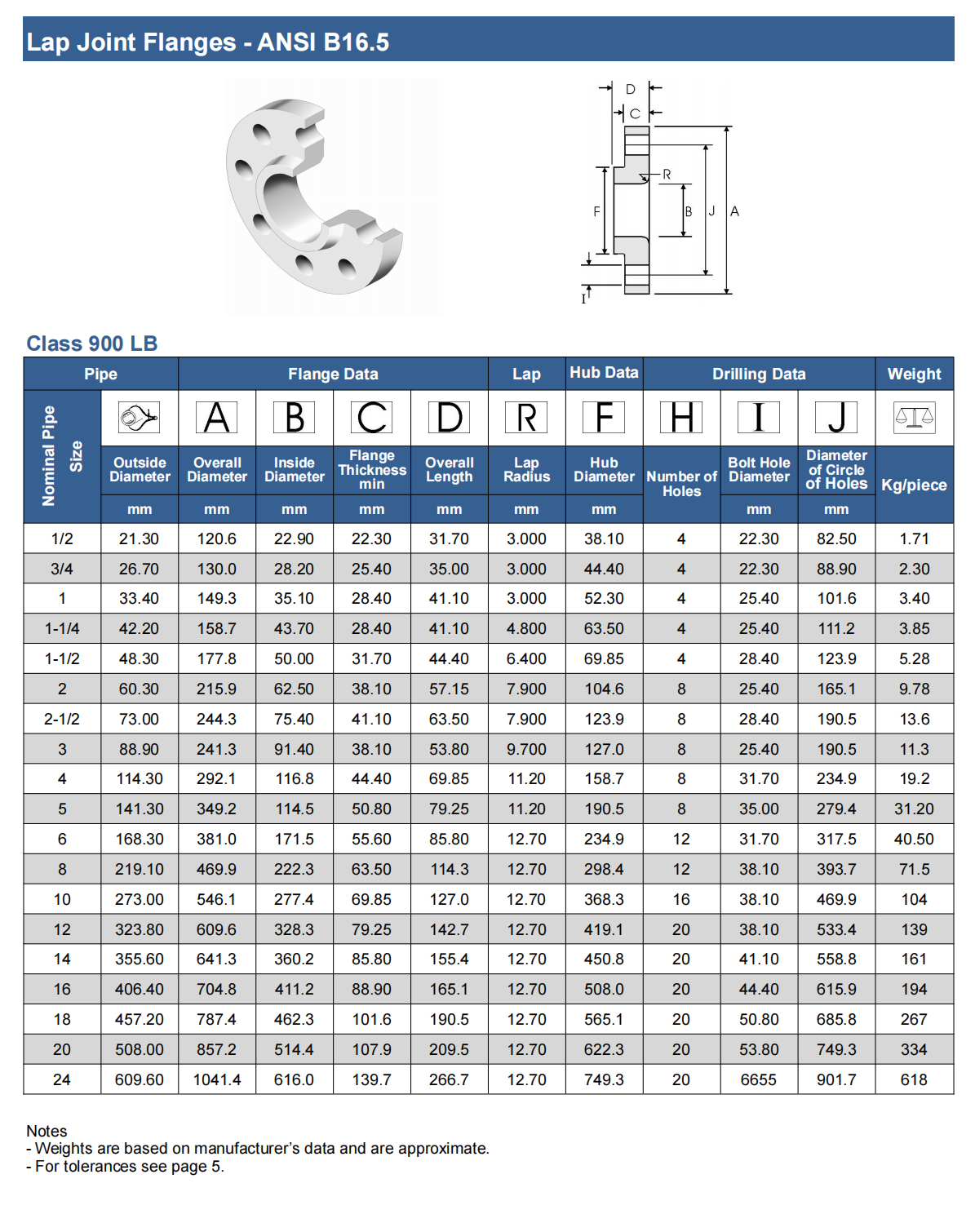

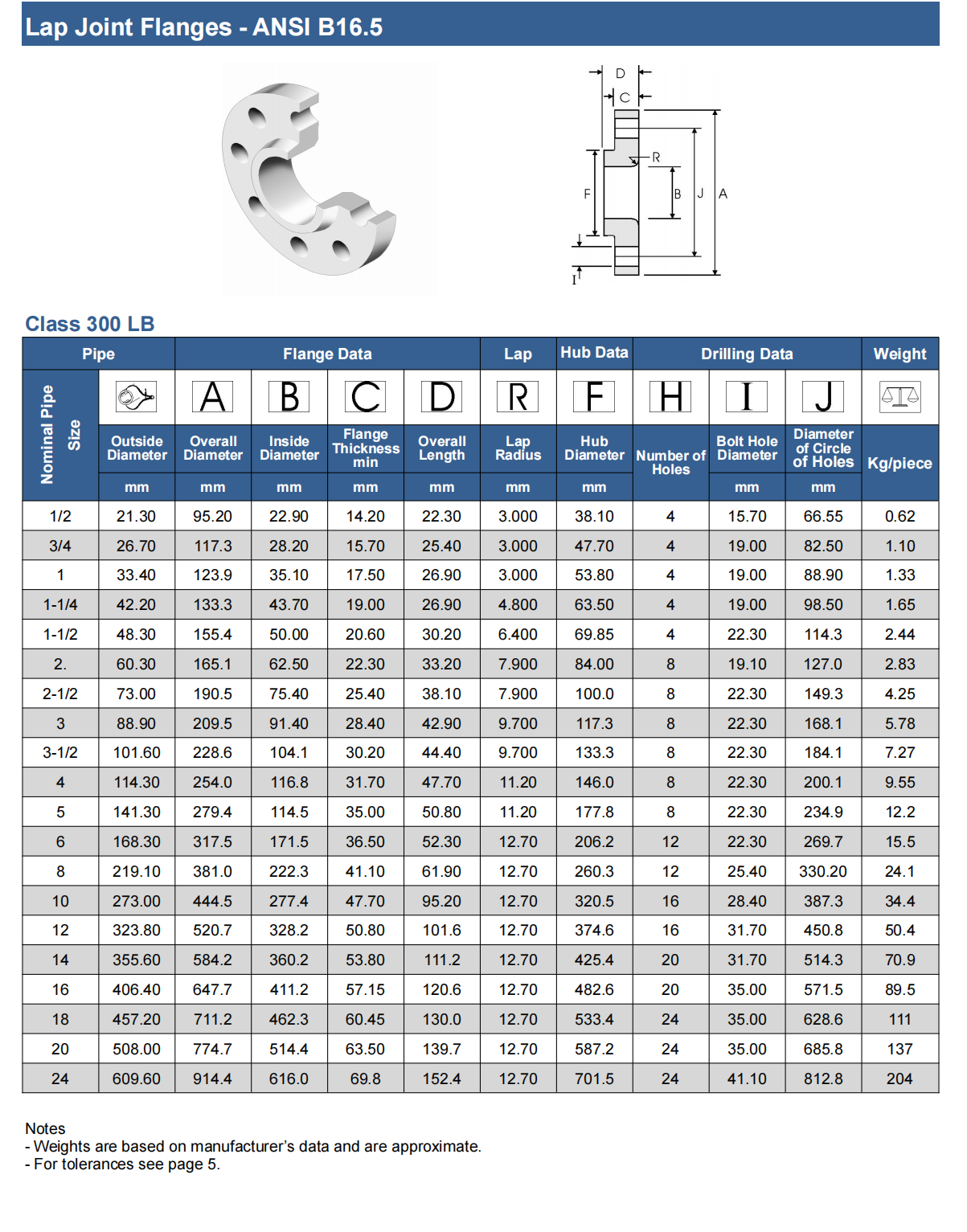

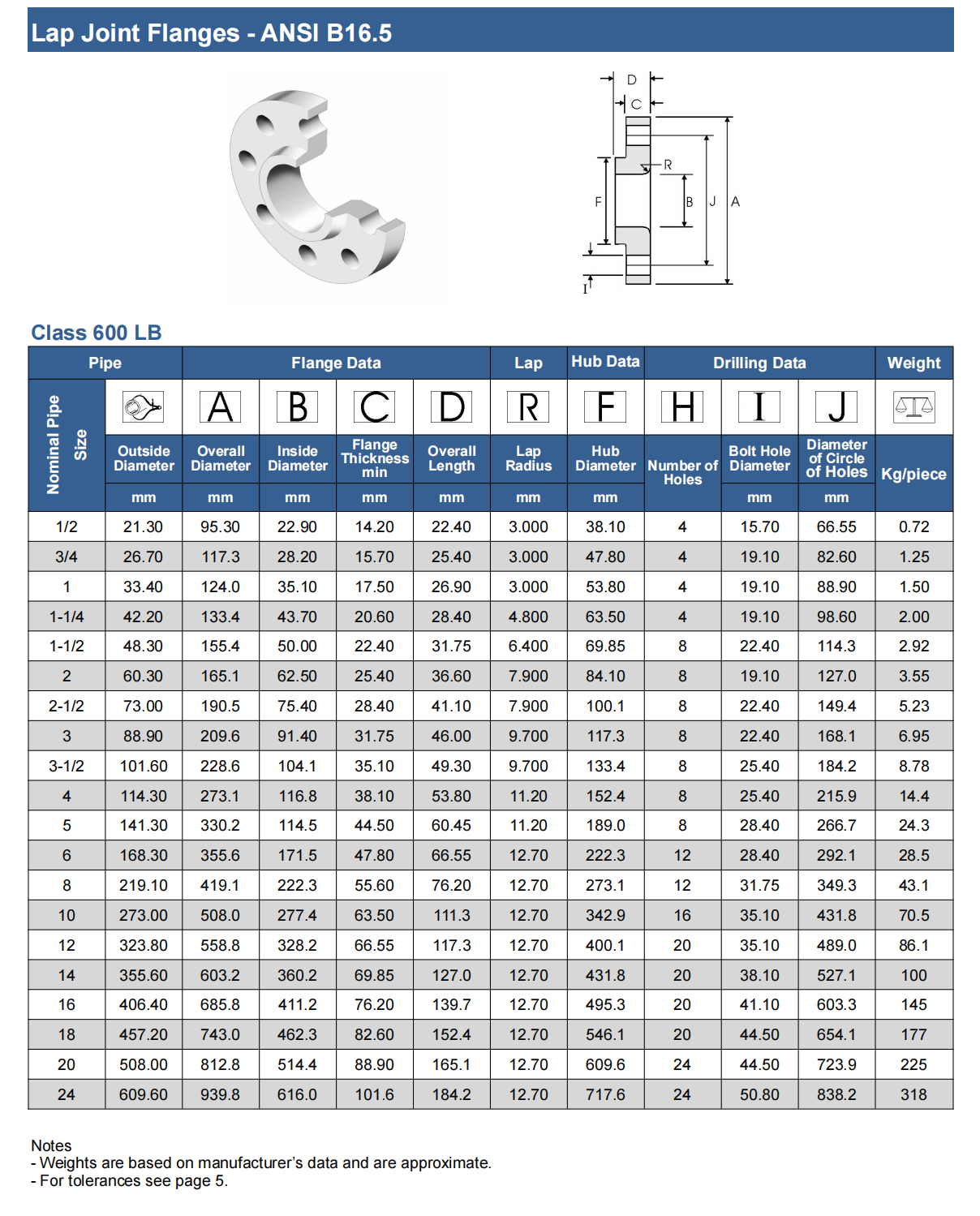

Lap Joint – loose flange, cost effective

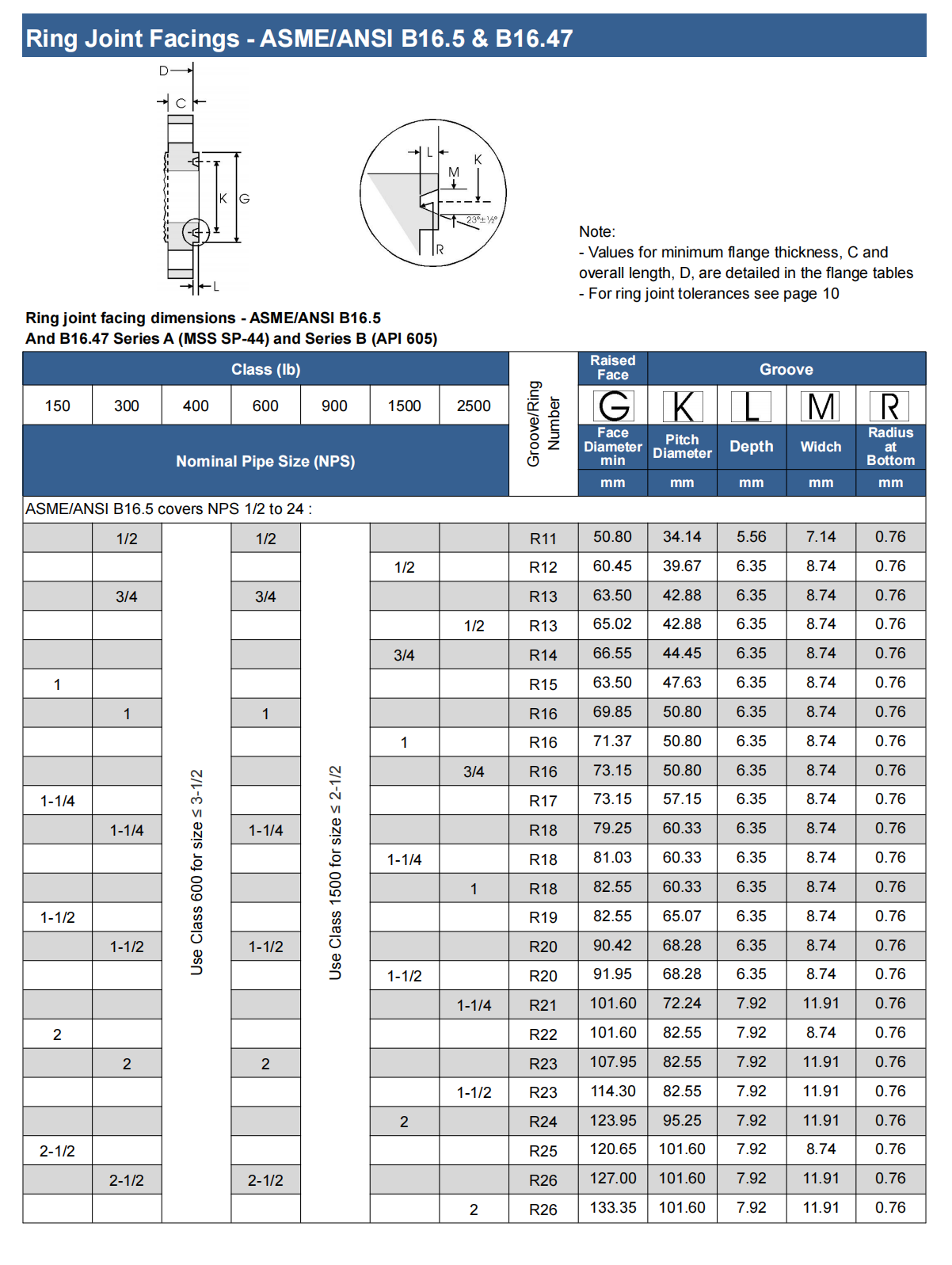

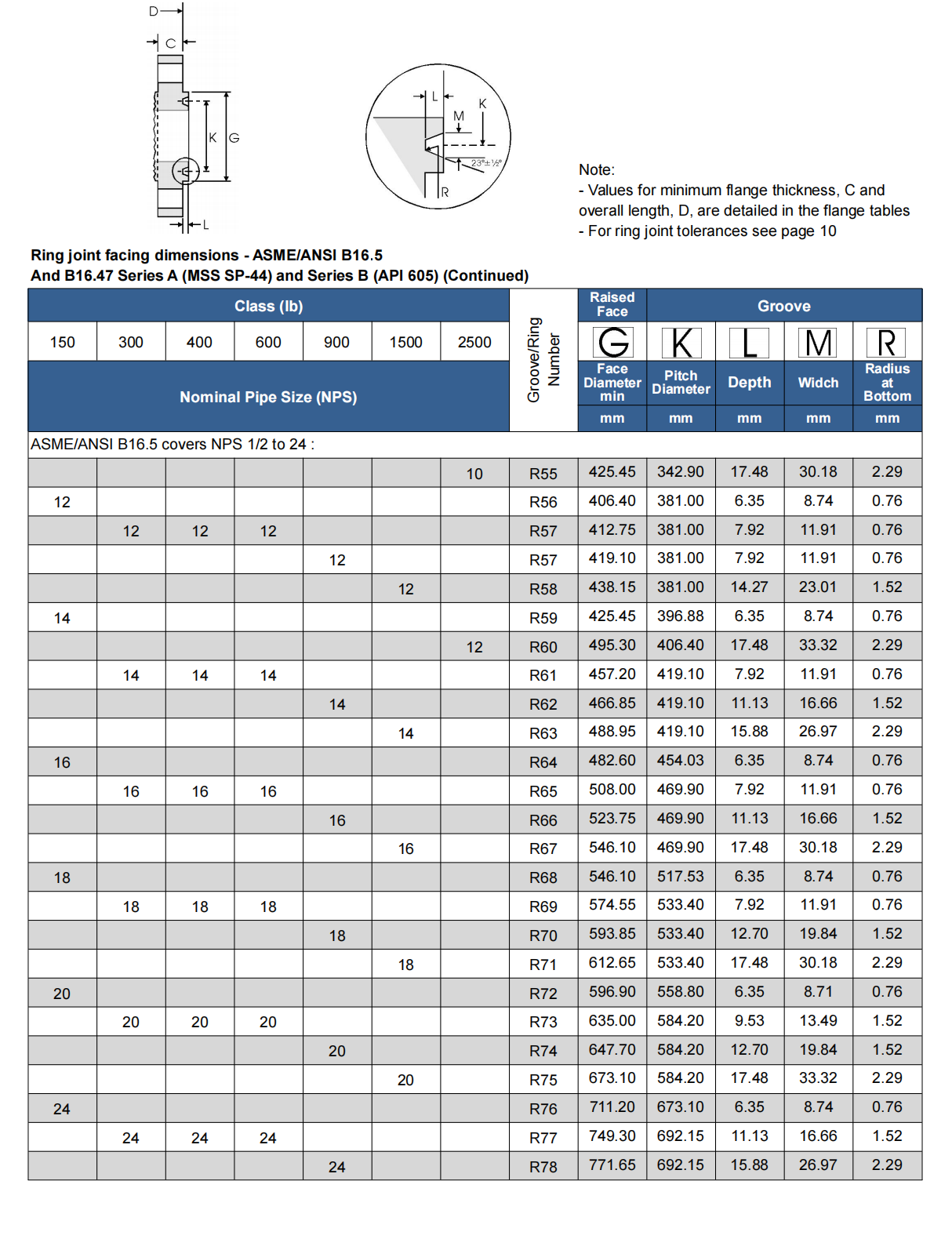

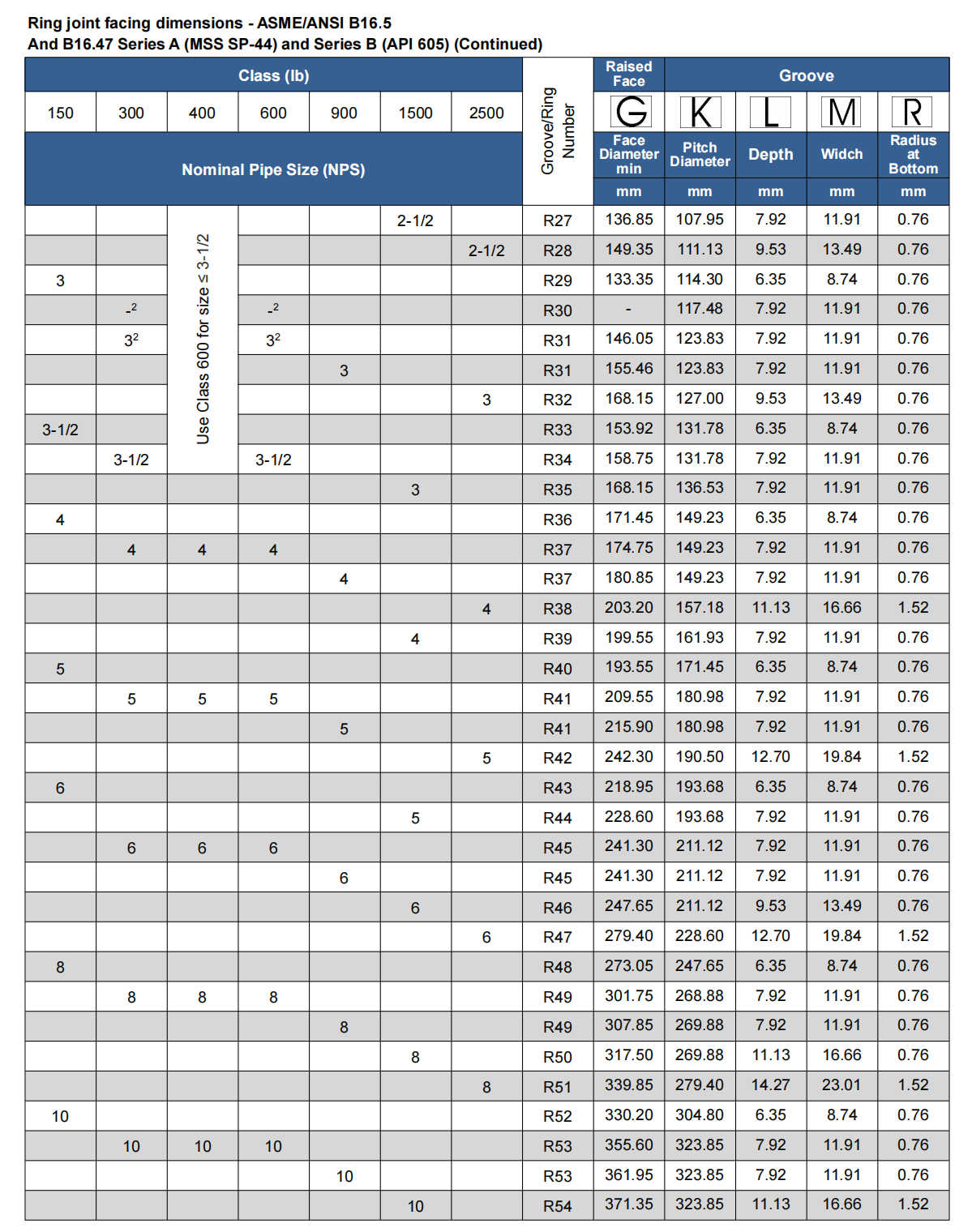

Ring Type Joint (RTJ) – metal ring seal, leak proof

Materials: Carbon steel (A105), stainless steel (F304/F316).

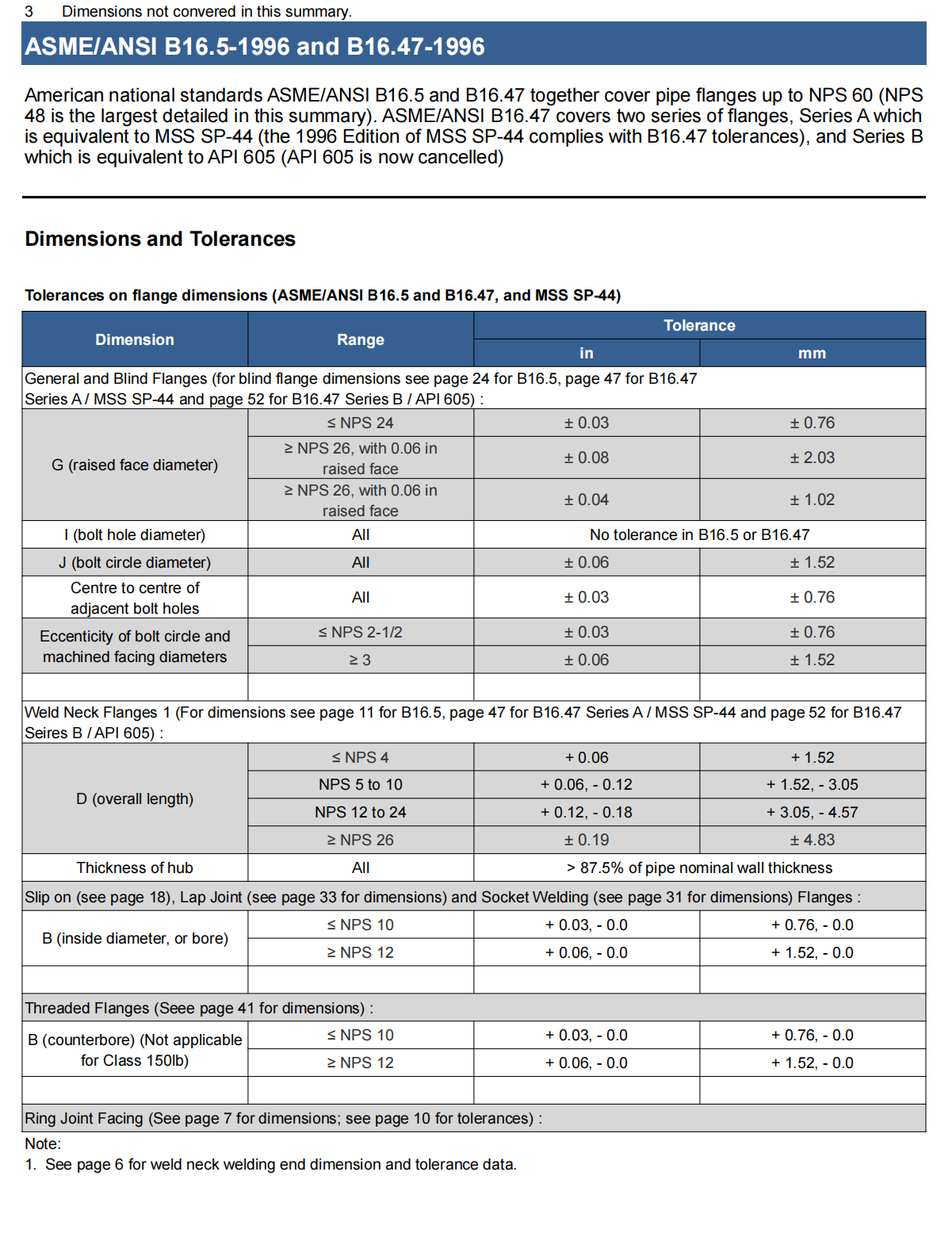

Standards: ASME B16.5 / B16.47.

Pressure: Class 150 to 2500.

Size: NPS 1/2″ to 24″ (DN15 to DN600).

Suitable for oil & gas, petrochemical, power, and water treatment. OEM and custom sizes available on request.

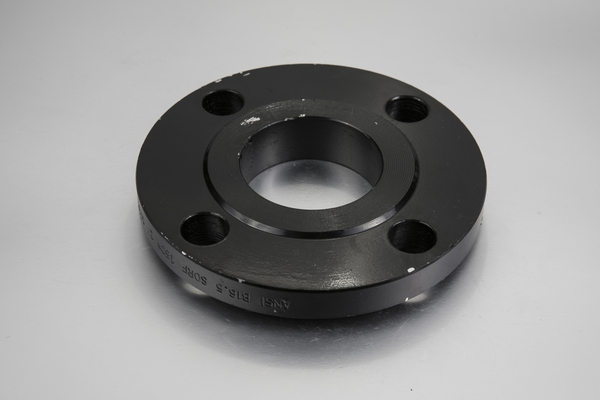

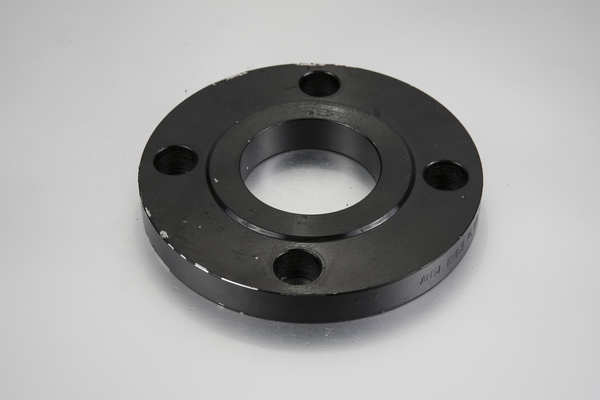

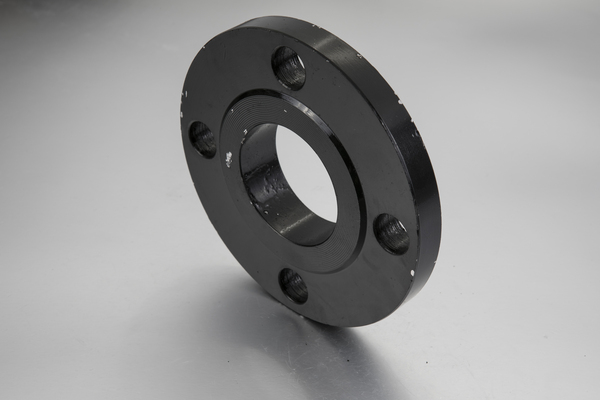

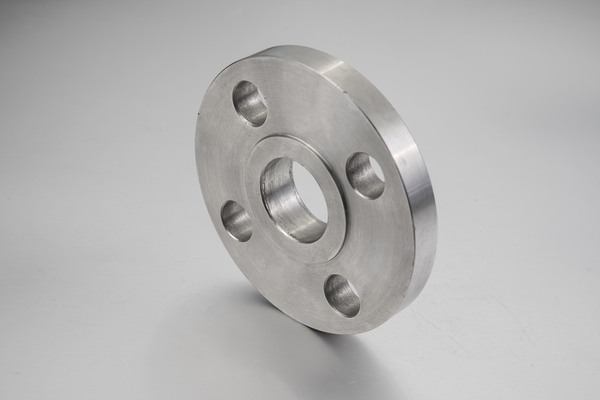

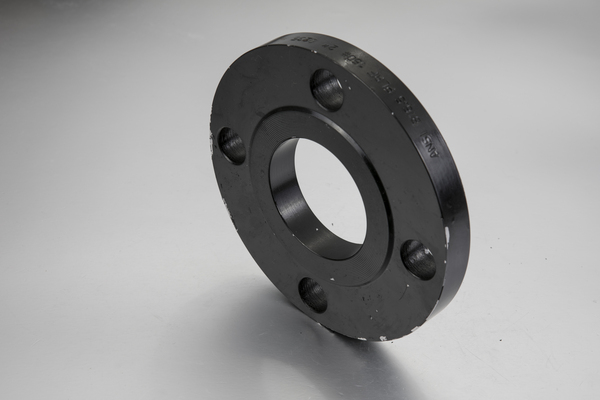

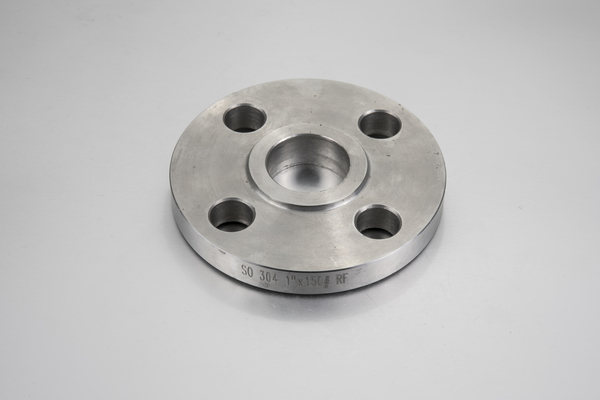

———— Product display ————

———— Workshop pictures ————

（车间图片）

———— Quality inspection images ————

（质检图片）

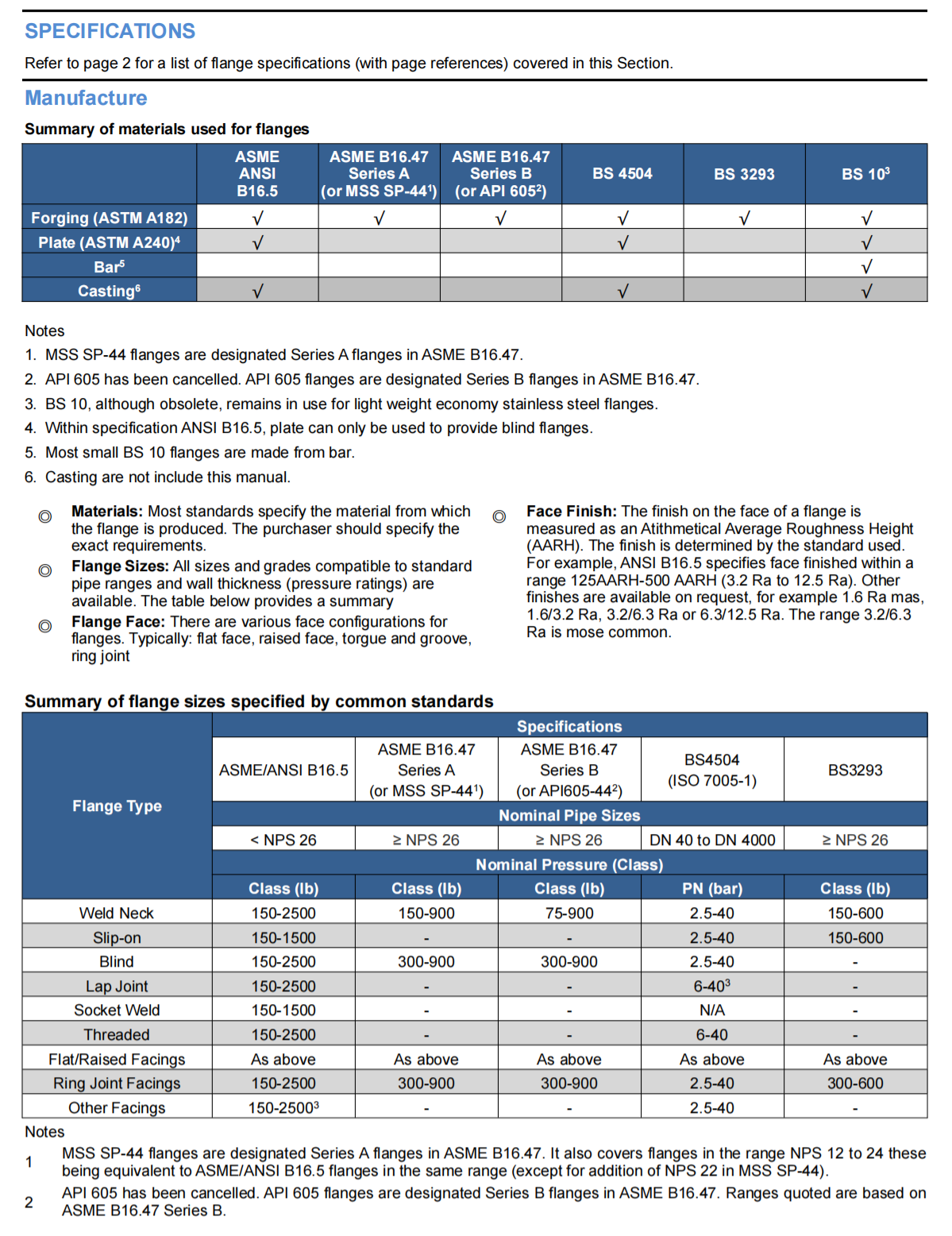

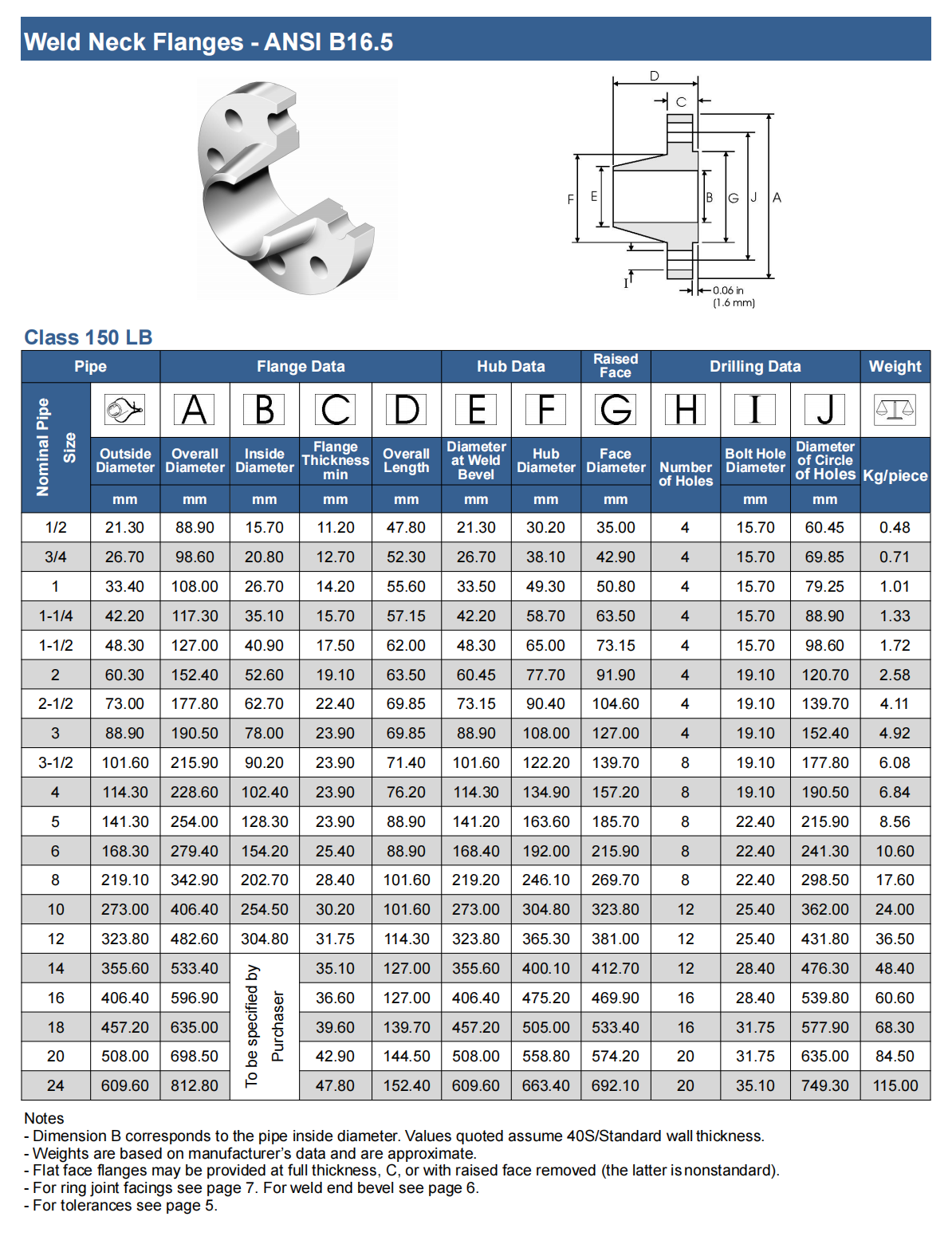

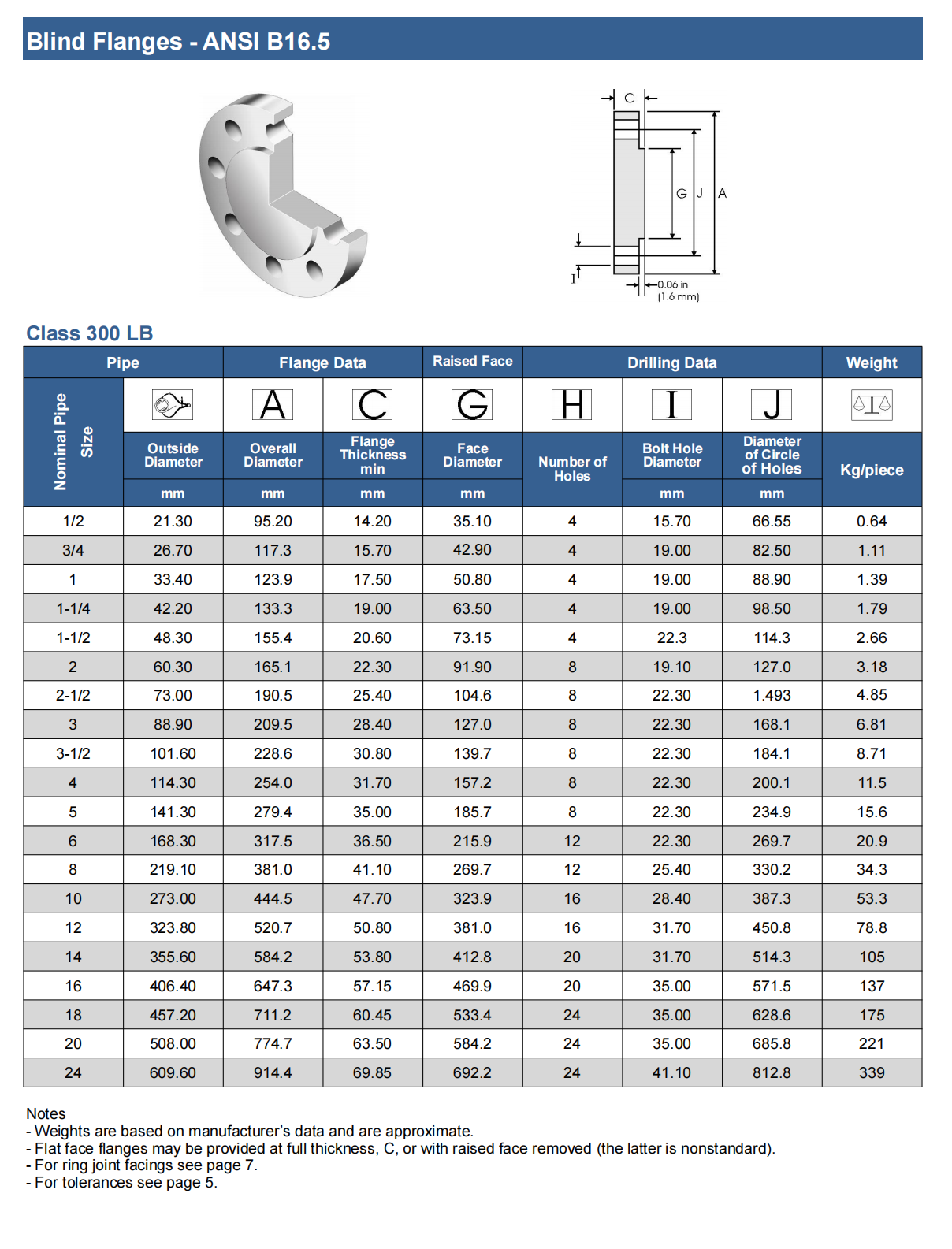

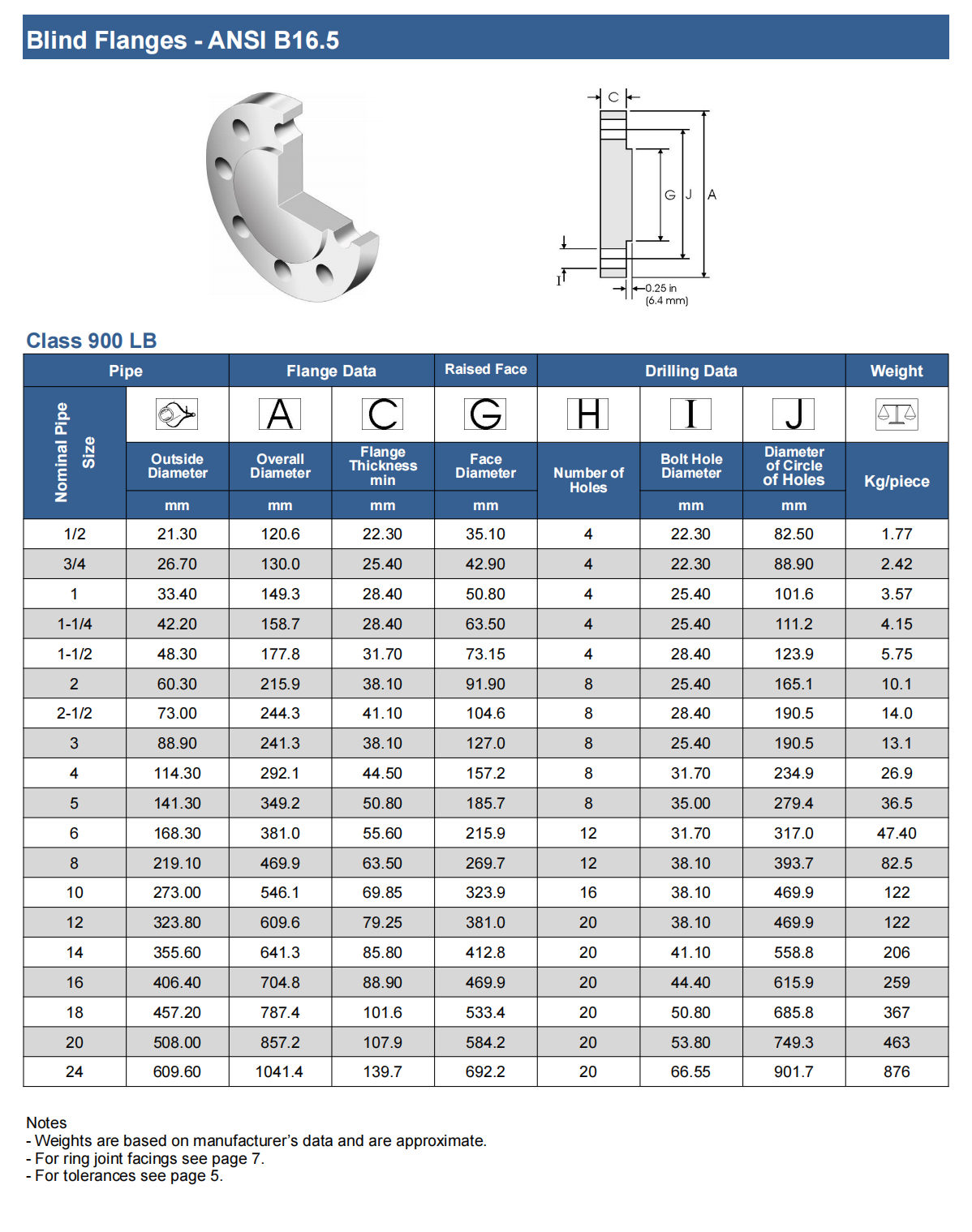

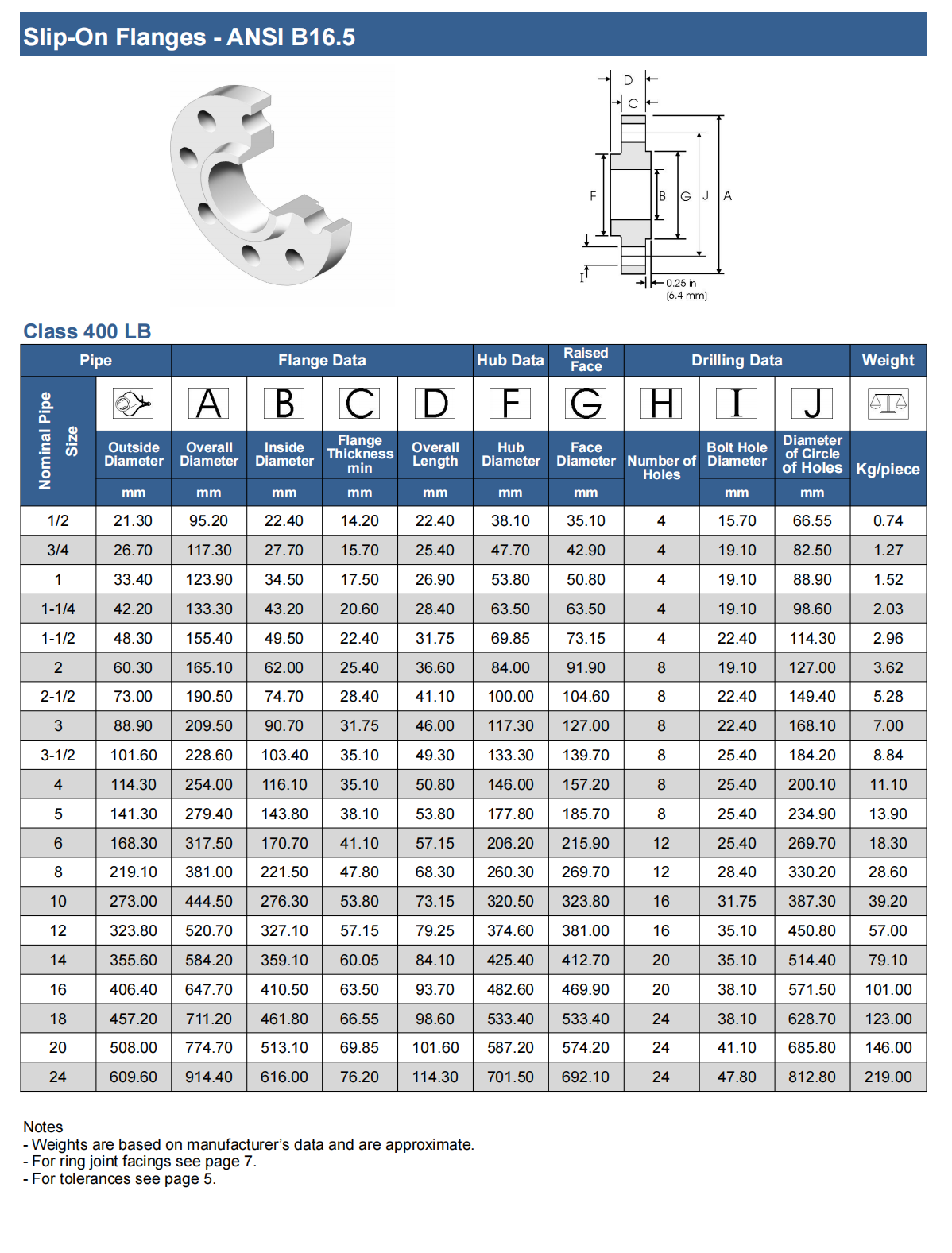

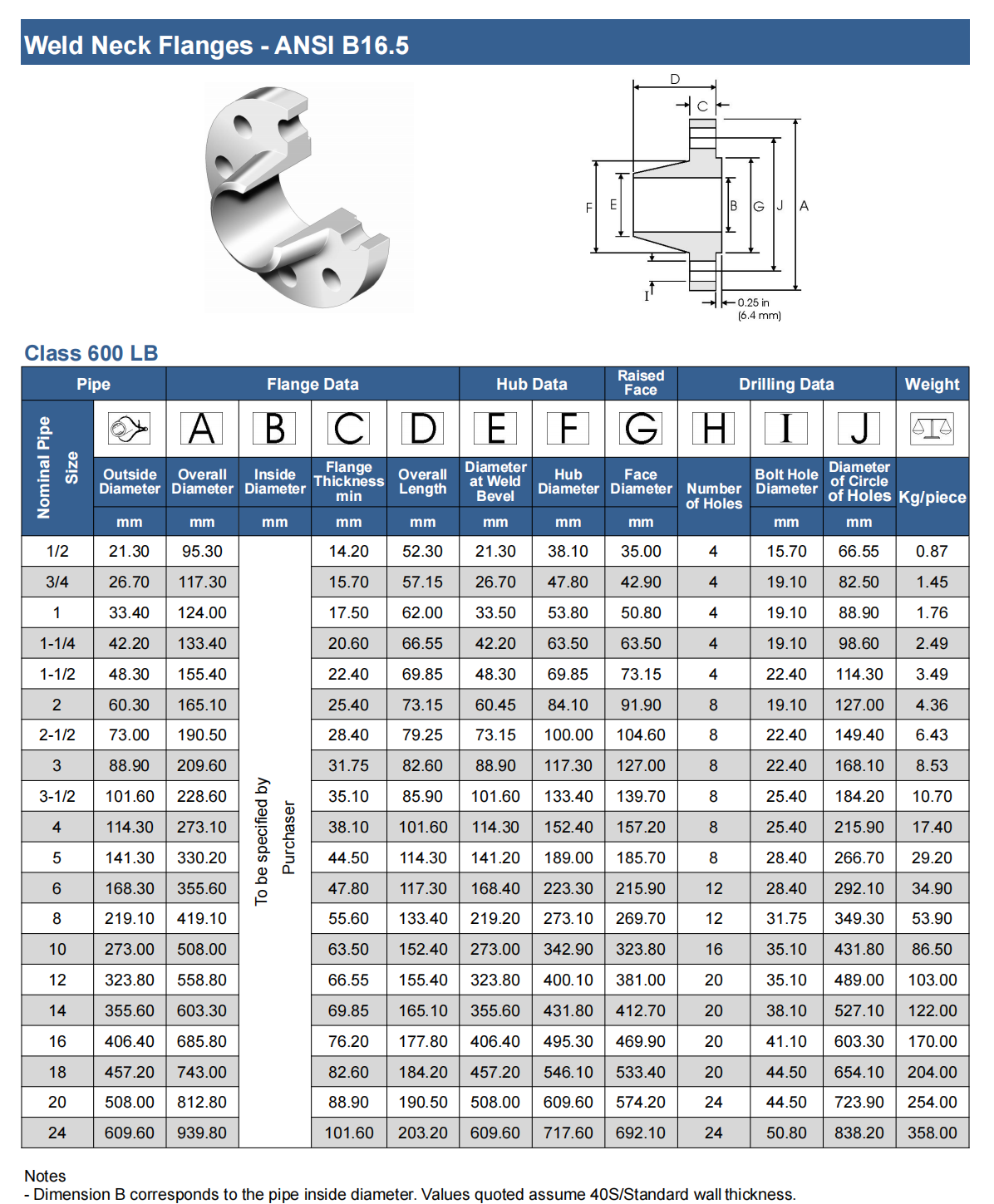

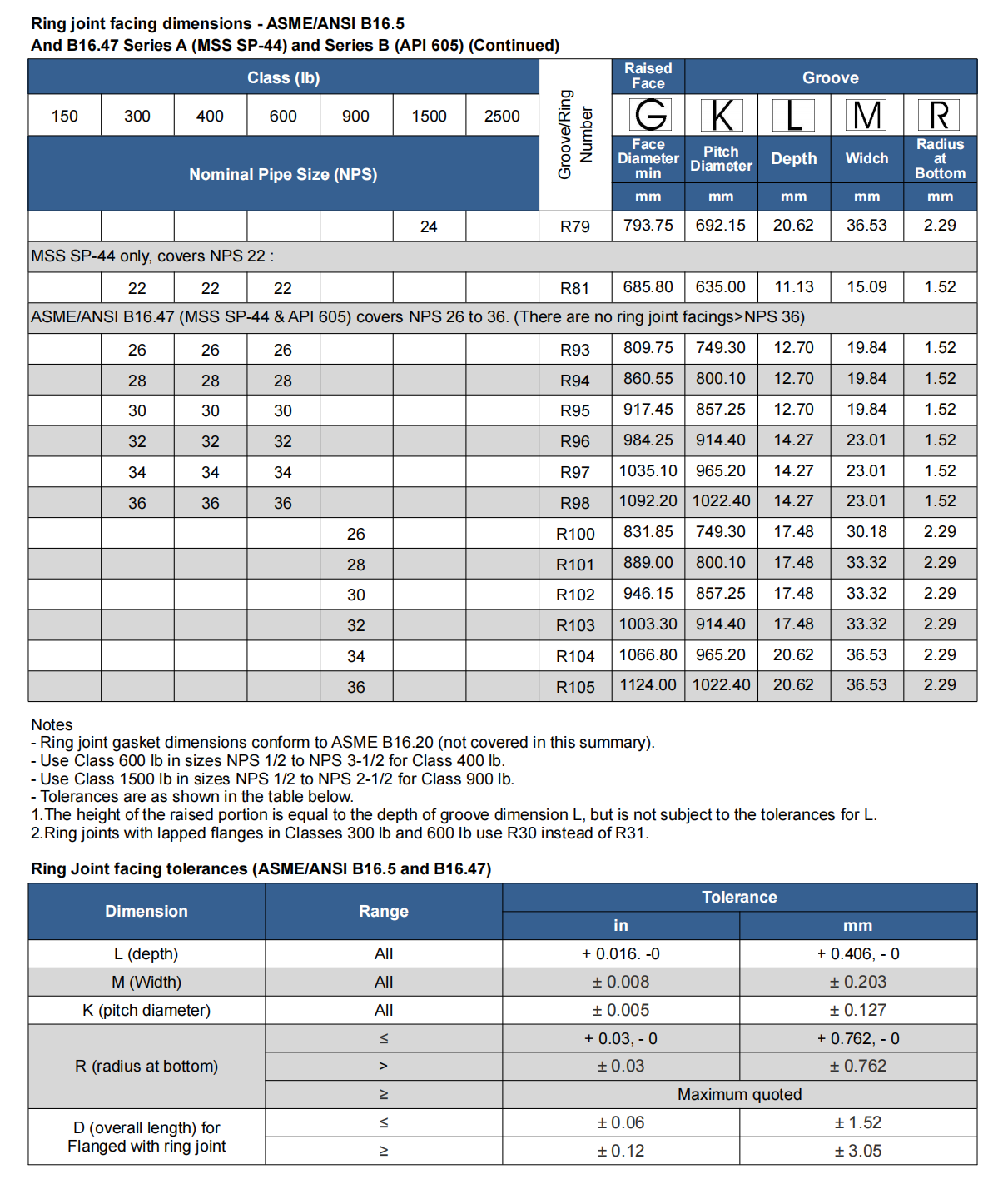

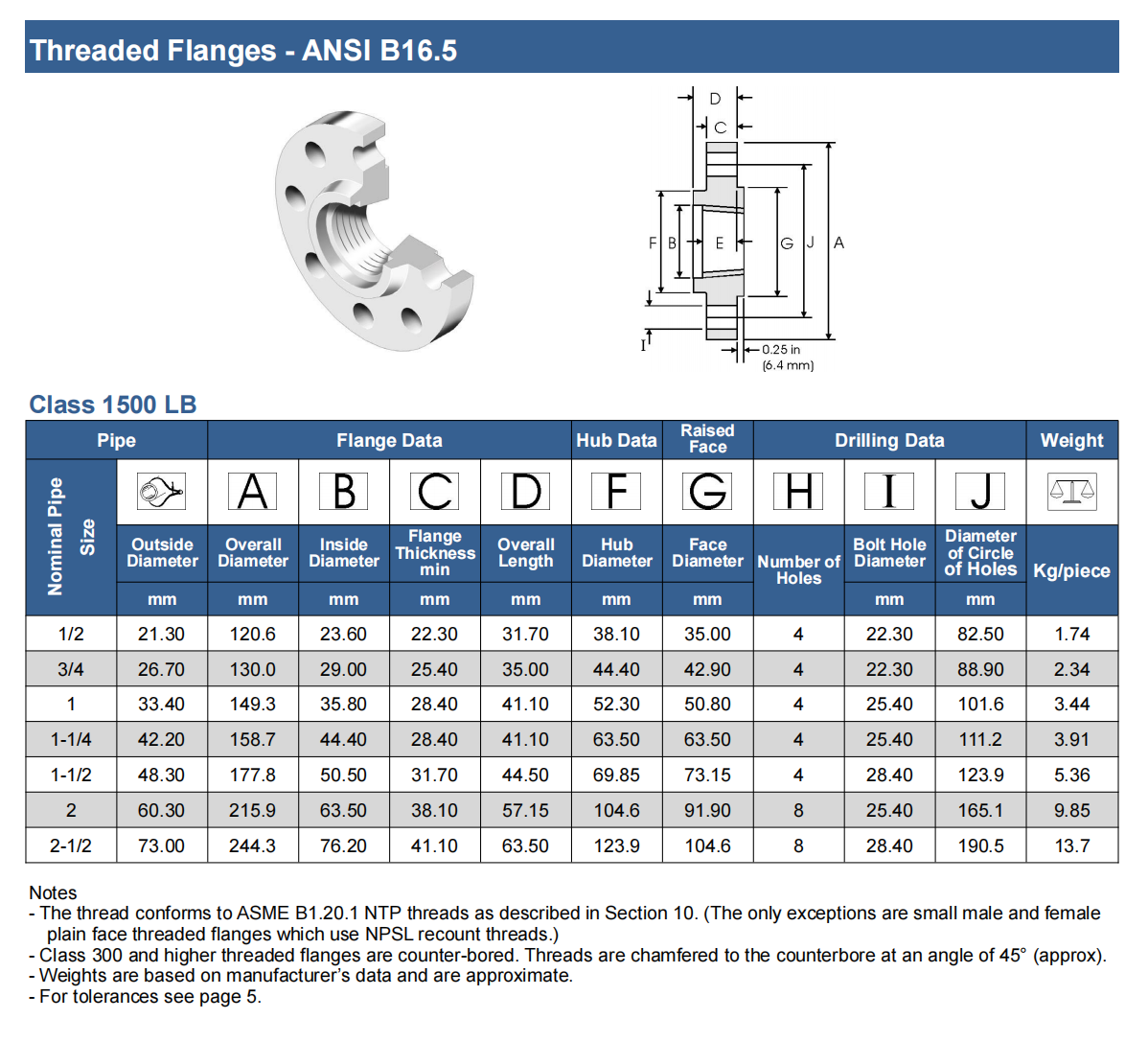

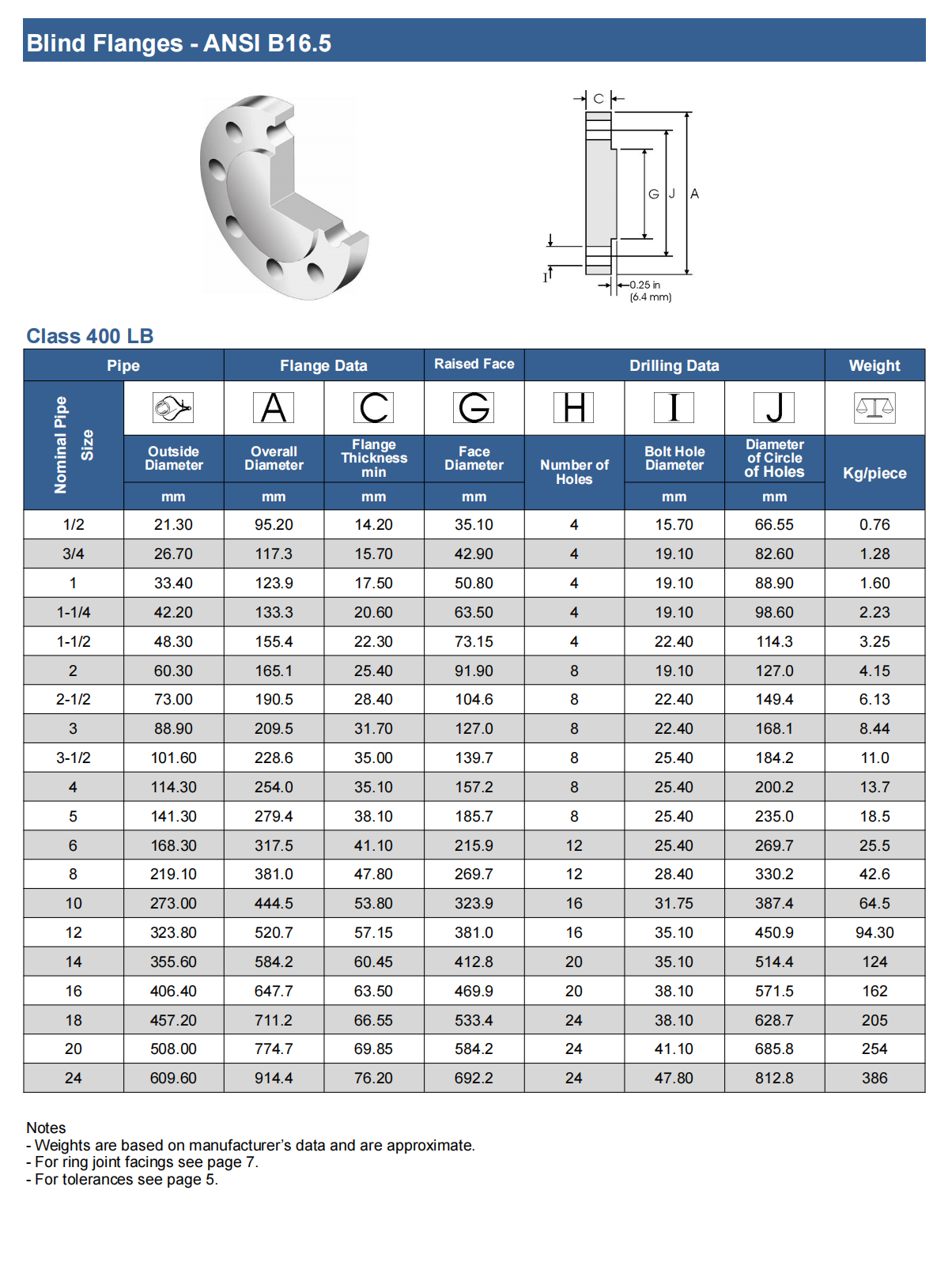

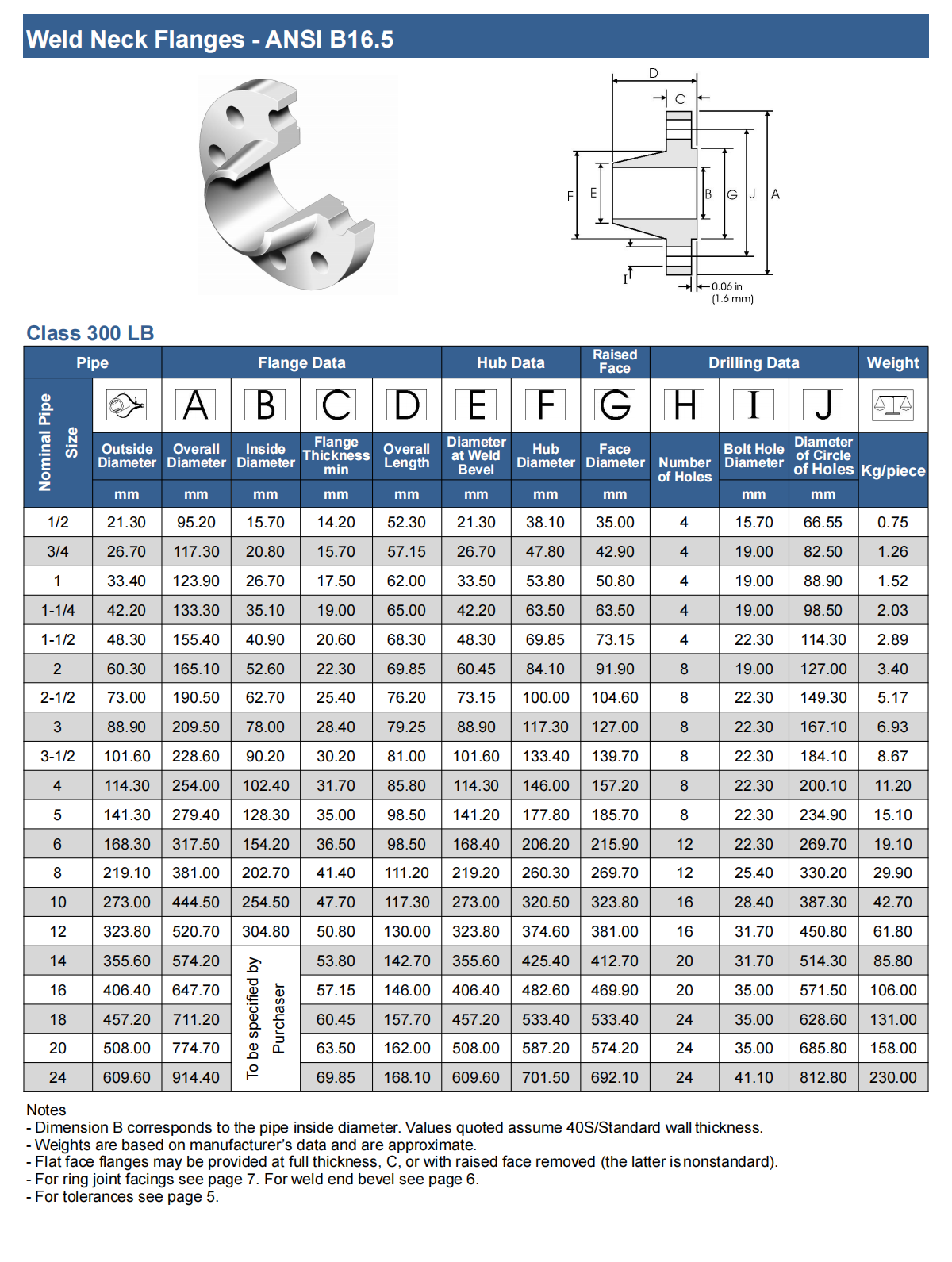

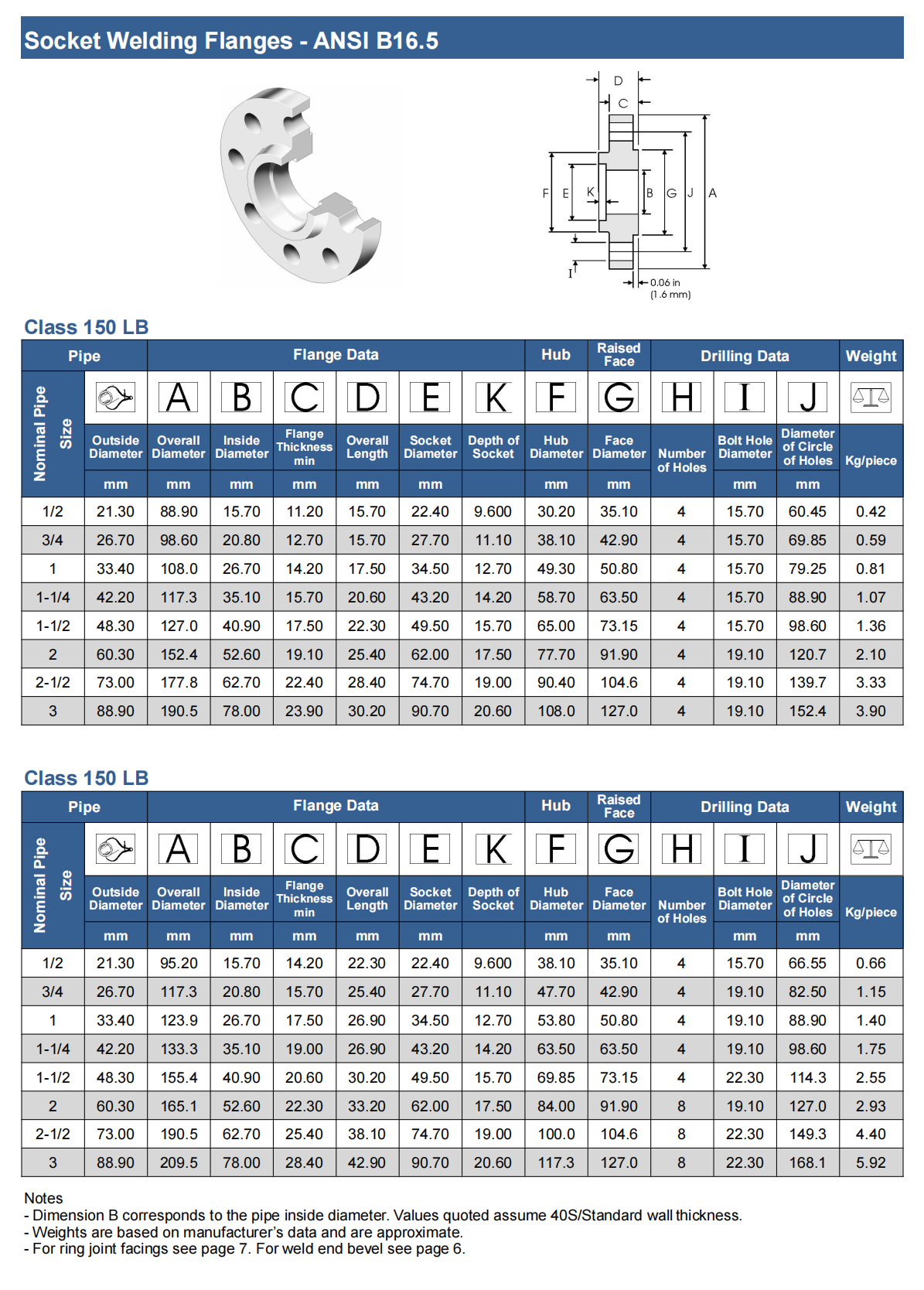

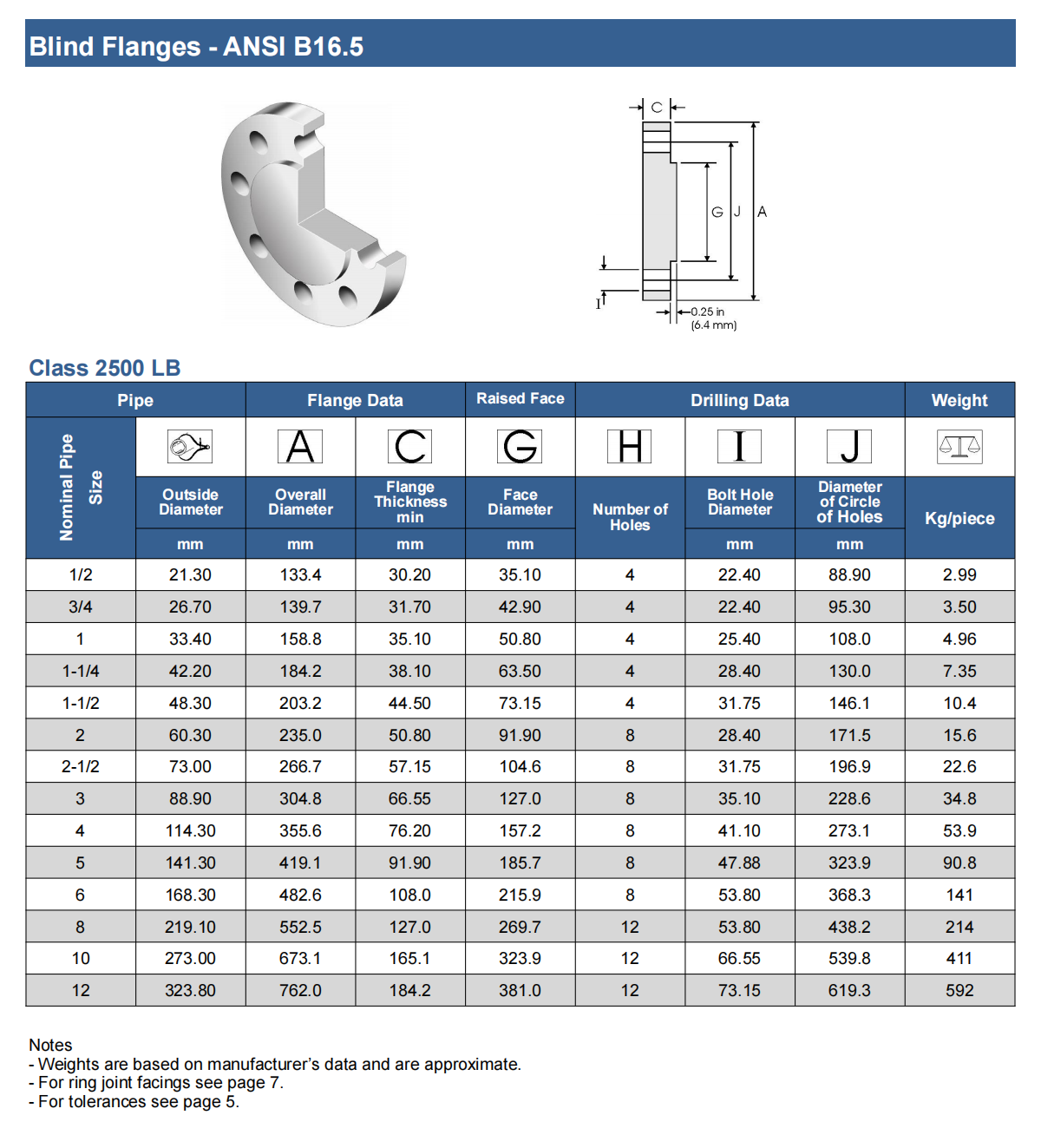

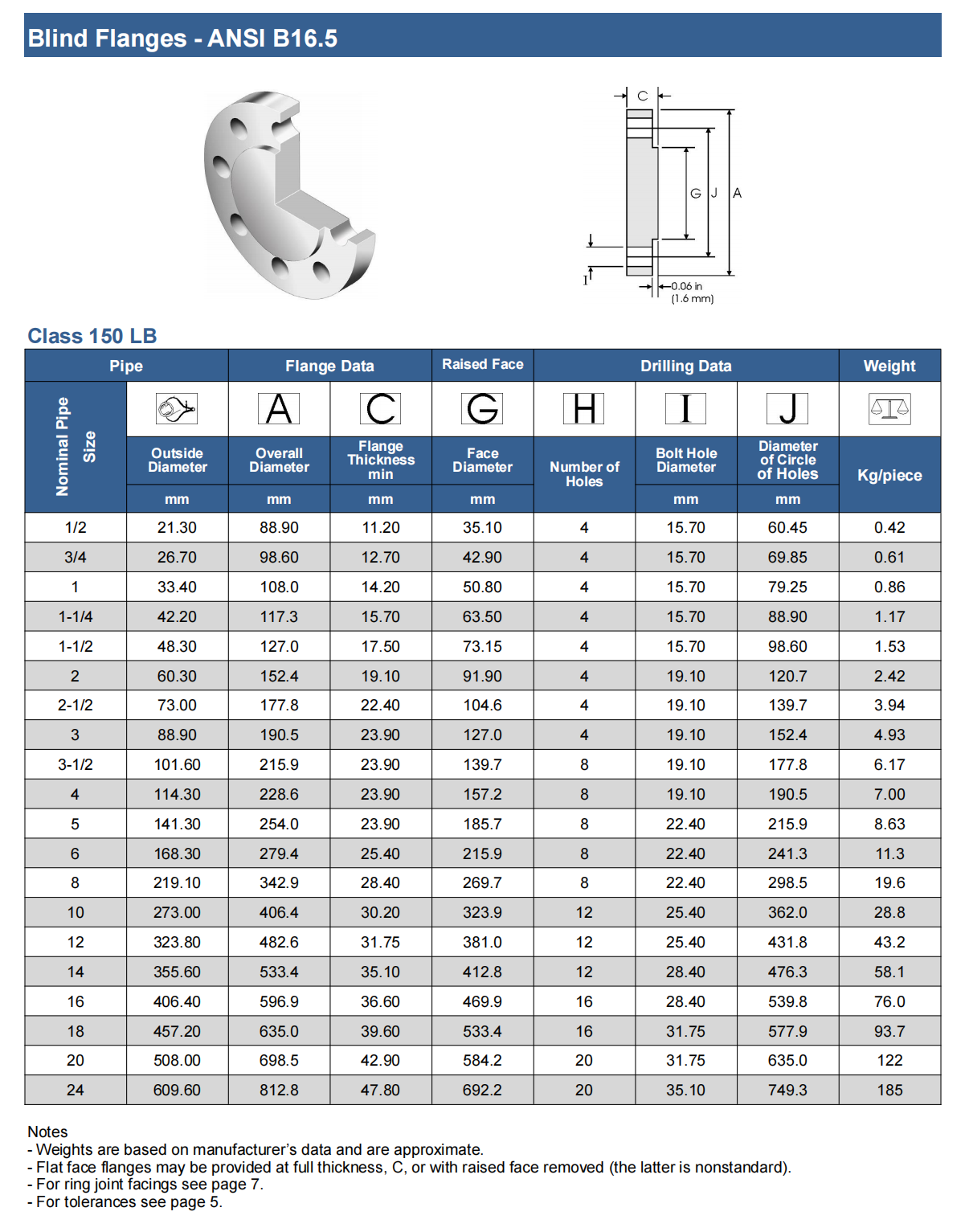

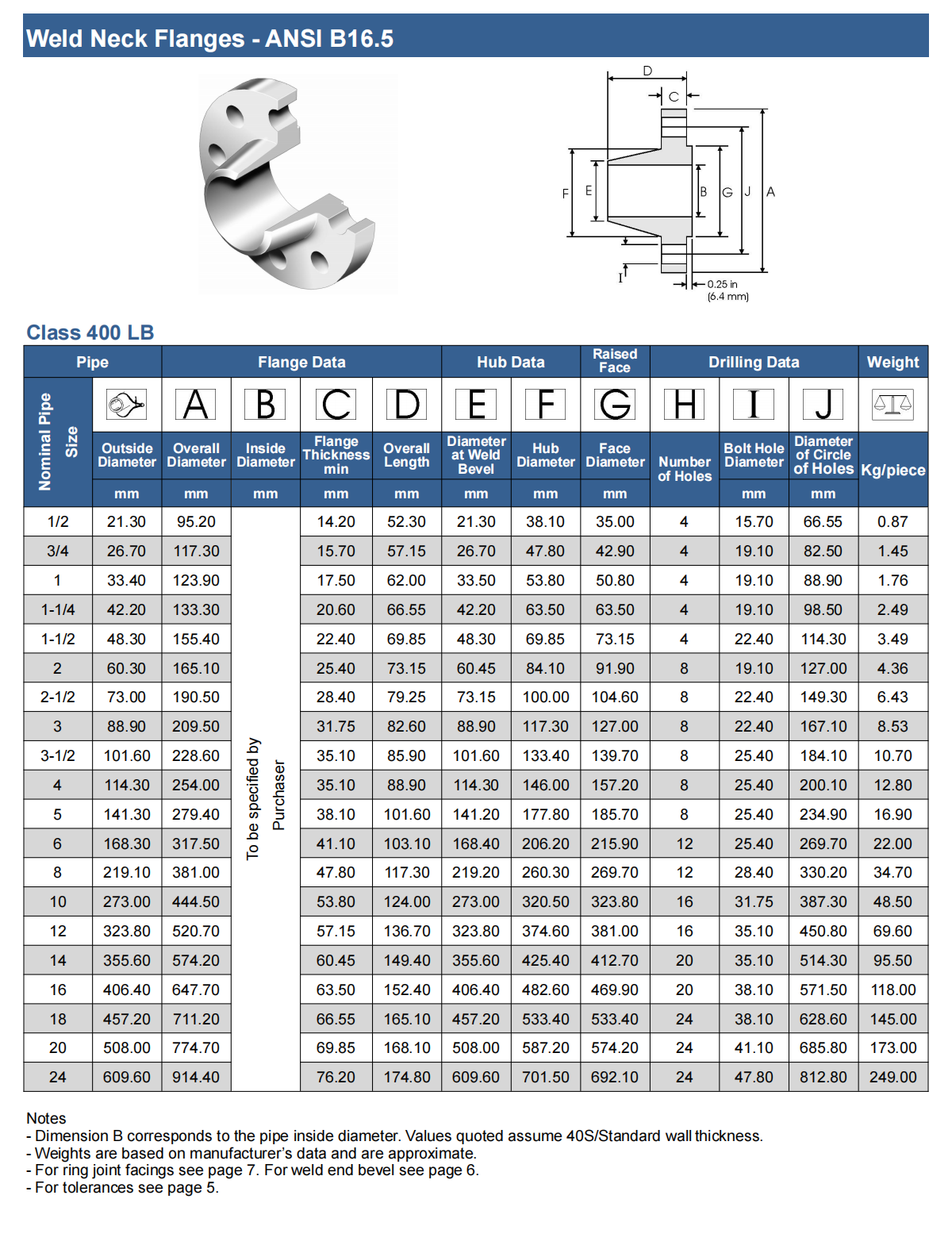

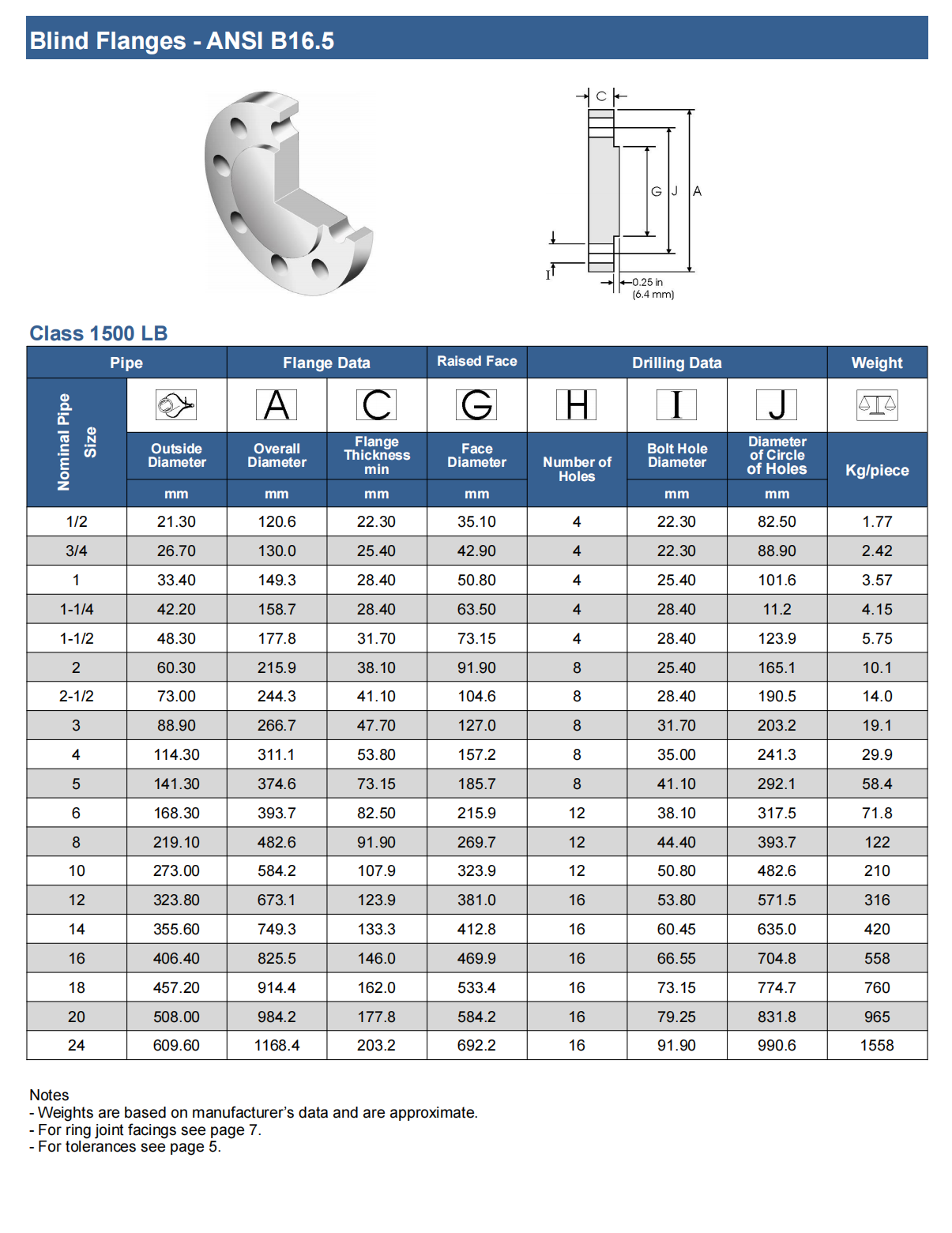

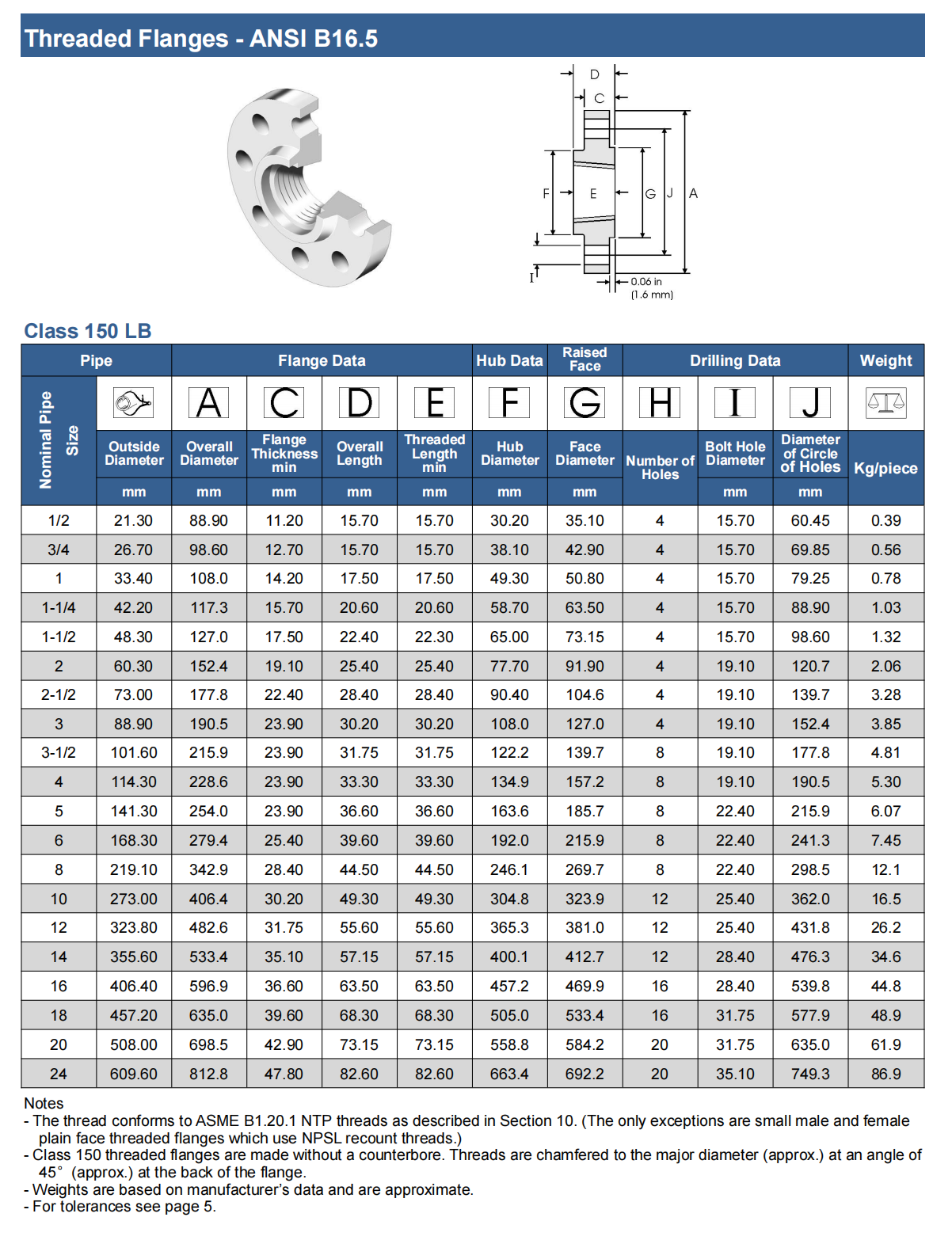

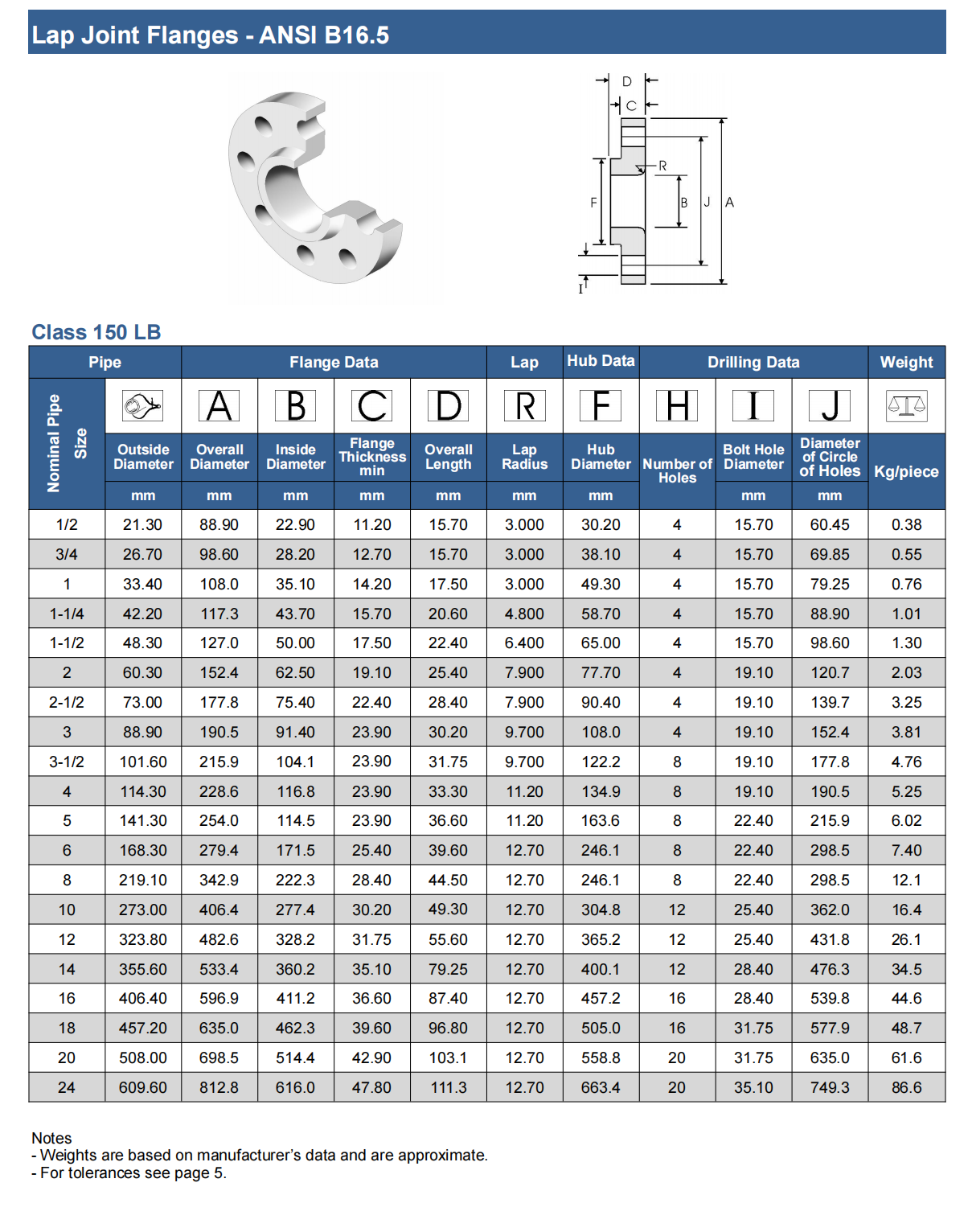

———— Product Specifications ————

———— Exhibition ————

———— Payment ————

Secure & flexible options for global buyers

———— Packing and transportation ————

———— About RFQ ————
